20. JetArm and Sliding Rail Integration Course

20.1 Sliding Rail Installation

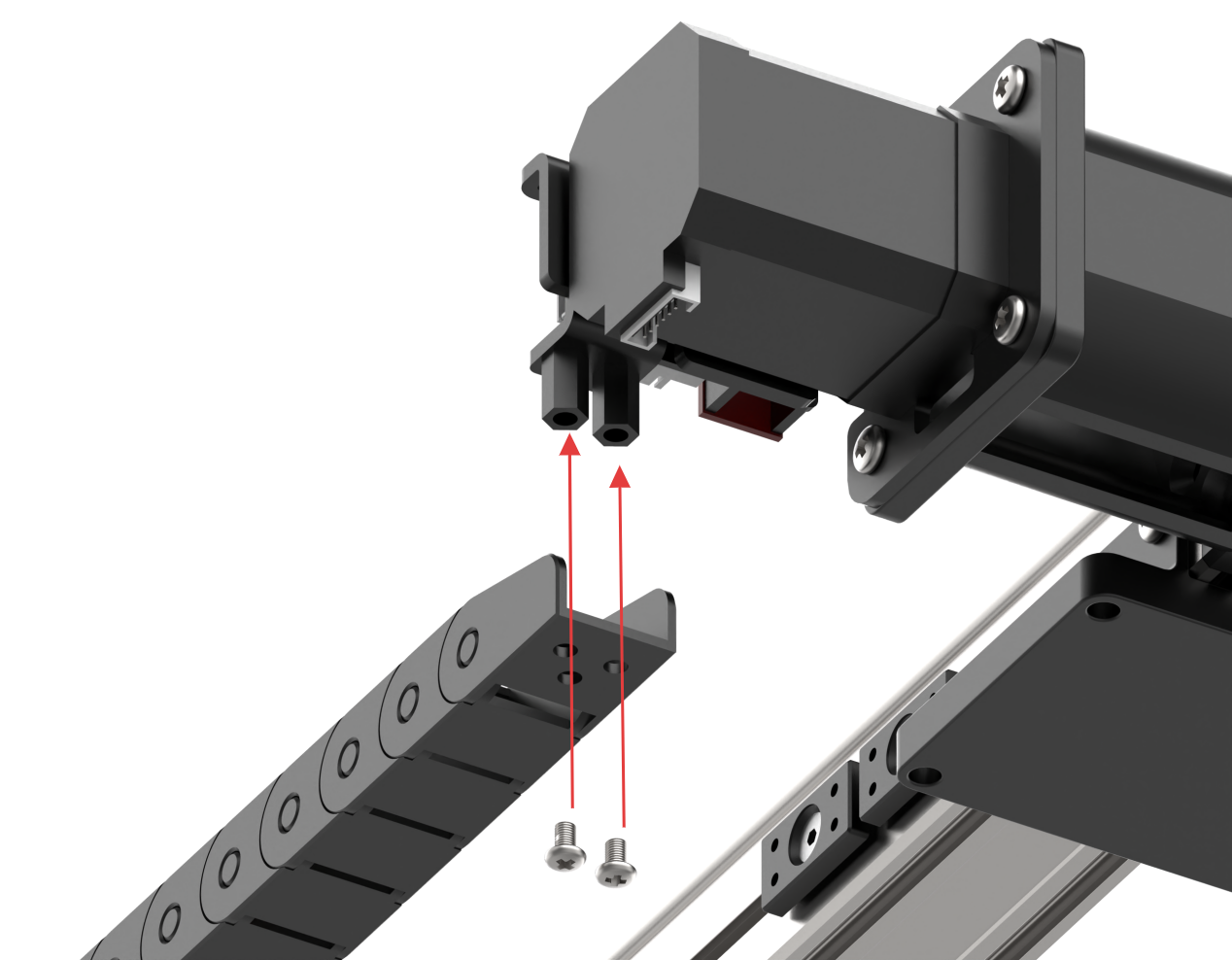

  • Step 1: Install the Tank Track

Secure the tank track onto the sliding rail using two M4*6 pan head machine screws.

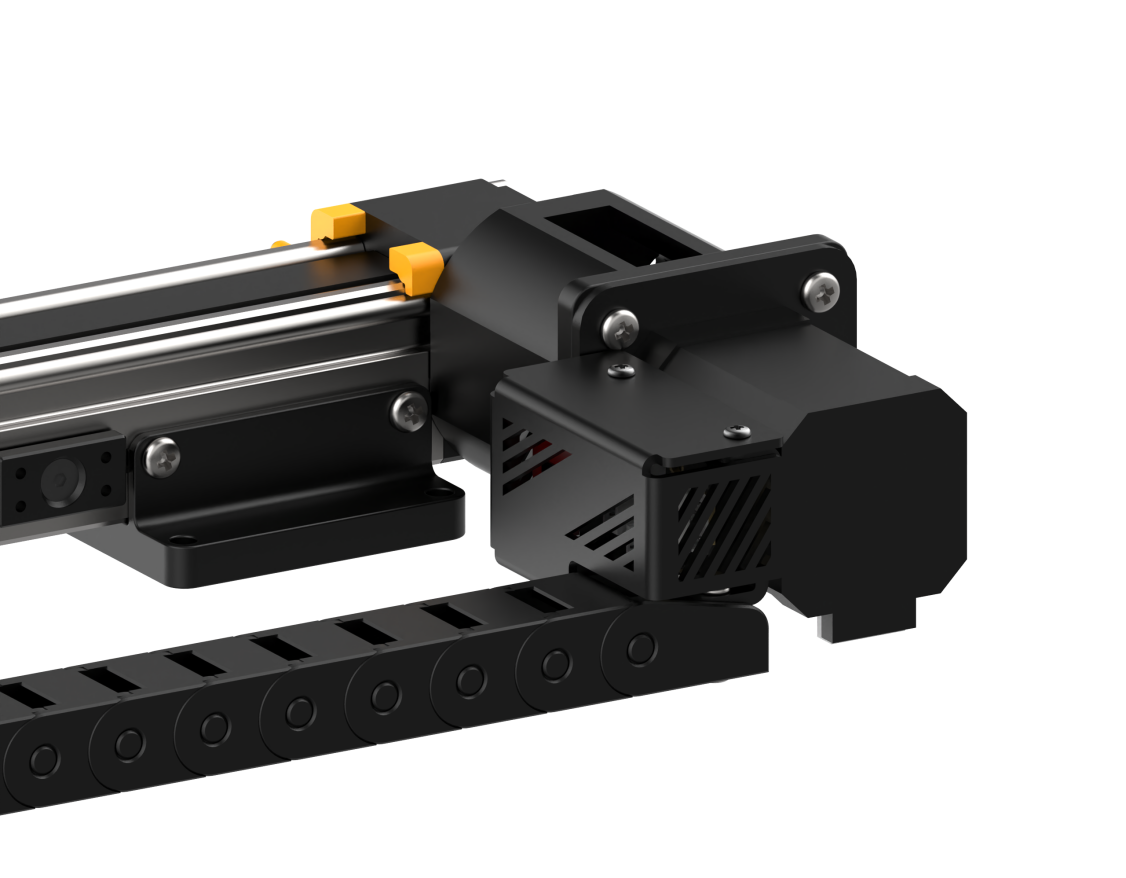

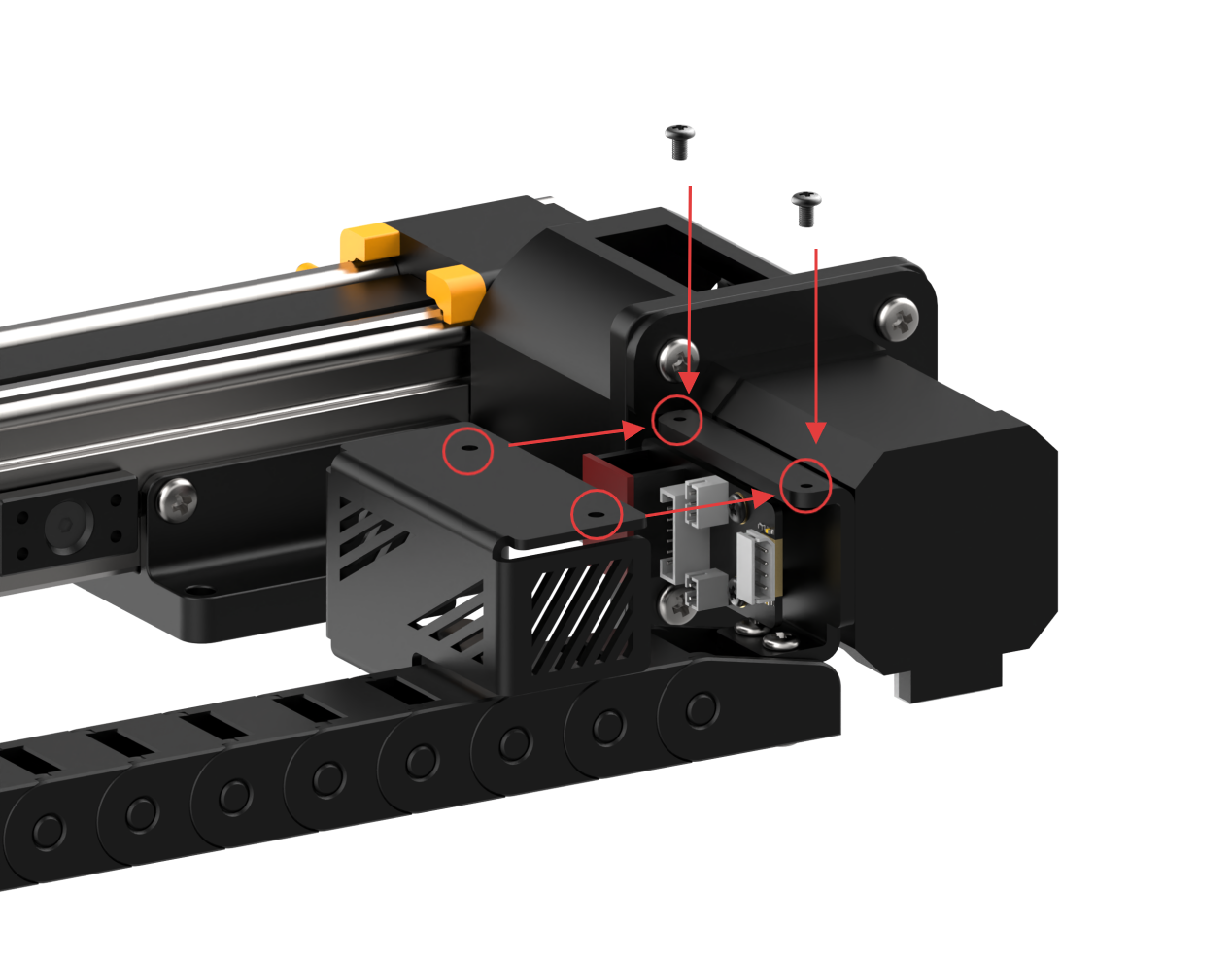

  • Step 2: Install the Motor Fixing Cover

Attach the motor fixing cover to the sliding rail using two M3*6 pan head machine screws.

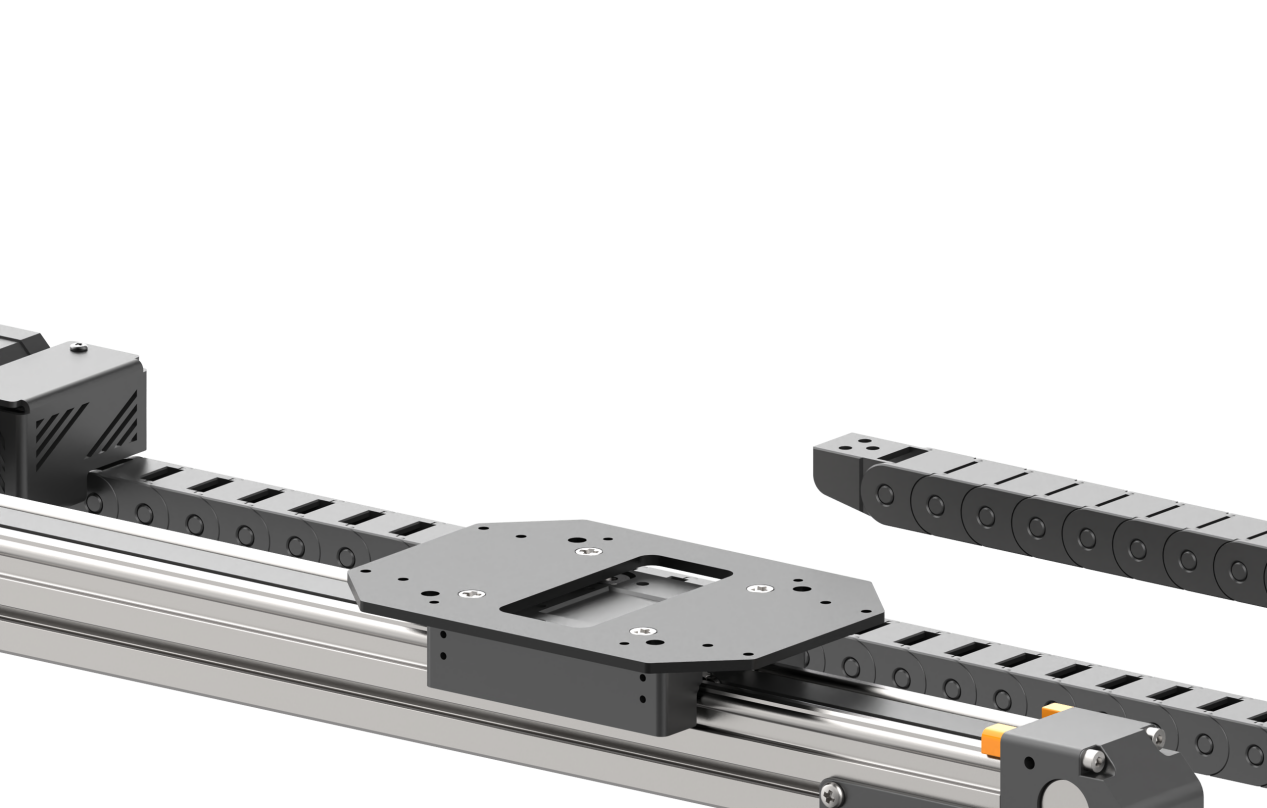

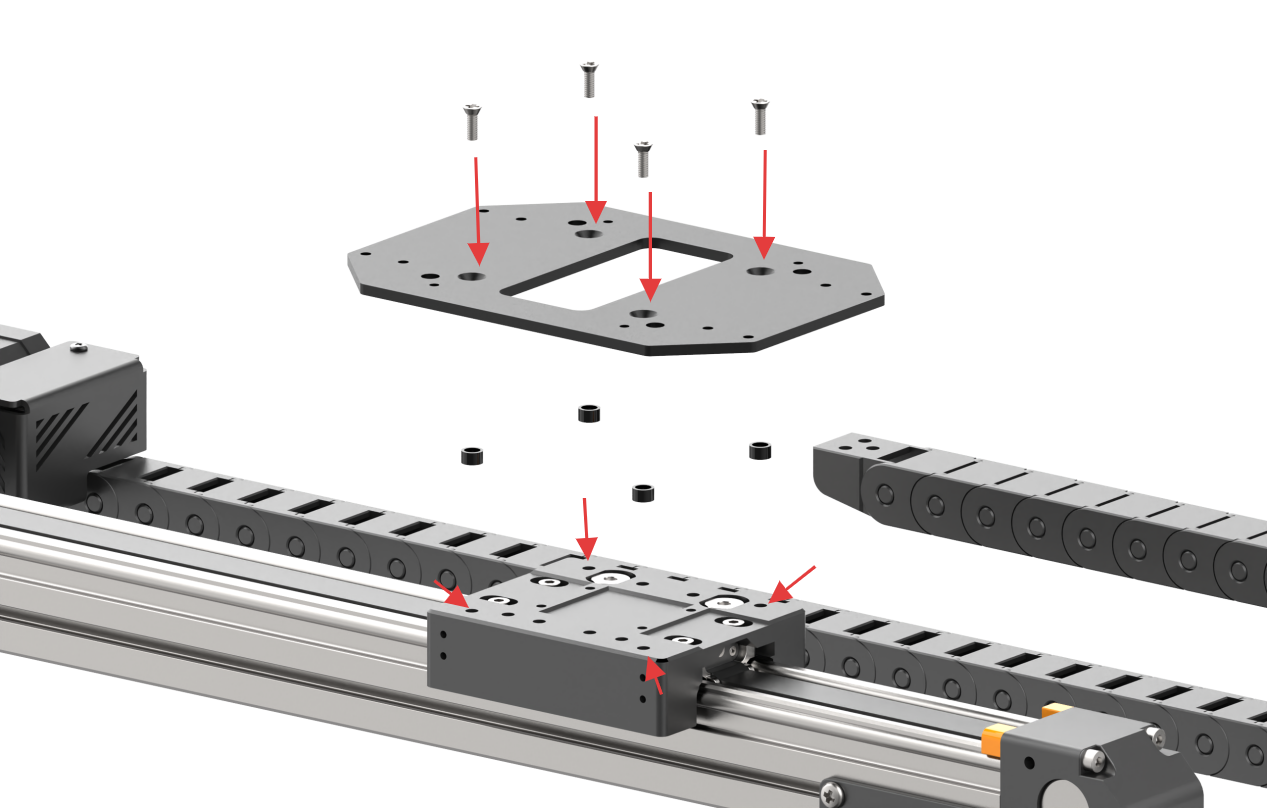

  • Step 3: Install the Sliding Rail Base Plate

Secure the base plate to the sliding rail using four M5*12 countersunk machine screws and four nylon spacers (5.2*7*4 mm).

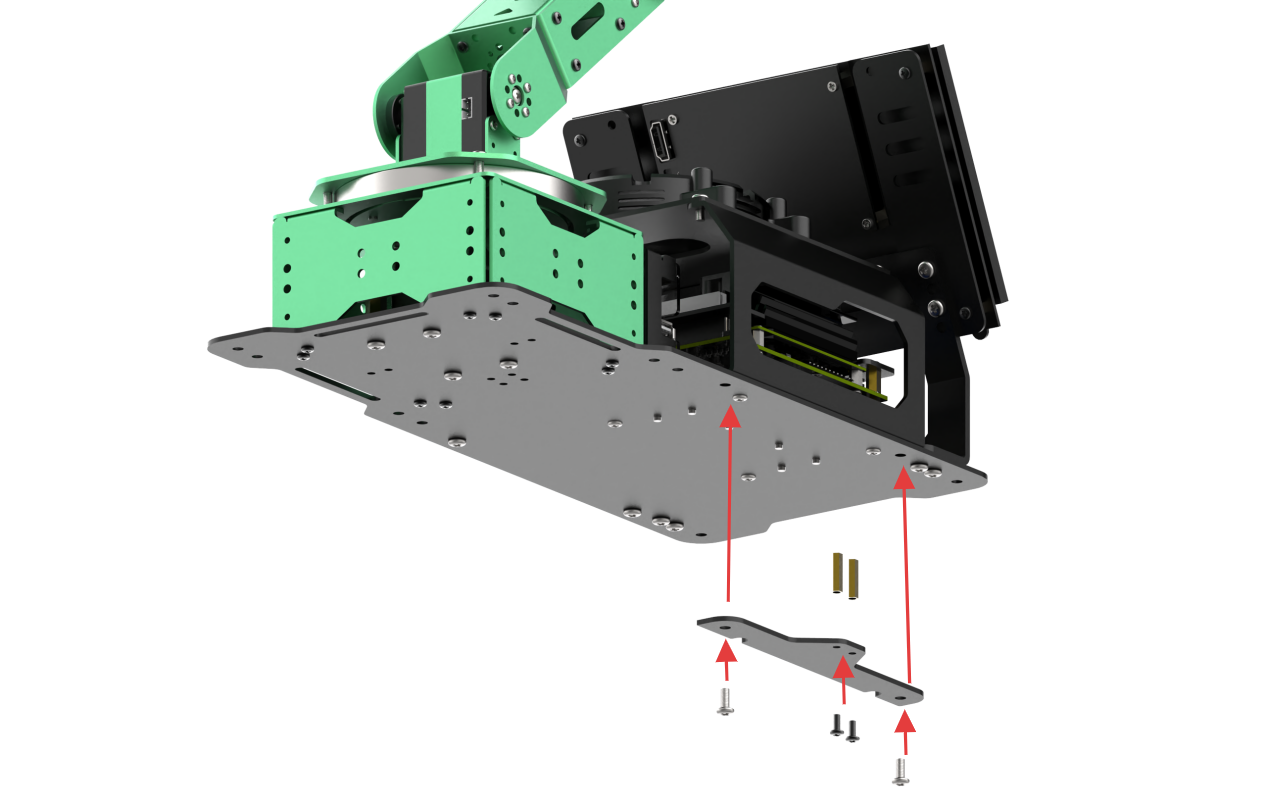

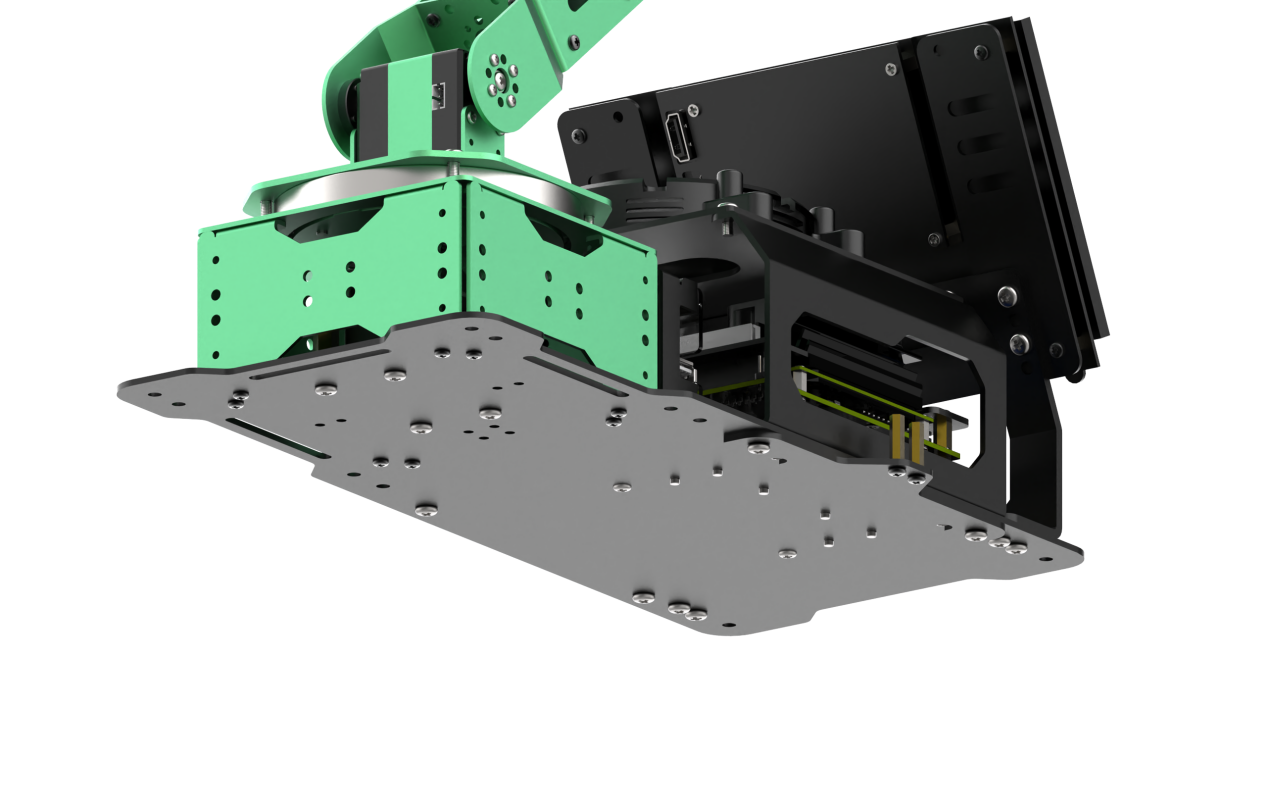

  • Step 4: Install the Sliding Rail Adapter Bracket

Mount the adapter bracket onto the JetArm base plate using two M4*8 pan head machine screws. Then, attach two M3*15 double-pass brass standoffs to the JetArm adapter plate using two M3*6 pan head machine screws.

  • Step 5: Install the Robotic Arm

Mount the robotic arm onto the sliding rail base plate using four M3*10 pan head machine screws.

Note

Before this step, remove the pre-installed M3*6 screws from the robotic arm.

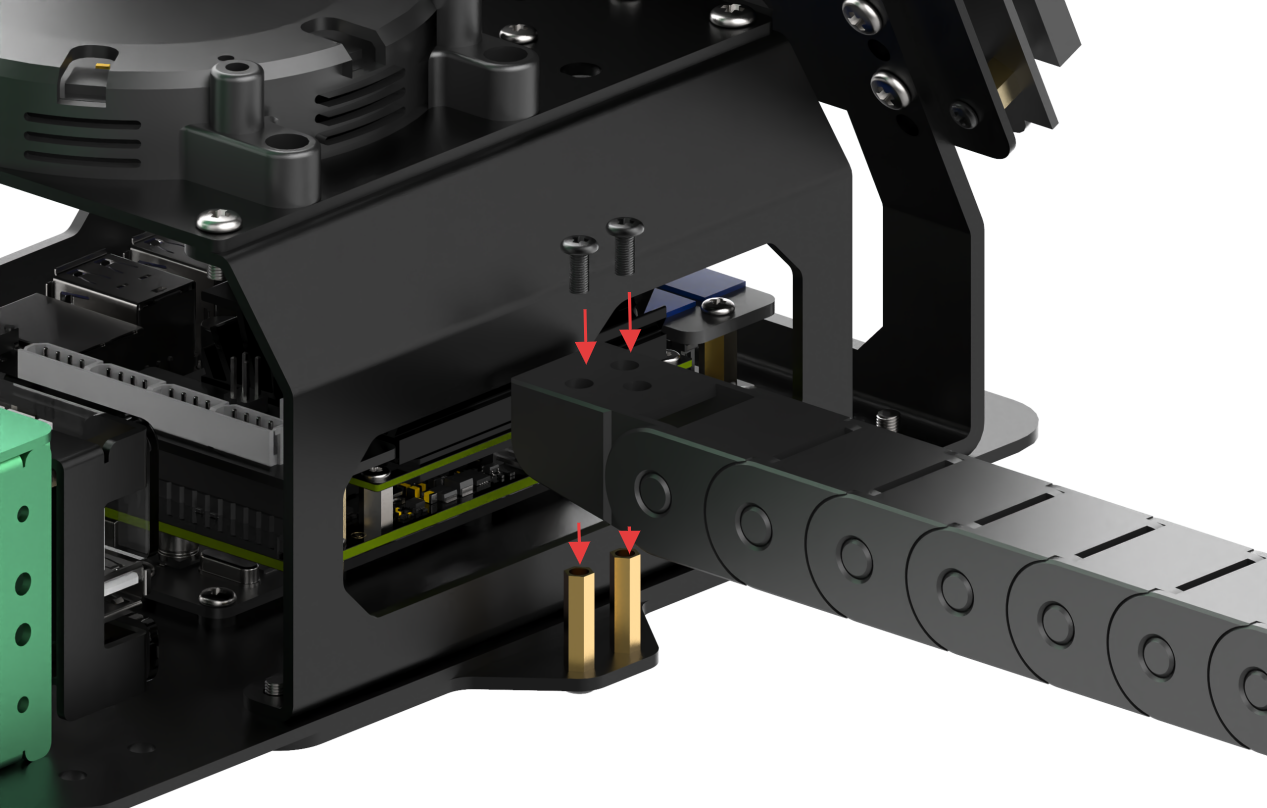

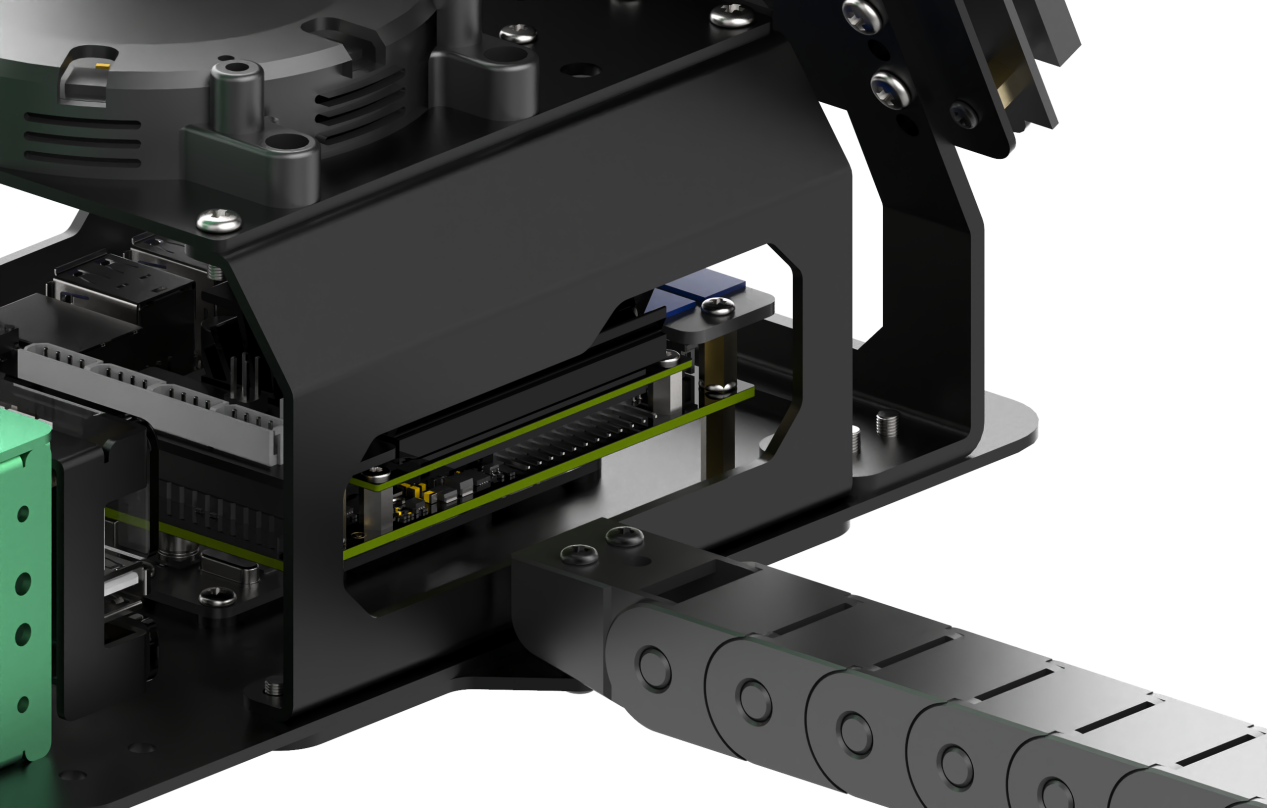

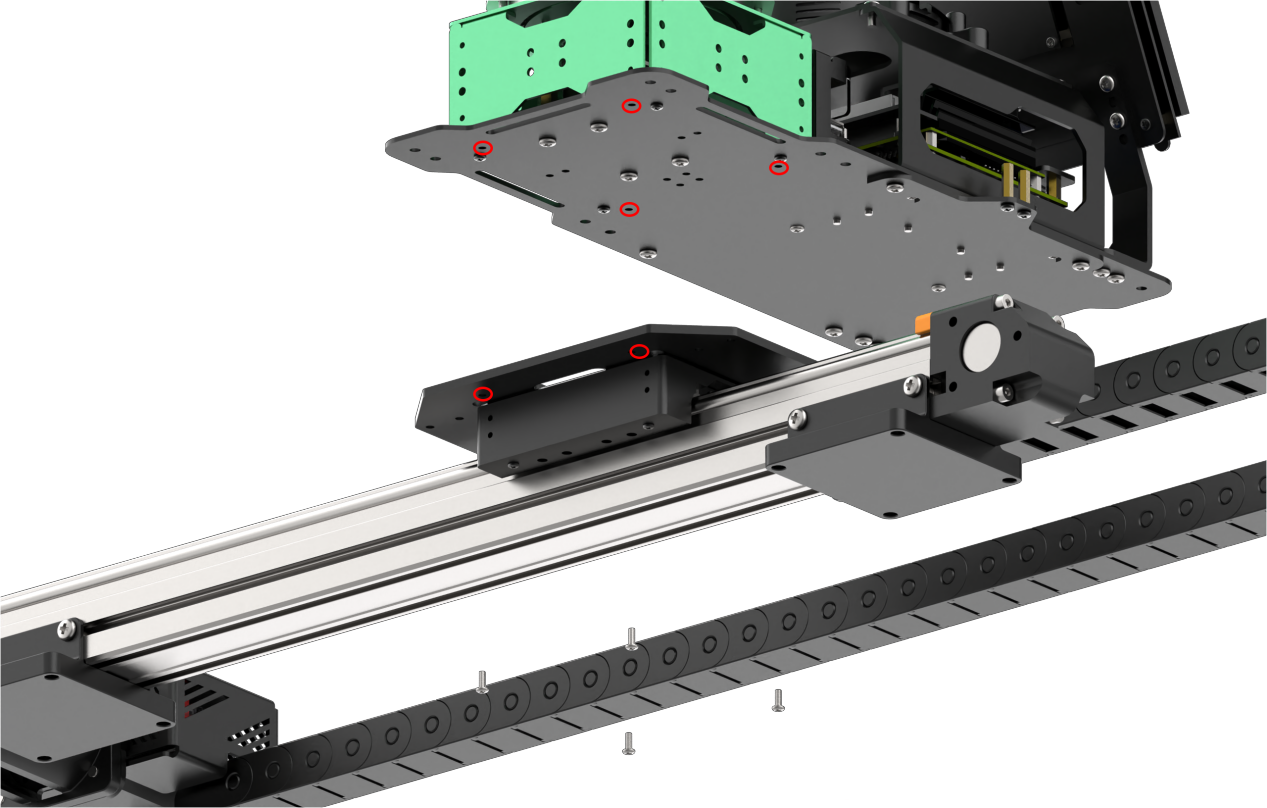

  • Step 6: Attach the Tank Track to the Robotic Arm

Use two M3*6 pan head machine screws to secure the tank track assembly to the JetArm robotic arm.

  • Step 7: Final Assembly and Wiring Instructions

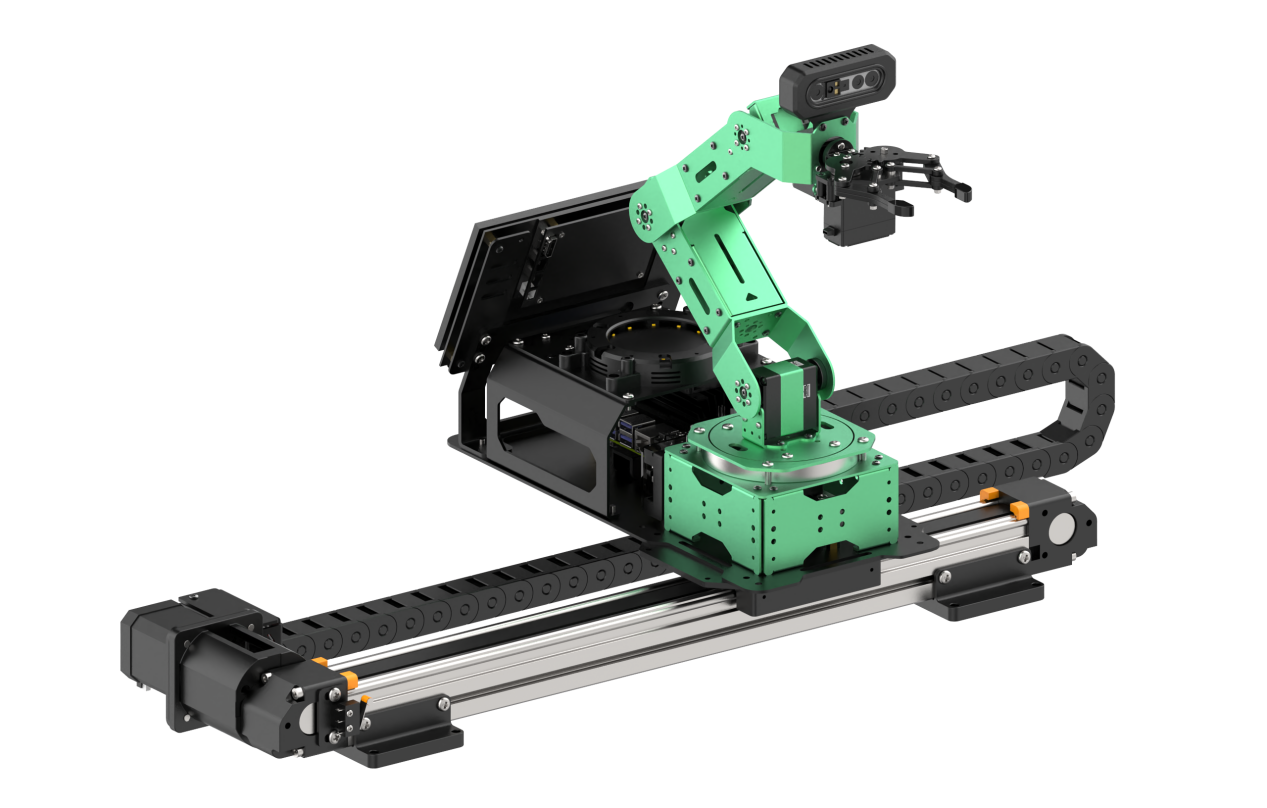

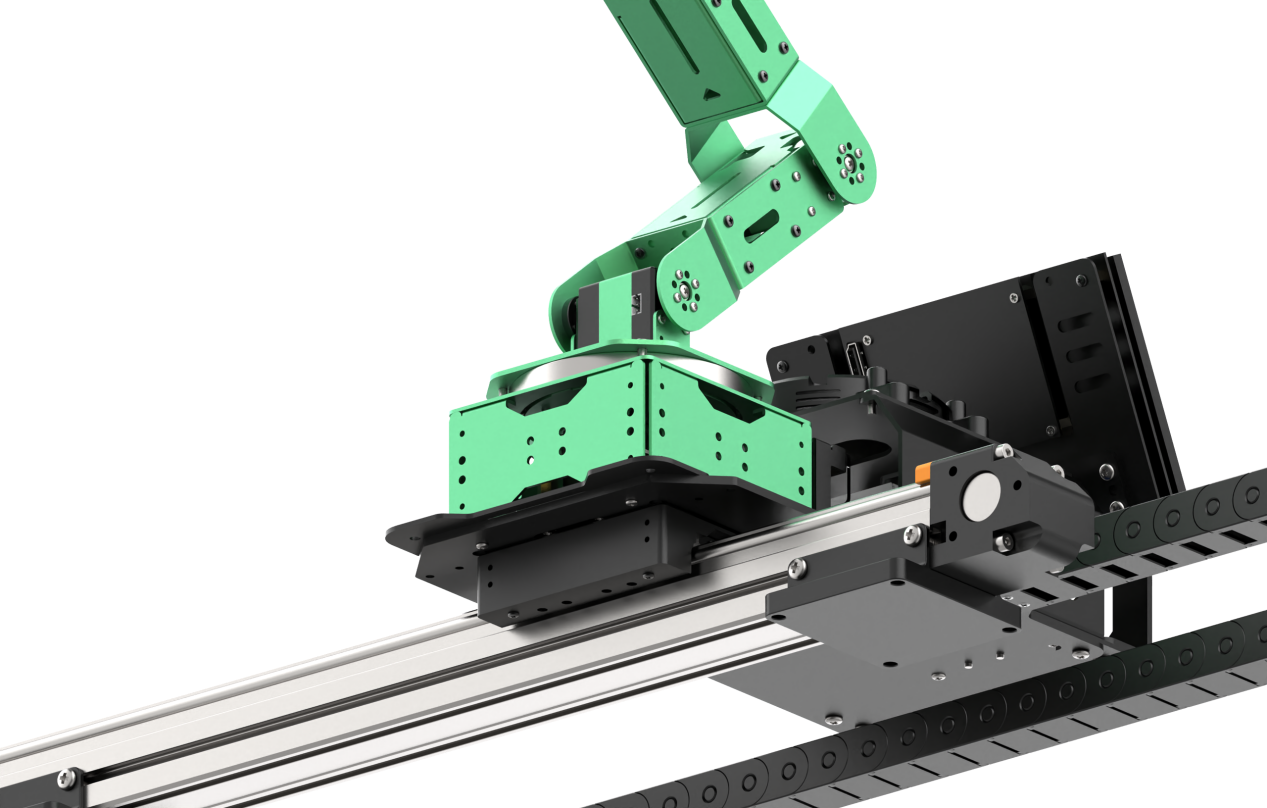

Once fully assembled, the setup should appear as shown in the diagram below.

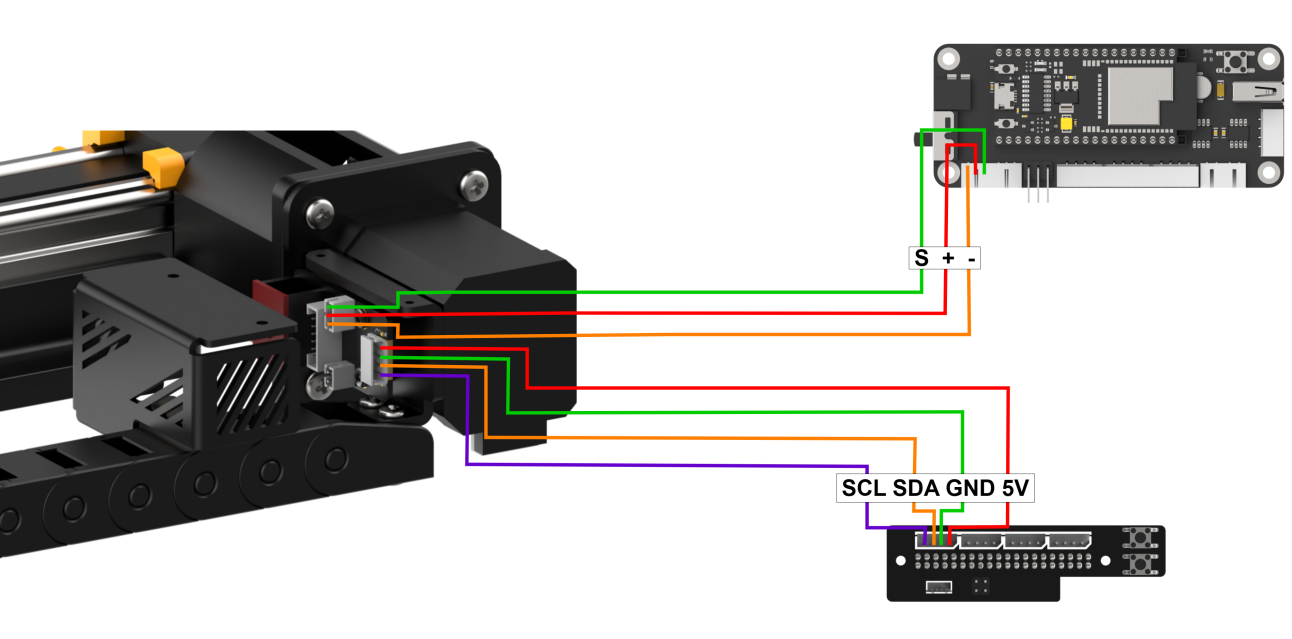

Connect the 3-pin cable from the sliding rail to the 3-pin terminal on the STM32 expansion board for power supply. Connect the 4-pin cable from the sliding rail to the IIC interface on the Jetson Nano expansion board. As shown in the figure below:

20.2 Selecting the Robot Type

JetArm’s expansion accessories come in four types: tank chassis, Mecanum wheel chassis, sliding rail, and conveyor belt. After installation, you must switch the device version according to the installed accessory for proper operation.

Note

If you don’t switch or select the wrong version, the motor may run unpredictably, causing malfunctions or even damaging the device.

Step-by-step instructions:

(1) Power on the robotic arm and connect it to the remote control software NoMachine. For installation and connection of the remote desktop tool, see “1.6 Development Environment Setup and Configuration.”

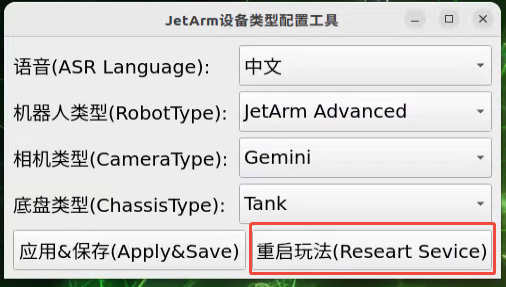

(2) Double-click the model configuration tool on the desktop.

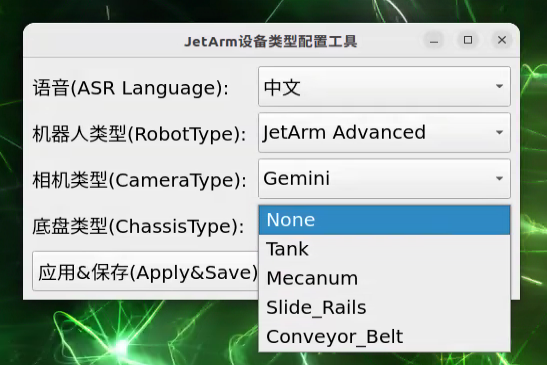

(3) Select the appropriate options based on the robotic arm version, camera version, and accessory type:

Tank refers to the tracked chassis. Mecanum refers to the mecanum wheel chassis. Slide_Rails refers to the sliding rail. Conveyor_Belt refers to the conveyor belt.

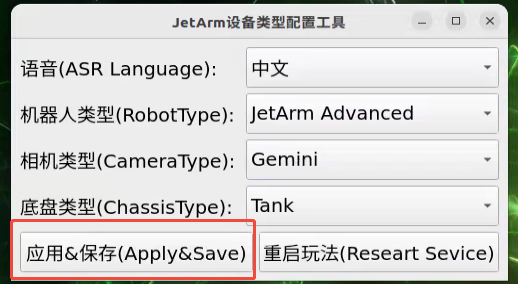

(4) After making your selection, click “Apply & Save” to save the configuration.

(5) Click “Restart Service” to reload the configuration.

Wait for the buzzer to beep once—this indicates the restart is complete and the new configuration is now active.

20.3 Position Calibration

Note

  • This section applies specifically to the sliding rail configuration. Please ensure the robotic arm is calibrated for mechanical deviations while placed on a flat table before mounting it on the sliding rail.

  • Position calibration is the process of converting coordinates from the camera’s visual feedback to the real-world coordinates of the robotic arm. Through this calibration, the system can accurately determine the actual distance between the robotic arm and the wooden block, enabling precise operations like sorting and object placement.

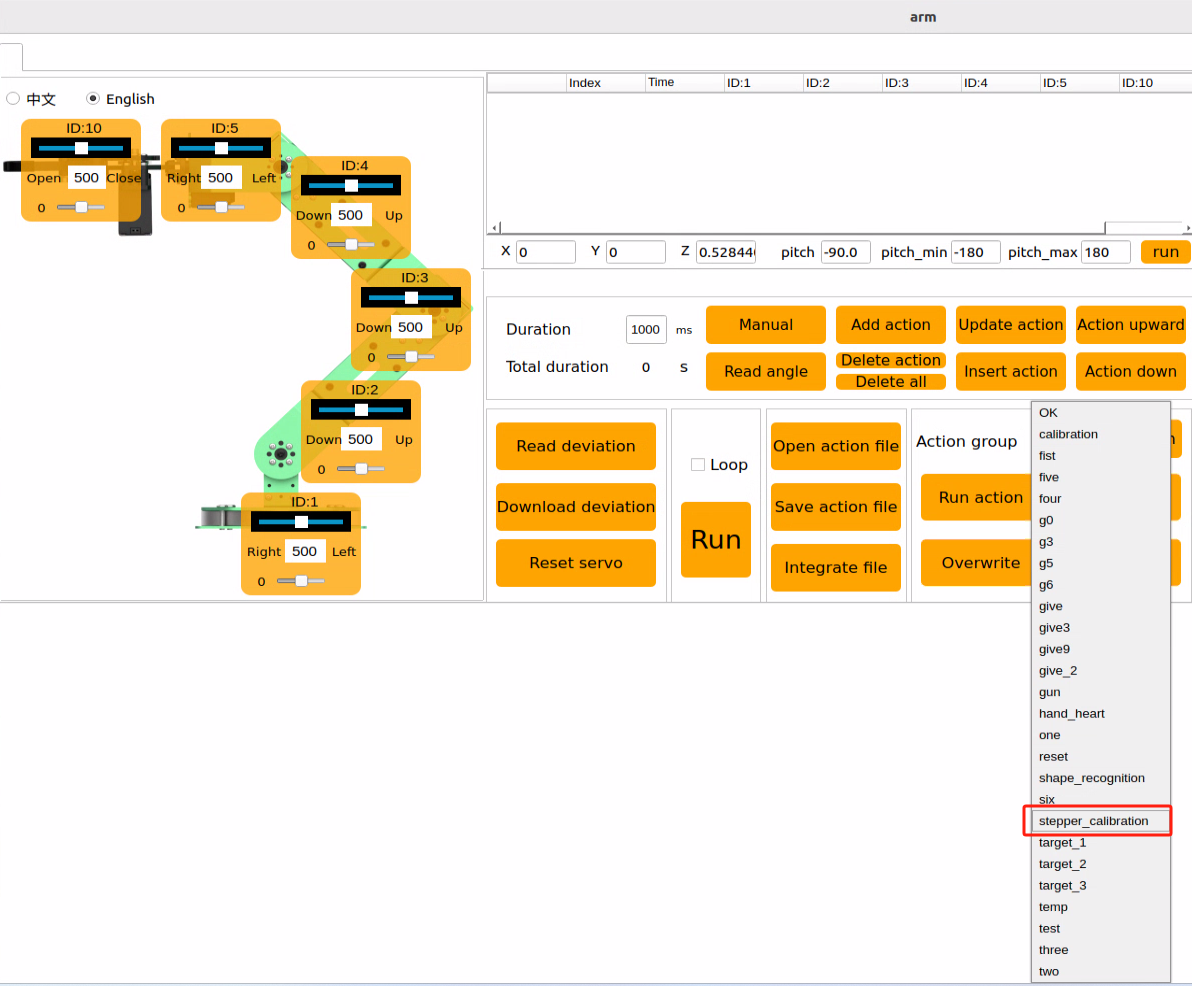

(1) Double-click the desktop icon to open the control software, select the action group stepper_calibration, then click “Run Action”.

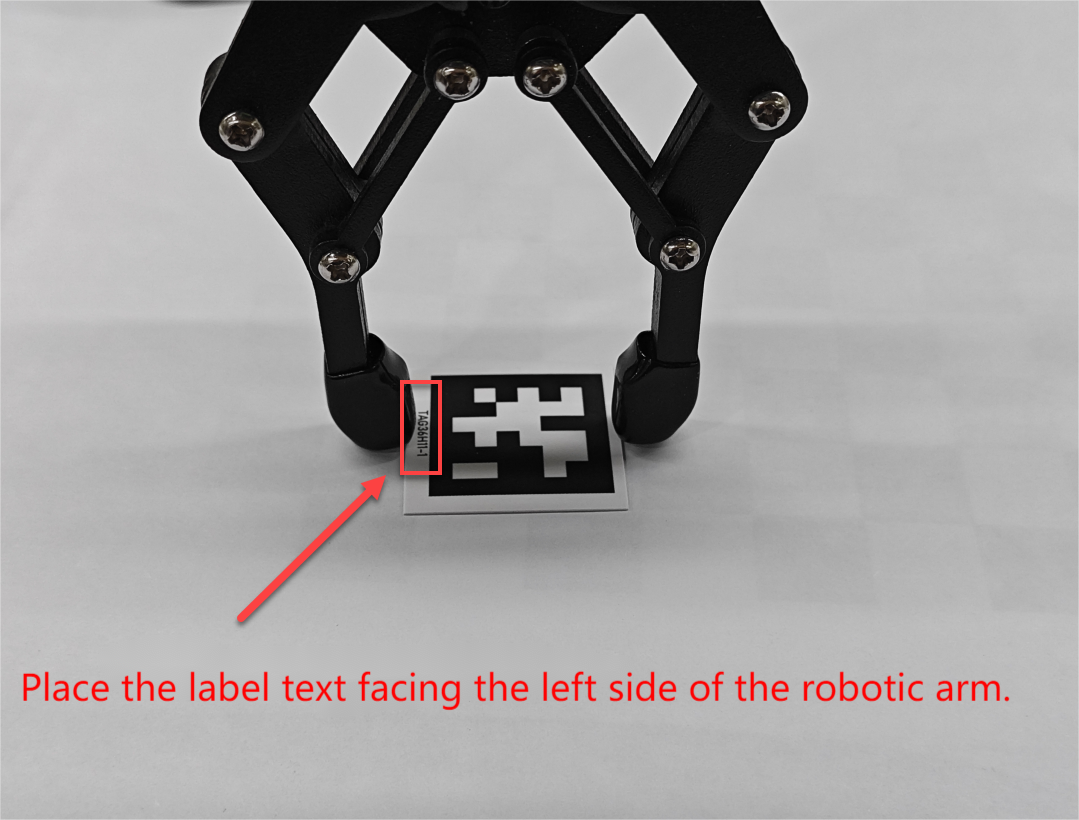

(2) Place the AprilTag with ID 1 at the exact center of the gripper. Ensure the “TAG36H11-1” label is facing toward the left side of the robotic arm as shown in the image below. Incorrect tag orientation can result in a misaligned ROI (Region of Interest) for the robotic arm.

(3) For fine-tuning the robotic arm’s gripping behavior, refer to: Position Adjustment for Object Gripping and Placing - Jetson Orin Nano/NX Controller version

20.4 Wireless Controller

20.4.1 Getting Started

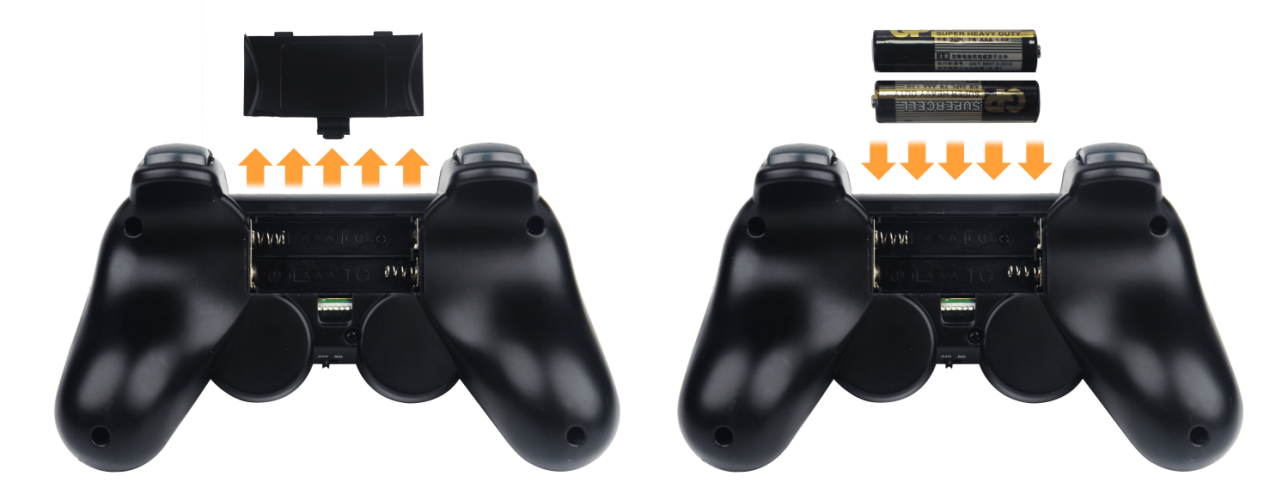

(1) Before powering on the device, make sure the wireless controller receiver is properly inserted. This can be ignored if the receiver was pre-inserted at the factory.

(2) Pay attention to battery polarity when placing the batteries.

(3) Each time the robot is powered on, the APP auto-start service will launch which includes the wireless handle control service. If this service has not been closed, no additional actions are needed—simply connect and control.

(4) Since wireless handle signals can interfere with each other, it is recommended not to use this function when multiple robots are in the same area, to avoid misconnection or unintended control.

(5) After turning on the wireless handle, if it does not connect to the robot within 30 seconds, or remains unused for 5 minutes after connection, it will enter sleep mode automatically. To wake up the wireless handle and exit sleep mode, press the “START” button.

20.4.2 Device Connection

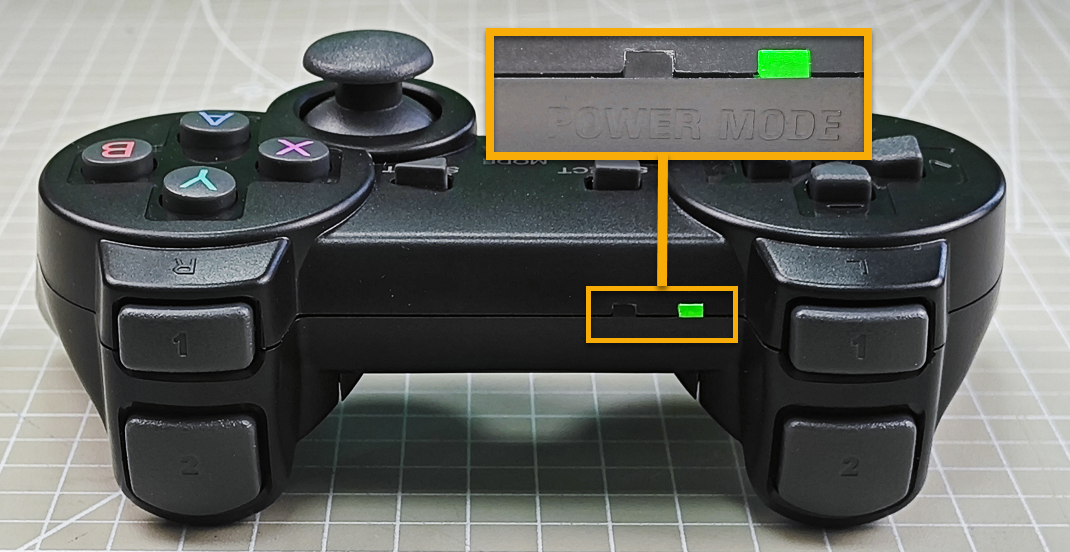

(1) After the robot powers on, slide the wireless handle switch to the “ON” position. At this point, the red and green LED indicators on the wireless handle will start flashing simultaneously.

(2) Wait a few seconds for the robot and wireless handle to pair automatically. Once pairing is successful, the green LED will remain solid while the red LED turns off.

20.4.3 Control Modes

The wireless handle supports two control modes: Coordinate Mode and Single Servo Mode. After a successful connection, the default mode is Coordinate Mode.

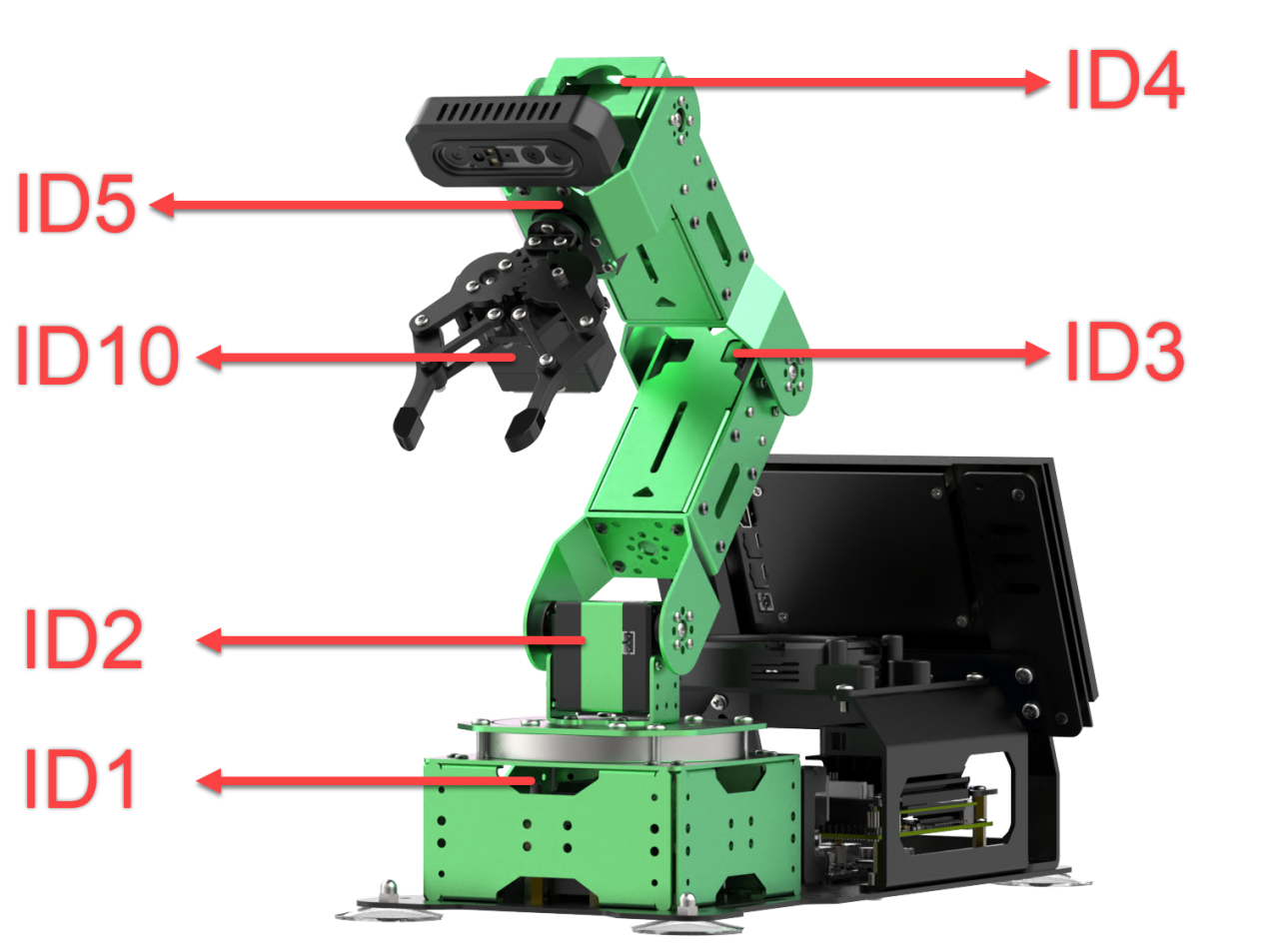

  • Single Servo Mode: In this mode, the wireless handle buttons can be used to control the forward and reverse rotation of individual servos on the robotic arm.

Button Functions in Single Servo Mode:

Button Function (from the robotic arm's first-person perspective)
START Reset the robotic arm
SELECT+START Switch control mode (Single Servo / Coordinate)
UP / ↑ Raise Servo 2
DOWN / ↓ Lower Servo 2
LEFT / ← Rotate Servo 1 to the left
RIGHT / → Rotate Servo 1 to the right
Y Close the gripper (Servo 10)
A Open the gripper (Servo 10)
B Rotate Servo 5 to the right (Gripper turns right)
X Rotate Servo 5 to the left (Gripper turns left)
L1 Raise Servo 3
L2 Lower Servo 3
R1 Raise Servo 4
R2 Lower Servo 4
Left Joystick LEFT Move the sliding rail to the left
Left Joystick RIGHT Move the sliding rail to the right

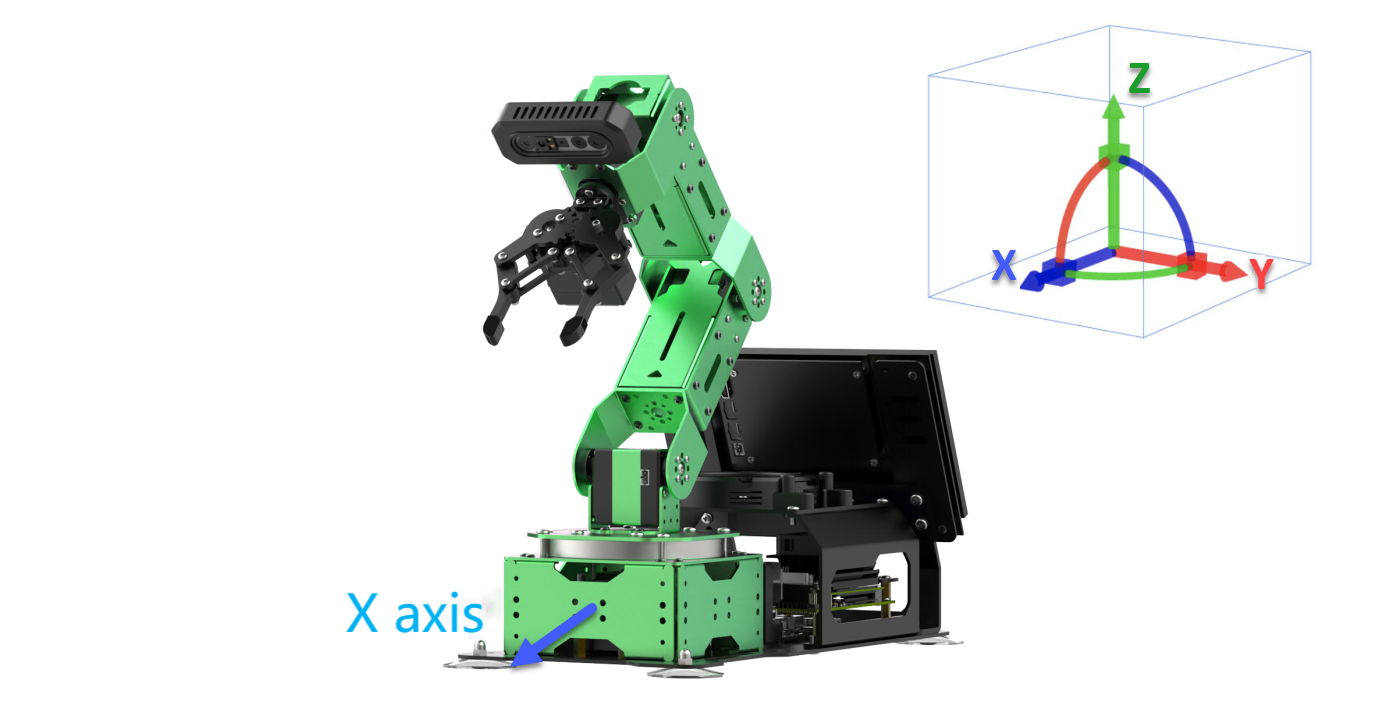

  • Coordinate Mode: In Coordinate Mode, the robotic arm moves as a whole along the X, Y, and Z axes and can also adjust its tilt angle based on button inputs.

Switching Between Modes: To switch between modes, press both SELECT and START buttons. A sound prompt indicates the switch was successful.

(1) Two beeps: Switched from Single Servo Mode to Coordinate Mode.

(2) Two beeps: Switched from Single Servo Mode to Coordinate Mode.

Button Functions in Coordinate Mode:

Button Function (from the robotic arm's first-person perspective)
START Reset the robotic arm
SELECT+START Switch control mode (Single Servo / Coordinate)
UP / ↑ Move arm in the positive X direction (forward)
DOWN / ↓ Move arm in the negative X direction (backward)
LEFT / ← Move arm in the positive Y direction (left)
RIGHT / → Move arm in the negative Y direction (right)
Y Close the gripper (Servo 10)
A Open the gripper (Servo 10)
B Rotate Servo 5 to the right (Gripper turns right)
X Rotate Servo 5 to the left (Gripper turns left)
L1 Move arm upward along Z axis
L2 Move arm downward along Z axis
R1 Increase gripper pitch angle
R2 Decrease gripper pitch angle
Left Joystick LEFT Move the sliding rail to the left
Left Joystick RIGHT Move the sliding rail to the right

20.5 Color Sorting

20.5.1 Working Principle

In this experiment, the camera uses OpenCV algorithms to detect color blocks of a target color and calculates the center position of each block. Next, an inverse kinematics algorithm is applied to compute the pulse widths for the robotic arm’s servos, enabling the arm to grasp the target color block. Finally, the sliding rail moves to the designated drop-off location based on the color of the block, and the arm performs a placing action to complete the sorting process.

20.5.2 Enabling and Disabling the Feature

Note

When entering commands, be sure to use correct case and spacing. You can use the Tab key to auto-complete keywords.

(1) Refer to “1.6 Development Environment Setup and Configuration” to establish a connection between the robotic arm and the remote desktop tool.

(2) Double-click to launch the command bar, enter the command, and press Enter to disable the auto-start service.

~/.stop_ros.sh

(3) Enter the following command and press Enter to enable color sorting feature.

ros2 launch stepper color_sorting.launch.py

(4) To stop the program, press Ctrl + C in the terminal window. If the program does not stop immediately, repeat this step until it terminates.

(5) After completing the feature, you need to start the APP service . Otherwise, future APP features may not function properly. In the terminal, enter the command and press Enter to start the APP service.

sudo systemctl start start_app_node.service

(6) Once the APP service is successfully started, the robotic arm will return to its initial pose, and the buzzer will beep once.

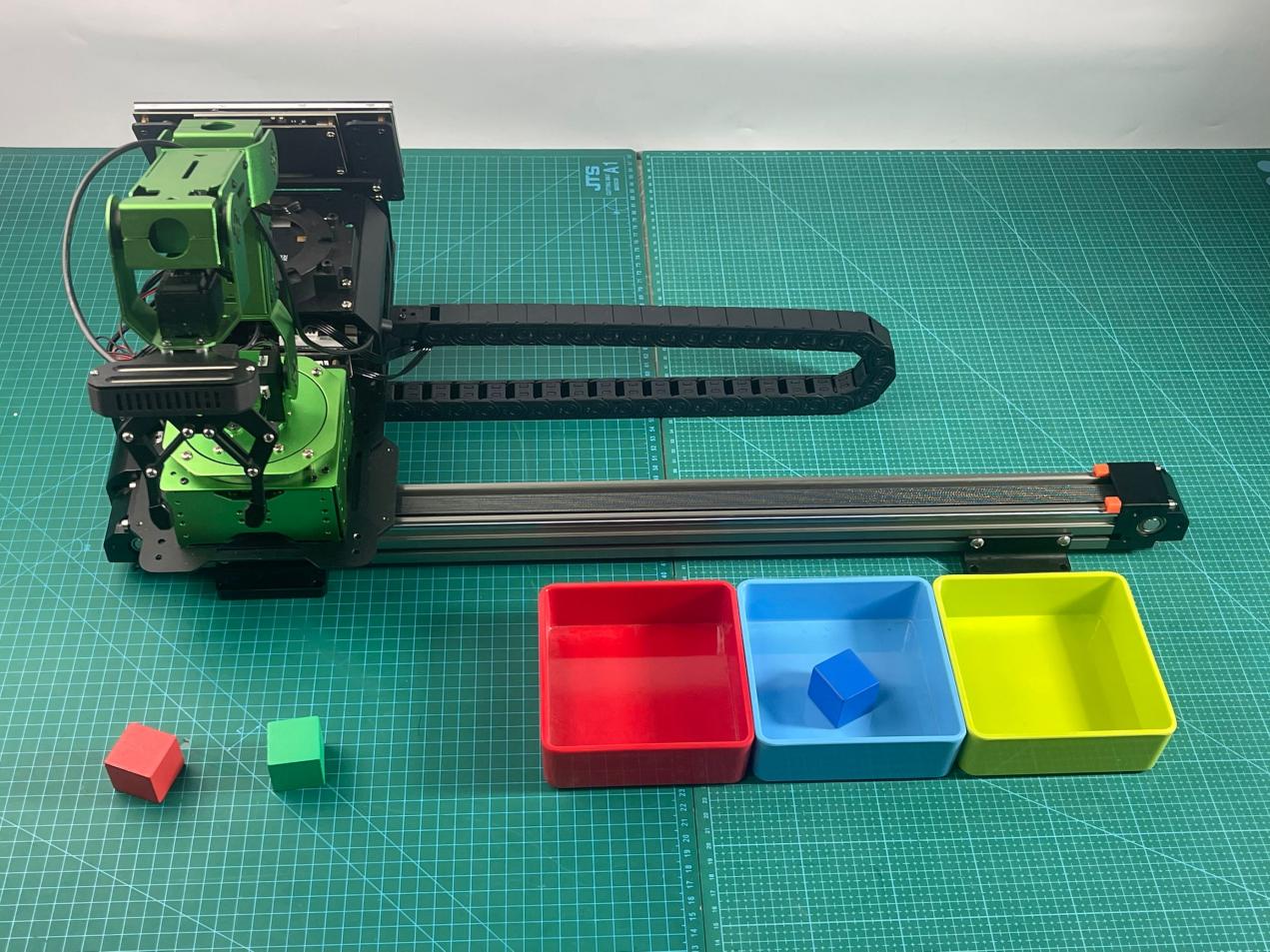

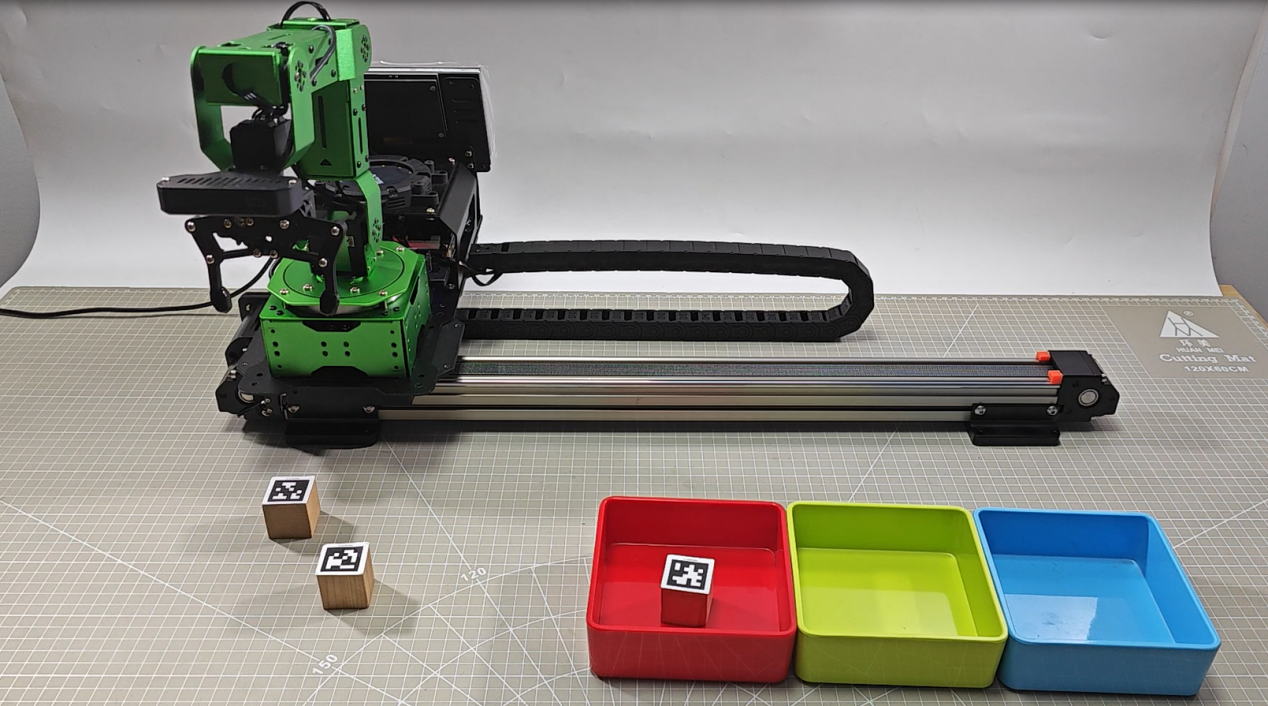

20.5.3 Project Outcome

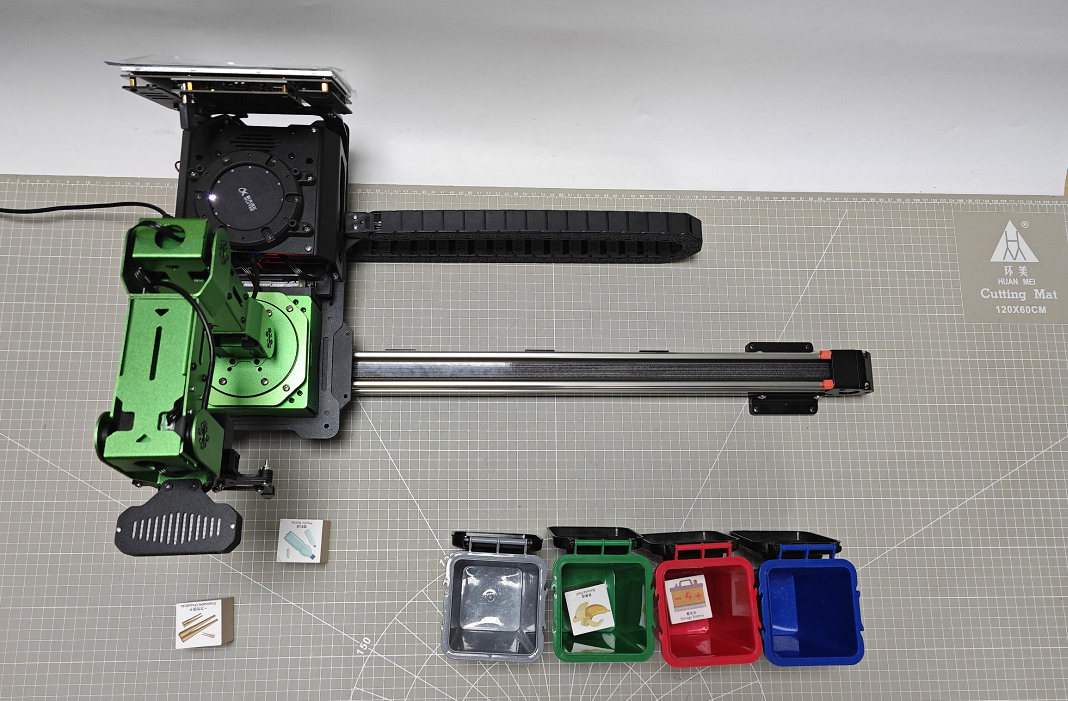

After starting the program, place the target color blocks within the robotic arm’s visual recognition area. The robotic arm will detect and pick up each color block one by one, then place them in the corresponding locations. In this setup, we use three color-marked boxes—red, green, and blue—as designated drop-off points for the red, green, and blue blocks respectively.

20.5.4 Functional Package Structure and Program Analysis

  • Functional Package Structure Analysis

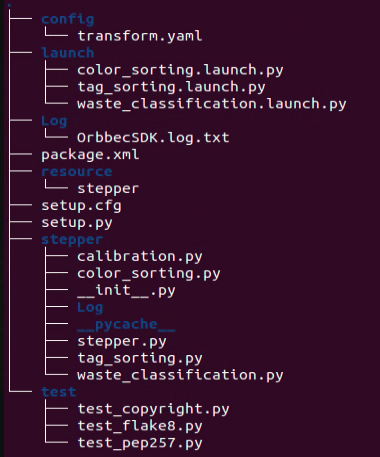

When using the color block sorting feature, the recognition program’s functional package is called. Its file structure is shown below:

(1) launch folder: Contains launch files used to start the tag sorting program and initiate the sorting functionality.

(2) stepper folder: Contains source code files for the tag sorting program, implementing the core sorting logic functions.

(3) CMakeLists.txt: Manages build dependencies for the package and includes format information needed after launching ROS services.

(4) package.xml: The package description file, which details the package’s contents such as build tools and version information.

  • Program Brief Analysis

(1) Launch File Analysis

The launch files are located at: ~/ros2_ws/src/stepper/launch/color_sorting.launch.py

① launch_setup Function:

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
def launch_setup(context):
  compiled = os.environ['need_compile']
  if compiled == 'True':
      sdk_package_path = get_package_share_directory('sdk')
      peripherals_package_path = get_package_share_directory('peripherals')
  else:
      sdk_package_path = '/home/ubuntu/ros2_ws/src/driver/sdk'
      peripherals_package_path = '/home/ubuntu/ros2_ws/src/peripherals'

  depth_camera_launch = IncludeLaunchDescription(
      PythonLaunchDescriptionSource(
          os.path.join(peripherals_package_path, 'launch/depth_camera.launch.py')),
  )

  sdk_launch = IncludeLaunchDescription(
      PythonLaunchDescriptionSource(
          os.path.join(sdk_package_path, 'launch/jetarm_sdk.launch.py')),
  )

  color_sorting_node = Node(
      package='stepper',
      executable='color_sorting',
      output='screen',
  )

  return [
          sdk_launch,
          depth_camera_launch,
          color_sorting_node,
          ]

  • Environment Variables

The program first reads the environment variable need_compile via os.environ['need_compile'] to determine whether the package needs to be compiled. If the value is “True”, the program uses get_package_share_directory('sdk') and get_package_share_directory('peripherals') to get the shared directory paths of the precompiled SDK and peripherals packages.

  • Path Setup:

If need_compile is “True”, the paths are obtained using ROS utility functions, otherwise, hard-coded paths are used directly.

  • Launch Description:

depth_camera_launch and sdk_launch are launch files included via IncludeLaunchDescription. They respectively load the launch configurations for the depth camera and the SDK. The PythonLaunchDescriptionSource specifies the file paths of the launch files to be executed.

  • Node Configuration:

color_sorting_node is a node configuration that specifies the package stepper, the executable color_sorting, and sets the output to the screen.

  • Return Launch Description:

The launch_setup function returns a list containing sdk_launch, depth_camera_launch, and color_sorting_node, which together start the depth camera and the color sorting node.

② Explanation of launch_setup and main Functions:

41
42
43
44
45
46
47
48
49
50
51
52
def generate_launch_description():
  return LaunchDescription([
      OpaqueFunction(function = launch_setup)
  ])

if __name__ == '__main__':
  # Create a LaunchDescription object. 创建一个LaunchDescription对象
  ld = generate_launch_description()

  ls = LaunchService()
  ls.include_launch_description(ld)
  ls.run()

The function generate_launch_description returns a LaunchDescription object. It uses OpaqueFunction to wrap the launch_setup function, allowing the launch description to be dynamically created at runtime.

Inside the if __name__ == '__main__': block, generate_launch_description() is called first to generate the launch description, and a LaunchService object is then created. Finally, the launch description is included and run through the LaunchService. This code acts as the program’s entry point, ensuring that when the script is run independently, all configurations and startup procedures are executed properly.

(2) Source File Analysis

Python files locate at: ~/ros2_ws/src/stepper/stepper/color_sorting.py

① Import the necessary libraries

 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
import os
import cv2
import yaml
import time
import math
import queue
import rclpy
import threading
import numpy as np
from sdk import common
from rclpy.node import Node
from cv_bridge import CvBridge
from stepper import stepper as Stepper
from interfaces.srv import SetStringBool
from std_srvs.srv import Trigger, SetBool
from sensor_msgs.msg import Image, CameraInfo
from rclpy.executors import MultiThreadedExecutor
from servo_controller_msgs.msg import ServosPosition
from rclpy.callback_groups import ReentrantCallbackGroup
from kinematics.kinematics_control import set_pose_target
from kinematics_msgs.srv import GetRobotPose, SetRobotPose
from servo_controller.bus_servo_control import set_servo_position
from app.utils import calculate_grasp_yaw, position_change_detect, pick_and_place, image_process, distortion_inverse_map

  • os: Provides operating system interaction functions, such as file system operations and environment variable management, commonly used for handling file paths.

  • cv2: Python interface for OpenCV, a computer vision library specializing in image processing tasks like reading, manipulating, displaying, and saving images.

  • yaml: Parses YAML format configuration files, facilitating easy storage and retrieval of configuration data. YAML is a human-readable data serialization standard.

  • time: Provides time-related functions such as getting the current time and implementing delays.

  • math: Offers a variety of mathematical functions including trigonometric operations, logarithms, and other numeric computations.

  • queue: Implements thread-safe queues, useful for communication between threads.

  • rclpy: ROS2’s Python client library that provides interfaces for creating ROS2 nodes, message communication, and related ROS2 functionalities.

  • threading: Supports multithreading, enabling concurrent execution of multiple threads to improve program efficiency.

  • numpy: A powerful numerical computation library supporting multi-dimensional arrays and matrices, along with a wide range of mathematical functions.

  • rclpy.node.Node: The base class for ROS2 nodes in Python, providing core functionality such as publishing and subscribing to messages.

  • sdk.common and sdk.fps: Modules from the robotic arm SDK (Software Development Kit).

  • cv_bridge: A bridge library between ROS image messages and OpenCV image formats, facilitating seamless image processing within ROS.

  • stepper: Module for controlling stepper motors, typically used for motion control in robots or robotic arms.

  • interfaces.srv.SetStringBool and std_srvs.srv.Trigger, SetBool: SetStringBool: A ROS2 service interface used to set a combination of a string and a boolean value. Trigger: A standard ROS2 service to request the triggering of a certain action without parameters. SetBool: A standard ROS2 service to set a boolean value.

  • sensor_msgs.msg.Image and CameraInfo: Message types used for handling images and camera information, Image contains image data and CameraInfo contains relevant camera parameters.

  • rclpy.executors.MultiThreadedExecutor: A ROS2 executor supporting multithreading, allowing multiple nodes to run concurrently to improve system parallelism.

  • servo_controller_msgs.msg.ServosPosition: Message type used to control servo motor positions, typically for servo control.

  • rclpy.callback_groups.ReentrantCallbackGroup: A callback group type that supports reentrant callbacks, allowing new callbacks to be accepted and processed even when a previous callback is still executing—ideal for high-concurrency scenarios.

  • kinematics.kinematics_control.set_pose_target: Function to set the robot’s target pose of position and orientation, based on kinematics calculations.

  • kinematics_msgs.srv.GetRobotPose and SetRobotPose: Service interfaces used to get and set the robot’s pose information.

  • servo_controller.bus_servo_control.set_servo_position: Function to set servo motor positions, primarily used for controlling robotic grasping or movement.

② Target Position Specification

29
30
31
32
33
TARGET_POSITION = {
  'red': (2600),
  'green': (4000),
  'blue': (5200),
}

This is a dictionary used to store target positions for different colors, such as red, green, and blue. This structure simplifies quickly locating the corresponding position based on color during the robot’s tasks. Sliding rail position range is from 0 (leftmost end) to 5200 (rightmost end).

③ __init__ Function:

37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
  def __init__(self, name):
      rclpy.init()
      super().__init__(name, allow_undeclared_parameters=True, automatically_declare_parameters_from_overrides=True)

      self.K = None
      self.D = None
      self.lock = threading.RLock()
      self.image_queue = queue.Queue(maxsize=2)
      self.bridge = CvBridge()  # Used for the conversion between ROS Image messages and OpenCV images. 用于ROS Image消息与OpenCV图像之间的转换
      self.imgpts = None
      self.tag_size = 0.025
      self.center_imgpts = None
      self.roi = None
      self.count_move = 0
      self.count_still = 0
      self.target_miss_count = 0
      self.white_area_width = 0.167
      self.white_area_height = 0.13
      self.calibration_file = 'calibration.yaml'
      self.config_file = 'transform.yaml'
      self.config_path = "/home/ubuntu/ros2_ws/src/stepper/config/"
      self.data = common.get_yaml_data("/home/ubuntu/ros2_ws/src/app/config/lab_config.yaml")
      self.lab_data = self.data['/**']['ros__parameters']
      self.camera_type = os.environ['CAMERA_TYPE']
      self.min_area = 500
      self.max_area = 7000
      self.target = None
      self.last_position = None
      self.start_transport = False
      self.stepper = Stepper.Stepper(7)
      self.stepper.set_mode(self.stepper.EN) # Set the slide rail enable 设置滑轨使能

      self.image_sub = None
      self.camera_info_sub = None
      self.joints_pub = self.create_publisher(ServosPosition, '/servo_controller', 1)
      self.image_sub = self.create_subscription(Image, '/depth_cam/rgb/image_raw', self.image_callback, 1)
      self.camera_info_sub = self.create_subscription(CameraInfo, '/depth_cam/rgb/camera_info', self.camera_info_callback, 1)

      self.timer_cb_group = ReentrantCallbackGroup()
      self.client = self.create_client(Trigger, '/controller_manager/init_finish', callback_group=self.timer_cb_group)
      self.client.wait_for_service()
      self.get_current_pose_client = self.create_client(GetRobotPose, '/kinematics/get_current_pose', callback_group=self.timer_cb_group)
      self.get_current_pose_client.wait_for_service()
      self.kinematics_client = self.create_client(SetRobotPose, '/kinematics/set_pose_target', callback_group=self.timer_cb_group)
      self.kinematics_client.wait_for_service()

      self.timer = self.create_timer(0.0, self.init_process, callback_group=self.timer_cb_group)

This code initializes a ROS 2 node, sets up image processing subscriptions and publications, configures stepper motor control, and prepares service clients for robot kinematics. It loads color range parameters from a LAB color space configuration file, creates an image queue for buffer management, and uses multithreading to allow the main logic to run in parallel, enabling coordinated image processing and motion control.

④ camera_info_callback Function:

91
92
93
94
95
  def camera_info_callback(self, msg):
      K = np.matrix(msg.k).reshape(1, -1, 3)
      D = np.array(msg.d)
      new_K, roi = cv2.getOptimalNewCameraMatrix(K, D, (640, 480), 0, (640, 480))
      self.K, self.D = np.matrix(new_K), np.zeros((5, 1))

This is a callback function designed to process configuration information from the camera, specifically from CameraInfo messages. It parses the camera’s intrinsic parameters and distortion coefficients, then uses OpenCV’s getOptimalNewCameraMatrix function to calculate an optimized camera matrix, helping to remove distortion for subsequent image processing.

⑤ adaptive_threshold Function:

 98
 99
100
101
102
103
  def adaptive_threshold(self, gray_image):
      # The adaptive threshold is used for segmentation first to filter out the sides. 用自适应阈值先进行分割, 过滤掉侧面
      # cv2.ADAPTIVE_THRESH_MEAN_C： The weight values of all pixel points in the neighborhood are consistent. 邻域所有像素点的权重值是一致的
      # cv2.ADAPTIVE_THRESH_GAUSSIAN _C ： It is related to the distance from each pixel point in the neighborhood to the center point, and the weight values of each point are obtained through the Gaussian equation. 与邻域各个像素点到中心点的距离有关，通过高斯方程得到各个点的权重值
      binary = cv2.adaptiveThreshold(gray_image, 255, cv2.ADAPTIVE_THRESH_GAUSSIAN_C, cv2.THRESH_BINARY, 41, 7)
      return binary

Used to apply adaptive thresholding on a grayscale image. Using a Gaussian-weighted adaptive thresholding method, it performs binary segmentation that works effectively under uneven lighting conditions to separate the foreground from the background.

⑥ canny_proc Function:

105
106
107
108
109
  def canny_proc(self, bgr_image):
      # Edge extraction is used for further segmentation when two objects of the same color are placed close together, they can only be distinguished by the edge. 边缘提取，用来进一步分割(当两个相同颜色物体靠在一起时，只能靠边缘去区分)
      mask = cv2.Canny(bgr_image, 9, 41, 9, L2gradient=True)
      mask = 255 - cv2.dilate(mask, cv2.getStructuringElement(cv2.MORPH_RECT, (11, 11)))  # Thicken the boundary and reverse the black and white. 加粗边界，黑白反转
      return mask

Primarily used for edge extraction on input images. It uses the Canny edge detection algorithm to identify edges, then applies dilation to thicken the boundaries, and finally inverts the black and white regions. This is especially useful for separating adjacent objects of the same color.

⑦ get_top_surface Function:

111
112
113
114
115
116
117
118
119
120
121
122
  def get_top_surface(self, rgb_image):
      # In order to extract only the topmost surface of the object. 为了只提取物体最上层表面
      # Convert the image to the HSV color space. 将图像转换到HSV颜色空间
      image_scale = cv2.convertScaleAbs(rgb_image, alpha=2.5, beta=0)
      image_gray = cv2.cvtColor(image_scale, cv2.COLOR_RGB2GRAY)
      image_mb = cv2.medianBlur(image_gray, 3)  # Median filtering 中值滤波
      image_gs = cv2.GaussianBlur(image_mb, (5, 5), 5)  # Gaussian blur denoising 高斯模糊去噪
      binary = self.adaptive_threshold(image_gs)  # Threshold adaptation 阈值自适应
      mask = self.canny_proc(image_gs)  # Edge detection 边缘检测
      mask1 = cv2.bitwise_and(binary, mask)  # Merge the two extracted images and retain their common parts. 合并两个提取出来的图像，保留他们共有的地方
      roi_image_mask = cv2.bitwise_and(rgb_image, rgb_image, mask=mask1)  # Mask the original image to retain the areas that need to be identified. 和原图做遮罩，保留需要识别的区域
      return roi_image_mask

Mainly used to process the input RGB image to extract the top surface of the object. It enhances contrast by scaling the image, converts it to grayscale, applies median filtering and Gaussian blur to reduce noise, and then uses a combination of adaptive thresholding and edge detection to create a mask containing only the target area.

⑧ image_callback Function:

124
125
126
127
128
129
130
131
132
  def image_callback(self, ros_image):
      # Convert ros format images to opencv format. 将ros格式图像转换为opencv格式
      cv_image = self.bridge.imgmsg_to_cv2(ros_image, "rgb8")
      rgb_image = np.array(cv_image, dtype=np.uint8)
      if self.image_queue.full():
          # # If the queue is full, discard the oldest image.  如果队列已满，丢弃最旧的图像
          self.image_queue.get()
      # # Put the image into the queue. 将图像放入队列
      self.image_queue.put(rgb_image)

A callback function typically used to handle image messages received from the camera topic. It converts ROS image messages to OpenCV format and stores them in a buffer queue. If the queue is full, the oldest images are automatically discarded to ensure efficient memory use.

⑨init_process Function:

135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
  def init_process(self):
      self.timer.cancel()
      self.stepper.go_home()
      set_servo_position(self.joints_pub, 1.0, ( (1, 500),(2, 520), (3, 210), (4, 50), (5, 500), (10, 200)))  # Set the initial position of the robotic arm. 设置机械臂初始位置
      time.sleep(1.5)
      threading.Thread(target=self.main, daemon=True).start()
      threading.Thread(target=self.transport_thread, daemon=True).start()
      with open(self.config_path + self.config_file, 'r') as f:
          config = yaml.safe_load(f)

          # Convert to numpy array. 转换为 numpy 数组
          corners = np.array(config['corners']).reshape(-1, 3)
          extristric = np.array(config['extristric'])
          white_area_pose_world = np.array(config['white_area_pose_world'])


      self.white_area_center = white_area_pose_world.reshape(4, 4)
      tvec = extristric[:1]  # Take the first row. 取第一行
      rmat = extristric[1:]  # Take the last three rows. 取后面三行
      while self.K is None or self.D is None:
          time.sleep(0.5)

      center_imgpts, jac = cv2.projectPoints(corners[-1:], np.array(rmat), np.array(tvec), self.K, self.D)
      self.center_imgpts = np.int32(center_imgpts).reshape(2)

      tvec, rmat = common.extristric_plane_shift(np.array(tvec).reshape((3, 1)), np.array(rmat), 0.03)
      self.extristric = tvec, rmat
      tvec, rmat = common.extristric_plane_shift(np.array(tvec).reshape((3, 1)), np.array(rmat), 0.0)
      imgpts, jac = cv2.projectPoints(corners[:-1], np.array(rmat), np.array(tvec), self.K, self.D)
      self.imgpts = np.int32(imgpts).reshape(-1, 2)
      # 裁切出ROI区域
      x_min = min(self.imgpts, key=lambda p: p[0])[0] # The minimum value of the X-axis. x轴最小值
      x_max = max(self.imgpts, key=lambda p: p[0])[0] # The maximum value of the X-axis. x轴最大值
      y_min = min(self.imgpts, key=lambda p: p[1])[1] # The minimum value of the Y-axis. y轴最小值
      y_max = max(self.imgpts, key=lambda p: p[1])[1] # The maximum value of the Y-axis. y轴最大值
      roi = np.maximum(np.array([y_min, y_max, x_min, x_max]), 0)
      self.roi = roi

A system initialization function. It first cancels the timer, then sequentially executes sliding rail homing, sets the robot arm to its initial position, loads configuration files to calculate the white region baseline and ROI area, and finally starts the main processing and transport threads to complete the system setup.

⑩ image_processing function:

173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
  def image_processing(self):
      rgb_image = self.image_queue.get()
      result_image = np.copy(rgb_image)
      if self.center_imgpts is not None:

          cv2.line(result_image, (self.center_imgpts[0]-10, self.center_imgpts[1]), (self.center_imgpts[0]+10, self.center_imgpts[1]), (255, 255, 0), 2)
          cv2.line(result_image, (self.center_imgpts[0], self.center_imgpts[1]-10), (self.center_imgpts[0], self.center_imgpts[1]+10), (255, 255, 0), 2)
      # Generate a mask for the recognition area. 生成识别区域的遮罩
      target_list = []
      index = 0
      if self.roi is not None  and self.imgpts is not None and not self.start_transport :
          roi_area_mask = np.zeros(shape=(rgb_image.shape[0], rgb_image.shape[1], 1), dtype=np.uint8)
          roi_area_mask = cv2.drawContours(roi_area_mask, [self.imgpts], -1, 255, cv2.FILLED)
          rgb_image = cv2.bitwise_and(rgb_image, rgb_image, mask=roi_area_mask)  # Mask the original image to retain the areas that need to be identified. 和原图做遮罩，保留需要识别的区域
          roi_img = rgb_image[self.roi[0]:self.roi[1], self.roi[2]:self.roi[3]]
          roi_img = self.get_top_surface(roi_img)
          image_lab = cv2.cvtColor(roi_img, cv2.COLOR_RGB2LAB) # Convert to the LAB space. 转换到 LAB 空间
          img_h, img_w = rgb_image.shape[:2]

          for i in ['red', 'green', 'blue']:
              mask = cv2.inRange(image_lab, tuple(self.lab_data['color_range_list'][i]['min']), tuple(self.lab_data['color_range_list'][i]['max']))  # Binarization 二值化

              # Smooth the edges, remove the small pieces, and merge the adjacent pieces. 平滑边缘，去除小块，合并靠近的块
              eroded = cv2.erode(mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))
              dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))
              contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]  # Find all contours. 找出所有轮廓
              contours_area = map(lambda c: (math.fabs(cv2.contourArea(c)), c), contours)  # Compute the area of each contour. 计算轮廓面积
              contours = map(lambda a_c: a_c[1], filter(lambda a: self.min_area <= a[0] <= self.max_area, contours_area))
              for c in contours:
                  rect = cv2.minAreaRect(c)  # Get the minimum bounding rectangle. 获取最小外接矩形
                  (center_x, center_y), _ = cv2.minEnclosingCircle(c)
                  center_x, center_y = self.roi[2] + center_x, self.roi[0] + center_y
                  cv2.circle(result_image, (int(center_x), int(center_y)), 8, (0, 0, 0), -1)
                  corners = list(map(lambda p: (self.roi[2] + p[0], self.roi[0] + p[1]), cv2.boxPoints(rect))) # Obtain the four corner points of the smallest circumscribed rectangle and convert them back to the coordinates of the original graph. 获取最小外接矩形的四个角点, 转换回原始图的坐标
                  cv2.drawContours(result_image, [np.intp(corners)], -1, (0, 255, 255), 2, cv2.LINE_AA)  # Draw the rectangular outline. 绘制矩形轮廓
                  index += 1 # Serial number increment. 序号递增
                  angle = int(round(rect[2]))  # Rectangular Angle 矩形角度
                  target_list.append([i, index, (center_x, center_y), (int(rect[1][0]), int(rect[1][1])), angle])
              # Draw the recognition area. 绘制识别区域
              cv2.drawContours(result_image, [self.imgpts], -1, (255, 255, 0), 2, cv2.LINE_AA)
              for p in self.imgpts:
                  cv2.circle(result_image, tuple(p), 8, (255, 0, 0), -1)
              pass

      return target_list, result_image

The core image processing function responsible for retrieving images from the queue and performing color detection. It uses LAB color space detection within the ROI area, applies morphological processing to smooth edges and remove noise, performs contour detection and area filtering, and finally extracts the target color block information, drawing the detection results on the output image.

⑪ get_object_world_position Function:

219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
  def get_object_world_position(self, position, intrinsic, extristric, white_area_center, height=0.03):
      projection_matrix = np.row_stack((np.column_stack((extristric[1], extristric[0])), np.array([[0, 0, 0, 1]])))
      world_pose = common.pixels_to_world([position], intrinsic, projection_matrix)[0]
      world_pose[0] = -world_pose[0]
      world_pose[1] = -world_pose[1]
      position = white_area_center[:3, 3] + world_pose
      position[2] = height

      config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
      offset = tuple(config_data['pixel']['offset'])
      scale = tuple(config_data['pixel']['scale'])
      for i in range(3):
          position[i] = position[i] * scale[i]
          position[i] = position[i] + offset[i]
      return position, projection_matrix

A core function for converting pixel coordinates to world coordinates. It builds a projection matrix to transform pixel coordinates in the image to positions in the robot’s world coordinate system, applies coordinate transformations and sets the target height, and finally performs precision compensation using offset and scaling parameters from calibration files.

⑫ calculate_pick_grasp_yaw Function:

235
236
237
238
239
240
241
242
243
244
245
  def calculate_pick_grasp_yaw(self, position, target, target_info, intrinsic, projection_matrix):
      yaw = math.degrees(math.atan2(position[1], position[0]))
      if position[0] < 0 and position[1] < 0:
          yaw = yaw + 180
      elif position[0] < 0 and position[1] > 0:
          yaw = yaw - 180
      # 0.09x0.02
      gripper_size = [common.calculate_pixel_length(0.09, intrinsic, projection_matrix),
                      common.calculate_pixel_length(0.02, intrinsic, projection_matrix)]

      return calculate_grasp_yaw.calculate_gripper_yaw_angle(target, target_info, gripper_size, yaw)

It calculates the gripper yaw angle for picking. It computes the base yaw angle based on the target position, adjusts the angle according to the quadrant, and then calls a utility function that incorporates the gripper’s size information to calculate the optimal grasping angle. This ensures the robotic arm can stably pick up the target object.

⑬ calculate_place_grasp_yaw Function:

247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
  def calculate_place_grasp_yaw(self, position, angle=0):
      yaw = math.degrees(math.atan2(position[1], position[0]))
      if position[0] < 0 and position[1] < 0:
          yaw = yaw + 180
      elif position[0] < 0 and position[1] > 0:
          yaw = yaw - 180
      yaw1 = yaw + angle
      if yaw < 0:
          yaw2 = yaw1 + 90
      else:
          yaw2 = yaw1 - 90

      yaw = yaw2
      if abs(yaw1) < abs(yaw2):
          yaw = yaw1
      yaw = 500 + int(yaw / 240 * 1000)

      return yaw

It calculates the gripper yaw angle for placing. It determines the yaw angle based on the target position, uses an angle optimization algorithm to select the most suitable placement angle, and then converts this angle into the pulse width value required for servo control, ensuring precise placement operations.

⑭ transport_thread Function:

266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
  def transport_thread(self):
      while True:
          if self.start_transport:
              position, yaw, target = self.transport_info
              if position[0] > 0.22:
                  position[2] += 0.01
              config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
              offset = tuple(config_data['kinematics']['offset'])
              scale = tuple(config_data['kinematics']['scale'])
              for i in range(3):
                  position[i] = position[i] * scale[i]
                  position[i] = position[i] + offset[i]

              finish = pick_and_place.pick(position, 80, yaw, 550, 0.02, self.joints_pub, self.kinematics_client)
              if finish:
                  stepper_position = TARGET_POSITION[self.target[0]]
                  self.stepper.goto(stepper_position) # Drive the slide rail to move to the placement position. 驱动滑轨移动到放置位置
                  stepper_time = stepper_position/1000 # Calculate the required time. 计算需要的时间
                  time.sleep(stepper_time)

                  position =  [0.25, 0, 0.015] # Set the placement position. 设置放置位置

                  yaw = self.calculate_place_grasp_yaw(position, 0)
                  config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
                  offset = tuple(config_data['kinematics']['offset'])
                  scale = tuple(config_data['kinematics']['scale'])
                  angle = math.degrees(math.atan2(position[1], position[0]))
                  if angle > 45:
                      # self.get_logger().info(f'1:{position}')
                      position = [position[0] * scale[1], position[1] * scale[0], position[2] * scale[2]]
                      position = [position[0] - offset[1], position[1] + offset[0], position[2] + offset[2]]
                  elif angle < -45:
                      # self.get_logger().info(f'2:{position}')
                      position = [position[0] * scale[1], position[1] * scale[0], position[2] * scale[2]]
                      position = [position[0] + offset[1], position[1] - offset[0], position[2] + offset[2]]
                  else:
                      # self.get_logger().info(f'3:{position}')
                      position = [position[0] * scale[0], position[1] * scale[1], position[2] * scale[2]]
                      position = [position[0] + offset[0], position[1] + offset[1], position[2] + offset[2]]

                  # self.get_logger().info(f'{position}')
                  finish = pick_and_place.place(position, 80, yaw, 200, self.joints_pub, self.kinematics_client)
                  if finish:
                      set_servo_position(self.joints_pub, 1.5, ( (1, 500),(2, 520), (3, 210), (4, 50), (5, 500), (10, 200)))  # 设置机械臂初始位置
                      time.sleep(1.5)
                      stepper_position = TARGET_POSITION[target]
                      self.stepper.goto(-stepper_position) # Drive the slide rail to move to the placement position. 驱动滑轨移动到放置位置
                      stepper_time = stepper_position/1000 # Calculate the required time. 计算需要的时间
                      time.sleep(stepper_time)
                      self.send_request(self.start_yolov8_client, Trigger.Request())
                      self.target = None
                      self.start_transport = False
          else:
              time.sleep(0.1)

Transport control thread, responsible for executing the full waste classification. Upon receiving the transport command, YOLOv8 detection is first stopped to avoid interference. Then, kinematic calibration parameters are applied for position compensation. The pick_and_place utility function is used to perform the grasping operation. Next, the sliding rail is driven to the position corresponding to the target trash category to execute the placing operation. Finally, the robotic arm and sliding rail return to their home positions, and YOLOv8 detection is restarted to prepare for the next operation.

⑮ main Function:

320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
	    def main(self):
        while True:
            target_list, result_image = self.image_processing()
            if target_list:
                target_miss = True
                for target in target_list:
                    if self.target is not None :  # If there is already a target, skip the other objects directly. 如果已经有了目标，其他物体就直接跳过
                        if self.target[0] != target[0] or self.target[1] != target[1]:
                            continue
                        else:
                            target_miss = False
                            self.target = target

                    position, projection_matrix = self.get_object_world_position(target[2], self.K, self.extristric, self.white_area_center, 0.03)
                    result = self.calculate_pick_grasp_yaw(position, target, target_list, self.K, projection_matrix)
                    if result is not None and self.target is None:
                            self.target = target
                            break
                    if self.last_position is not None and self.target is not None :
                        e_distance = round(math.sqrt(pow(self.last_position[0] - position[0], 2)) + math.sqrt(pow(self.last_position[1] - position[1], 2)), 5)
                        # self.get_logger().info(f'e_distance: {e_distance}')
                        if e_distance <= 0.003:  # Euclidean distance less than 1mm to prevent grasping while the object is still moving. 欧式距离小于1mm, 防止物体还在移动时就去夹取了
                            cv2.line(result_image, result[1][0], result[1][1], (255, 255, 0), 2, cv2.LINE_AA)
                            self.count_move = 0
                            self.count_still += 1
                        else:
                            self.count_move += 1
                            self.count_still = 0

                        if self.count_move > 10:
                            self.target = None
                        if self.count_still > 20:
                            self.count_still = 0
                            self.count_move = 0
                            self.target = target
                            yaw = 500 + int(result[0] / 240 * 1000)
                            self.transport_info = [position, yaw, target]
                            self.start_transport = True
                    self.last_position = position
                if target_miss:
                    self.target_miss_count += 1
                if self.target_miss_count > 10:
                    self.target_miss_count = 0
                    self.target = None
            if result_image is not None :
                result_image = cv2.cvtColor(result_image, cv2.COLOR_BGR2RGB)
                cv2.imshow('result_image', result_image)
                key = cv2.waitKey(1)

The main processing loop function. Continuously monitor for detected objects from YOLOv8. When a target is detected, extract its center coordinates and apply angle constraints. Convert the coordinates to world coordinates and perform deviation adjustments. Match the detected object’s name to the corresponding waste category. Then stop detection and start the transport thread to execute the pick-and-place task.

⑯ Main Function:

369
370
371
372
373
374
375
	def main():
    node = ColorSortingNode('color_sorting')
    executor = MultiThreadedExecutor()
    executor.add_node(node)
    executor.spin()
    node.destroy_node()
    rclpy.shutdown()

The entry point for launching and running the waste classification ROS2 node. It creates an instance of the WasteClassificationNode, uses a MultiThreadedExecutor to support multithreaded processing, starts the node, and properly cleans up resources upon termination.

20.6 Waste Classification

20.6.1 Working Principle

In this section, a trained YOLOv8 model is used to classify waste blocks through a camera. Then, inverse kinematics is applied to control the robotic arm to grasp the waste block and sort it into the corresponding trash bin.

  • Step 1: Object Detection and Classification

First, subscribe to the real-time image data published by the camera node and convert the received data into NumPy format. After conversion, the image is processed by the YOLOv8 network through resizing, transposing, and array expansion to obtain detection results.

The detected image coordinates of the waste cards are then transformed back to the original image coordinates. Based on the detected object name, the waste is categorized according to predefined rules, and the corresponding waste category name is retrieved. Finally, a bounding box is drawn around each piece of waste, and its name and detection confidence are displayed on the screen.

  • Step 2: Grasping and Sorting

To ensure the reliability of the results, multiple detections are performed to confirm the target object. The waste card with the highest confidence in the image is selected as the primary sorting target. Repeated detections are carried out to verify the object’s consistency. Once the target is confirmed, the robotic arm begins the sorting process by converting the target card’s pixel coordinates into world coordinates.

The robotic arm is then controlled to move to the location of the waste block and perform the grasping operation. Based on the identified waste category, the sliding rail moves the arm to the designated drop-off position. Finally, the robotic arm places the waste card into the corresponding bin, completing the waste classification task.

20.6.2 Enabling and Disabling the Feature

Note

When entering commands, be sure to use correct case and spacing. You can use the Tab key to auto-complete keywords.

(1) Refer to “1.6 Development Environment Setup and Configuration” to establish a connection between the robotic arm and the remote desktop tool.

(2) Double-click to launch the command bar, enter the command, and press Enter to disable the auto-start service.

~/.stop_ros.sh

(3) Enter the following command and press Enter to enable color sorting feature.

ros2 launch stepper waste_classification.launch.py

(4) To stop the program, press Ctrl + C in the terminal window. If the program does not stop immediately, repeat this step until it terminates.

(5) After completing the feature, you need to start the APP service . Otherwise, future APP features may not function properly. In the terminal, enter the command and press Enter to start the APP service.

sudo systemctl start start_app_node.service

(6) Once the APP service is successfully started, the robotic arm will return to its initial pose, and the buzzer will beep once.

20.6.3 Project Outcome

After the program starts, once the camera detects a waste card, the corresponding category name will be displayed on the screen. Each category is highlighted with a rectangle of a specific color. Hazardous waste is marked in red, Recyclables in blue, Kitchen waste in green, Other waste in gray.

The robotic arm will then proceed to pick up the waste block and sort it into the appropriate category. In the example below, waste bins of different colors are used as props to represent each category.

Waste Category Card
Hazardous Waste (hazardous_waste) Storage Battery, Marker, Oral Liquid Bottle
Recyclable Waste (recyclable_waste) Plastic Bottle, Umbrella, Toothbrush
Food Waste (food_waste) Banana Peel, Ketchup, Broken Bones
Residual Waste (residual_waste) Cigarette End, Plate, Disposable Chopsticks

20.6.4 Functional Package Structure and Program Analysis

  • Functional Package Structure Analysis

When using the waste classification feature, the recognition program’s functional package is called. Its file structure is shown below:

(1) launch folder: Contains launch files used to start the waste classification program and initiate the sorting functionality.

(2) stepper folder: Contains source code files for the waste classification program, implementing the core waste classification logic functions.

(3) CMakeLists.txt: Manages build dependencies for the package and includes format information needed after launching ROS services.

(4) package.xml: The package description file, which details the package’s contents such as build tools and version information.

  • Program Brief Analysis

(1) Launch File Analysis

The launch files are located at: ~/ros2_ws/src/stepper/launch/waste_classification.launch.py

① launch_setup Function: The launch_setup function configures different package paths based on environment variables and includes other launch description files. It also defines and launches two nodes: one for YOLOv8 object detection, and another for waste classification. The function returns a list of all launch elements that will be executed when the ROS2 system starts.

  • Determine Compilation Requirement:

11
12
13
14
15
16
17
  compiled = os.environ['need_compile']
  if compiled == 'True':
      sdk_package_path = get_package_share_directory('sdk')
      peripherals_package_path = get_package_share_directory('peripherals')
  else:
      sdk_package_path = '/home/ubuntu/ros2_ws/src/driver/sdk'
      peripherals_package_path = '/home/ubuntu/ros2_ws/src/peripherals'

Retrieves the value of need_compile from the environment variables to determine whether compilation is required.

If need_compile is “True”, it obtains the paths for the sdk and peripherals packages using get_package_share_directory.

Otherwise, it uses fixed local paths to specify the package locations.

  • Include Other Launch Description Files:

19
20
21
22
23
24
25
26
27
  depth_camera_launch = IncludeLaunchDescription(
      PythonLaunchDescriptionSource(
          os.path.join(peripherals_package_path, 'launch/depth_camera.launch.py')),
  )

  sdk_launch = IncludeLaunchDescription(
      PythonLaunchDescriptionSource(
          os.path.join(sdk_package_path, 'launch/jetarm_sdk.launch.py')),
  )

Includes the depth_camera.launch.py and jetarm_sdk.launch.py launch description files, which are located in the launch directories of the peripherals and sdk packages, respectively.

  • Define the YOLOv8 node:

29
30
31
32
33
34
35
  yolov8_node = Node(
      package='example',
      executable='yolov8_node',
      output='screen',
      parameters=[{'classes': ['BananaPeel','BrokenBones','CigaretteEnd','DisposableChopsticks','Ketchup','Marker','OralLiquidBottle','PlasticBottle','Plate','StorageBattery','Toothbrush', 'Umbrella']},
                  { 'engine': 'garbage_classification_640s.engine', 'lib': 'libmyplugins.so', 'conf': 0.8},]
  )

Launch a node named yolov8_node located in the example package.

classes: Specifies the categories of waste to detect.

engine: Indicates the engine file used for classification.

lib: Specifies the custom plugin library.

conf: Sets the confidence threshold to 0.8.

  • Define the waste classification node:

37
38
39
40
41
  waste_classification_node = Node(
      package='stepper',
      executable='waste_classification',
      output='screen',
  )

Launch a node named waste_classification located in the stepper package.

This node is responsible for handling the logic of waste sorting.

  • Return the launch element list:

43
44
45
46
47
48
  return [
          sdk_launch,
          depth_camera_launch,
          yolov8_node,
          waste_classification_node,
          ]

Combine all launch description files and node definitions into a list to be executed sequentially during the ROS2 launch process.

② generate_launch_description function: {lineno-start=50}

def generate_launch_description():
  return LaunchDescription([
      OpaqueFunction(function = launch_setup)
  ])

Creates and returns a LaunchDescription object, which defines the actions to execute at launch or includes other launch files. This object is instantiated and run in the main function.

(2) Source Code Analysis

Python files locate at: ~/ros2_ws/src/stepper/stepper/waste_classification.py

① Import the necessary libraries

 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import os
import cv2
import yaml
import time
import copy
import math
import queue
import rclpy
import signal
import threading
import numpy as np
from sdk import common
from rclpy.node import Node
from cv_bridge import CvBridge
from stepper import stepper as Stepper
from interfaces.msg import ObjectsInfo
from interfaces.srv import SetStringList
from std_srvs.srv import Trigger, SetBool
from sensor_msgs.msg import Image, CameraInfo
from rclpy.executors import MultiThreadedExecutor
from servo_controller_msgs.msg import ServosPosition
from rclpy.callback_groups import ReentrantCallbackGroup
from kinematics.kinematics_control import set_pose_target
from kinematics_msgs.srv import GetRobotPose, SetRobotPose
from servo_controller.bus_servo_control import set_servo_position
from app.utils import calculate_grasp_yaw, position_change_detect, pick_and_place, image_process, distortion_inverse_map

  • os: Provides functions to interact with the operating system, such as file and directory operations, and environment variable management.

  • cv2: The Python interface for the OpenCV library, used for image and video processing and analysis.

  • yaml: Used for parsing and generating YAML-formatted data, commonly for reading and writing configuration files.

  • time: Provides time-related functionality such as retrieving the current time and introducing delays.

  • math: Offers mathematical functions including trigonometric, logarithmic, and exponential calculations.

  • queue: Implements thread-safe queues, used for data exchange between threads.

  • rclpy: The Python client library for ROS2, which provides interfaces for interacting with ROS2 nodes, topics, services, etc.

  • signal: Provides handling for system signals, such as interrupt signals and termination signals.

  • threading: Supports multithreaded programming, allowing multiple threads to run concurrently to improve program concurrency and performance.

  • numpy as np: NumPy library offering high-performance multidimensional array objects and a wide range of mathematical functions for scientific computing.

  • from sdk import common: Imports the common module from the SDK, which usually contains general-purpose functions and utility tools.

  • from rclpy.node import Node: Imports the Node class from the rclpy library, used to create and manage ROS2 nodes.

  • from cv_bridge import CvBridge: Imports the CvBridge class from the cv_bridge package, used for converting between ROS image messages and OpenCV image formats.

  • from stepper import stepper as Stepper: Imports the stepper class from the stepper module and aliases it as Stepper, typically used to control stepper motors.

  • from interfaces.msg import ObjectsInfo: Imports the ObjectsInfo message type from the interfaces message package, used to transmit object information within ROS.

  • from interfaces.srv import SetStringList: Imports the SetStringList service type from the interfaces service package, used for service calls that set string lists.

  • from std_srvs.srv import Trigger, SetBool: Imports the Trigger and SetBool standard service types, used respectively for triggering simple services and setting boolean values.

  • from sensor_msgs.msg import Image, CameraInfo: Imports the Image and CameraInfo message types from the sensor_msgs package, used for transmitting image data and camera information.

  • from rclpy.executors import MultiThreadedExecutor: Imports MultiThreadedExecutor from the rclpy.executors module, enabling ROS2 callbacks to be processed across multiple threads concurrently.

  • from servo_controller_msgs.msg import ServosPosition: Imports the ServosPosition message type from the servo_controller_msgs message package, used for transmitting servo motor position data.

  • from rclpy.callback_groups import ReentrantCallbackGroup: Imports ReentrantCallbackGroup from the rclpy.callback_groups module, which allows callback functions to be re-entered, improving concurrency.

  • from kinematics.kinematics_control import set_pose_target: Imports the set_pose_target function from the kinematics control module, used to set the target pose of the robot’s end effector.

  • from kinematics_msgs.srv import GetRobotPose, SetRobotPose: Imports the GetRobotPose and SetRobotPose service types from the kinematics message service package, used for getting and setting the robot’s pose.

  • from servo_controller.bus_servo_control import set_servo_position: Imports the set_servo_position function from the servo control bus module, used to set the position of servo motors.

② Target Position Specification

32
33
34
35
36
37
TARGET_POSITION = {
  'recyclable_waste': (5200),
  'hazardous_waste': (4250),
  'food_waste': (3300),
  'residual_waste': (2300)
}

This is a dictionary used to store target positions for different wastes. This structure simplifies quickly locating the corresponding position based on color during the robot’s tasks. Sliding rail position range is from 0 (leftmost end) to 5200 (rightmost end).

③ Specified Waste Types:

39
40
41
42
43
44
WASTE_CLASSES = {
  'food_waste': ('BananaPeel', 'BrokenBones', 'Ketchup'),
  'hazardous_waste': ('Marker', 'OralLiquidBottle', 'StorageBattery'),
  'recyclable_waste': ('PlasticBottle', 'Toothbrush', 'Umbrella'),
  'residual_waste': ('Plate', 'CigaretteEnd', 'DisposableChopsticks'),
}

This is a dictionary used to store different types of waste. These types are used later in the program to determine the placement location.

④ __init__ Function:

50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
  def __init__(self, name):
      rclpy.init()
      super().__init__(name, allow_undeclared_parameters=True, automatically_declare_parameters_from_overrides=True)
      self.running = True
      self.start_get_roi = True
      self.last_position = None
      self.roi = None
      self.imgpts = None
      self.count_move = 0
      self.count_still = 0
      self.last_position = None
      self.extristric = None
      self.intrinsic = None
      self.distortion = None
      self.target = None
      self.start_transport = False
      self.target_object_info = None
      self.stepper = Stepper.Stepper(7)
      self.stepper.set_mode(self.stepper.EN) # Set the slide rail enable. 设置滑轨使能
      self.camera_type = os.environ['CAMERA_TYPE']
      self.calibration_file = 'calibration.yaml'
      self.config_file = 'transform.yaml'
      self.config_path = "/home/ubuntu/ros2_ws/src/stepper/config/"
      self.target_list =['BananaPeel', 'BrokenBones', 'Ketchup', 'Marker', 'OralLiquidBottle', 'StorageBattery', 'PlasticBottle', 'Toothbrush', 'Umbrella', 'Plate', 'CigaretteEnd', 'DisposableChopsticks']

      self.bridge = CvBridge()
      self.joints_pub = self.create_publisher(ServosPosition, '/servo_controller', 1)
      self.camera_info_sub = self.create_subscription(CameraInfo, '/depth_cam/rgb/camera_info', self.camera_info_callback, 1)
      self.image_sub = self.create_subscription(Image, '/yolov8/object_image', self.image_callback, 1)
      self.object_sub = self.create_subscription(ObjectsInfo, '/yolov8/object_detect', self.get_object_callback, 1)

      # Wait for the service to start. 等待服务启动
      self.timer_cb_group = ReentrantCallbackGroup()
      self.client = self.create_client(Trigger, '/controller_manager/init_finish', callback_group=self.timer_cb_group)
      self.client.wait_for_service()
      self.get_current_pose_client = self.create_client(GetRobotPose, '/kinematics/get_current_pose', callback_group=self.timer_cb_group)
      self.get_current_pose_client.wait_for_service()
      self.kinematics_client = self.create_client(SetRobotPose, '/kinematics/set_pose_target', callback_group=self.timer_cb_group)
      self.kinematics_client.wait_for_service()
      self.start_yolov8_client = self.create_client(Trigger, '/yolov8/start', callback_group=self.timer_cb_group)
      self.start_yolov8_client.wait_for_service()
      self.stop_yolov8_client = self.create_client(Trigger, '/yolov8/stop', callback_group=self.timer_cb_group)
      self.stop_yolov8_client.wait_for_service()

      self.timer = self.create_timer(0.0, self.init_process, callback_group=self.timer_cb_group)

Initializes a ROS 2-based waste classification node. This function sets up status flags, ROI parameters, counters, and other state variables. It initializes the stepper motor controller, reads environment variables and configuration files, creates an image bridge and target list, and establishes ROS 2 publishers, subscribers, and service clients. Finally, it starts the initialization process via a timer.

⑤ init_process Function:

 97
 98
 99
100
101
102
103
104
  def init_process(self):
      self.timer.cancel()
      set_servo_position(self.joints_pub, 1.0, ( (1, 500),(2, 520), (3, 210), (4, 50), (5, 500), (10, 200)))  # Set the initial position of the robotic arm. 设置机械臂初始位置
      time.sleep(1)
      self.stepper.go_home()
      self.send_request(self.start_yolov8_client, Trigger.Request())
      threading.Thread(target=self.main, daemon=True).start()
      threading.Thread(target=self.transport_thread, daemon=True).start()

A system initialization function. It first cancels the timer, sets the initial position of the robotic arm, performs the sliding rail homing operation, then starts the YOLOv8 object detection service. Finally, it launches the main processing thread and the transport thread, completing the preparation of the entire waste classification system.

⑥ camera_info_callback Function:

106
107
108
  def camera_info_callback(self, msg):
      self.intrinsic = np.matrix(msg.k).reshape(1, -1, 3)
      self.distortion = np.array(msg.d)

Camera information callback that processes configuration data from the camera. It extracts intrinsic camera parameters and distortion coefficients from the CameraInfo message and stores them as class attributes, providing necessary camera parameters for subsequent coordinate transformations and image processing.

⑦ send_request Function:

110
111
112
113
114
  def send_request(self, client, msg):
      future = client.call_async(msg)
      while rclpy.ok():
          if future.done() and future.result():
              return future.result()

Used to send asynchronous requests to ROS2 services and wait for their responses. This function simplifies interaction with ROS2 services by polling the future object status in a loop, ensuring correct reception and return of service response data.

⑧ image_callback Function:

116
117
118
119
120
121
  def image_callback(self, ros_image):
      cv_image = self.bridge.imgmsg_to_cv2(ros_image, "bgr8")
      bgr_image = np.array(cv_image, dtype=np.uint8)
      cv2.drawContours(bgr_image, [self.imgpts], -1, (0, 255, 255), 2, cv2.LINE_AA) # Draw rectangle. 绘制矩形
      cv2.imshow('image', bgr_image)
      cv2.waitKey(1)

Image callback that processes image messages received from the YOLOv8 node. It converts ROS image format to OpenCV format, draws the ROI boundary on the image, and displays the image window using OpenCV, providing real-time visual feedback to the user.

⑨ get_roi Function:

123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
  def get_roi(self):
      with open(self.config_path + self.config_file, 'r') as f:
          config = yaml.safe_load(f)

          # Convert to numpy array. 转换为 numpy 数组
          extristric = np.array(config['extristric'])
          corners = np.array(config['corners']).reshape(-1, 3)
          self.white_area_center = np.array(config['white_area_pose_world'])
      while True:
          intrinsic = self.intrinsic
          distortion = self.distortion
          if intrinsic is not None and distortion is not None:
              break
          time.sleep(0.1)

      tvec = extristric[:1]  # Take the first row. 取第一行
      rmat = extristric[1:]  # Take the last three rows. 取后面三行

      tvec, rmat = common.extristric_plane_shift(np.array(tvec).reshape((3, 1)), np.array(rmat), 0.04)
      self.extristric = tvec, rmat
      tvec, rmat = common.extristric_plane_shift(np.array(tvec).reshape((3, 1)), np.array(rmat), 0.0)
      imgpts, jac = cv2.projectPoints(corners[:-1], np.array(rmat), np.array(tvec), intrinsic, distortion)
      imgpts = np.int32(imgpts).reshape(-1, 2)
      self.imgpts = imgpts

      # 裁切出ROI区域(crop RIO region)
      x_min = min(imgpts, key=lambda p: p[0])[0] # x轴最小值(the minimum value of X-axis)
      x_max = max(imgpts, key=lambda p: p[0])[0] # x轴最大值(the maximum value of X-axis)
      y_min = min(imgpts, key=lambda p: p[1])[1] # y轴最小值(the minimum value of Y-axis)
      y_max = max(imgpts, key=lambda p: p[1])[1] # y轴最大值(the maximum value of Y-axis)
      roi = np.maximum(np.array([y_min, y_max, x_min, x_max]), 0)

      self.roi = roi

Retrieves the Region of Interest (ROI). Reads extrinsic parameters, corner points, and white area pose information from configuration files. It waits for the camera intrinsic parameters to be initialized, then uses coordinate transformations and projection calculations to determine the ROI boundary in the image, providing an accurate working area for subsequent object detection.

⑩ get_object_world_position Function:

157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
  def get_object_world_position(self, position, intrinsic, extristric, white_area_center, height=0.03):
      projection_matrix = np.row_stack((np.column_stack((extristric[1], extristric[0])), np.array([[0, 0, 0, 1]])))
      world_pose = common.pixels_to_world([position], intrinsic, projection_matrix)[0]
      world_pose[0] = -world_pose[0]
      world_pose[1] = -world_pose[1]
      position = white_area_center[:3, 3] + world_pose
      position[2] = height

      config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
      offset = tuple(config_data['pixel']['offset'])
      scale = tuple(config_data['pixel']['scale'])
      for i in range(3):
          position[i] = position[i] * scale[i]
          position[i] = position[i] + offset[i]
      return position, projection_matrix

A core function for converting pixel coordinates to world coordinates. By constructing a projection matrix, pixel coordinates in the image are converted into positions in the robot’s world coordinate system. Coordinate transformations and height adjustments are applied, and finally, accuracy compensation is performed using offset and scaling parameters from the calibration file to ensure precise grasping positions.

⑪ calculate_pick_grasp_yaw Function:

173
174
175
176
177
178
179
180
181
182
183
  def calculate_pick_grasp_yaw(self, position, target, target_info, intrinsic, projection_matrix):
      yaw = math.degrees(math.atan2(position[1], position[0]))
      if position[0] < 0 and position[1] < 0:
          yaw = yaw + 180
      elif position[0] < 0 and position[1] > 0:
          yaw = yaw - 180
      # 0.09x0.02
      gripper_size = [common.calculate_pixel_length(0.09, intrinsic, projection_matrix),
                      common.calculate_pixel_length(0.02, intrinsic, projection_matrix)]

      return calculate_grasp_yaw.calculate_gripper_yaw_angle(target, target_info, gripper_size, yaw)

It calculates the gripper yaw angle for picking. It computes the base yaw angle based on the target position, adjusts the angle according to the quadrant, and then calls a utility function that incorporates the gripper’s size information to calculate the optimal grasping angle. This ensures the robotic arm can stably pick up the target object.

⑫ calculate_place_grasp_yaw Function:

185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
  def calculate_place_grasp_yaw(self, position, angle=0):
      yaw = math.degrees(math.atan2(position[1], position[0]))
      if position[0] < 0 and position[1] < 0:
          yaw = yaw + 180
      elif position[0] < 0 and position[1] > 0:
          yaw = yaw - 180
      yaw1 = yaw + angle
      if yaw < 0:
          yaw2 = yaw1 + 90
      else:
          yaw2 = yaw1 - 90

      yaw = yaw2
      if abs(yaw1) < abs(yaw2):
          yaw = yaw1
      yaw = 500 + int(yaw / 240 * 1000)

      return yaw

It calculates the gripper yaw angle for placing. It determines the yaw angle based on the target position, uses an angle optimization algorithm to select the most suitable placement angle, and then converts this angle into the pulse width value required for servo control, ensuring precise placement operations.

⑬ transport_thread Function:

204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
  def transport_thread(self):
      while True:
          if self.start_transport:
              self.send_request(self.stop_yolov8_client, Trigger.Request())
              position, yaw, target = self.transport_info
              if position[0] > 0.22:
                  position[2] += 0.01
              config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
              offset = tuple(config_data['kinematics']['offset'])
              scale = tuple(config_data['kinematics']['scale'])
              for i in range(3):
                  position[i] = position[i] * scale[i]
                  position[i] = position[i] + offset[i]
              # self.get_logger().info(f'pick2:{position}')

              finish = pick_and_place.pick(position, 80, yaw, 500, 0.02, self.joints_pub, self.kinematics_client)
              if finish:
                  set_servo_position(self.joints_pub, 1.0, ( (1, 500),))
                  time.sleep(1.0)
                  stepper_position = TARGET_POSITION[target]
                  self.stepper.goto(stepper_position) # Drive the slide rail to move to the placement position. 驱动滑轨移动到放置位置
                  stepper_time = stepper_position/1000 # Calculate the required time. 计算需要的时间
                  time.sleep(stepper_time)

                  position =  [0.25, 0, 0.02] # Set the placement position. 设置放置位置

                  yaw = self.calculate_place_grasp_yaw(position, 0)
                  config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
                  offset = tuple(config_data['kinematics']['offset'])
                  scale = tuple(config_data['kinematics']['scale'])
                  angle = math.degrees(math.atan2(position[1], position[0]))
                  if angle > 45:
                      # self.get_logger().info(f'1:{position}')
                      position = [position[0] * scale[1], position[1] * scale[0], position[2] * scale[2]]
                      position = [position[0] - offset[1], position[1] + offset[0], position[2] + offset[2]]
                  elif angle < -45:
                      # self.get_logger().info(f'2:{position}')
                      position = [position[0] * scale[1], position[1] * scale[0], position[2] * scale[2]]
                      position = [position[0] + offset[1], position[1] - offset[0], position[2] + offset[2]]
                  else:
                      # self.get_logger().info(f'3:{position}')
                      position = [position[0] * scale[0], position[1] * scale[1], position[2] * scale[2]]
                      position = [position[0] + offset[0], position[1] + offset[1], position[2] + offset[2]]

                  # self.get_logger().info(f'{position}')
                  finish = pick_and_place.place(position, 80, yaw, 200, self.joints_pub, self.kinematics_client)
                  if finish:
                      set_servo_position(self.joints_pub, 1.5, ( (1, 500),(2, 520), (3, 210), (4, 50), (5, 500), (10, 200)))  # 设置机械臂初始位置
                      time.sleep(1.5)
                      stepper_position = TARGET_POSITION[target]
                      self.stepper.goto(-stepper_position) # Drive the slide rail to move to the placement position. 驱动滑轨移动到放置位置
                      stepper_time = stepper_position/1000 # Calculate the required time. 计算需要的时间
                      time.sleep(stepper_time)
                      self.send_request(self.start_yolov8_client, Trigger.Request())
                      self.target = None
                      self.start_transport = False
          else:
              time.sleep(0.1)

Transport control thread, responsible for executing the full waste classification. Upon receiving the transport command, YOLOv8 detection is first stopped to avoid interference. Then, kinematic calibration parameters are applied for position compensation. The pick_and_place utility function is used to perform the grasping operation. Next, the sliding rail is driven to the position corresponding to the target trash category to execute the placing operation. Finally, the robotic arm and sliding rail return to their home positions, and YOLOv8 detection is restarted to prepare for the next operation.

⑭ main Function:

263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
  def main(self):
      while self.running:
          if self.start_get_roi:
              self.get_roi()
              self.start_get_roi = False
          roi = self.roi
          if self.target_object_info is not None:
              target_object_info = copy.deepcopy(self.target_object_info)
              center = target_object_info[0][2]
              if self.camera_type == 'USB_CAM':
                  x, y = distortion_inverse_map.undistorted_to_distorted_pixel(center[0], center[1], self.intrinsic, self.distortion)
                  center = (x, y)
              intrinsic = self.intrinsic
              self.target_object_info = None

              if roi[2] < center[0] < roi[3] and roi[0] < center[1] < roi[1]:
                  position, projection_matrix = self.get_object_world_position(target_object_info[0][2], intrinsic, self.extristric, self.white_area_center, 0.04)

                  result = self.calculate_pick_grasp_yaw(position, target_object_info[0], target_object_info[1], intrinsic, projection_matrix)
                  if result is not None:
                      if self.last_position is not None:
                          e_distance = round(math.sqrt(pow(self.last_position[0] - position[0], 2)) + math.sqrt(pow(self.last_position[1] - position[1], 2)), 5)
                          # self.get_logger().info(f'{e_distance}')
                          if e_distance <= 0.002:  # Euclidean distance less than 2mm to prevent grasping while the object is still moving. 欧式距离小于2mm, 防止物体还在移动时就去夹取了
                              self.count_move = 0
                              self.count_still += 1
                          else:
                              self.count_move += 1
                              self.count_still = 0
                          if self.count_move > 10:
                              if target_object_info[0][0] in self.target_list:
                                  self.target_list.remove(target_object_info[0][0])

                          if self.count_still > 10:
                              self.count_still = 0
                              self.count_move = 0
                              for k, v in WASTE_CLASSES.items():
                                  if target_object_info[0][0] in v:
                                      waste_category = k
                                      break
                              yaw = 500 + int(result[0] / 240 * 1000)
                              self.transport_info = [position, yaw, waste_category]
                              # self.get_logger().info(f'{self.transport_info}')
                              self.start_transport = True
                      self.last_position = position

The main processing loop function. Continuously monitor for detected objects from YOLOv8. When a target is detected, extract its center coordinates and apply angle constraints. Convert the coordinates to world coordinates and perform deviation adjustments. Match the detected object’s name to the corresponding waste category. Then stop detection and start the transport thread to execute the pick-and-place task.

⑮ Main Function:

342
343
344
345
346
347
348
349
350
351
def main():
  node = WasteClassificationNode('waste_classification')
  executor = MultiThreadedExecutor()
  executor.add_node(node)
  executor.spin()
  node.destroy_node()
  rclpy.shutdown()

if __name__ == "__main__":
  main()

The entry point for launching and running the waste classification ROS2 node. It creates an instance of the WasteClassificationNode, uses a MultiThreadedExecutor to support multithreaded processing, starts the node, and properly cleans up resources upon termination.

20.7 Tag Sorting

20.7.1 Working Principle

In this lesson, the system uses a camera to recognize tags and then uses the tag information and its position to control a robotic arm. Based on inverse kinematics calculations, the robotic arm picks up the tagged wooden block and moves it to a designated location via a sliding rail system.

AprilTag is a type of visual localization marker, similar to QR codes or barcodes.

The process begins by subscribing to the camera node to obtain real-time image data. The image is converted from the RGB color space to grayscale, and the camera’s intrinsic parameters are retrieved.

Next, the AprilTag detection function from the corresponding library is called to process the image. This detects AprilTags and retrieves their IDs, the coordinates of the four corner points of each tag, and the coordinates of their center points.

Using the coordinate information from detection, the system calculates the position of each wooden block. Then, inverse kinematics is applied to compute the necessary joint angles for the robotic arm to reach the target position. Finally, the robotic arm performs the pick-up action and the sliding rail transports the wooden block to the position corresponding to the tag ID, where it is placed.

20.7.2 Enabling and Disabling the Feature

Note

When entering commands, be sure to use correct case and spacing. You can use the Tab key to auto-complete keywords.

(1) Refer to “1.6. Development Environment Setup and Configuration” to establish a connection between the robotic arm and the remote desktop tool.

(2) Double-click to launch the command bar, enter the command, and press Enter to disable the auto-start service.

~/.stop_ros.sh

(3) Open a new terminal window , enter the following command, and press Enter to launch the tag sorting feature.

roslaunch stepper apriltag_sorting_stepper.launch

(4) To stop the program, press Ctrl + C in the terminal window. If the program does not stop immediately, repeat this step until it terminates.

(5) After completing the feature, you need to start the APP service . Otherwise, future APP features may not function properly. In the terminal, enter the command and press Enter to start the APP service.

sudo systemctl start start_app_node.service

(6) Once the APP service is successfully started, the robotic arm will return to its initial pose, and the buzzer will beep once.

20.7.3 Project Outcome

After the feature is started, place the tagged wooden blocks within the robotic arm’s visual recognition area. The robotic arm will automatically pick up the blocks in the order of tag IDs 1, 2, and 3, and place them at their corresponding target locations. In this setup, red, green, and blue colored squares are used to represent the placement spots for tag ID 1, 2, and 3, respectively.

20.7.4 Functional Package Structure and Program Analysis

  • Functional Package Structure Analysis

When using the tag sorting feature, the recognition program’s functional package is called. Its file structure is shown below:

(1) launch folder: Contains launch files used to start the tag sorting program and initiate the sorting functionality.

(2) stepper folder: Contains source code files for the tag sorting program, implementing the core sorting logic functions.

(3) CMakeLists.txt: Manages build dependencies for the package and includes format information needed after launching ROS services.

(4) package.xml: The package description file, which details the package’s contents such as build tools and version information.

  • Program Brief Analysis

(1) Launch File Analysis

The launch files are located at: ~/ros2_ws/src/stepper/launch/tag_sorting.launch.py

① launch_setup Function: The launch_setup function configures different package paths based on environment variables and includes other launch description files. It also defines and launches a node for tag classification. The function returns a list of all launch elements that will be executed when the ROS2 system starts.

  • Environment Variable Check:

11
12
13
14
15
16
17
  compiled = os.environ['need_compile']
  if compiled == 'True':
      sdk_package_path = get_package_share_directory('sdk')
      peripherals_package_path = get_package_share_directory('peripherals')
  else:
      sdk_package_path = '/home/ubuntu/ros2_ws/src/driver/sdk'
      peripherals_package_path = '/home/ubuntu/ros2_ws/src/peripherals'

The function first reads the need_compile value from the environment variables. This variable determines whether to use the installed package paths or the source directory paths.

If need_compile is set to “True”, it uses the get_package_share_directory function to get the shared directory path of the installed packages.

Otherwise, it falls back to using the absolute path of the source directories.

  • Including Additional Launch Files:

19
20
21
22
23
24
25
26
27
  depth_camera_launch = IncludeLaunchDescription(
      PythonLaunchDescriptionSource(
          os.path.join(peripherals_package_path, 'launch/depth_camera.launch.py')),
  )

  sdk_launch = IncludeLaunchDescription(
      PythonLaunchDescriptionSource(
          os.path.join(sdk_package_path, 'launch/jetarm_sdk.launch.py')),
  )

depth_camera_launch: Includes the depth_camera.launch.py launch file located in the peripherals package, which initializes the depth camera.

sdk_launch: Includes the jetarm_sdk.launch.py launch file located in the SDK package, responsible for initializing SDK-related components.

  • Starting Nodes:

29
30
31
32
33
  tag_sorting_node = Node(
      package='stepper',
      executable='tag_sorting',
      output='screen',
  )

A node named tag_sorting_node is created, which belongs to the stepper package. It executes the tag_sorting executable and outputs logs to the screen.

  • Return Launch Actions List:

35
36
37
38
39
  return [
          sdk_launch,
          depth_camera_launch,
          tag_sorting_node,
          ]

Finally, the function returns a list containing all the defined launch actions. These actions are executed sequentially during the ROS 2 launch process, ensuring that all components are correctly initialized and running.

(2) Source Code Analysis

Python files locate at: ~/ros2_ws/src/stepper/stepper/tag_sorting.py

① Import the necessary libraries

 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
import os
import cv2
import yaml
import time
import math
import queue
import rclpy
import threading
import numpy as np
from sdk import common
from rclpy.node import Node
from app.common import Heart
from cv_bridge import CvBridge
from dt_apriltags import Detector
from stepper import stepper as Stepper
from std_srvs.srv import Trigger, SetBool
from sensor_msgs.msg import Image, CameraInfo
from rclpy.executors import MultiThreadedExecutor
from interfaces.srv import SetStringBool
from servo_controller_msgs.msg import ServosPosition
from rclpy.callback_groups import ReentrantCallbackGroup
from kinematics.kinematics_control import set_pose_target
from kinematics_msgs.srv import GetRobotPose, SetRobotPose
from kinematics.kinematics_control import set_joint_value_target
from servo_controller.bus_servo_control import set_servo_position
from app.utils import calculate_grasp_yaw, position_change_detect, pick_and_place, image_process, distortion_inverse_map

  • os: A standard library for interacting with the operating system.

  • cv2: The OpenCV library used for computer vision processing.

  • yaml: A library for parsing and generating YAML format files.

  • time: A standard library providing time-related functionalities.

  • math: A standard library for mathematical operations.

  • queue: A standard library providing a thread-safe queue implementation.

  • rclpy: The Python client library for ROS 2, used to develop robotic applications.

  • threading: A standard library that supports multithreaded programming.

  • numpy as np: The NumPy library for efficient numerical computations and array manipulations.

  • sdk.common, sdk.fps: Custom SDK modules for common utilities and FPS control.

  • rclpy.node.Node: The base class for ROS 2 nodes, used to create and manage nodes.

  • app.common.Heart: A heartbeat module in the application used to monitor system status.

  • cv_bridge.CvBridge: A bridge that converts between OpenCV images and ROS image messages.

  • dt_apriltags.Detector: AprilTag detector used for recognizing and tracking AprilTags.

  • stepper.stepper as Stepper: A stepper motor control module for precise control of stepper motors.

  • std_srvs.srv.Trigger, std_srvs.srv.SetBool: Standard ROS services for triggering operations and setting boolean values.

  • sensor_msgs.msg.Image, sensor_msgs.msg.CameraInfo: ROS sensor messages for image data and camera information.

  • rclpy.executors.MultiThreadedExecutor: A ROS executor that supports multithreaded callback handling.

  • interfaces.srv.SetStringBool: A custom ROS service for setting string and boolean values.

  • servo_controller_msgs.msg.ServosPosition: A custom ROS message type representing servo positions.

  • rclpy.callback_groups.ReentrantCallbackGroup: A ROS callback group that allows reentrant execution of callbacks.

  • kinematics.kinematics_control.set_pose_target: A function from the kinematics control module used to set pose targets.

  • kinematics_msgs.srv.GetRobotPose and kinematics_msgs.srv.SetRobotPose: These are ROS2 kinematics service interfaces used for interacting with a robot’s pose.

  • kinematics.kinematics_control.set_joint_value_target: This function belongs to the kinematics control module. It is used to set the target values for the robot’s joint angles.

  • servo_controller.bus_servo_control.set_servo_position: Function for setting servo positions in the servo control module.

② Target Position Specification

34
35
36
37
38
TARGET_POSITION = {
  'tag1': (2600),
  'tag2': (4000),
  'tag3': (5200),
}

This is a dictionary used to store target positions for different tags. This structure simplifies quickly locating the corresponding position based on tag during the robot’s tasks. Sliding rail position range is from 0 (leftmost end) to 5200 (rightmost end).

③__init__ Function:

42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
class TagSorting(Node):

  def __init__(self, name):
      rclpy.init()
      super().__init__(name, allow_undeclared_parameters=True, automatically_declare_parameters_from_overrides=True)
      self.tag_size = 0.025
      self.start_get_roi = True
      self.last_position = None
      self.imgpts = None
      self.roi = None
      self.count_move = 0
      self.count_still = 0
      self.last_position = None
      self.start_transport = False
      self.extristric = None
      self.intrinsic = None
      self.distortion = None
      self.target = None
      self.target_miss_count = 0
      self.camera_type = os.environ['CAMERA_TYPE']
      self.calibration_file = 'calibration.yaml'
      self.config_file = 'transform.yaml'
      self.config_path = "/home/ubuntu/ros2_ws/src/stepper/config/"

      self.image_queue = queue.Queue(maxsize=2)
      self.lock = threading.RLock()
      self.bridge = CvBridge()  # Used for the conversion between ROS Image messages and OpenCV images. 用于ROS Image消息与OpenCV图像之间的转换
      self.stepper = Stepper.Stepper(7)
      self.stepper.set_mode(self.stepper.EN) # Set the slide rail enable. 设置滑轨使能

      self.at_detector = Detector(searchpath=['apriltags'],
                                  families='tag36h11',
                                  nthreads=4,
                                  quad_decimate=1.0,
                                  quad_sigma=0.0,
                                  refine_edges=1,
                                  decode_sharpening=0.25,
                                  debug=0)


      self.joints_pub = self.create_publisher(ServosPosition, '/servo_controller', 1)
      self.image_sub = self.create_subscription(Image, '/depth_cam/rgb/image_raw', self.image_callback, 1)
      self.camera_info_sub = self.create_subscription(CameraInfo, '/depth_cam/rgb/camera_info', self.camera_info_callback, 1)

      self.timer_cb_group = ReentrantCallbackGroup()
      self.client = self.create_client(Trigger, '/controller_manager/init_finish', callback_group=self.timer_cb_group)
      self.client.wait_for_service()
      self.get_current_pose_client = self.create_client(GetRobotPose, '/kinematics/get_current_pose', callback_group=self.timer_cb_group)
      self.get_current_pose_client.wait_for_service()
      self.kinematics_client = self.create_client(SetRobotPose, '/kinematics/set_pose_target', callback_group=self.timer_cb_group)
      self.kinematics_client.wait_for_service()

      self.timer = self.create_timer(0.0, self.init_process, callback_group=self.timer_cb_group)

This function is used to initialize a ROS2-based tag sorting node. It sets AprilTag-related parameters, such as tag size and detector configuration, initializes state variables and counters, configures the stepper motor controller, and creates the image queue and thread lock. It also sets up ROS2 publishers, subscribers, and service clients, and starts the initialization process via a timer. The AprilTag detector is configured with parameters such as the tag36h11 family, 4-thread processing, and edge refinement to improve detection accuracy.

④ init_process Function:

93
94
95
96
97
98
99
  def init_process(self):
      self.timer.cancel()
      set_servo_position(self.joints_pub, 1.0, ( (1, 500),(2, 520), (3, 210), (4, 50), (5, 500), (10, 200)))  # Set the initial position of the robotic arm. 设置机械臂初始位置
      time.sleep(1.5)
      self.stepper.go_home()
      threading.Thread(target=self.main, daemon=True).start()
      threading.Thread(target=self.transport_thread, daemon=True).start()

A system initialization function. It first cancels the timer, sets the robot arm to its initial position, performs the sliding rail homing operation, and then starts the main processing thread and the transport thread, completing all preparations for the tag sorting system.

⑤ send_request Function:

101
102
103
104
105
  def send_request(self, client, msg):
      future = client.call_async(msg)
      while rclpy.ok():
          if future.done() and future.result():
              return future.result()

Used to send asynchronous requests to ROS2 services and wait for their responses. This function simplifies interaction with ROS2 services by polling the future object status in a loop, ensuring correct reception and return of service response data.

⑥ camera_info_callback Function:

107
108
109
  def camera_info_callback(self, msg):
      self.intrinsic = np.matrix(msg.k).reshape(1, -1, 3)
      self.distortion = np.array(msg.d)

Camera information callback that processes configuration data from the camera. From the CameraInfo message, the intrinsic matrix and distortion coefficients of the camera are extracted, reshaped to the appropriate form, and stored as class attributes. These parameters provide the necessary camera information for subsequent AprilTag detection and coordinate transformations.

⑦ image_callback Function:

111
112
113
114
115
116
117
118
119
120
  def image_callback(self, ros_image):
      # Convert ros format images to opencv format. 将ros格式图像转换为opencv格式
      cv_image = self.bridge.imgmsg_to_cv2(ros_image, "bgr8")
      bgr_image = np.array(cv_image, dtype=np.uint8)

      if self.image_queue.full():
          # If the queue is full, discard the oldest image. 如果队列已满，丢弃最旧的图像
          self.image_queue.get()
      # Put the image into the queue. 将图像放入队列
      self.image_queue.put(bgr_image)

This is the image callback function used to process image messages received from the camera topic. It converts ROS image messages to OpenCV format and stores them in a buffer queue. If the queue is full, the oldest images are automatically discarded to ensure efficient memory usage and maintain real-time performance.

⑧ get_roi Function: {lineno-start=122}

  def get_roi(self):
      with open(self.config_path + self.config_file, 'r') as f:
          config = yaml.safe_load(f)

          # Convert to numpy array. 转换为 numpy 数组
          extristric = np.array(config['extristric'])
          corners = np.array(config['corners']).reshape(-1, 3)
          self.white_area_center = np.array(config['white_area_pose_world'])
      while True:
          intrinsic = self.intrinsic
          distortion = self.distortion
          if intrinsic is not None and distortion is not None:
              break
          time.sleep(0.1)

      tvec = extristric[:1]  # Take the first row. 取第一行
      rmat = extristric[1:]  # Take the last three rows. 取后面三行

      tvec, rmat = common.extristric_plane_shift(np.array(tvec).reshape((3, 1)), np.array(rmat), 0.03)
      self.extristric = tvec, rmat
      tvec, rmat = common.extristric_plane_shift(np.array(tvec).reshape((3, 1)), np.array(rmat), 0.00)
      imgpts, jac = cv2.projectPoints(corners[:-1], np.array(rmat), np.array(tvec), intrinsic, distortion)
      imgpts = np.int32(imgpts).reshape(-1, 2)
      self.imgpts = imgpts
      # Crop RIO region 裁切出ROI区域
      x_min = min(imgpts, key=lambda p: p[0])[0] # The minimum value of the X-axis. x轴最小值
      x_max = max(imgpts, key=lambda p: p[0])[0] # The maximum value of the X-axis. x轴最大值
      y_min = min(imgpts, key=lambda p: p[1])[1] # The minimum value of the Y-axis. y轴最小值
      y_max = max(imgpts, key=lambda p: p[1])[1] # The maximum value of the Y-axis. y轴最大值
      roi = np.maximum(np.array([y_min, y_max, x_min, x_max]), 0)

      self.roi = roi

Retrieves the Region of Interest (ROI). Read the external parameters, corner points, and white area pose information from the configuration file.

Then, wait for the camera intrinsic parameters to be initialized. After that, determine the ROI boundaries in the image through plane offset processing and projection calculations. This provides a precise working area for subsequent AprilTag detection.

⑨ get_object_world_position` Function:

155
156
157
158
159
160
161
162
163
164
165
166
167
168
  def get_object_world_position(self, position, intrinsic, extristric, white_area_center, height=0.03):
      projection_matrix = np.row_stack((np.column_stack((extristric[1], extristric[0])), np.array([[0, 0, 0, 1]])))
      world_pose = common.pixels_to_world([position], intrinsic, projection_matrix)[0]
      world_pose[0] = -world_pose[0]
      world_pose[1] = -world_pose[1]
      position = white_area_center[:3, 3] + world_pose
      position[2] = height
      config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
      offset = tuple(config_data['pixel']['offset'])
      scale = tuple(config_data['pixel']['scale'])
      for i in range(3):
          position[i] = position[i] * scale[i]
          position[i] = position[i] + offset[i]
      return position, projection_matrix

A core function for converting pixel coordinates to world coordinates. By constructing a projection matrix, pixel coordinates in the image are converted into positions in the robot’s world coordinate system. Coordinate transformations and height adjustments are applied, and finally, accuracy compensation is performed using offset and scaling parameters from the calibration file to ensure precise grasping positions.

⑩ calculate_pick_grasp_yaw Function:

170
171
172
173
174
175
176
177
178
179
180
  def calculate_pick_grasp_yaw(self, position, target, target_info, intrinsic, projection_matrix):
      yaw = math.degrees(math.atan2(position[1], position[0]))
      if position[0] < 0 and position[1] < 0:
          yaw = yaw + 180
      elif position[0] < 0 and position[1] > 0:
          yaw = yaw - 180
      # 0.09x0.02
      gripper_size = [common.calculate_pixel_length(0.09, intrinsic, projection_matrix),
                      common.calculate_pixel_length(0.02, intrinsic, projection_matrix)]

      return calculate_grasp_yaw.calculate_gripper_yaw_angle(target, target_info, gripper_size, yaw)

It calculates the gripper yaw angle for picking. It computes the base yaw angle based on the target position, adjusts the angle according to the quadrant, and then calls a utility function that incorporates the gripper’s size information to calculate the optimal grasping angle. This ensures the robotic arm can stably pick up the objects marked with AprilTags.

⑪ calculate_place_grasp_yaw Function:

182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
  def calculate_place_grasp_yaw(self, position, angle=0):
      yaw = math.degrees(math.atan2(position[1], position[0]))
      if position[0] < 0 and position[1] < 0:
          yaw = yaw + 180
      elif position[0] < 0 and position[1] > 0:
          yaw = yaw - 180
      yaw1 = yaw + angle
      if yaw < 0:
          yaw2 = yaw1 + 90
      else:
          yaw2 = yaw1 - 90

      yaw = yaw2
      if abs(yaw1) < abs(yaw2):
          yaw = yaw1
      yaw = 500 + int(yaw / 240 * 1000)

      return yaw

It calculates the gripper yaw angle for placing. Based on the target position, calculate the yaw angle and use an angle optimization algorithm to select the most suitable placement angle from two candidate angles. Then convert this angle into the pulse width required for servo control, ensuring precise placement operations.

⑫ transport_thread Function:

201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
  def transport_thread(self):
      while True:
          if self.start_transport:
              position, yaw, target = self.transport_info
              if position[0] > 0.22:
                  position[2] += 0.01
              config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
              offset = tuple(config_data['kinematics']['offset'])
              scale = tuple(config_data['kinematics']['scale'])
              for i in range(3):
                  position[i] = position[i] * scale[i]
                  position[i] = position[i] + offset[i]

              finish = pick_and_place.pick(position, 80, yaw, 540, 0.02, self.joints_pub, self.kinematics_client)
              if finish:
                  set_servo_position(self.joints_pub, 1.0, ( (1, 500),))  # Set the initial position of the robotic arm. 设置机械臂初始位置
                  time.sleep(1.)
                  stepper_position = TARGET_POSITION[str(self.target[0])]
                  self.stepper.goto(stepper_position) # Drive the slide rail to move to the placement position. 驱动滑轨移动到放置位置
                  stepper_time = stepper_position/1000 # Calculate the required time. 计算需要的时间
                  time.sleep(stepper_time)

                  position =  [0.25, 0, 0.015] # Set the placement position. 设置放置位置

                  yaw = self.calculate_place_grasp_yaw(position, 0)
                  config_data = common.get_yaml_data(os.path.join(self.config_path, self.calibration_file))
                  offset = tuple(config_data['kinematics']['offset'])
                  scale = tuple(config_data['kinematics']['scale'])
                  angle = math.degrees(math.atan2(position[1], position[0]))
                  if angle > 45:
                      # self.get_logger().info(f'1:{position}')
                      position = [position[0] * scale[1], position[1] * scale[0], position[2] * scale[2]]
                      position = [position[0] - offset[1], position[1] + offset[0], position[2] + offset[2]]
                  elif angle < -45:
                      # self.get_logger().info(f'2:{position}')
                      position = [position[0] * scale[1], position[1] * scale[0], position[2] * scale[2]]
                      position = [position[0] + offset[1], position[1] - offset[0], position[2] + offset[2]]
                  else:
                      # self.get_logger().info(f'3:{position}')
                      position = [position[0] * scale[0], position[1] * scale[1], position[2] * scale[2]]
                      position = [position[0] + offset[0], position[1] + offset[1], position[2] + offset[2]]

                  # self.get_logger().info(f'{position}')
                  finish = pick_and_place.place(position, 80, yaw, 200, self.joints_pub, self.kinematics_client)
                  if finish:
                      set_servo_position(self.joints_pub, 1.5, ( (1, 500),(2, 520), (3, 210), (4, 50), (5, 500), (10, 200)))  # 设置机械臂初始位置
                      time.sleep(1.5)
                      stepper_position = TARGET_POSITION[str(self.target[0])]
                      self.stepper.goto(-stepper_position) # 驱动滑轨移动到放置位置
                      stepper_time = stepper_position/1000 # 计算需要的时间
                      time.sleep(stepper_time)
                      self.target = None
                      self.start_transport = False
          else:
              time.sleep(0.1)

Transport control thread, responsible for executing the full tag sorting. When a transport command is received, it first applies kinematic calibration parameters for position compensation, then uses the pick_and_place utility function to perform the pick operation. It drives the sliding rail to move to the position corresponding to the tag ID, executes the place operation, and finally resets the robotic arm and sliding rail to prepare for the next operation.

⑬ main Function:

257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
  def main(self):
      while True:
          try:
              bgr_image = self.image_queue.get(block=True, timeout=1)
          except queue.Empty:
              continue
          if self.start_get_roi:
              self.get_roi()
              self.start_get_roi = False
          roi = self.roi.copy()
          intrinsic = self.intrinsic
          target_info = []
          if not self.start_transport:
              tags = self.at_detector.detect(cv2.cvtColor(bgr_image, cv2.COLOR_RGB2GRAY), True, (intrinsic[0,0], intrinsic[1,1], intrinsic[0,2], intrinsic[1,2]), self.tag_size)
              if len(tags) > 0 and roi[0] < tags[0].center[1] < roi[1] and roi[2] < tags[0].center[0] < roi[3]:
                  common.draw_tags(bgr_image, tags, corners_color=(0, 0, 255), center_color=(0, 255, 0))
                  index = 0
                  for tag in tags:
                      corners = tag.corners.astype(int)
                      rect = cv2.minAreaRect(np.array(tag.corners).astype(np.float32))
                      # rect includes center point, (width, height), rotation Angle. rect 包含 (中心点, (宽度, 高度), 旋转角度)
                      (center, (width, height), angle) = rect
                      index += 1
                      target_info.append(['tag%d'%tag.tag_id, index, (int(center[0]), int(center[1])), (int(width), int(height)), angle])
                      cv2.putText(bgr_image, "%d"%tag.tag_id, (int(tag.center[0] - (7 * len("%d"%tag.tag_id))), int(tag.center[1]-10)), cv2.FONT_HERSHEY_SIMPLEX, 0.7, (255, 255, 0), 2)

                  target_miss = True
                  for target in target_info:
                      if self.target is not None :  # If there is already a target, skip the other objects directly. 如果已经有了目标，其他物体就直接跳过
                          if self.target[0] != target[0] or self.target[1] != target[1]:
                              continue
                          else:
                              target_miss = False
                              self.target = target
                      position, projection_matrix = self.get_object_world_position(target[2], intrinsic, self.extristric, self.white_area_center, 0.03)
                      result = self.calculate_pick_grasp_yaw(position, target, target_info, intrinsic, projection_matrix)
                      if result is not None and self.target is None:
                          self.target = target
                          break
                      if self.last_position is not None and self.target is not None :
                          e_distance = round(math.sqrt(pow(self.last_position[0] - position[0], 2)) + math.sqrt(pow(self.last_position[1] - position[1], 2)), 5)
                          # self.get_logger().info(f'e_distance: {e_distance}')
                          if e_distance <= 0.001:  # Euclidean distance less than 1mm to prevent grasping while the object is still moving. 欧式距离小于1mm, 防止物体还在移动时就去夹取了
                              cv2.line(bgr_image, result[1][0], result[1][1], (255, 255, 0), 2, cv2.LINE_AA)
                              self.count_move = 0
                              self.count_still += 1
                          else:
                              self.count_move += 1
                              self.count_still = 0

                          if self.count_move > 10:
                              self.target = None
                          if self.count_still > 20:
                              self.count_still = 0
                              self.count_move = 0
                              self.target = target
                              yaw = 500 + int(result[0] / 240 * 1000)
                              self.transport_info = [position, yaw, target]
                              self.start_transport = True
                      self.last_position = position
                  if target_miss:
                      self.target_miss_count += 1
                  if self.target_miss_count > 10:
                      self.target_miss_count = 0
                      self.target = None
              cv2.drawContours(bgr_image, [self.imgpts], -1, (0, 255, 255), 2, cv2.LINE_AA) # Draw rectangle 绘制矩形
          if bgr_image is not None:
              cv2.imshow('result', bgr_image)
              cv2.waitKey(1)

The main processing loop function. Continuously retrieve images from the image queue and perform AprilTag detection. When a tag is detected within the ROI area, extract tag information and draw detection results. Use position change tracking to ensure target stability, and verify the target state using movement and stationary counters. When the target remains stable for a specified number of frames, start the transport thread to execute the pick-and-place task. At the same time, handle cases where the target is lost and display the corresponding results.

⑭ Main Function:

326
327
328
329
330
331
332
333
334
335
def main():
  node = TagSorting('tag_sorting')
  executor = MultiThreadedExecutor()
  executor.add_node(node)
  executor.spin()
  node.destroy_node()
  rclpy.shutdown()

if __name__ == "__main__":
  main()

It serves as the entry point for starting and running the tag sorting ROS2 node. It creates an instance of TagSorting, uses a MultiThreadedExecutor to support multithreaded processing, starts the node, and ensures proper resource cleanup upon termination.
