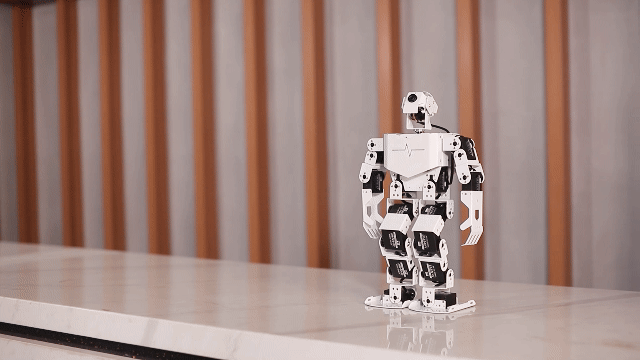

5. AI Vision Projects

5.1 Single Color Recognition

In this section, the camera detects colors. When a red ball is recognized, the buzzer will emit a beep, and the red ball will be highlighted in the transmitted image with “Color: red” displayed.

5.1.1 Program Description

The implementation of color recognition consists of two parts: color detection and execution feedback after recognition.

First, for the color detection part, Gaussian filtering is applied to the image to reduce noise. The Lab color space is then used to convert the color of the object (you can learn more about the Lab color space in the “OpenCV Vision Basic Course” section of the tutorial materials).

Next, the object’s color within the circle is recognized using color thresholding, followed by masking (masking involves using selected images, shapes, or objects to globally or locally obscure the image being processed).

After performing morphological operations such as opening and closing on the object image, the object with the largest contour is circled.

Opening: The image undergoes erosion followed by dilation. This operation removes small objects, smooths shape boundaries, and preserves the area. It can eliminate small noise particles and separate connected objects.

Closing: The image undergoes dilation followed by erosion. This operation fills small holes within objects, connects nearby objects, closes broken contour lines, and smooths boundaries while preserving the area.

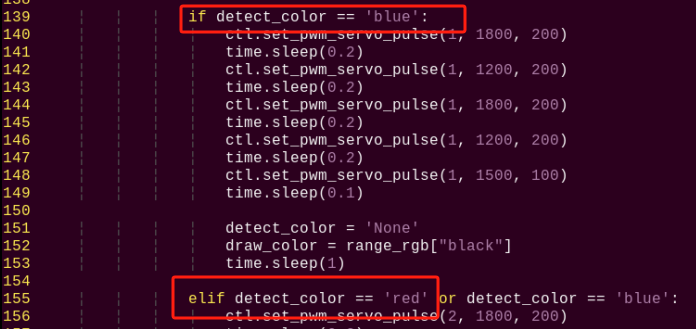

After recognition, the servo and buzzer are set up to provide feedback based on the detected color. For example, when red is detected, the buzzer will emit a sound.

For detailed feedback behavior, please refer to section 5.1.3 Program Outcome of this document.

5.1.2 Start and Close the Game

Note

The input command is case-sensitive, and keywords can be auto-completed using the Tab key.

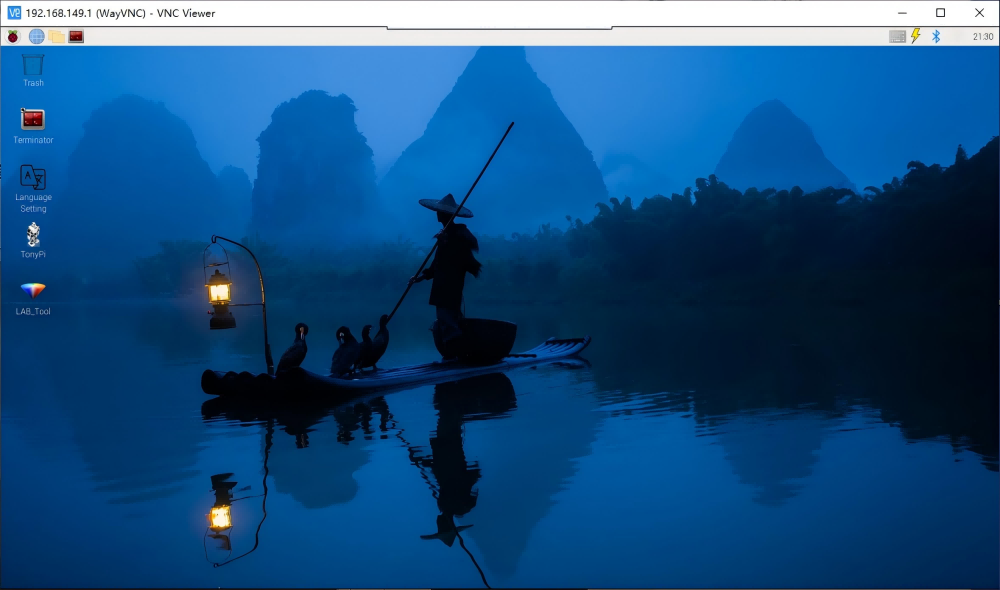

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.

(2) Click the icon in the top left corner of the system desktop or press the shortcut “Ctrl+Alt+T” to open the LX terminal.

(3) Execute the command to navigate to the directory where the program is located, then press Enter:

cd TonyPi/Functions/

(4) Enter the command and press Enter to start the program:

python3 Color_Warning.py

(5) To close the program, simply press “Ctrl+C” in the LX terminal. If it does not close, press it multiple times.

5.1.3 Program Outcome

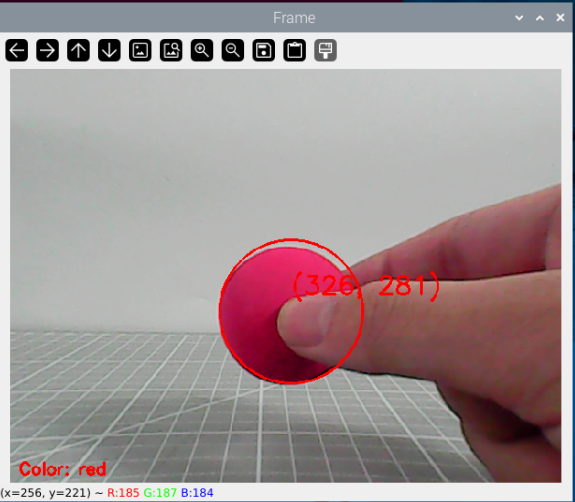

After starting the game, the camera will be used to detect colors. When a red ball is recognized, the buzzer will emit a beep sound, and the ball will be circled in the transmitted image, with “Color: red” printed.

Note

During the recognition process, ensure the environment is well-lit to avoid inaccurate recognition due to poor lighting conditions.
Ensure that no objects with similar or matching colors to the target are present in the background within the camera’s visual range, as this may cause misrecognition.

5.1.4 Program Analysis

The source code of this program is saved in: /home/pi/TonyPi/Functions/Color_Warning.py

Import Function Library

#!/usr/bin/python3
#coding=utf8
import sys
import os
import cv2
import math
import time
import threading
import numpy as np

import hiwonder.Camera as Camera
import hiwonder.Misc as Misc
import hiwonder.ros_robot_controller_sdk as rrc
import hiwonder.yaml_handle as yaml_handle

(1) Import Libraries for OpenCV, Time, Math, and Threading to use functions from a library, we can call them with the syntax:

library_name.function_name(parameter1, parameter2, ...)

To use functions from a library, we can call them with the syntax: library_name.function_name(parameter1, parameter2, …)

time.sleep(0.01)

For example, to call the sleep function from the time library, we use:

In Python, several libraries like time, cv2, and math are built-in and can be directly imported and used. You can also create your own libraries, like the yaml_handle file-reading library mentioned above.

(2) Instantiate a Library

Some library names can be long and hard to remember. To simplify function calls, we often instantiate libraries. For example:

import hiwonder.ros_robot_controller_sdk as rrc

After instantiating the library, we can call functions from the Board library using the shorter syntax:

Board.function_name(parameter1, parameter2, ...)

This makes it much easier and more convenient to use.

Main Function Analysis

In a Python program, __name__ == '__main__' indicates the main function of the program, where the program starts by reading an image.

if __name__ == '__main__':
    from CameraCalibration.CalibrationConfig import *

    #加载参数(load parameters)
    param_data = np.load(calibration_param_path + '.npz')

    #获取参数(get parameters)
    mtx = param_data['mtx_array']
    dist = param_data['dist_array']
    newcameramtx, roi = cv2.getOptimalNewCameraMatrix(mtx, dist, (640, 480), 0, (640, 480))
    mapx, mapy = cv2.initUndistortRectifyMap(mtx, dist, None, newcameramtx, (640, 480), 5)

    open_once = yaml_handle.get_yaml_data('/boot/camera_setting.yaml')['open_once']
    if open_once:
        my_camera = cv2.VideoCapture('http://127.0.0.1:8080/?action=stream?dummy=param.mjpg')
    else:
        my_camera = Camera.Camera()
        my_camera.camera_open()

    print("Color_Warning Init")
    print("Color_Warning Start")

    while True:
        ret, img = my_camera.read()
        if img is not None:
            frame = img.copy()
            frame = cv2.remap(frame, mapx, mapy, cv2.INTER_LINEAR)  # 畸变矫正(distortion correction)
            Frame = run(frame)
            cv2.imshow('Frame', Frame)
            key = cv2.waitKey(1)
            if key == 27:
                break
        else:
            time.sleep(0.01)
    my_camera.camera_close()
    cv2.destroyAllWindows()

(1) Image Processing

① Function run() for Image Processing.

def run(img):
    global draw_color
    global color_list
    global detect_color

    img_copy = img.copy()
    img_h, img_w = img.shape[:2]

    frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST)
    frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)
    frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB)  # 将图像转换到LAB空间(convert image to the LAB space)

    max_area = 0
    color_area_max = None
    areaMaxContour_max = 0

    for i in lab_data:
        if i != 'black' and i != 'white':
            frame_mask = cv2.inRange(frame_lab,
                                     (lab_data[i]['min'][0],
                                      lab_data[i]['min'][1],
                                      lab_data[i]['min'][2]),
                                     (lab_data[i]['max'][0],
                                      lab_data[i]['max'][1],
                                      lab_data[i]['max'][2]))  #对原图像和掩模进行位运算(operate bitwise operation to original image and mask)

Resizing the Image. The image size is resized to facilitate processing.

    frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST)

The first parameter img_copy is the input image.

The second parameter size specifies the output image size, which can be customized.

The third parameter interpolation=cv2.INTER_NEAREST defines the interpolation method.

INTER_NEAREST: Nearest-neighbor interpolation.

INTER_LINEAR: Bilinear interpolation (default if not specified).

INTER_CUBIC: Bicubic interpolation over a 4x4 pixel neighborhood.

INTER_LANCZOS4: Lanczos interpolation over an 8x8 pixel neighborhood.

Convert the Image to LAB Color Space. The cv2.cvtColor() function is used for color space conversion.

    frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)

The first parameter "frame_resize" is the image to be converted.

The second parameter cv2.COLOR_BGR2LAB converts the image from BGR format to LAB format. To convert to RGB, use cv2.COLOR_BGR2RGB.

Convert the Image to a Binary Image

The image is simplified by converting it to a binary image, containing only 0s and 1s, which reduces the data size and makes it easier to process. The cv2.inRange() function is used for thresholding.

            frame_mask = cv2.inRange(frame_lab,
                                     (lab_data[i]['min'][0],
                                      lab_data[i]['min'][1],
                                      lab_data[i]['min'][2]),
                                     (lab_data[i]['max'][0],
                                      lab_data[i]['max'][1],
                                      lab_data[i]['max'][2]))  #对原图像和掩模进行位运算(operate bitwise operation to original image and mask)

The first parameter "frame_lab" is the input image.

The second parameter (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]) specifies the lower color threshold.

The third parameter (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2]) specifies the upper color threshold.

Apply Morphological Operations (Opening and Closing)

To reduce interference and smooth the image, morphological operations are applied. Opening is erosion followed by dilation, and closing is dilation followed by erosion. The cv2.morphologyEx() function is used.

            eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))  #腐蚀(corrosion)
            dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilation)

The first parameter "frame_mask" is the input image.

The second parameter cv2.MORPH_OPEN specifies the morphological operation (options include cv2.MORPH_ERODE, cv2.MORPH_DILATE, cv2.MORPH_OPEN, cv2.MORPH_CLOSE).

The third parameter np.ones((6, 6)) specifies the convolution kernel.

The fourth parameter np.uint8 defines the number of iterations to apply.

Find the Largest Contour

After completing the image processing, the largest contour is found using the cv2.findContours() function.

            contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]  #找出轮廓(find out contour)

The first parameter "closed" is the input image.

The second parameter cv2.RETR_EXTERNAL specifies the contour retrieval mode.

The third parameter cv2.CHAIN_APPROX_NONE)[-2] specifies the contour approximation method.

The largest contour is selected, and a minimum area threshold is set to ensure the target contour is valid only if its area exceeds this value.

            if areaMaxContour is not None:
                if area_max > max_area:#找最大面积(find out the maximal area)
                    max_area = area_max
                    color_area_max = i
                    areaMaxContour_max = areaMaxContour

Display the Result

The detected object is circled in the transmitted image, and the detect color is printed.

    cv2.putText(img, "Color: " + detect_color, (10, img.shape[0] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, draw_color, 2)

Display the Transmitted Image

    while True:
        ret, img = my_camera.read()
        if img is not None:
            frame = img.copy()
            frame = cv2.remap(frame, mapx, mapy, cv2.INTER_LINEAR)  # 畸变矫正(distortion correction)
            Frame = run(frame)
            cv2.imshow('Frame', Frame)
            key = cv2.waitKey(1)
            if key == 27:
                break
        else:
            time.sleep(0.01)
    my_camera.camera_close()
    cv2.destroyAllWindows()

The function cv2.imshow() is used to display an image in a window. The first parameter frame is the name of the window, and the second parameter Frame is the content to be displayed.

It is important to include cv2.waitKey() after cv2.imshow(), as the image will not be displayed without it.

The function cv2.waitKey() waits for a key press, and the parameter 1 specifies the delay time in milliseconds.

5.1.5 Function Extension

Adjusting Color Thresholds

If the color recognition performance is poor during the game experience, it may be necessary to adjust the color threshold. This section uses red as an example, and the same method can be applied to adjust other colors. Follow the steps below:

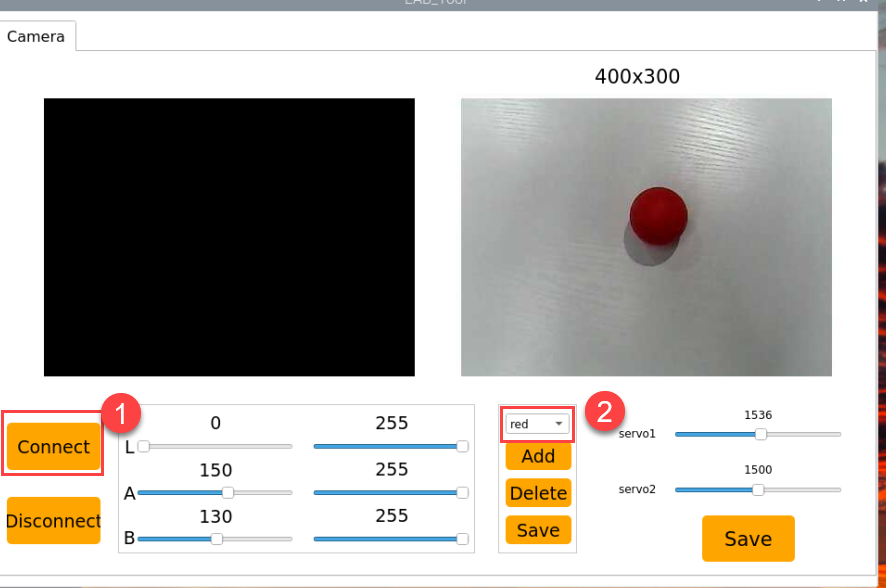

(1) Double-click , and in the popup interface, click “Execute”.

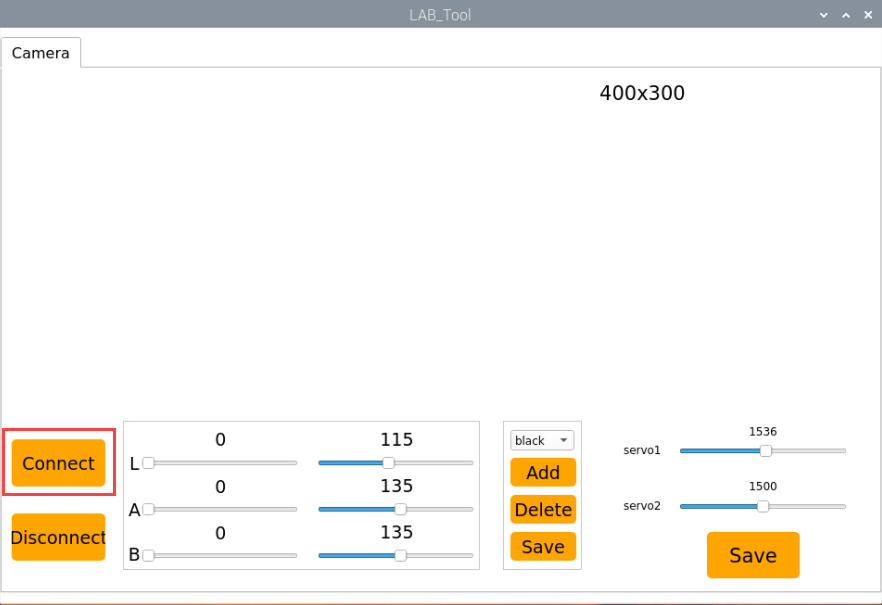

(2) Once in the interface, click “Connect” to link the camera.

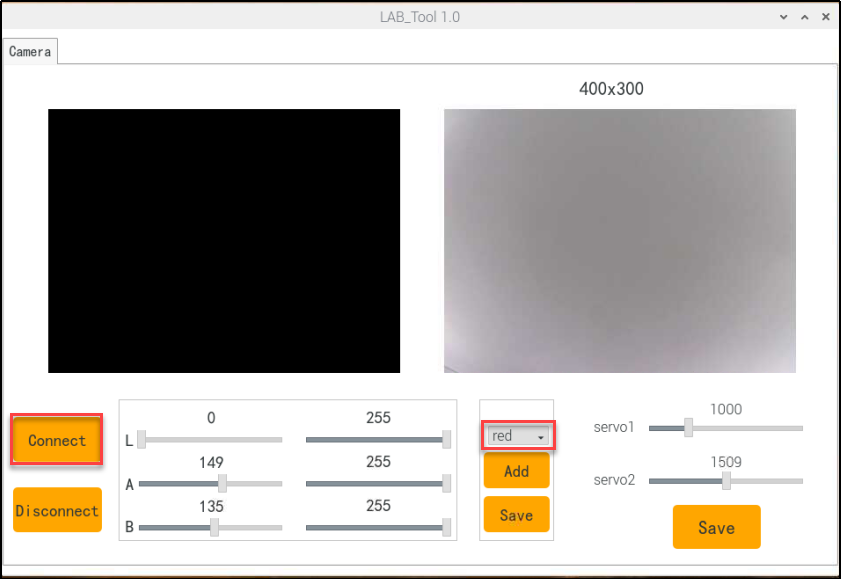

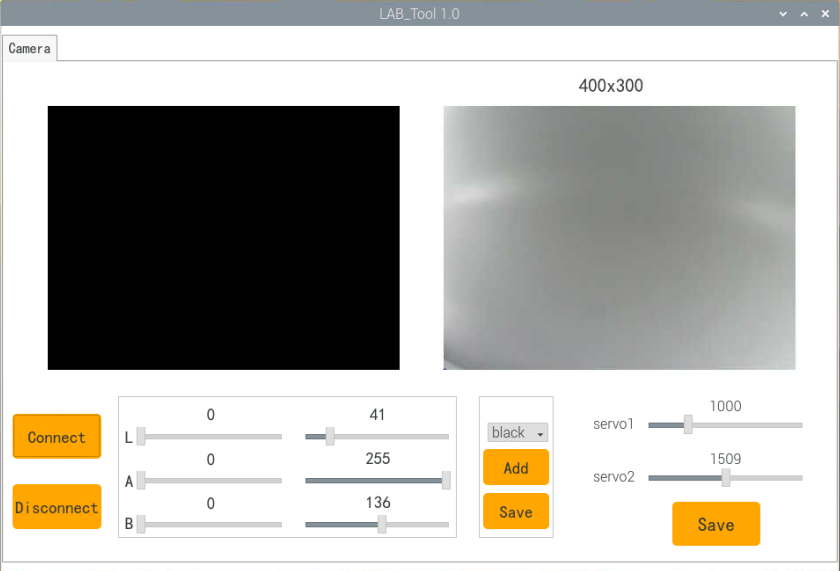

(3) After a successful connection, select “red” from the color options in the lower-right corner of the interface.

Note

If the transmitted image does not appear in the popup window, the camera may not have connected successfully. Check that the camera’s connection cable is properly plugged in.

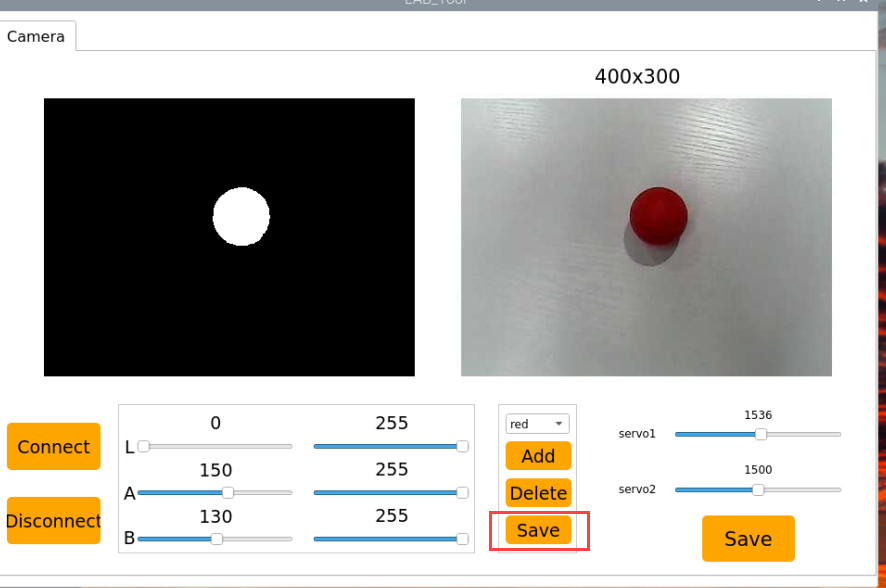

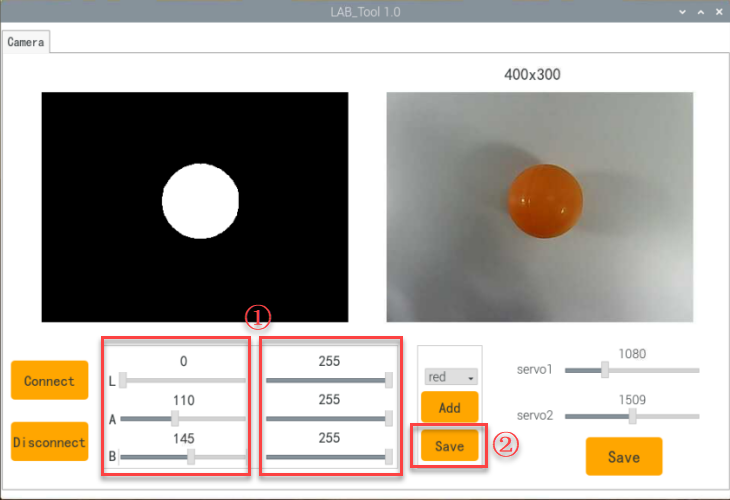

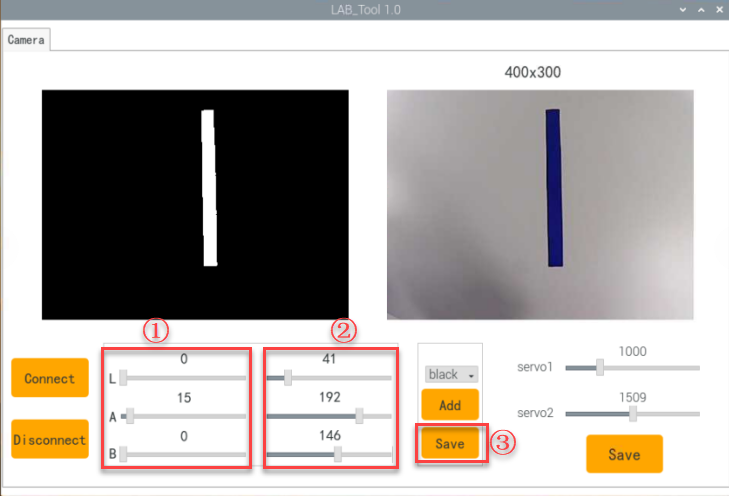

(4) In the interface shown below, the right side displays the real-time transmitted image, while the left side shows the color to be detected. Point the camera at the red ball, then adjust the six sliders at the bottom so that the red ball area on the left turns entirely white, and the other areas turn black. Afterward, click the “Save” button to save the settings.

5.2 Color Recognition

The robot recognizes colors and provides feedback on the recognition result through “nodding” or “shaking” its head.

5.2.1 Program Description

The following is the overall process:

First, program TonyPi to recognize colors with Lab color space. You can go to “OpenCV Vision Basic Course” for detailed learning the Lab color space.

Second, identify the object color in the circle using color threshold value, then apply a mask to that part of the image. Masking is the process of using selected images, graphics,

After processing the corrosion and inflation of the object image, the largest object contour is circled.

Corrosion: By iterating through each pixel of the image, check its overlap with the surrounding structural element. If all the overlapping pixel values are 1, then keep the original pixel value unchanged; otherwise, set it to 0. Mainly used to eliminate unimportant edge information in the image, reducing the area of the image.

Inflation: Similar to the inverse process of erosion. This process involves convolving the image with a structural element, calculate the maximum pixel value within the covered area, and assign this maximum value to the pixel specified by the reference point. The inflation expands the highlighted areas in an image gradually, typically used to fill holes or gaps in the image.

Next, judge the recognized color. If the sett color is detected the head servo will be turned up and down, otherwise it will be turned left and right.

5.2.2 Start and Close the Game

Note

Pay attention to the text format in the input of instructions.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.

(2) Double-click “Terminator” icon in the Raspberry Pi desktop and open command line.

(3) Input and press Enter to locate to the directory where the program is stored.

cd TonyPi/Functions

(4) Input command, then press Enter to start the game.

python3 ColorDetect.py

(5) If you want to exit the game programming, press “Ctrl+C”. If the exit fails, please try it few more times.

5.2.3 Project Outcome

Note

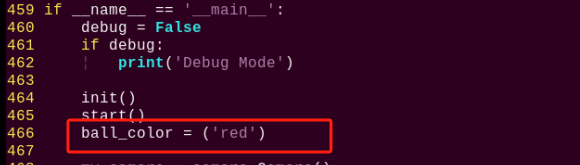

The program defaults to recognizing the color red. To switch to blue or green, refer to “5.2.5 Function Extension->Modify Default Recognition Color”.

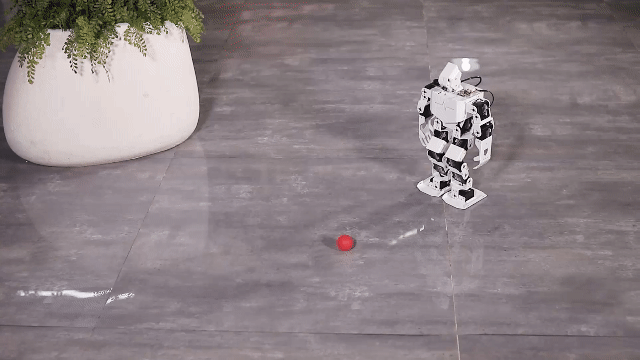

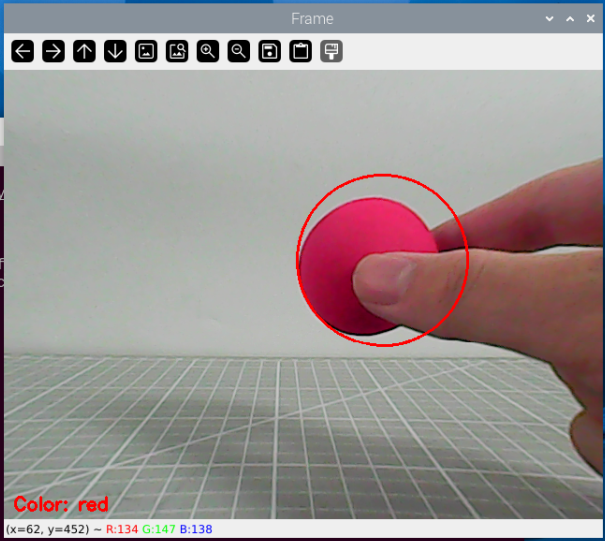

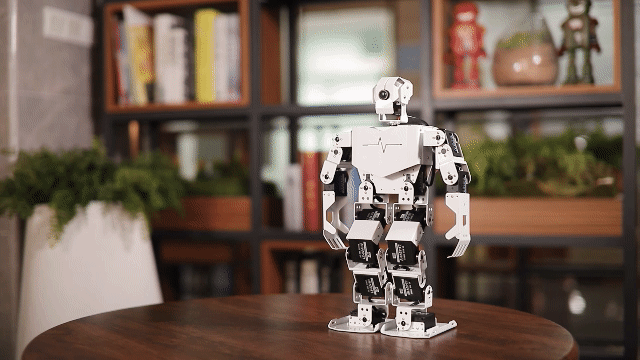

Place the red ball in front of the TonyPi. The robot will “nod” upon recognition. Place the blue and green balls in front of the TonyPi. The robot will “shake its head” upon recognition.

5.2.4 Program Analysis

The source code of this program is locate in /home/pi/TonyPi/Functions/ColorDetect.py

Import Parameter Module

Import module	function
import sys	The Python "sys" module has been imported for accessing system-related functions and variables.
import os	The Python "os" module has been imported, providing functions and methods for interacting with the operating system.
import cv2	The OpenCV library has been imported for image processing and computer vision-related functionalities.
import time	The Python "time" module has been imported for time-related functionalities, such as delay operations.
import math	The "math" module provides low-level access to mathematical operations, including many commonly used mathematical functions and constants.
import threading	Provides an environment for running multiple threads concurrently.
import np	The NumPy library has been imported. It is an open-source numerical computing extension for Python, used for handling array and matrix operations.
import sensor.camera as camera	Import camera library
from common import misc	The "Misc" module has been imported for handling recognized rectangular data.
import common.ros_robot_controller_sdk as rrc	The robot's low-level control library has been imported for controlling servos, motors, RGB lights, and other hardware.
import common.yaml_handle	Contains functionalities or tools related to processing YAML format files.
from common.controller import Controller	Import action group execution library

Function Logic

Capture image information through the camera, then process the image, specifically by performing binarization. At the same time, to reduce interference and make the image smoother, perform erosion and dilation operations on the image.

Next, obtain the largest area contour and minimum enclosing circle of the target, determine the color of the color block and provide corresponding feedback.

Program Logic and Related Code Analysis

Based on the above diagram, the program’s logical flow mainly consists of image processing and color tracking. The following document will be written in accordance with the program logic.

(1) Import function library

In this initialization step, the first task is to import the required libraries for subsequent program calls. For details on the imports, refer to 5.2.4 Program Analysis->Import parameter module.

#!/usr/bin/python3
# coding=utf8
import sys
import os
import cv2
import math
import time
import threading
import numpy as np
import hiwonder.Camera as Camera
import hiwonder.Misc as Misc
import hiwonder.ros_robot_controller_sdk as rrc
from hiwonder.Controller import Controller
import hiwonder.ActionGroupControl as AGC
import hiwonder.yaml_handle as yaml_handle

(2) Set initial state

Set initial state, including the initial position of servo, PID, color threshold value, etc.

def initMove():
    ctl.set_pwm_servo_pulse(1, 1500, 500)
    ctl.set_pwm_servo_pulse(2, servo_data['servo2'], 500)

(3) Image pre-processing

Resizing and Gaussian blur processing of the image.

frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST)
frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)

cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST) is an operation to resize the image.

The first parameter img_copy is the image to be resized.

The second parameter size is the target size.

The third parameter interpolation is the interpolation method, which is used to determine the pixel interpolation algorithm used for resizing.

cv2.GaussianBlur(frame_resize, (3, 3), 3) applies Gaussian blur to the image.

The first parameter frame_resize is the image to be blurred.

The second parameter (3, 3) is the size of the Gaussian kernel, indicating that the width and height of the kernel are both 3.

The third parameter 3 is the standard deviation of the Gaussian kernel, used to control the degree of blur.

(4) Color space conversion

Convert the BGR image to LAB image.

frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB)

(5) Binarization processing

Use inRange() function in cv2 library to process binarization.

for i in lab_data:
    if i != 'black' and i != 'white':
        frame_mask = cv2.inRange(frame_lab,
                                 (lab_data[i]['min'][0],
                                  lab_data[i]['min'][1],
                                  lab_data[i]['min'][2]),
                                 (lab_data[i]['max'][0],
                                  lab_data[i]['max'][1],
                                  lab_data[i]['max'][2]))

The first parameter frame_lab is inputting image.

The second parameter lab_data[i]['min'][0] is the lower limit of the threshold.

The third parameter lab_data[i]['max'][0] is the upper limit of the threshold.

(6) Corrosion and inflation

eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))
dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))

eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) is the operation to perform corrosion on the binary image.

The first parameter frame_mask is the binary image on which morphological operations are to be performed.

The second parameter cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) is the structuring element for the corrosion operation. A rectangular structuring element of size (3, 3) is used here.

The dilation function follows the same principle.

(7) Get the contour with the largest area

After completing the above image processing, it is necessary to obtain the contours of the recognized targets. This involves using the “findContours()” function from the cv2 library.

contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]

Take code contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] as example:

The first parameter dilated is inputting image.

The second parameter cv2.RETR_EXTERNAL is the contour retrieval mode.

The third parameter cv2.CHAIN_APPROX_NONE)[-2] is the contour approximation method.

Find the contour with the largest area in the obtained contour. In order to avoid interference, you need to set a minimum value. The target contour is considered valid only if its area is greater than this value.

areaMaxContour, area_max = getAreaMaxContour(contours)
if areaMaxContour is not None:
    if area_max > max_area:
        max_area = area_max
        color_area_max = i
        areaMaxContour_max = areaMaxContour

(8) Determine the largest color block

Determine the color of the largest area contour and add the result to the color_list.

if color_area_max == 'red':
    color = 1
elif color_area_max == 'green':
    color = 2
elif color_area_max == 'blue':
    color = 3
else:
    color = 0
color_list.append(color)

(9) Multiple judgments

Take the average by multiple judgments, and determine the recognized color.

    if len(color_list) == 3:
        color = int(round(np.mean(np.array(color_list))))
        color_list = []
        if color == 1:
            detect_color = 'red'
            draw_color = range_rgb["red"]
        elif color == 2:
            detect_color = 'green'
            draw_color = range_rgb["green"]
        elif color == 3:
            detect_color = 'blue'
            draw_color = range_rgb["blue"]
        else:
            detect_color = 'None'
            draw_color = range_rgb["black"]
    else:
        detect_color = 'None'
        draw_color = range_rgb["black"]

(10) Print recognized outcome

Use the cv2.putText() function from the cv2 library to draw text on the image.

    cv2.putText(img, "Color: " + detect_color, (10, img.shape[0] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, draw_color, 2)

Take code cv2.putText(img, "Color: " + detect_color, (10, img.shape\[0\] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, draw_color, 2) as example:

The first parameter img is the image being drawn.

The second parameter 'Color: ' + detect_color is the information drawn on the image.

The third parameter (10, img.shape[0] - 10) is the starting coordinate of the text, i.e., the position of the bottom-left corner of the text. Here, the text is 10 pixels away from the left and bottom edges of the image, respectively.

The fourth parameter cv2.FONT_HERSHEY_SIMPLEX is the font type.

The fifth parameter 0.65 is the size scaling factor for the text.

The sixth parameter draw_color is the color of the text.

The seventh parameter 2 is the thickness of the text.

(11) Color recognition

① After recognizing the red ball, control robot servo 1 to make the robot nod twice continuously, then return to the neutral position as pictured:

if __isRunning:
    if detect_color = 'None':
        action_finish = False

        if detect_color = 'red':
            ctl.set_pwm_servo_pulse(1, 1800, 200)
            time.sleep(0.2)
            ctl.set_pwm_servo_pulse(1, 1200, 200)
            time.sleep(0.2)
            ctl.set_pwm_servo_pulse(1, 1800, 200)
            time.sleep(0.2)
            ctl.set_pwm_servo_pulse(1, 1200, 200)
            time.sleep(0.2)
            ctl.set_pwm_servo_pulse(1, 1500,1200)
            time.sleep(0.1)

Take code ctl.set_pwm_servo_pulse(1, 1800, 200) as example:

The first parameter 1 indicates the servo ID being controlled.

The second parameter 1800 represents the pulse width for servo ID 1. 1500 controls the servo to return to the neutral position.

The third parameter 200 represents the servo’s movement time, which is 200 milliseconds.

② After recognizing the green or blue ball, control robot servo 2 to make the robot shake its head twice continuously, then return to the neutral position, as shown in the following figure.

elif detect_color = 'green' or detect_color = 'blue':
    ctl.set_pwm_servo_pulse(2, 1800, 200)
    time.sleep(0.2)
    ctl.set_pwm_servo_pulse(2, 1200, 200)
    time.sleep(0.2)
    ctl.set_pwm_servo_pulse(2, 1800, 200)
    time.sleep(0.2)
    ctl.set_pwm_servo_pulse(2, 1200, 200)
    time.sleep(0.2)
    ctl.set_pwm_servo_pulse(2, 1500, 100)
    time.sleep(0.1)
    detect_color = 'None'
    draw_color = range_rgb["black"]
    time.sleep(1)

5.2.5 Function Extension

Modify Default Recognition Color

Red, green and blue are the built-in colors in the color recognition program and the red is the default color. Then the robot will perform “nod”.

In the following steps, we’re going to modify the recognized color as green.

(1) Enter command to the directory where the game program is located.

cd TonyPi/Functions

(2) Enter command to go into the game program through vim editor.

vim ColorDetect.py

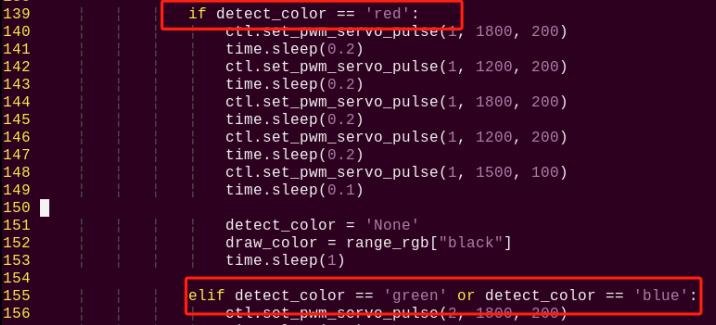

(3) Find codes if detect_color == 'red': and elif detect_color == 'green' or detect_color == 'blue':.

Note

After entering the code position number on the keyboard, press “Shift+G” to directly locate to the corresponding location. This section aims to introduce quick location methods, so the code position number is for reference only. Please rely on actual positions.

(4) Press”i” to enter the editing mode, then modify red in (if detect_color == ‘red’) to green. And modify red in line 120(elif detect_color== ‘green’ or detect_color == ‘blue’) to green. If you want to recognize blue, please revise to “blue”.

                if detect_color == 'red':
                    ctl.set_pwm_servo_pulse(1, 1800, 200)
                    time.sleep(0.2)
                    ctl.set_pwm_servo_pulse(1, 1200, 200)
                    time.sleep(0.2)
                    ctl.set_pwm_servo_pulse(1, 1800, 200)
                    time.sleep(0.2)
                    ctl.set_pwm_servo_pulse(1, 1200, 200)
                    time.sleep(0.2)
                    ctl.set_pwm_servo_pulse(1, 1500, 100)
                    time.sleep(0.1)

(5) Press “Esc” to enter last line command mode. Input :wq to save the file and exit the editor.

:wq

Add Recognized Color

In addition to the built-in recognized colors, you can set other recognized colors in the programming. Take orange as example:

(1) Open VNC, input command to open Lab color setting document.

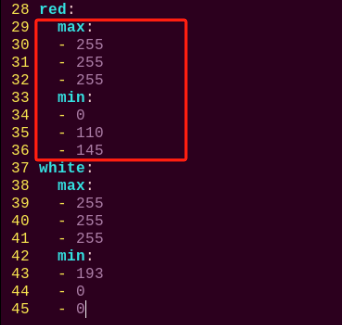

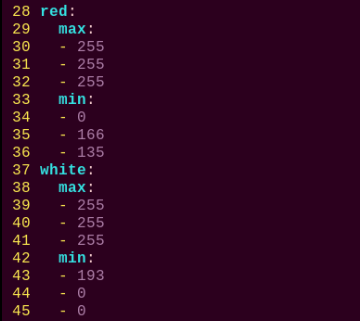

vim TonyPi/lab_config.yaml

It is recommended to use screenshot to record the initial value.

(2) Click the debugging tool icon in the system desktop. Choose “Run” in the pop-up window.

(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “red” in the right box first.

(4) Drag the corresponding sliders of L, A, and B until the color area to be recognized in the left screen becomes white and other areas become black.

For example, if you want to recognize orange, you can put the orange ball in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the orange part of the left screen becomes white and other colors become black, and then click “Save” button to keep the modified data.

(5) After the modification is completed, check whether the modified data was successfully written in. Enter the command again vim TonyPi/lab_config.yaml to check the color setting parameters.

vim TonyPi/lab_config.yaml

For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.

(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter “:wq” to save it and exit.

(7) The default recognized color can be set as red according to the 5.2.5 Function Extension -> Modify Default Recognition Color in this text.

(8) Start the game again and put the orange ball in front of the camera. TonyPi will perform “nod”.

5.3 Target Position Recognition

In this lesson, the camera will be used to recognize red, green, and blue balls. The detected balls will be highlighted in the live feed, and their XY coordinates will be displayed.

5.3.1 Program Description

The implementation of target tracking can be divided into two parts: color recognition and position marking.

First, for the color recognition part, Gaussian filtering is applied to the image for noise reduction. The Lab color space is then used to convert the color of the objects (for more details on the Lab color space, please refer to the “OpenCV Vision Basic Course”).

Next, color thresholding is used to identify the color of objects within the circle. The image is then masked (masking involves using a selected image, shape, or object to globally or locally occlude the processed image).

After performing morphological operations (open and close operations) on the object’s image, the largest contour is outlined with a circle.

Opening operation: The image is eroded first and then dilated. This operation is used to remove small objects, smooth shape boundaries, and preserve the overall area. It helps remove small noise particles and separate objects that are connected.

Closing operation: The image is dilated first and then eroded. This operation is used to fill small holes within the objects, connect adjacent objects, and reconnect broken contour lines while smoothing the boundaries without changing the area.

Position marking requires specific detection algorithms. The basic principle is to search for areas in the image that match predefined features or patterns, then return the position and bounding box of these areas.

5.3.2 Start and Close the Game

Note

The input of commands must strictly distinguish between uppercase and lowercase letters, as well as spaces. Additionally, you can use the “Tab” key on the keyboard to auto-complete keywords.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.

(2) Double-click “Terminator” icon in the Raspberry Pi desktop and open command line.

(3) Input and press Enter to locate to the directory where the program is stored.

cd TonyPi/Functions

(4) Input command, then press Enter to start the game.

python3 ColorPositionRecognition.py

(5) If you want to exit the game programming, press “Ctrl+C”. If the exit fails, please try it few more times.

5.3.3 Program Outcome

The program defaults to recognizing red, green, and blue balls. After recognition, it will highlight the objects in the transmitted image and display their XY coordinates.

Note

During the recognition process, ensure the environment is well-lit to avoid inaccurate recognition due to lighting issues.
Ensure there are no objects with similar or identical colors to the target colors within the camera’s field of view to prevent misrecognition.
If color recognition is inaccurate, refer to the section “5.3.5 Function Extension\Adjusting Color Threshold” in this document to adjust the color threshold settings.

5.3.4 Program Analysis

The source code of this program is locate in /home/pi/TonyPi/Functions/ColorPositionRecognition.py

Importing Libraries

#!/usr/bin/python3
# coding=utf8
import sys
import os
import cv2
import math
import time
import numpy as np

import hiwonder.Camera as Camera
import hiwonder.Misc as Misc
import hiwonder.yaml_handle as yaml_handle

(1) Import the necessary libraries, including OpenCV, time, math, threading, and inverse kinematics. To call a function from a library, use the format LibraryName.FunctionName(Parameters). For example:

time.sleep(0.01)

This calls the sleep function from the time library, which is used for adding delays.

Python comes with several built-in libraries like time, cv2, math, which can be imported directly. You can also create your own libraries, such as the “yaml_handle” file reading library.

(2) Instantiating Libraries

Sometimes, library names are long and hard to remember. To make function calls more convenient, we often instantiate libraries using shorter names. For example:

import hiwonder.Misc as Misc

After instantiation, functions from the Board library can be called as: Board.FunctionName(Parameters) This makes calling functions much easier.

Main Function Analysis

In a Python program, the if __name__ == '__main__': block indicates the main function. The program starts by opening the camera and reading the video stream. The read() method captures each frame of the image, where the program searches for and marks the color of the ball, then displays the result. The video is displayed through a loop, and once the display is finished, the release() function is called to release the resources.

if __name__ == '__main__':
    from CameraCalibration.CalibrationConfig import *
    from hiwonder.ros_robot_controller_sdk import Board
    board = Board()
    #加载参数
    param_data = np.load(calibration_param_path + '.npz')

    #获取参数
    mtx = param_data['mtx_array']
    dist = param_data['dist_array']

(1) Capturing Camera Image

my_camera = cv2.VideoCapture('http://127.0.0.1:8080/?action=stream?dummy=param.mjpg')

When the program starts, the camera is initialized.

(2) Image Processing

① The run() function handles image processing.

def run(img):
    global draw_color
    global color_list
    global detect_color

    img_copy = img.copy()
    img_h, img_w = img.shape[:2]

    frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST)
    frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)

② Resize the image to make it easier to process.

frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST)

The first parameter img_copy is the input image.

The second parameter size is the size of the output image, which can be set as needed.

The third parameter interpolation=cv2.INTER_NEAREST is the interpolation method. Options include:

INTER_NEAREST: Nearest-neighbor interpolation.

INTER_LINEAR: Bilinear interpolation (default if no other method is specified).

INTER_CUBIC: Bicubic interpolation in a 4x4 pixel neighborhood.

INTER_LANCZOS4: Lanczos interpolation in an 8x8 pixel neighborhood.

③ Apply Gaussian Blur to reduce noise

Gaussian blur is a linear smoothing filter used to eliminate Gaussian noise and is widely used in image denoising.

frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)

The first parameter frame_resize is the input image. The second parameter (3, 3) is the size of the Gaussian kernel. The third parameter 3 is the standard deviation of the Gaussian kernel in the X-direction

④ Convert the image to LAB color space.

frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB)

The first parameter frame_gb is the input image.

The second parameter cv2.COLOR_BGR2LAB specifies the conversion from BGR to LAB format. To convert to RGB, use cv2.COLOR_BGR2RGB.

⑤ Convert the image to a binary image with only 0s and 1s, simplifying the image and reducing data for easier processing.

The cv2.inRange() function is used for binarization:

frame_mask = cv2.inRange(frame_lab,
                         (lab_data[i]['min'][0],
                          lab_data[i]['min'][1],
                          lab_data[i]['min'][2]),
                         (lab_data[i]['max'][0],
                          lab_data[i]['max'][1],
                          lab_data[i]['max'][2]))  #对原图像和掩模进行位运算

The first parameter frame_lab is the input image.

The second parameter (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]) is the lower threshold for the color.

The third parameter (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2]) is the upper threshold for the color.

⑥ Perform erosion and dilation to smooth the image and reduce interference.

Erosion reduces the size of foreground objects and eliminates small objects, while dilation increases the size of foreground objects and fills small holes.

eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))  #腐蚀
dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀

⑦ Find the contour with the largest area

After the image processing steps, use the cv2.findContours() function to find contours:

contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]  #找出轮廓

The first parameter dilated is the input image.

The second parameter cv2.RETR_EXTERNAL specifies the contour retrieval mode.

The third parameter cv2.CHAIN_APPROX_NONE)[-2] specifies the contour approximation method.

The program searches for the largest contour and sets a threshold area to ensure the detected contour is valid.

contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]  #找出轮廓
areaMaxContour, area_max = getAreaMaxContour(contours)  #找出最大轮廓
if areaMaxContour is not None:
    if area_max > max_area:#找最大面积
        max_area = area_max
        color_area_max = i
        areaMaxContour_max = areaMaxContour

if max_area > 200:  # 有找到最大面积

⑧ Extract the position information

Use cv2.putText() to draw text on the image:

    cv2.putText(img, "Color: " + detect_color, (10, img.shape[0] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, draw_color, 2)
    cv2.putText(img, f"{(centerX, centerY)}", (centerX, centerY - 20), cv2.FONT_HERSHEY_SIMPLEX, 1.0, range_rgb[color_area_max], 2)

The first parameter img is the input image.

The second parameter "Color: " + detect_color is the text to display (e.g., the detected color).

The third parameter (10, img.shape[0] - 10) and (centerX, centerY - 20) specify the starting coordinates for the text (bottom-left position).

The fourth parameter cv2.FONT_HERSHEY_SIMPLEX specifies the font type.

The fifth parameter 0.65 is the scaling factor for the font size.

The sixth parameter draw_color is the color of the text.

The seventh parameter 2 specifies the thickness of the text line.

(3) Displaying the Return Image

while True:
    ret, img = my_camera.read()
    if img is not None:
        frame = img.copy()
        frame = cv2.remap(frame, mapx, mapy, cv2.INTER_LINEAR)  # 畸变矫正
        Frame = run(frame)
        cv2.imshow('Frame', Frame)
        key = cv2.waitKey(1)
        if key == 27:
            break

The cv2.imshow() function is used to display the image in a window. The first parameter is the window name (e.g., ‘Frame’), and the second parameter is the image to display.

The function cv2.waitKey() is used to wait for a key press; the parameter 1 specifies the delay time.

5.3.5 Function Extension

Adjusting Color Threshold

During the game experience, if the color recognition of objects is not accurate, you may need to adjust the color threshold. This section uses adjusting the red color as an example; the process for adjusting other colors is similar. Follow the steps below:

(1) Click the debugging tool icon in the system desktop. Choose “Execute” in the pop-up window.

(2) Once the interface opens, click “Connect”.

(3) After a successful connection, select “red” from the color options in the bottom-right corner of the interface.

(4) If the transmitted image does not appear in the pop-up window, it indicates the camera is not connected properly. Check the camera connection cable to ensure it is securely connected.

(5) The image on the right side of the interface shows the real-time transmitted video, and the left side shows the color to be captured.

Point the camera at the red color block, and then adjust the six sliders at the bottom to ensure that the red color block on the left side of the screen turns completely white, while other areas remain black. Finally, click the “Save” button to save the data.

Add Recognized Color

In addition to the built-in recognized colors, you can set other recognized colors in the programming. Take orange as example:

(1) Open VNC, input command to open Lab color setting document.

vim TonyPi/lab_config.yaml

It is recommended to use screenshot to record the initial value.

(2) Click the debugging tool icon in the system desktop. Choose “Execute” in the pop-up window.

(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “red” in the right box first.

(4) Drag the corresponding sliders of L, A, and B until the color area to be recognized in the left screen becomes white and other areas become black.

For example, if you want to recognize orange, you can put the orange ball in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the orange part of the left screen becomes white and other colors become black, and then click “Save” button to keep the modified data.

(5) After the modification is completed, check whether the modified data was successfully written in. Enter the command again vim TonyPi/lab_config.yaml to check the color setting parameters.

vim TonyPi/lab_config.yaml

For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.

(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter “:wq” to save it and exit.

(7) Start the game again and put the orange ball in front of the camera.TonyPi displays the XY coordinates of the orange ball in the transmitted image.

5.4 Object Tracking

The robot recognizes colors, and its body can move according to the movement of the target color.

5.4.1 Program Description

First, program TonyPi to recognize colors with Lab color space. Convert the RGB color space to Lab, image binarization, and then perform operations such as expansion and corrosion to obtain an outline containing only the target color. Use circles to frame the color outline to realize object color recognition.

Next, the traversal algorithm compares all correctly recognized colored objects and selects the object with the largest contour area as the target.

Finally, the servo is called to perform real-time tracking, while the body is driven to perform follow-up actions through action groups, thus completing the object tracking function.

5.4.2 Start and Close the Game

Note

The input of commands must strictly distinguish between uppercase and lowercase letters, as well as spaces. Additionally, you can use the “Tab” key on the keyboard to auto-complete keywords.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.

(2) Double-click “Terminator” icon in the Raspberry Pi desktop and open command line

(3) Input and press Enter to locate to the directory where the program is stored.

cd TonyPi/Functions

(4) Input command, then press Enter to start the game.

python3 Follow.py

(5) If you want to exit the game programming, press “Ctrl+C”. If the exit fails, please try it few more times.

5.4.3 Program Outcome

Note

The default recognized and tracking color is green. If you want to change to blue or red, please refer to 5.4.5 Function Extension -> Modify Default Recognition Color. Furthermore, when moving the handheld colored sponge blocks, the speed should not be too fast, and it should be within the range of camera recognition.

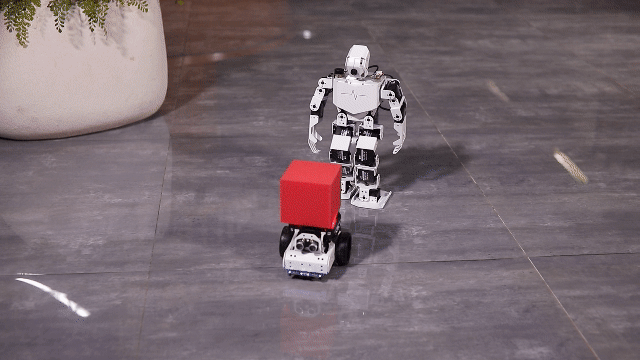

After the gameplay is started, slowly move the red sponge block by hand or place the block on a movable carrier. The TonyPi robot will move along with the movement of the target color.

5.4.4 Program Analysis

The source code of this program is locate in /home/pi/TonyPi/Functions/Follow.py

Color detection parameter

In the object tracking program, the detected object color is red.

if __name__ == '__main__':
    init()
    start()
    __target_color = ('red')

    open_once = yaml_handle.get_yaml_data('/boot/camera_setting.yaml')['open_once']
    if open_once:
        my_camera = cv2.VideoCapture('http://127.0.0.1:8080/?action=stream?dummy=param.mjpg')
    else:
        my_camera = Camera.Camera()
        my_camera.camera_open()
    AGC.runActionGroup('stand')

The main detection parameters involved in the detection process are as follows:

(1) Before converting the image to the LAB color space, noise reduction processing is required. The GaussianBlur() function is used for Gaussian filtering as pictured:

    frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB)  # 将图像转换到LAB空间(convert the image to LAB space)

The first parameter frame_resize is inputting image.

The second parameter (3, 3) is the size of the Gaussian kernel. A larger kernel size typically results in a greater degree of filtering, making the output image more blurry, and it also increases computational complexity.

The third parameter 3 is the standard deviation of the Gaussian function along the X direction. In the Gaussian filter, it is used to control the variation near its mean. If this value is increased, the allowable range of variation around the mean is also increased; if decreased, the allowable range of variation around the mean is reduced.

(2) By using the “inRange” function to perform binaryzation on the input image as pictured:

            frame_mask = cv2.inRange(frame_lab,
                                     (lab_data[i]['min'][0],
                                      lab_data[i]['min'][1],
                                      lab_data[i]['min'][2]),
                                     (lab_data[i]['max'][0],
                                      lab_data[i]['max'][1],
                                      lab_data[i]['max'][2]))  #对原图像和掩模进行位运算(operate bitwise operation to original image and mask)

(3) To reduce interference and make the image smoother, it is necessary to perform erosion and dilation operations on the image

            eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))  #腐蚀(corrosion)
            dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilation)

In the processing, the getStructuringElement function is used to generate structuring elements of different shapes.

The first parameter cv2.MORPH_RECT is the shape of the kernel, which is a rectangle in this case.

The second parameter (3, 3) is the size of the rectangle, which is 3x3 in this case.

(4) Find out the largest contour of the object

            areaMaxContour, area_max = getAreaMaxContour(contours)  # 找出最大轮廓(find out the contour with the largest area)
    if areaMaxContour is not None and area_max > 100:  # 有找到最大面积(the maximal area is found)
        rect = cv2.minAreaRect(areaMaxContour)#最小外接矩形(the minimum bounding rectangle)
        box = np.int0(cv2.boxPoints(rect))#最小外接矩形的四个顶点(the four vertices of the minimum bounding rectangle)

To avoid interference, the if area_max_contour is not None and area_max > 100 instruction is used to ensure that only contours with an area greater than 100 are considered valid for the largest area.

Color recognition parameter

The main control parameters involved in the color recognition process are as follows:

(1) When the robot detects a colored object, use the “cv2.drawContours()” function to draw the contour of the colored object

        cv2.drawContours(img, [box], -1, (0,255,255), 2)#画出四个点组成的矩形(draw the rectangle formed by the four points)

The first parameter img is inputting image.

The second parameter [box] is the contour itself, represented as a list in Python.

The third parameter -1 is the index of the contour, where the numerical value represents drawing all contours within the list.

The fourth parameter (0, 255, 255) is the contour color, with the order being B, G, R, and in this case, it represents yellow.

The fifth parameter 2 is the contour width. If set to -1, it means to fill the contour with the specified color.

(2) After the robot detects a colored object, use the cv2.circle() function to draw the center point of the colored object on the feedback screen.

        cv2.circle(img, (centerX, centerY), 5, (0, 255, 255), -1)#画出中心点(draw the center point)

The first parameter img is the input image, which is the image of the detected colored object in this case.

The second parameter (centerX, centerY) is the coordinates of the center point of the circle to be drawn (determined based on the detected object).

The third parameter 5 is the radius of the circle to be drawn.

The fourth parameter (0, 255, 255) is the color of the circle to be drawn, with the order being B, G, R, and in this case, it represents yellow.

The fifth parameter -1 indicates that the circle should be filled with the color specified in parameter 4. If it is a number, it represents the line width of the circle to be drawn.

Perform motion parameter

(1) After detecting a red object, control servo 1 and servo 2 of the robot to move the upper camera with the movement of the red object.

        # 计算使用时间(calculate use time)
        use_time = round(max(use_time, abs(dy*0.00025)), 5)
        y_dis += dy

        # 将控制头部垂直移动的舵机位置限制在预设范围内(limit the position of the servo controlling vertical movement of the head within a predefined range)
        y_dis = servo_data['servo1'] if y_dis < servo_data['servo1'] else y_dis
        y_dis = 2000 if y_dis > 2000 else y_dis

        ctl.set_pwm_servo_pulse(1, y_dis, use_time*1000)
        ctl.set_pwm_servo_pulse(2, x_dis, use_time*1000)

        time.sleep(use_time)
    else:
        centerX, centerY = -1, -1

Take code ctl.set_pwm_servo_pulse(1, vertical_servo_position,use_time*1000) as example:

The first parameter 1 represents controlling servo ID 1.

The second parameter vertical_servo_position represents the pulse width of servo ID 1.

The third parameter use_time*1000 represents the movement time of the servo, in milliseconds.

(2) After detecting the red ball, the robot calls the action group file in the /home/pi/TonyPi/ActionGroups directory to control the robot to move along with the red object as pictured:

def move():

    while True:
        if __isRunning:
            if centerX >= 0:
                if centerX - CENTER_X > 100 or x_dis - servo_data['servo2'] < -80:  # 不在中心，根据方向让机器人转向一步(if not centered, instruct the robot to turn one step in the appropriate direction)
                    AGC.runActionGroup('turn_right_small_step')
                elif centerX - CENTER_X < -100 or x_dis - servo_data['servo2'] > 80:
                    AGC.runActionGroup('turn_left_small_step')
                elif 100 > circle_radius > 0:
                    AGC.runActionGroup('go_forward')
                elif 180 < circle_radius:
                    AGC.runActionGroup('back_fast')
            else:
                time.sleep(0.01)
        else:
            time.sleep(0.01)

5.4.5 Function Extension

Modify Default Recognition Color

Red, green and blue are the built-in colors in the color recognition program and the red is the default color. Then the robot will perform “nod”.

In the following steps, we’re going to modify the recognized color as green.

(1) Enter command to the directory where the game program is located.

cd TonyPi/Functions

(2) Enter command to go into the game program through vim editor.

vim Follow.py

(3) Find codes “if detect_color == ‘red’:” and “elif detect_color == ‘green’ or detect_color == ‘blue’:”.

Note

After entering the code position number on the keyboard, press “Shift+G” to directly locate to the corresponding location. This section aims to introduce quick location methods, so the code position number is for reference only. Please rely on actual positions.

(4) Press”i” to enter the editing mode, then modify red in (if detect_color == ‘red’) to green. And modify red in line 120 (elif detect_color== ‘green’ or detect_color == ‘blue’) to green. If you want to recognize blue, please revise to “blue”.

    if detect_color == 'red':
    	ctl.set_pwm_servo_pulse(1, 1800, 200)
    	time.sleep(0.2)
    	ctl.set_pwm_servo_pulse(1, 1200, 200)
    	time.sleep(0.2)
    	ctl.set_pwm_servo_pulse(1, 1800, 200)
    	time.sleep(0.2)
    	ctl.set_pwm_servo_pulse(1, 1200, 200)
    	time.sleep(0.2)
    	ctl.set_pwm_servo_pulse(1, 1500, 100)
    	time.sleep(0.1)

(5) Press “Esc” to enter last line command mode. Input “:wq” to save the file and exit the editor.

:wq

Add Recognized Color

In addition to the built-in recognized colors, you can set other recognized colors in the programming. Take orange as example:

(1) Open VNC, input command to open Lab color setting document.

vim TonyPi/lab_config.yaml

It is recommended to use screenshot to record the initial value.

(2) Click the debugging tool icon in the system desktop. Choose “Execute” in the pop-up window.

(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “red” in the right box first.

(4) Drag the corresponding sliders of L, A, and B until the color area to be recognized in the left screen becomes white and other areas become black.

For example, if you want to recognize orange, you can put the orange ball in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the orange part of the left screen becomes white and other colors become black, and then click “Save” button to keep the modified data.

(5) After the modification is completed, check whether the modified data was successfully written in. Enter the command again vim TonyPi/lab_config.yaml to check the color setting parameters.

vim TonyPi/lab_config.yaml

For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.

(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter “:wq” to save it and exit.

(7) Start the game again and put the orange ball in front of the camera. TonyPi tracks the orange ball in real time.

5.5 Auto Shooting

Note

please use the assorted balls for operation. If you have your own balls, we recommend using one with a diameter of 3cm.

Place the red ball in the area recognized by the robot’s camera. The robot will adjust its position according to the ball’s location, and then kick the ball away.

5.5.1 Program Description

Below are the details:

First, program TonyPi to recognize colors with Lab color space. You can go to “OpenCV Basic Lesson” for detailed learning of Lab color space.

Second, identify the object color in the circle using color threshold value, then apply a mask to that part of the image. Masking is the process of using selected images, graphics, or objects to globally or locally obscure parts of the processed image.

After the opening and closing operations on the object image, the largest object contour is circled.

Corrosion: By iterating through each pixel of the image, check its overlap with the surrounding structural element. If all the overlapping pixel values are 1, then keep the original pixel value unchanged; otherwise, set it to 0. Mainly used to eliminate unimportant edge information in the image, reducing the area of the image.

Inflation: Similar to the inverse process of erosion. This process involves convolving the image with a structural element, calculate the maximum pixel value within the covered area, and assign this maximum value to the pixel specified by the reference point. The inflation expands the highlighted areas in an image gradually, typically used to fill holes or gaps in the image.

Then, judge whether the object is in the central position after receiving the image feedback. If yes, call TonyPi to move forward to the target until it reaches the set range, and then execute the shooting action; otherwise, the robot will move left or right to the center of the target first

5.5.2 Start and Close the Game

Note

The input of commands must strictly distinguish between uppercase and lowercase letters, as well as spaces. Additionally, you can use the “Tab” key on the keyboard to auto-complete keywords.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.

(2) Double-click “Terminator” icon in the Raspberry Pi desktop and open command line.

(3) Input and press Enter to locate to the directory where the program is stored.

cd TonyPi/Functions

(4) Input command, then press Enter to start the game.

python3 KickBall.py

(5) If you want to exit the game programming, press “Ctrl+C”. If the exit fails, please try it few more times.

5.5.3 Program Outcome

Note

Please use the robot and ball on the flat surface.

Place the red ball in front of the TonyPi. After recognition, the robot will adjust its position to close the ball and kick it forward.

5.5.4 Program Analysis

The source code of this program is locate in /home/pi/TonyPi/Functions/KickBall.py

Import Parameter Module

Import module	function
import sys	The Python "sys" module has been imported for accessing system-related functions and variables.
import os	The Python "os" module has been imported, providing functions and methods for interacting with the operating system.
import cv2	The OpenCV library has been imported for image processing and computer vision-related functionalities.
import time	The Python "time" module has been imported for time-related functionalities, such as delay operations.
import math	The "math" module provides low-level access to mathematical operations, including many commonly used mathematical functions and constants.
import threading	Provides an environment for running multiple threads concurrently.
import np	The NumPy library has been imported. It is an open-source numerical computing extension for Python, used for handling array and matrix operations.
import sensor.camera as camera	Import camera library
from common import misc	The "Misc" module has been imported for handling recognized rectangular data.
import common.ros_robot_controller_sdk as rrc	The robot's low-level control library has been imported for controlling servos, motors, RGB lights, and other hardware.
import common.yaml_handle	Contains functionalities or tools related to processing YAML format files.
from common.controller import Controller	Import action group execution library

Function Logic

Capture image information through the camera, then process the image,specifically by performing b inarization. At the same time, to reduce

interference and make the image smoother, perform erosion and dilation operations on the image.

Next, obtain the largest area contour and minimum enclosing circle of the target, retrieve the center point coordinates of the color block, and then call the action group to kick the ball.

Program Logic and Related Code Analysis

(1) Initialization

① Import function library

In this initialization step, the first task is to import the required libraries for subsequent program calls. For details on the imports, refer to 5.5.5 Program Analysis->Import parameter module .

#!/usr/bin/python3
# coding=utf8
import sys
import os
import cv2
import time
import math
import threading
import numpy as np

import hiwonder.PID as PID
import hiwonder.Misc as Misc
import hiwonder.Camera as Camera
import hiwonder.ros_robot_controller_sdk as rrc
from hiwonder.Controller import Controller
import hiwonder.ActionGroupControl as AGC
import hiwonder.yaml_handle as yaml_handle

② Set initial state

Set initial state, including the initial position of servo, PID, color threshold value, etc.

# 设置舵机位置(set the servo position)
x_dis = servo_data['servo2']
y_dis = servo_data['servo1']

# 设置需要检测的球的颜色，默认为红色(set the color of the ball to be detected, defaulting to red)
__target_color = ('red')

# 初始化机器人上一步的状态(initialize the previous state of the robot)
last_status = ''

# 初始化开始计时的标志量(initialize the flag variable for starting the timer)
start_count= True

# 初始化球的中心坐标(initialize the center coordinates of the ball)
CenterX, CenterY = -2, -2

# 初始化 PID 控制器(initialize PID controller)
x_pid = PID.PID(P=0.145, I=0.00, D=0.0007)
y_pid = PID.PID(P=0.145, I=0.00, D=0.0007)

(2) Image processing

① Image pre-processing

Resizing and Gaussian blur processing of the image.

    # 重新调整图像大小(resize the image)
    frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST)
    # 高斯模糊(Gaussian blur)
    frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)

cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST) is an operation to resize the image.

The first parameter img_copy is the image to be resized. The second parameter “size” is the target size.

The third parameter interpolation is the interpolation method, which is used to determine the pixel interpolation algorithm used for resizing. cv2.GaussianBlur(frame_resize, (3, 3), 3) applies Gaussian blur to the image.

The first parameter frame_resize is the image to be blurred.

The second parameter (3, 3) is the size of the Gaussian kernel, indicating that the width and height of the kernel are both 3.

The third parameter 3 is the standard deviation of the Gaussian kernel, used to control the degree of blur.

② Color space conversion

Convert the BGR image to LAB image.

    # 将图像转换到LAB色彩空间(convert the image to LAB color space)
    frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB)

③ Binarization processing

Use inRange() function in cv2 library to process b inarization.

if i in lab_data:
    #对原图像和掩模进行位运算(perform bitwise operation to original image and mask)
    frame_mask = cv2.inRange(frame_lab,
                                 (lab_data[i]['min'][0],
                                  lab_data[i]['min'][1],
                                  lab_data[i]['min'][2]),
                                 (lab_data[i]['max'][0],
                                  lab_data[i]['max'][1],
                                  lab_data[i]['max'][2]))

The first parameter frame_lab is inputting image. The second parameter lab_data[i]['min'][0] is the lower limit of the threshold. The third parameter lab_data[i]['max'][0] is the upper limit of the threshold.

④ Corrosion and inflation

eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))  #腐蚀
dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))    #膨胀

eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) is the operation to perform corrosion on the binary image. The first parameter frame_mask is the binary image on which morphological operations are to be performed. The second parameter cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) is the structuring element for the corrosion operation. A rectangular structuring element of size (3, 3) is used here. The dilation function follows the same principle.

⑤ Get the contour with the largest area

After completing the above image processing, it is necessary to obtain the contours of the recognized targets. This involves using thefindContours()

function from the cv2 library.

contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2]  # 找出轮廓(find out the contour)

Take code contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] as example: The first parameter dilated is inputting image. The second parameter cv2.RETR_EXTERNAL is the contour retrieval mode. The third parameter cv2.CHAIN_APPROX_NONE)[-2] is the contour approximation method. Find the contour with the largest area in the obtained contour. In order to avoid interference, you need to set a minimum value. The target contour is considered valid only if its area is greater than this value.

areaMaxContour, area_max = get_area_maxContour(contours)  #找出最大轮廓
if areaMaxContour is not None:
    if area_max > max_area: #找最大面积
        max_area = area_max
        color_area_max = i
        areaMaxContour_max = areaMaxContour

⑥ Get color block center point coordinates

Using the misc function, map the x and y coordinates of the object center and the radius from the original size range to the range of the new image size (‘img_w’ and ‘ img_h’). And use the cv2.circle function to identify the color block by circling it.

        # 将球的中心坐标和半径映射回原始图像尺寸(map the center coordinates and radius of the ball back to the original image size)
        CenterX = int(Misc.map(CenterX, 0, size[0], 0, img_w))
        CenterY = int(Misc.map(CenterY, 0, size[1], 0, img_h))
        radius = int(Misc.map(radius, 0, size[0], 0, img_w))

(3) Auto shooting

① If a ball is detected, the program will initialize sub-steps and step sizes, and set the timer start flag. If the ball is not in the center of the frame, the robot’s orientation will be adjusted based on the ball’s position, and the corresponding turning action will be executed until the ball is in the center of the frame.

            if CenterX >= 0:      # 如果检测到了球(if a ball is detected)
                step_ = 1
                d_x, d_y = 20, 20
                start_count= True            # 开始计时标志置为True，在后面找不到球的情况下使用(set the flag for starting the timer to True, for use when the ball is not found later on)

                if step == 1:
                    # 球不在画面中心，则根据方向让机器人转向一步，直到满足条件进入步骤2(if the ball is not in the center of the frame, instruct the robot to turn one step in the appropriate direction until the condition is met to enter step 2)
                    if x_dis - servo_data['servo2'] > 150:
                        AGC.runActionGroup('turn_left_small_step')
                    elif x_dis - servo_data['servo2'] < -150:
                        AGC.runActionGroup('turn_right_small_step')
                    else:
                        step = 2

② If the vertical servo position equals the set position, adjust the robot’s movement based on the current horizontal servo position. If the horizontal servo position is 400 units to the left or right of the set position, execute the corresponding turning action. If the ball is above the center of the frame, move forward one step. If the ball is below the center of the frame, move forward. If the ball is below the center of the frame and the horizontal servo position differs from the set position by no more than 200 units, move forward quickly; otherwise, execute the third step action.

                elif step == 2:
                    # 当控制头部垂直运动的舵机位置等于设定的位置(when the position of the servo controlling vertical movement of the head equals the set position)
                    if y_dis == servo_data['servo1']:
                        # 根据当前水平舵机位置调整机器人运动(adjust the robot's movement based on the current position of the horizontal servo)
                        if x_dis == servo_data['servo2'] - 400:
                            AGC.runActionGroup('turn_right',2)
                        elif x_dis == servo_data['servo2'] + 400:
                            AGC.runActionGroup('turn_left',2)
                        elif 350 < CenterY <= 380:    # ball_center_y值越大，与球的距离越近(the larger the value of ball_center_y, the closer the distance to the ball)
                            AGC.runActionGroup('go_forward_one_step')
                            last_status = 'go'        # 记录上一步的状态是往前走(record that the previous step was moving forward)
                            step = 1
                        elif 120 < CenterY <= 350:
                            AGC.runActionGroup('go_forward')
                            last_status = 'go'
                            step = 1
                        elif 0 <= CenterY <= 120 and abs(x_dis - servo_data['servo2']) <= 200:
                            AGC.runActionGroup('go_forward_fast')
                            last_status = 'go'

③ In step three, if the vertical servo position equals the set position, adjust the robot’s position based on the horizontal position of the ball in the frame. If the horizontal position of the ball deviates from the center of the frame by less than or equal to 40 units, move left. If the horizontal position of the ball is to the left of the center of the frame and the deviation is greater than 40 units, move quickly to the left. If the horizontal position of the ball is to the right of the center of the frame and the deviation is greater than 40 units, move quickly to the right; otherwise, execute the fourth step action.

If the vertical servo position is not equal to the set position, adjust based on the difference between the horizontal servo position and the set position: If the difference is between 270 and 480, move quickly to the left. If the difference is less than 170, move left. If the difference is between -480 and -270, move quickly to the right; otherwise, execute the fourth step action.

                elif step == 3:
                    if y_dis == servo_data['servo1']:
                        # 根据球在画面的x坐标左右平移调整位置(adjust the position based on the horizontal movement of the ball in the frame)
                        if abs(CenterX - CENTER_X) <= 40:
                            AGC.runActionGroup('left_move')
                        elif 0 < CenterX < CENTER_X - 50 - 40:
                            AGC.runActionGroup('left_move_fast')
                            time.sleep(0.2)
                        elif CENTER_X + 50 + 40 < CenterX:
                            AGC.runActionGroup('right_move_fast')
                            time.sleep(0.2)
                        else:
                            step = 4
                    else:
                        if 270 <= x_dis - servo_data['servo2'] < 480:
                            AGC.runActionGroup('left_move_fast')
                            time.sleep(0.2)
                        elif abs(x_dis - servo_data['servo2']) < 170:
                            AGC.runActionGroup('left_move')
                        elif -480 < x_dis - servo_data['servo2'] <= -270:
                            AGC.runActionGroup('right_move_fast')
                            time.sleep(0.2)
                        else:
                            step = 4

④ In step four, if the vertical servo position equals the set position, execute the following operations: If the vertical position of the ball is between 380 and 440, move forward one small step. If the vertical position of the ball is between 0

and 380, move forward; otherwise, based on the horizontal position of the ball, determine which foot to use for the shooting action. If the horizontal position of the ball is to the left of the center of the frame, use the left foot for a quick shot;

otherwise, use the right foot for a quick shot and reset the main step to 1. If the vertical servo position is not equal to the set position, reset the main step to 1.

                elif step == 4:
                    if y_dis == servo_data['servo1']:
                        # 小步伐靠近到合适的距离(take small steps to approach the appropriate distance)
                        if 380 < CenterY <= 440:
                            AGC.runActionGroup('go_forward_one_step')
                            last_status = 'go'
                        elif 0 <= CenterY <= 380:
                            AGC.runActionGroup('go_forward')
                            last_status = 'go'
                        else:   # 根据最后球的x坐标，采用离得近的脚去踢球(use the closest foot to kick the ball based on the final x coordinates of the ball)
                            if CenterX < CENTER_X:
                                AGC.runActionGroup('left_shot_fast')
                            else:
                                AGC.runActionGroup('right_shot_fast')
                            step = 1
                    else:
                        step = 1

⑤ If the ball is not detected, check if the robot’s previous state was “moving forward” . If it was, then quickly step back one step. If the timer has already started, reset the timer flag to False and record the current time as the start time for the timer. Otherwise, if the time since the last start of timing exceeds 0.5 seconds, perform the following operations based on the sub-step:

If the sub-step is 5, move the horizontal servo position. If the deviation between the horizontal servo position and the set position is less than or equal to the absolute value of the horizontal step size, perform the action to turn right, and reset the sub-step to 1.

If the sub-step is 1 or 3, move the horizontal servo position. If the horizontal servo position exceeds the set position plus 400, reset the sub-step to 2, and invert the horizontal step size. If the horizontal servo position is less than the set position minus 400, reset the sub-step to 4, and invert the horizontal step size.

If the sub-step is 2 or 4, move the vertical servo position. If the vertical servo position exceeds 1200, reset the sub-step to 3, and invert the vertical step size. If the vertical servo position is less than the set position, reset the sub-step to 5, and invert the vertical step size. Finally, set the servo pulse width to the vertical servo position and horizontal servo position, then sleep for 0.02 seconds.

            elif CenterX == -1:   # 如果没检测到球(if no ball is detected)
                # 如果机器人上次状态为"前进"，快速后退一步(if the robot's previous state was "forward," quickly take one step backward)
                if last_status == 'go':
                    last_status = ''
                    AGC.runActionGroup('back_fast', with_stand=True)
                elif start_count:  # 开始计时的标志变量为True(set the flag variable for starting the timer to True)
                    start_count= False
                    t1 = time.time()    # 记录当前的时间，开始计时(record the current time and start the timer)
                else:
                    if time.time() - t1 > 0.5:

                        if step_ == 5:
                            x_dis += d_x
                            if abs(x_dis - servo_data['servo2']) <= abs(d_x):
                                AGC.runActionGroup('turn_right')
                                step_ = 1
                        if step_ == 1 or step_ == 3:
                            x_dis += d_x
                            if x_dis > servo_data['servo2'] + 400:
                                if step_ == 1:
                                    step_ = 2
                                d_x = -d_x
                            elif x_dis < servo_data['servo2'] - 400:
                                if step_ == 3:
                                    step_ = 4
                                d_x = -d_x
                        elif step_ == 2 or step_ == 4:
                            y_dis += d_y
                            if y_dis > 1200:
                                if step_ == 2:
                                    step_ = 3
                                d_y = -d_y
                            elif y_dis < servo_data['servo1']:
                                if step_ == 4:
                                    step_ = 5
                                d_y = -d_y
                        ctl.set_pwm_servo_pulse(1, y_dis, 20)
                        ctl.set_pwm_servo_pulse(2, x_dis, 20)

                        time.sleep(0.02)

5.5.5 Function Extension

Modify Default Recognition Color

Red, green and blue are the built-in colors in the auto shooting program and red is the default color. In the following steps, we’re going to modify the recognized color as green.

(1) Enter command to the directory where the game program is located.

cd TonyPi/Functions

(2) Enter command to go into the game program through vim editor.

vim KickBall.py

(3) Locate code “ball_color = (‘red’)”.

Note

After entering the code position number on the keyboard, press “Shift+G” to directly locate to the corresponding location. This section aims to introduce quick location methods, so the code position number is for reference only. Please rely on actual positions.

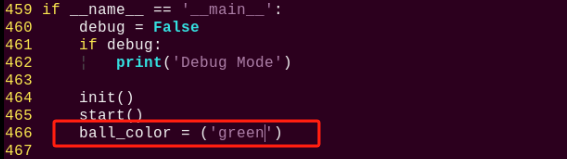

(4) Press “i” to enter the editing mode, then modify red in ball_color = (‘red’) to green. If you want to recognize blue, please revise to “blue” .

(5) Press “Esc” to enter last line command mode. Input “:wq” to save the file and exit the editor. Input English at first, then input wq.

:wq

Add Recognized Color

In addition to the built-in recognized colors, you can set other recognized colors in the programming. Take orange as example:

(1) Open VNC, input command to open Lab color setting document.

vim TonyPi/lab_config.yaml

It is recommended to use screenshot to record the initial value.

(2) Click the debugging tool icon in the system desktop. Choose “Execute” in the pop-up window.

(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “red” in the right box first.

(4) Drag the corresponding sliders of L, A, and B until the color area to be recognized in the left screen becomes white and other areas become black.

For example, if you want to recognize orange, you can put the orange ball in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the orange part of the left screen becomes white and other colors become black, and then click “ Save” button to keep the modified data.

(5) After the modification is completed, check whether the modified data was successfully written in. Enter the command again vim TonyPi/lab_config.yaml to check the color setting parameters.

vim TonyPi/lab_config.yaml

For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.

(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter “:wq” to save it and exit.

(7) The default recognized color can be set as red according to the 5.5.5 Function Extension -> Modify Default Recognition Color in this text.

(8) Start the game again and put the orange ball in front of the camera. After recognition, the robot will adjust its position to close the ball and kick it forward.

5.6 Line Follow

Lay the red tape and then place the robot on the line. TonyPi will move along the red track.

5.6.1 Program Description

Line tracking is common in robot competitions which is implemented by two-channel or four-channel line-tracking sensors.However, TonyPi only need the vision module to recognize the line color, process by image algorithms, to realize the line follow.

First, program TonyPi to recognize colors with Lab color space. You can go to “OpenCV Basic Course” for detailed learning of Lab color space.

Second, identify the object color in the circle using color threshold value, then apply a mask to that part of the image. Masking is the process of using selected images, graphics, or objects to globally or locally obscure parts of the processed image.

After processing the corrosion and inflation of the object image, the largest object contour is circled.

Corrosion: By iterating through each pixel of the image, check its overlap with the surrounding structural element. If all the overlapping pixel values are 1, then keep the original pixel value unchanged; otherwise, set it to 0. Mainly used to eliminate unimportant edge information in the image, reducing the area of the image.

Inflation: Similar to the inverse process of erosion. This process involves convolving the image with a structural element, calculate the maximum pixel value within the covered area, and assign this maximum value to the pixel specified by the reference point. The inflation expands the highlighted areas in an image gradually, typically used to fill holes or gaps in the image.

Thirdly, after recognition, process the servo part with x and y coordinates of the center point of the image as the set values. Input the current acquired x and y coordinates to update the pid.

Fourthly, calculate according to the feedback of the line position in the image, and program the robot to follow the line to achieve the function of intelligent line tracking.

5.6.2 Start and Close the Game

Note

The input of commands must strictly distinguish between uppercase and lowercase letters, as well as spaces. Additionally, you can use the “Tab” key on the keyboard to auto-complete keywords.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.

(2) Double-click “Terminator” icon in the Raspberry Pi desktop and open command line.

(3) Input and press Enter to locate to the directory where the program is stored.

cd TonyPi/Functions

(4) Input command, then press Enter to start the game.

python3 VisualPatrol.py

(5) If you want to exit the game programming, press “Ctrl+C”. If the exit fails, please try it few more times.

5.6.3 Program Outcome

Note

The program defaults to recognizing the color red. To switch to blue or green, refer to “5.6.5 Function Extension -> Modify Default Tracking Color”.

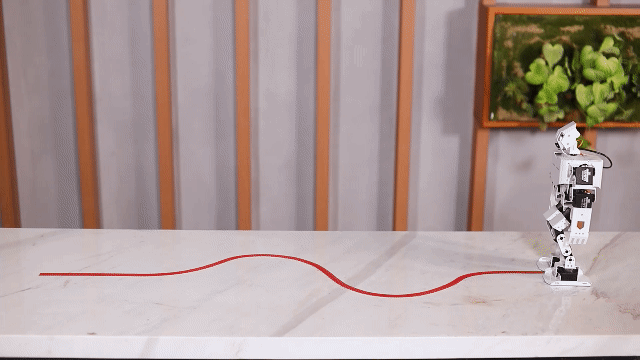

Lay the red tape and then place the robot on the line. TonyPi will move along the red track.

5.6.4 Program Analysis

The source code of this program is locate in /home/pi/TonyPi/Functions/VisualPatrol.py

Import Parameter Module

Import module	function
import sys	The Python "sys" module has been imported for accessing system-related functions and variables.
import os	The Python "os" module has been imported, providing functions and methods for interacting with the operating system.
import cv2	The OpenCV library has been imported for image processing and computer vision-related functionalities.
import time	The Python "time" module has been imported for time-related functionalities, such as delay operations.
import math	The "math" module provides low-level access to mathematical operations, including many commonly used mathematical functions and constants.
import threading	Provides an environment for running multiple threads concurrently.
import np	The NumPy library has been imported. It is an open-source numerical computing extension for Python, used for handling array and matrix operations.
import sensor.camera as camera	Import camera library
from common import misc	The "Misc" module has been imported for handling recognized rectangular data.
import common.ros_robot_controller_sdk as rrc	The robot's low-level control library has been imported for controlling servos, motors, RGB lights, and other hardware.
import common.yaml_handle	Contains functionalities or tools related to processing YAML format files.
from common.controller import Controller	Import action group execution library

Function Logic

Capture image information through the camera, then process the image, specifically by performing binarization. At the same time, to reduce interference and make the image smoother, perform erosion and dilation operations on the image.

Next, obtain the maximum area contour of the target and the minimum enclosing rectangle, then sum the centers of the three rectangles. Based on the final calculated center point position, call the action group to line follow.

Program Logic and Related Code Analysis

(1) Initialization

① Import function library

In this initialization step, the first task is to import the required libraries for subsequent program calls. For details on the imports, refer to “5.6.4 Program Analysis -> Import parameter module”.

#!/usr/bin/python3
# coding=utf8
import sys
import os
import cv2
import time
import math
import threading
import numpy as np

import hiwonder.Camera as Camera
import hiwonder.Misc as Misc
import hiwonder.ros_robot_controller_sdk as rrc
from hiwonder.Controller import Controller
import hiwonder.ActionGroupControl as AGC
import hiwonder.yaml_handle as yaml_handle

② Set initial state

Set initial state, including the initial position of servo, roi area, etc.

# 初始化机器人舵机初始位置
def initMove():
    ctl.set_pwm_servo_pulse(1, servo_data['servo1'], 500)
    ctl.set_pwm_servo_pulse(2, servo_data['servo2'], 500)

roi = [ # [ROI, weight]
        (240, 280,  0, 640, 0.1),
        (340, 380,  0, 640, 0.3),
        (440, 480,  0, 640, 0.6)
       ]

roi_h1 = roi[0][0]
roi_h2 = roi[1][0] - roi[0][0]
roi_h3 = roi[2][0] - roi[1][0]

roi_h_list = [roi_h1, roi_h2, roi_h3]

size = (640, 480)

(2) Image processing

① Image pre-processing

Resizing and Gaussian blur processing of the image.

frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST)
frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3)

cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST) is an operation to resize the image.

The first parameter img_copy is the image to be resized.

The second parameter size is the target size.

The third parameter interpolation is the interpolation method, which is used to determine the pixel interpolation algorithm used for resizing.

cv2.GaussianBlur(frame_resize, (3, 3), 3) applies Gaussian blur to the image.

The first parameter frame_resize is the image to be blurred.

The second parameter (3, 3) is the size of the Gaussian kernel, indicating that the width and height of the kernel are both 3.

The third parameter 3 is the standard deviation of the Gaussian kernel, used to control the degree of blur.

② Set roi area

From frame_gb, crop out the corresponding ROI regions based on each element in the roi list and the height values corresponding to roi_h_list. Save these regions in the blobs variable.

#将图像分割成上中下三个部分，这样处理速度会更快，更精确(segment the image into three parts: upper, middle, and lower. This will improve processing speed and accuracy)
for r in roi:
    roi_h = roi_h_list[n]
    n += 1
    blobs = frame_gb[r[0]:r[1], r[2]:r[3]]

③ Color space conversion

Convert the BGR image to LAB image.

frame_lab = cv2.cvtColor(blobs, cv2.COLOR_BGR2LAB)  # 将图像转换到LAB空间(convert the image to LAB space)

④ Binarization processing

Use inRange() function in cv2 library to process binarization.

if i in __target_color:
    detect_color = i
    frame_mask = cv2.inRange(frame_lab,
                             (lab_data[i]['min'][0],
                              lab_data[i]['min'][1],
                              lab_data[i]['min'][2]),
                             (lab_data[i]['max'][0],
                              lab_data[i]['max'][1],
                              lab_data[i]['max'][2]))  #对原图像和掩模进行位运算(operate bitwise operation to original image and mask)

The first parameter frame_lab is inputting image. The second parameter lab_data[i]['min'][0] is the lower limit of the threshold. The third parameter lab_data[i]['max'][0] is the upper limit of the threshold.

⑤ Corrosion and inflation

(operate bitwise operation to original image and mask)

        eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)))  #腐蚀(corrosion)
        dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilation)
dilated[:, 0:160] = 0
dilated[:, 480:640] = 0

eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) is the operation to perform corrosion on the binary image.

The first parameter frame_mask is the binary image on which morphological operations are to be performed.

The second parameter cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) is the structuring element for the corrosion operation. A rectangular structuring element of size (3, 3) is used here.

The dilation function follows the same principle.

dilated[:, 0:160] = 0 set all pixel values in the first 160 columns on the left side of the image (from column 0 to column 159) to 0, i.e., turn them black, to remove the unnecessary parts of the image for recognition.

dilated[:, 480:640] = 0 set all pixel values in the right side from column 480 to column 639 to 0, i.e., turn them black, to remove the unnecessary parts of the image for recognition.

⑥ Get the contour with the largest area

After completing the above image processing, it is necessary to obtain the contours of the recognized targets. This involves using the findContours() function from the cv2 library.

cnts = cv2.findContours(dilated , cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_TC89_L1)[-2]#找出所有轮廓(find out all contours)

Take code contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] as example:

The first parameter dilated is inputting image.

The second parameter cv2.RETR_EXTERNAL is the contour retrieval mode.

The third parameter cv2.CHAIN_APPROX_NONE)[-2] is the contour approximation method. Find the contour with the largest area in the obtained contour. In order to avoid interference, you need to set a minimum value. The target contour is considered valid only if its area is greater than this value.

{lineno-start=}

areaMaxContour, area_max = area_maxContour(contours) # 找出最大轮廓
if areaMaxContour is not None:
    if area_max > max_area: #找最大面积
        max_area = area_max
        color_area_max = i
        areaMaxContour_max = areaMaxContour

⑦ Get the center position coordinates of the line

Use the misc function to map the x and y coordinates of the object center, as well as the radius, from the original size range to the range of the new image size (”img_w” and “img_h”). Then, use the cv2.circle function to draw a circle around the color block.

if cnt_large is not None:#如果轮廓不为空
    rect = cv2.minAreaRect(cnt_large)#最小外接矩形
    box = np.int0(cv2.boxPoints(rect))#最小外接矩形的四个顶点
    for i in range(4):
        box[i, 1] = box[i, 1] + (n - 1)*roi_h + roi[0][0]
        box[i, 1] = int(Misc.map(box[i, 1], 0, size[1], 0, img_h))
    for i in range(4):
        box[i, 0] = int(Misc.map(box[i, 0], 0, size[0], 0, img_w))

    cv2.drawContours(img, [box], -1, (0,0,255,255), 2)#画出四个点组成的矩形

    #获取矩形的对角点
    pt1_x, pt1_y = box[0, 0], box[0, 1]
    pt3_x, pt3_y = box[2, 0], box[2, 1]
    center_x, center_y = (pt1_x + pt3_x) / 2, (pt1_y + pt3_y) / 2#中心点
    cv2.circle(img, (int(center_x), int(center_y)), 5, (0,0,255), -1)#画出中心点

    center_.append([center_x, center_y])
    #按权重不同对上中下三个中心点进行求和
    centroid_x_sum += center_x * r[4]
    weight_sum += r[4]

if weight_sum != 0:
    #求最终得到的中心点
    cv2.circle(img, (line_center_x, int(center_y)), 10, (0,255,255), -1)#画出中心点
    line_center_x = int(centroid_x_sum / weight_sum)
else:
    line_center_x = -1

(3) Intelligent line follow

Based on the calculated difference between the X-coordinate of the line center point and the X-coordinate of the screen center, call different action groups to follow the line.

def move():
    global line_center_x

    while True:
        if __isRunning:
            if line_center_x != -1:
                if abs(line_center_x - img_centerx) <= 50:
                    AGC.runActionGroup('go_forward')
                elif line_center_x - img_centerx > 50:
                    AGC.runActionGroup('turn_right_small_step')
                elif line_center_x - img_centerx < -50:
                    AGC.runActionGroup('turn_left_small_step')
            else:
                time.sleep(0.01)
        else:
            time.sleep(0.01)

If the differential is less than or equal to ±50: Call the go_forward action group.

If the differential is greater than 50: Call the turn_right_small_step to perform turning right action group.

If the differentials is greater than -50: Call the turn_left_small_step to perform turning left action group.

5.6.5 Function Extension

Modify Default Tracking Color

Black, red and white are the built-in colors in the line follow program and black is the default color. In the following steps, we’re going to modify the tracking color as red.

(1) Enter command to the directory where the game program is located.

cd TonyPi/Functions

(2) Enter command to go into the game program through vi editor.

vim VisualPatrol.py

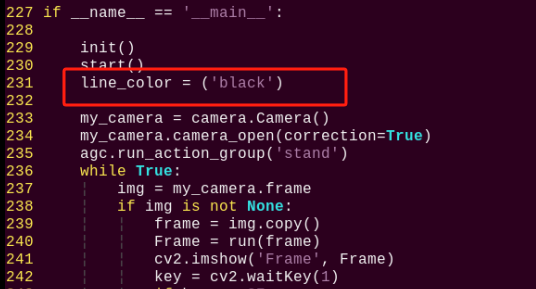

(3) Locate code __target_color = ('black').

Note

After entering the code position number on the keyboard, press “Shift+G” to directly locate to the corresponding location. This section aims to introduce quick location methods, so the code position number is for reference only. Please rely on actual positions.

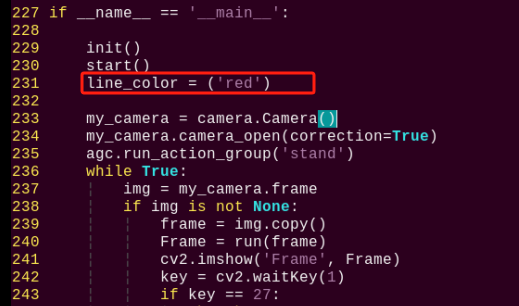

(4) Press “i” to enter the editing mode, then modify black in “_target_color = (‘black’)” to red. If you want to recognize white, please revise to “white”.

(5) Press “Esc” to enter last line command mode. Input “:wq” to save the file and exit the editor.

:wq

Add Recognized Color

In addition to the built-in recognized colors, you can set other recognized colors in the programming. Take blue as example:

(1) Open VNC, input command to open Lab color setting document.

vim TonyPi/lab_config.yaml

It is recommended to use screenshot to record the initial value.

(2) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “red” in the right box first.

(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “red” in the right box first.

(4) For example, if you want to recognize orange, you can put the orange ball in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the blue part of the left screen becomes white and other colors become black, and then click “Save” button to keep the modified data.

For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.

(5) After the modification is completed, check whether the modified data was successfully written in. Enter the command again vim TonyPi/lab_config.yaml to check the color setting parameters.

vim TonyPi/lab_config.yaml

For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.

(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter :wq to save it and exit.

:wq

(7) The default tracking color can be set as black according to the “5.6.5 Function Extension -> Modify Default Tracking Color” in this text.

(8) Starting the game again, TonyPi will track along the blue line. If you want to add other colors as tracking color, please operate as the above steps.

5.7 Tag Detection

5.7.1 Program Description

When the robot detects a tag, the buzzer emits a sound, and the feedback image is returned.

AprilTag, a visual fiducial marker, is similar to a QR code or barcode. It can be used to quickly detect markers and calculate relative positions, meeting real-time requirements. It is widely used in various applications such as augmented reality (AR), robotics, and camera calibration. Currently, AprilTags can be printed using a standard printer, and their detection programs can calculate precise 3D position, orientation, and ID relative to the camera.

In this lesson, we will combine OpenCV with AprilTag to complete a small project for detecting AprilTag markers. When the camera detects the tag, the robot’s onboard buzzer will sound as a prompt, and the feedback image will be displayed.

5.7.2 Start and Close the Game

Note

The input of commands must strictly distinguish between uppercase and lowercase letters, as well as spaces.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.

(2) Click the icon in the top left corner of the system desktop or press the shortcut “Ctrl+Alt+T” to open the LX terminal.

(3) In the terminal, enter the command to navigate to the directory where the program is located, then press Enter:

cd TonyPi/Functions/

(4) Enter the command and press Enter to start the program:

python3 Tag_Detect.py

(5) To close the program, simply press “Ctrl+C” in the LX terminal. If it does not close, press it multiple times.

5.7.3 Program Outcome

Note

For optimal tag detection, place the tag against a solid-colored or white background. Dark backgrounds (e.g., black) may interfere with tag recognition.

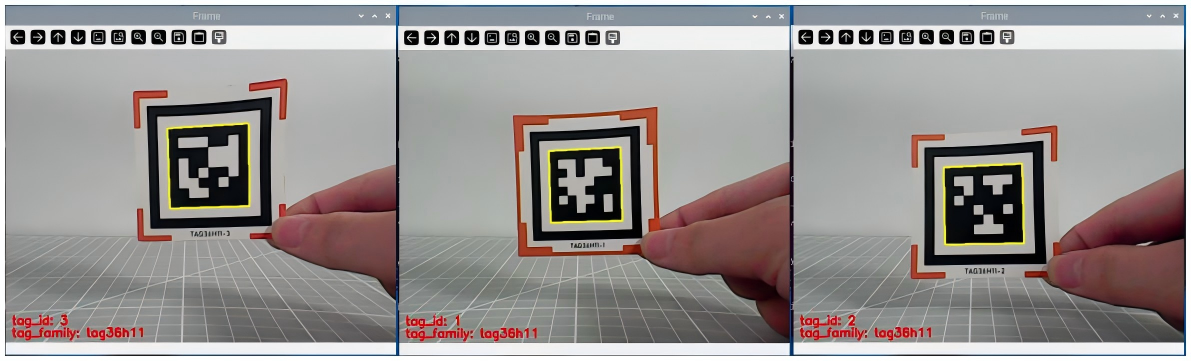

Once the game is activated, position the included AprilTag tag in front of the camera. When the robot detects the tag, the buzzer will sound as a prompt. The feedback image will display the captured tag, outline it, and show the tag’s tag_id and tag_family information.

5.7.4 Program Analysis

The source code for this program is located at : /home/pi/TonyPi/Functions/Tag_Detect.py

(1) Image Acquisition and Processing

The first step is image processing, which involves working with digital image data. We begin by importing the necessary packages.

#!/usr/bin/python3
# coding=utf8
import sys
import cv2
import math
import time
import numpy as np

import hiwonder.Camera as Camera
import hiwonder.ros_robot_controller_sdk as rrc
import hiwonder.yaml_handle as yaml_handle
import hiwonder.apriltag as apriltag
# 检测apriltag

Next, we initialize and start the camera to acquire the image, then proceed to copy, remap, and display the image.

        ret, img = my_camera.read()
        if img is not None:
            frame = img.copy()
            frame = cv2.remap(frame, mapx, mapy, cv2.INTER_LINEAR)  # 畸变矫正(distortion correction)
            Frame = run(frame)
            cv2.imshow('Frame', Frame)
            key = cv2.waitKey(1)
            if key == 27:
                break

Afterward, we need to convert the image from RGB format to grayscale. The corresponding code is as follows:

gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)

(2) Tag Detection

Once the image has been processed, we need to detect the tag. This is done by using the tag library to detect the tag in the acquired image. The code implementation is as follows:

detections = detector.detect(gray, return_image=False)

After detection, the program will obtain the four corner points of the tag.

corners = np.int0(detection.corners)  # 获取四个角点

Next, we need to draw the contours of the tag. In OpenCV, we use the cv2.drawContours function to accomplish this. The program code is as follows:

cv2.drawContours(img, [np.array(corners, int)], -1, (0, 255, 255), 2)

This function takes five parameters, each with the following meanings:

① img: The image to be processed.

② [np.array(corners, np.int)]: The contour points.

③ -1: The contour index. -1 indicates that all contours should be drawn.

④ (0, 255, 255): The color of the contour.

⑤ 2: The thickness of the contour line.

(3) Retrieving Tag Information

The program uses the AprilTag library to perform encoding and decoding to retrieve the tag’s information. Depending on the encoding method, different inner point coordinates are generated.

Once the quadrilateral is identified, the grid coordinates are clarified. To verify the reliability of the encoding, the tag must be matched against a known encoding library.

            tag_family = str(detection.tag_family, encoding='utf-8')  # 获取tag_family(get tag_family)
            tag_id = int(detection.tag_id)  # 获取tag_id(get tag_id)

            object_center_x, object_center_y = int(detection.center[0]), int(detection.center[1])  # 中心点(center point)

            object_angle = int(math.degrees(math.atan2(corners[0][1] - corners[1][1], corners[0][0] - corners[1][0])))  # 计算旋转角(calculate rotation angle)

            return tag_family, tag_id

5.8 Tag Recognition

5.8.1 Program Description

The robot executes corresponding action groups by recognizing different ID tags.

AprilTag, a visual positioning marker, can quickly detect the marker and calculate the position. It’s mainly applied to AR, robot and camera calibration, etc.

The following is the overall process:

First, detect AprilTag through positioning, image segmentation, and contour search. Then the quadrilateral detection is performed after the contour is positioned. Connect the four corner points with a straight line to form a closed loop.

Encoding and decoding the detected tags. Finally, add the corresponding execution action according to the decoding tags with different IDs.

5.8.2 Start and Close the Game

Note

Pay attention to the text format in the input of instructions.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop. Double-click “Terminator” icon in the Raspberry Pi desktop and open command line.

(2) Input command and press Enter to locate to the directory where the program is stored.

cd TonyPi/Functions

(3) Input command, then press Enter to start the game.

python3 ApriltagDetrect.py

(4) If you want to exit the game programming, press “Ctrl+C”. If the exit fails, please try it few more times.

5.8.3 Project Outcome

Note

Please run this game on a solid color or a white background. Dark background such as black will affect the tag recognition performance.

After starting the tag recognition, place the tag cards in front of the camera to recognize in turns. TonyPi will execute the corresponding actions when the tad is recognized.

Tag ID	Action
1	Bowing
2	Mark time
3	Dancing

5.8.4 Program Analysis

The source code of this program is locate in: /home/pi/TonyPi/Functions/ApriltagDetect.py.

Import Parameter Module

Import module	function
import sys	The Python "sys" module has been imported for accessing system-related functions and variables.
import os	The Python "os" module has been imported, providing functions and methods for interacting with the operating system.
import cv2	The OpenCV library has been imported for image processing and computer vision-related functionalities
import time	The Python "time" module has been imported for time-related functionalities, such as delay operations.
import math	The "math" module provides low-level access to mathematical operations, including many commonly used mathematical functions and constants.
import threading	Provides an environment for running multiple threads concurrently.
import np	The NumPy library has been imported. It is an open-source numerical computing extension for Python, used for handling array and matrix operations.
import common.apriltag as apriltag	Import apriltag library
import sensor.camera as camera	Import camera library
from common import misc	The "Misc" module has been imported for handling recognized rectangular data.
import common.ros_robot_controller_sdk as rrc	The robot's underlying control library has been imported for controlling servos, motors, RGB lights, and other hardware.
import common.yaml_handle	Contains functionalities or tools related to processing YAML format files.
from common.controller import Controller	Import action group execution library

Function Logic

Capture image information through the camera, then process the image, specifically by performing color space conversion. That is facilitate for people to perform tag detection.

Next, use apriltag library to perform tag detection, get tag ID and call action group to perform feedback.

Program Logic and Related Code Analysis

(1) Import function library

In this initialization step, the first task is to import the required libraries for subsequent program calls. For details on the imports, refer to “5.8.4 Program Analysis -> Import parameter module”.

#!/usr/bin/python3
# coding=utf8
import sys
import cv2
import math
import time
import threading
import numpy as np

import hiwonder.Camera as Camera
import hiwonder.Misc as Misc
import hiwonder.ros_robot_controller_sdk as rrc
from hiwonder.Controller import Controller
import hiwonder.ActionGroupControl as AGC
import hiwonder.yaml_handle as yaml_handle
import hiwonder.apriltag as apriltag

(2) Set initial state

Set initial state, including the initial position of servo and tag ID.

# 初始化机器人舵机初始位置(initialize the initialization position of robot)
def initMove():
    ctl.set_pwm_servo_pulse(1, 1500, 500)
    ctl.set_pwm_servo_pulse(2, 1500, 500)

Image processing

(1) Create AprilTag detector

Detect visual markers using the default marker patterns provided by the AprilTag library. You can use it to detect AprilTag markers in an image and obtain information about these markers, such as their position coordinates and IDs.

# 检测apriltag(detect apriltag)
detector = apriltag.Detector(searchpath=apriltag._get_demo_searchpath())

(2) color space conversion

Convert the BGR image to GRAY image.

gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)

(3) Detect tag

Use the created detector object (i.e., AprilTag detector) to detect AprilTag markers in the grayscale image “gray”.

detections = detector.detect(gray, return_image=False)

(4) Get tag information

Retrieve the tag ID corner information, use the cv2.drawContours function to draw the tag on the image, and obtain the tag ID and tag class.

    if len(detections) != 0:
        for detection in detections:
            corners = np.int0(detection.corners)  # 获取四个角点(get four corners)
            cv2.drawContours(img, [np.array(corners, int)], -1, (0, 255, 255), 2)

            tag_family = str(detection.tag_family, encoding='utf-8')  # 获取tag_family(get tag_family)
            tag_id = int(detection.tag_id)  # 获取tag_id(get tag_id)

(5) Print tag information

Use the cv2.putText function to print the detected ID information.

if tag_id is not None:
    cv2.putText(img, "tag_id: " + str(tag_id), (10, img.shape[0] - 30), cv2.FONT_HERSHEY_SIMPLEX, 0.65, [0, 255, 255], 2)
    cv2.putText(img, "tag_family: " + tag_family, (10, img.shape[0] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, [0, 255, 255], 2)
else:
    cv2.putText(img, "tag_id: None", (10, img.shape[0] - 30), cv2.FONT_HERSHEY_SIMPLEX, 0.65, [0, 255, 255], 2)
    cv2.putText(img, "tag_family: None", (10, img.shape[0] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, [0, 255, 255], 2)

return img

Tag recognition

According to the detected tag ID, use the agc.run_action_group function to invoke the corresponding action group file and control the robot’s movement.

    while True:
        if debug:
            return
        if __isRunning:
            if tag_id is not None:
                action_finish = False
                time.sleep(0.5)
                if tag_id == 1:#标签ID为1时(when the tag ID is 1)
                    AGC.runActionGroup('bow')#鞠躬(bow)
                    tag_id = None
                    time.sleep(1)
                    action_finish = True
                elif tag_id == 2:
                    AGC.runActionGroup('stepping')#原地踏步(march in place)
                    tag_id = None
                    time.sleep(1)
                    action_finish = True
                elif tag_id == 3:
                    AGC.runActionGroup('twist')#扭腰(twist waist)
                    tag_id = None
                    time.sleep(1)
                    action_finish = True
                else:
                    action_finish = True
                    time.sleep(0.01)
            else:
               time.sleep(0.01)
        else:
            time.sleep(0.01)

5.8.5 Function Extension

Modify the Action Corresponding to the Tag

Program default setting is that TonyPi will bow when the tag ID i is detected. We can revise the feedback action to wave hand for example.

(1) Enter command to the directory where the game program is located.

cd TonyPi/Functions/

(2) Enter command to go into the game program through vi editor.

vim ApriltagDetect.py

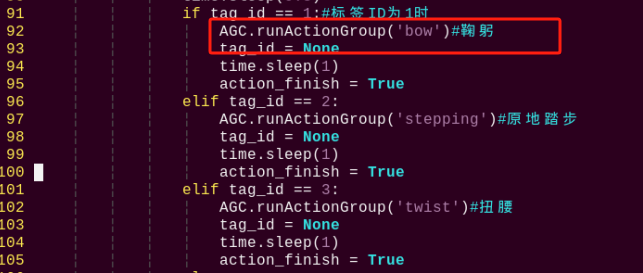

(3) Find code AGC.runActionGroup(bow).

Note

After entering the code position number on the keyboard, press “Shift+G” to directly locate to the corresponding location. This section aims to introduce quick location methods, so the code position number is for reference only. Please rely on actual positions.

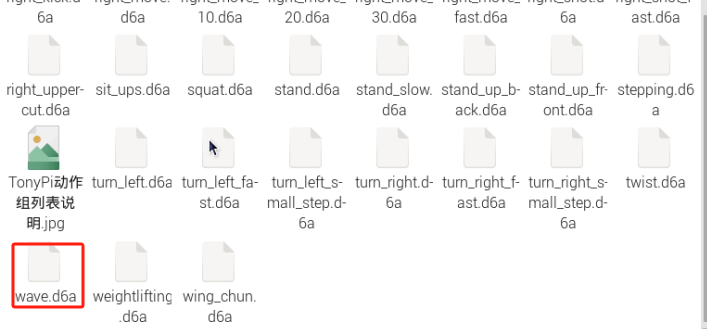

(4) Based on the description of the TonyPi Action Group List Instruction located in the path /home/pi/TonyPi/ActionGroups, it is known that bow corresponds to bowing.

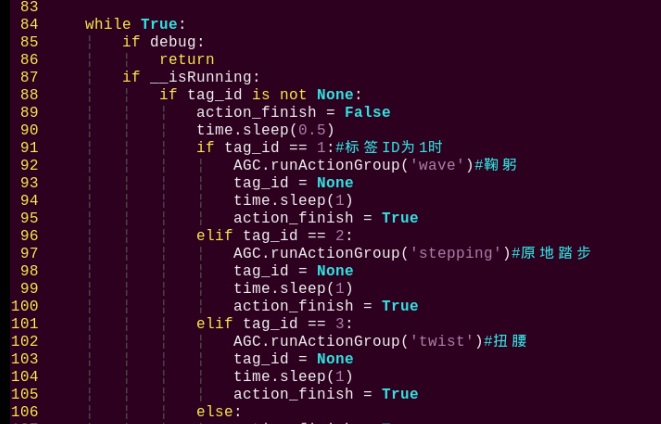

(5) Press “i” to enter the editing mode, then modify the (‘bow’) in AGC.runActionGroup(‘bow’) to AGC.runActionGroup(‘wave’)

(6) Press “Esc” to enter last line command mode. Input “:wq” to save the file and exit the editor.

:wq

Modify or Add the Tag Recognition

The tag data is located in the ApirlTag Tag Collection folder under the directory of this section. (The directory needs to be unzipped first)

① You don’t need to download materials online, please go to the directory of this section to find ApirlTag Tag Collection for the provided tags. (200 tags in total)

② There is no absolute size requirement for the tag size if you want to print your tags. It is not recommended to be too large or too small for the performance of recognition. (The tag will be circled when recognized.)

③The background next to the tag will be better to keep in white. The dark background may affect the recognition.

In the following sample, we will add the ID4 as new tag. When the tag is recognized, TonyPi will run the “Cheering” action group.

(1) Take the reference of “5.8.5 Function Extension -> Modify the Action Corresponding to the Tag”, enter the catalog and open the program file.

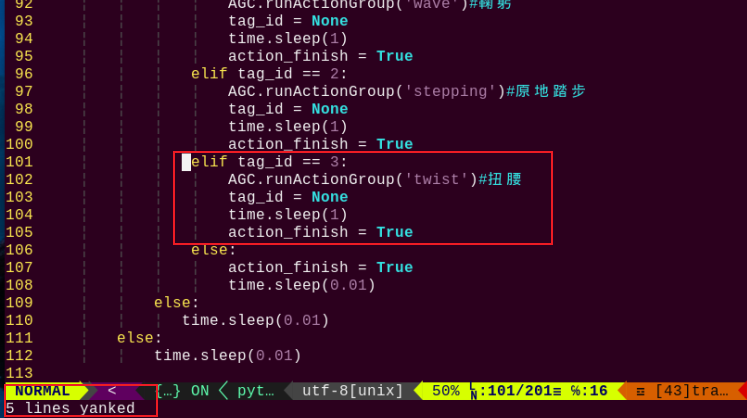

(2) Next, you need to copy the code inside the “elif” branch. Here, we can copy the code shown in the image. Move the mouse cursor to the corresponding “elif” line, then type “5yy” on the keyboard (to copy 5 lines). You will see a prompt “5 lines yanked” at the bottom, indicating successful copying.

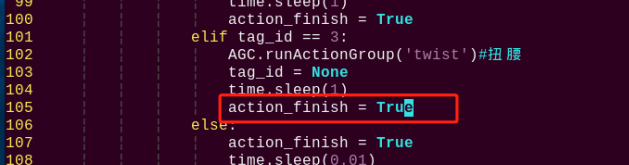

(3) Then paste these 5 lines of code, and move the mouse cursor to the position shown in the figure below:

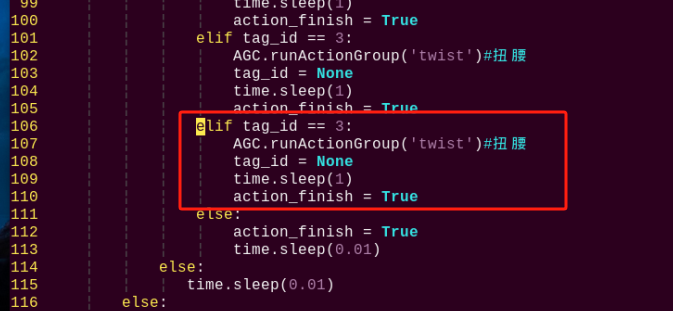

(4) Enter “p” on the keyboard to paste the previously copied 5 lines of code below:

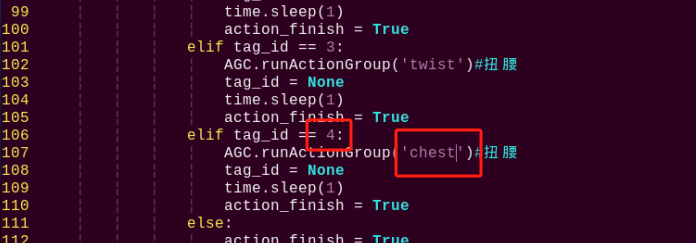

(5) Modify the copy code. Enter “i” to the editing mode and revise “tag_id” to “4”, and the action in the “AGC.runActionGroup” to “chest”.

(6) Modify the copy code. Enter “i” to the editing mode and revise “tag_id” to “4”, and the action in the “AGC.runActionGroup” to “chest”.

(7) Take the ID4 tag in folder “ApirlTag Tag Collection” and print it directly.

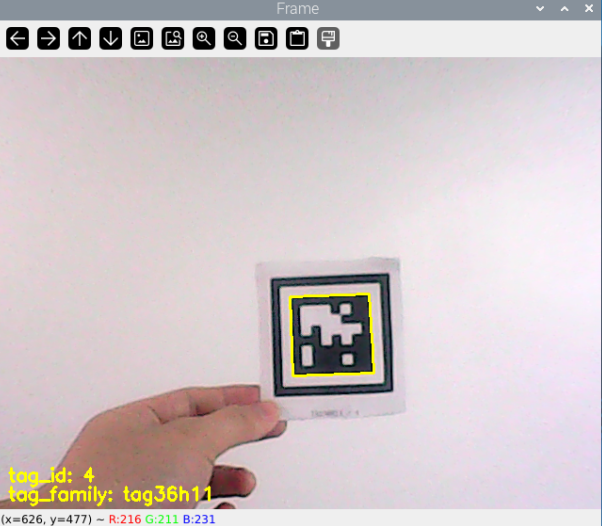

(8) Check the project outcome according to the commands in previous learning.

5.9 Face Detect

5.9.1 Brief Description of the Activity

When no face is detected, the robotic arm rotates left and right to scan the area. Once a face is detected, the claw moves up and down as a greeting.

Face recognition is one of the most widely used applications in artificial intelligence, particularly in image recognition. Among these applications, face recognition is the most popular, often used in scenarios like smart locks and facial unlocking on mobile phones.

In this activity, we first train the face recognition model. The system then detects faces by scaling the image. After detection, the coordinates of the recognized face are converted back to the original scale, and the largest face is identified. The recognized face is then outlined with a frame.

Next, the pan-tilt servos are set to rotate left and right to locate the face. Finally, the robot executes the feedback action based on the recognition results.

5.9.2 Start and Close the Game

Note

The input of commands must strictly distinguish between uppercase and lowercase letters.

(1) Power on the device and, following the instructions in “Remote Desktop Installation and Connection\3.1 Remote Desktop Installation and Connection”, use the VNC remote connection tool to connect.

(2) Click the icon in the top left corner of the system desktop or press the shortcut “Ctrl+Alt+T” to open the LX terminal.

(3) In the terminal, enter the command to navigate to the directory where the program is located, then press Enter:

cd TonyPi/Functions/

(4) Enter the command and press Enter to start the program:

python3 Face_Detect.py

(5) To close the program, simply press “Ctrl+C” in the LX terminal. If it does not close, press it multiple times.

5.9.3 Program Outcome

Note

For optimal performance, please avoid using this activity under strong lighting conditions, such as direct sunlight or close proximity to incandescent lights, as intense light can affect face recognition accuracy. It is recommended to conduct this activity indoors, with the face positioned within a range of 50 cm to 1 meter from the camera.

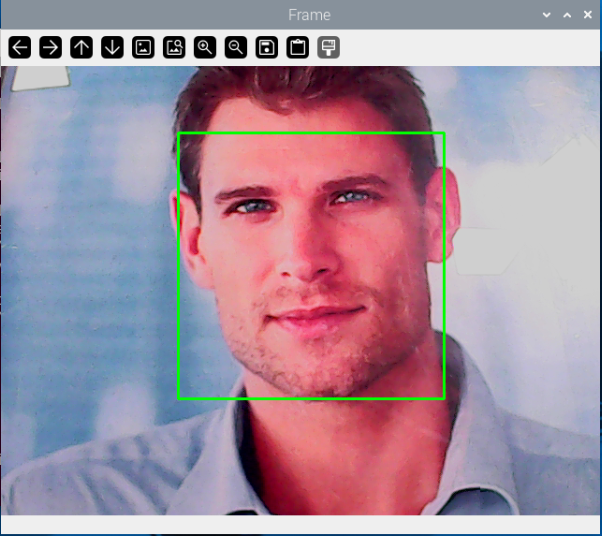

Once the activity begins, the camera’s pan-tilt will rotate left and right. If no face is detected, the robotic arm will scan by rotating left and right. Upon detecting a face, the claw will move up and down to greet the user.

5.9.4 Program Analysis

The source code of the program is saved in:/home/pi/TonyPi/Functions/Face_Detect.py

Importing Parameter Modules

Module Import	Purpose
import sys	Imports the Python sys module, which provides access to system-specific parameters and functions.
import cv2	Imports the OpenCV library, which is used for image processing and computer vision tasks.
import time	Imports the Python time module, which provides functions for handling time-related tasks, such as delays.
import HiwonderSDK.Misc as Misc	Imports the Misc module from the Hiwonder SDK for handling recognized rectangular data.
import threading	Provides support for running tasks in multiple threads concurrently
import yaml_handle	Contains functions or tools for handling YAML format files
from ArmIK.Transform import *	Imports functions for robotic arm posture transformations
from ArmIK.ArmMoveIK import *	Provides functions for inverse kinematics solving and control for robotic arm movement
import HiwonderSDK.Board as Board	Imports the Board module from the Hiwonder SDK, which is used to control sensors and execute related actions

Function Logic

The camera captures image data, which is then processed by converting the image into a different color space to facilitate face detection.

The Mediapipe face detection model is used to identify faces in the image. Once detected, the system triggers the appropriate action group to provide feedback based on the detected faces.

This flow ensures that the system accurately detects and responds to faces.

Program Logic and Code Analysis

From the above flowchart, the main program logic focuses on image processing and face recognition. The following content will follow this program logic flow.

(1) Importing Libraries

#!/usr/bin/python3
# coding=utf8
import sys
import cv2
import math
import time
import threading
import numpy as np
import mediapipe as mp
import hiwonder.ros_robot_controller_sdk as rrc
import hiwonder.yaml_handle as yaml_handle
import hiwonder.Camera as Camera

(2) Setting Initial State

# 初始化机器人底层驱动(initialize the underlying driver of robot)
board = rrc.Board()

# 导入人脸识别模块(import human face detection module)
face = mp.solutions.face_detection
# 自定义人脸识别方法，最小的人脸检测置信度0.5(custom human face recognition method, the minimum human face detection confidence is 0.5)
face_detection = face.FaceDetection(min_detection_confidence=0.5)

(3) Color Space Conversion

The BGR image is converted to an RGB image.

    image_rgb = cv2.cvtColor(img_copy, cv2.COLOR_BGR2RGB) # 将BGR图像转为RGB图像(convert the BGR image to RGB image)

(4) Using Mediapipe Face Model for Recognition

The system performs face detection and draws a rectangle around the detected face. Then, the position of the face is compared to the center of the image. If the face is centered, start_greet is set to True to trigger the action group.

    results = face_detection.process(image_rgb) # 将每一帧图像传给人脸识别模块(pass each frame of the image to the face recognition module)
    if results.detections:   # 如果检测不到人脸那就返回None(if no face is detected, return None)
        for index, detection in enumerate(results.detections): # 返回人脸索引index(第几张脸)，和关键点的坐标信息(return the face index (which face it is) and the coordinates of the key points)
            bboxC = detection.location_data.relative_bounding_box # 设置一个边界框，接收所有的框的xywh及关键点信息(set up a bounding box to receive the xywh coordinates and key point information of all the boxes)

             # 将边界框的坐标点,宽,高从比例坐标转换成像素坐标(convert the coordinates, width, and height of the bounding box from relative coordinates to pixel coordinates)
            bbox = (int(bboxC.xmin * img_w), int(bboxC.ymin * img_h),
                   int(bboxC.width * img_w), int(bboxC.height * img_h))
            cv2.rectangle(img, bbox, (0,255,0), 2)  # 在每一帧图像上绘制矩形框(draw a rectangle on each frame of the image)
        if di_once:
            board.set_buzzer(1900, 0.3, 0.7, 1)
            di_once = False
    else:
        di_once = True

    return img

5.10 Facial Recognition

5.10.1 Program Description

In artificial intelligence, one of the most widespread applications is image recognition, with facial recognition being the hottest application in image recognition. It is commonly used in scenarios like door locks and phone facial unlocking.

In this section, the trained face model is first zoomed to detect the face. Then the recognized face coordinates are converted to the coordinates before scaling. Judge whether it is the largest face, and frame the recognized face.

Then set the servo to rotate left and right to obtain the face, and call the action group to let the robot perform the recognized feedback.

5.10.2 Start and Close the Game

Note

Pay attention to the text format in the input of instructions.

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.Input and press Enter to locate to the directory where the program is stored.

cd TonyPi/Functions

(2) Input command, then press Enter to start the game.

python3 FaceDetect.py

(3) If you want to exit the game programming, press “Ctrl+C”. If the exit fails, please try it few more times.

5.10.3 Project Outcome

Note

Please do not try the Facial Recognition game under strong light, such as sunlight. Strong light will affect the recognition performance, so it is recommended to play this game indoors. It’s better to set the distance between face and camera with 50-100cm.

Start the facial recognition function, TonyPi will rotate its head to detect face. It will stop when the face is recognized, and run the greeting actions.

5.10.4 Program Analysis

The source code of this program is locate in: “/home/pi/TonyPi/Functions/FaceDetect.py”.

Import Parameter Module

Import module	function
import sys	The Python "sys" module has been imported for accessing system-related functions and variables.
import os	The Python "os" module has been imported, providing functions and methods for interacting with the operating system.
import cv2	The OpenCV library has been imported for image processing and computer vision-related functionalities
import time	The Python "time" module has been imported for time-related functionalities, such as delay operations.
import math	The "math" module provides low-level access to mathematical operations, including many commonly used mathematical functions and constants.
import threading	Provides an environment for running multiple threads concurrently.
import np	he NumPy library has been imported. It is an open-source numerical computing extension for Python, used for handling array and matrix operations.
import mediapipe as mp	Import mediapipe library, which is used to detect human face
import sensor.camera as camera	Import camera library
from common import misc	The "Misc" module has been imported for handling recognized rectangular data.
import common.ros_robot_controller_sdk as rrc	The robot's underlying control library has been imported for controlling servos, motors, RGB lights, and other hardware.
import common.yaml_handle	Contains functionalities or tools related to processing YAML format files.
from common.controller import Controller	Import action group execution library

Function Logic

Capture image information through the camera, then process the image, specifically by

performing color space conversion. That is facilitate for people to perform face detection.

Next, use mediapipe human face model library to perform face detection, get face detection

result and call action group to perform feedback.

Program Logic and Related Code Analysis

(1) Initialization

① Import function library

In this initialization step, the first task is to import the required libraries for subsequent program calls. For details on the imports, refer to “4.10.4 Program Analysis -> Import parameter module”.

#!/usr/bin/python3
# coding=utf8
import sys
import os
import cv2
import math
import time
import threading
import numpy as np

import mediapipe as mp
import hiwonder.Camera as Camera
import hiwonder.Misc as Misc
import hiwonder.ros_robot_controller_sdk as rrc
from hiwonder.Controller import Controller
import hiwonder.ActionGroupControl as AGC
import hiwonder.yaml_handle as yaml_handle

② Set initial state

Set initial state, including the initial position of servo, human face recognition module, Minimum Face Confidence, etc.

# 初始化机器人舵机初始位置(initialize the servo initialization position of robot)
def initMove():
    ctl.set_pwm_servo_pulse(1, 1800, 500)
    ctl.set_pwm_servo_pulse(2, servo2_pulse, 500)

# 导入人脸识别模块(import human face recognition module)
face = mp.solutions.face_detection
# 自定义人脸识别方法，最小的人脸检测置信度0.5(custom human face recognition method, the minimum human face detection confidence is 0.5)
face_detection = face.FaceDetection(min_detection_confidence=0.5)

(2) Image processing

① Color space conversion

Convert the BGR image to LAB image.

image_rgb = cv2.cvtColor(img_copy, cv2.COLOR_BGR2RGB) # 将BGR图像转为RGB图像(convert the BGR image to RGB image)

② Use mediapipe human face model recognition

Perform face detection and draw rectangles around the detected faces. Then, based on whether the position of the face center is in the center of the frame, if so, set “start_greet” to True to execute the action group.

    results = face_detection.process(image_rgb) # 将每一帧图像传给人脸识别模块(pass each frame of the image to the face recognition module)
    if results.detections:   # 如果检测不到人脸那就返回None(if no face is detected, return None)
        for index, detection in enumerate(results.detections): # 返回人脸索引index(第几张脸)，和关键点的坐标信息eturn the face index (which face it is) and the coordinates of the key points)
            bboxC = detection.location_data.relative_bounding_box # 设置一个边界框，接收所有的框的xywh及关键点信息(set up a bounding box to receive the xywh coordinates and key point information of all the boxes)

            # 将边界框的坐标点,宽,高从比例坐标转换成像素坐标(convert the coordinates, width, and height of the bounding box from relative coordinates to pixel coordinates)
            bbox = (int(bboxC.xmin * img_w), int(bboxC.ymin * img_h),
                   int(bboxC.width * img_w), int(bboxC.height * img_h))
            cv2.rectangle(img, bbox, (0,255,0), 2)  # 在每一帧图像上绘制矩形框(draw a rectangle on each frame of the image)
            x, y, w, h = bbox  # 获取识别框的信息,xy为左上角坐标点(information about the recognition box, where xy represents the coordinates of the top-left corner)
            center_x =  int(x + (w/2))

            if abs(center_x - img_w/2) < img_w/4:
                if action_finish:
                    start_greet = True

(3) Face detection

If a face is detected, use the agc.run_action_group function to invoke the wave action group.

while True:
    if __isRunning:
        if start_greet:
            start_greet = False
            action_finish = False
            AGC.runActionGroup('wave') # 识别到人脸时执行的动作(the action performed when a face is recognized)
            action_finish = True
            time.sleep(0.5)

If no face is detected, control the pan-tilt servo to rotate left and right to search for a face.

else:
    if servo2_pulse > 2000 or servo2_pulse < 1000:
        d_pulse = -d_pulse

    servo2_pulse += d_pulse
    ctl.set_pwm_servo_pulse(2, servo2_pulse, 50)
    time.sleep(0.05)

5.10.5 Function Extension

The built-in file is located in /home/pi/TonyPi/ActionGroups.

Program default setting is that TonyPi will execute the greeting action when detect the face. The feedback action can be revised to others such as bowing.

(1) Enter command to the directory where the game program is located.

cd TonyPi/Functions/

(2) Enter command to go into the game program through vi editor.

vim FaceDetect.py

(3) Find code AGC.runActionGroup('wave').

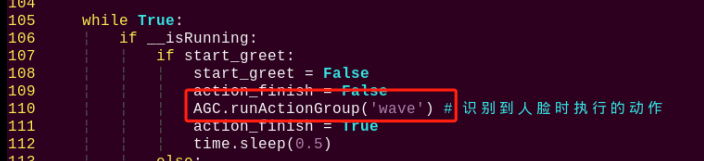

Note

After entering the code position number on the keyboard, press “Shift+G” to directly locate to the corresponding location. This section aims to introduce quick location methods, so the code position number is for reference only. Please rely on actual positions.

wave in the above image is the name of greeting action. If we want to revise the action to bowing, enter “bow” instead of “wave” in the “Action group instruction” in the path /home/pi/TonyPi/ActionGroups.

(4) Press “i” to enter the editing mode, then modify “wave” to “bow”.

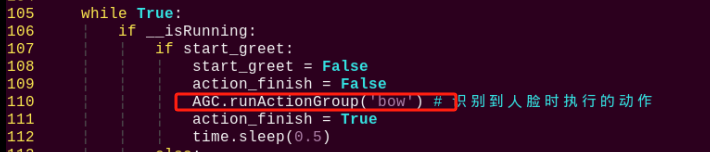

(5) Press “Esc” to enter last line command mode. Input :wq to save the file and exit the editor.

:wq
