5. AI Vision Games Lesson
5.1 Single Color Recognition
In this section, the camera detects colors. When a red ball is recognized, the buzzer will emit a beep, and the red ball will be highlighted in the transmitted image with “Color: red” displayed.
5.1.1 Program Description
The implementation of color recognition consists of two parts: color detection and execution feedback after recognition.
First, for the color detection part, Gaussian filtering is applied to the image to reduce noise. The Lab color space is then used to convert the color of the object (you can learn more about the Lab color space in the “OpenCV Vision Basic Course” section of the tutorial materials).
Next, the object’s color within the circle is recognized using color thresholding, followed by masking (masking involves using selected images, shapes, or objects to globally or locally obscure the image being processed).
After performing morphological operations such as opening and closing on the object image, the object with the largest contour is circled.
Opening: The image undergoes erosion followed by dilation. This operation removes small objects, smooths shape boundaries, and preserves the area. It can eliminate small noise particles and separate connected objects.
Closing: The image undergoes dilation followed by erosion. This operation fills small holes within objects, connects nearby objects, closes broken contour lines, and smooths boundaries while preserving the area.

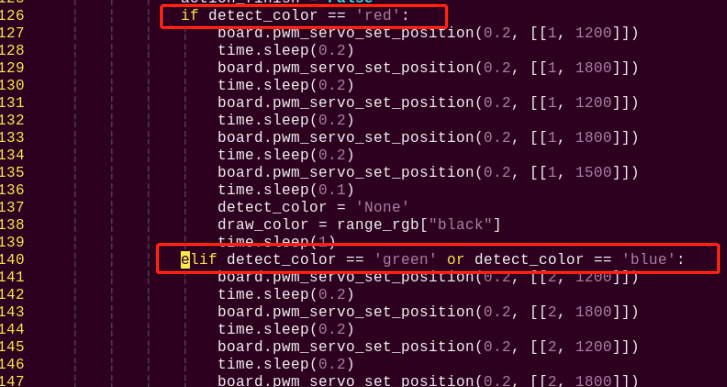

After recognition, the servo and buzzer are set up to provide feedback based on the detected color. For example, when red is detected, the buzzer will emit a sound.
For detailed feedback behavior, please refer to section 3. Function Implementation of this document.
5.1.2 Start and Close the Game
Note
The input command is case-sensitive, and keywords can be auto-completed using the Tab key.

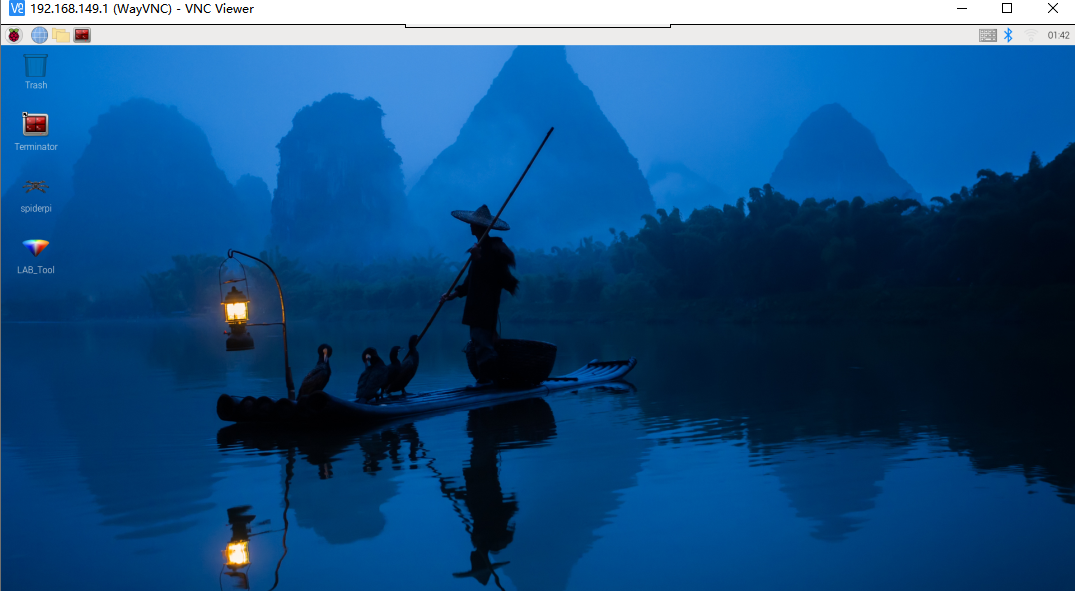

(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Click the
in the top left corner of the system desktop or press the shortcut “Ctrl+Alt+T” to open the LX terminal.
(3) Execute the command to navigate to the directory where the program is located, then press Enter:
cd spiderpi/functions
(4) Enter the command and press Enter to start the program:
python3 color_recognition.py
(5) To close the program, simply press “Ctrl+C” in the LX terminal. If it does not close, press it multiple times.
5.1.3 Program Outcome
After starting the game, the camera will be used to detect colors. When a red ball is recognized, the buzzer will emit a beep sound, and the ball will be circled in the transmitted image, with “Color: red” printed.
Note
During the recognition process, ensure the environment is well-lit to avoid inaccurate recognition due to poor lighting conditions.
Ensure that no objects with similar or matching colors to the target are present in the background within the camera’s visual range, as this may cause misrecognition.

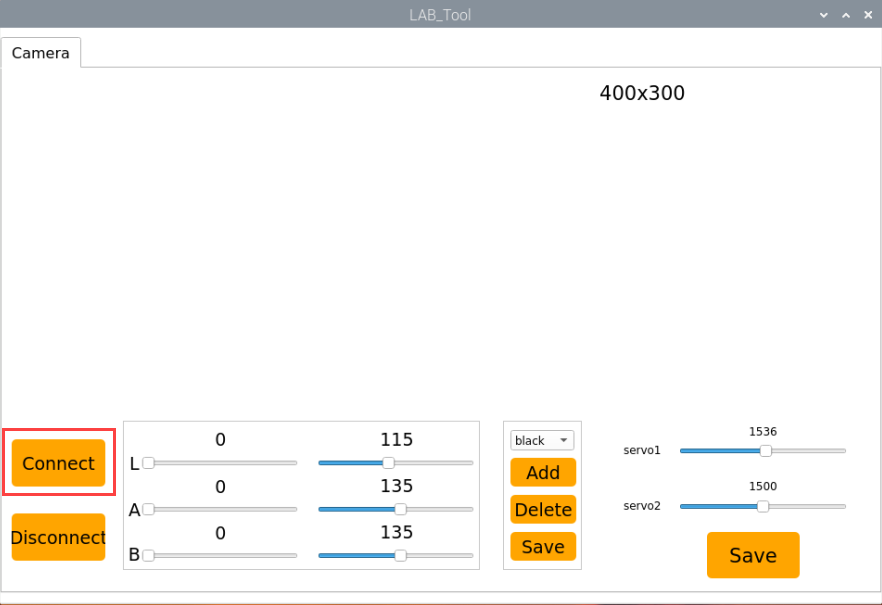

If color recognition is inaccurate, refer to the section “5.1.5 Function Extensions -> Adjusting Color Thresholds” in this document to adjust the color threshold settings.
5.1.4 Program Analysis
The source code of this program is saved in: /home/pi/SpiderPi/function/color_recognition.py
Import Function Library
1 2 3 4 5 6 7 8 9 10 | import sys import cv2 import math import time import threading import numpy as np from common import misc from common import yaml_handle from calibration.camera import Camera from sensor.ultrasonic_sensor import Ultrasonic |
(1) Import Libraries for OpenCV, Time, Math, and Threading .To use functions from a library, we can call them with the syntax:
library_name.function_name(parameter1, parameter2, …)
199 | time.sleep(0.01) |
For example, to call the sleep function from the time library, we use:
In Python, several libraries like time, cv2, and math are built-in and can be directly imported and used. You can also create your own libraries, like the “yaml_handle” file-reading library mentioned above.
(2) Some library names can be long and hard to remember. To simplify function calls, we often instantiate libraries. For example:
12 | from calibration.camera import Camera |
After instantiating the library, we can call functions from the Board library using the shorter syntax:
Board.function_name(parameter1, parameter2, …)
This makes it much easier and more convenient to use.
Main Function Analysis
In a Python program, the if __name__ == '__main__': block represents the main function of the program.
(1) Reading Camera Image
186 | camera = Camera() |
When the game is started, the video stream is captured and stored in the variable cap.
(2) Image Processing
Once an image is captured, the run() function is called to process the image.
189 190 191 192 193 194 195 196 197 | while True: img = camera.frame if img is not None: frame = img.copy() Frame = run(frame) cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break |
① The function img.copy() creates a copy of the contents of img into frame.
② The run() function processes the image.
108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 | def run(img): global draw_color global color_list global detect_color global action_finish img_copy = img.copy() img_h, img_w = img.shape[:2] if not __isRunning: return img frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST) frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3) frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) |
(3) Image resizing: This operation resizes the image to facilitate processing.
119 | frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST) |
The first argument img_copy is the input image.
The second argument size is the desired output image size, which can be customized.
The third argument interpolation=cv2.INTER_NEAREST specifies the interpolation method.
Options include:
INTER_NEAREST: Nearest neighbor interpolation.
INTER_LINEAR: Bilinear interpolation (default if no method is specified).
INTER_CUBIC: Bicubic interpolation using a 4x4 neighborhood of pixels.
INTER_LANCZOS4: Lanczos interpolation using an 8x8 neighborhood of pixels.
(4) Gaussian Filtering
To remove noise from the image, Gaussian filtering is applied. This filter smooths the image to improve feature visibility.
120 | frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3) |
The first argument frame_resize is the input image.
The second argument (3, 3) specifies the size of the Gaussian kernel.
The third argument 3 is the standard deviation of the Gaussian kernel in the X direction.
(5) Color Space Conversion:
The image is converted to the LAB color space using the function cv2.cvtColor(), which performs color space transformation.
121 | frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) |
The first argument frame_gb is the input image.
The second argument cv2.COLOR_BGR2LAB specifies the conversion from BGR to LAB. To convert to RGB, use cv2.COLOR_BGR2RGB.
(6) Thresholding:
The image is converted to a binary image, which contains only 0s and 1s, simplifying the image and reducing the data volume for easier processing.
This is done using the cv2.inRange() function.
131 132 133 134 135 136 137 | frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) |
The first argument frame_lab is the input image.
The second argument (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]) defines the lower bound of the color threshold.
The third argument (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2]) defines the upper bound of the color threshold.
(7) Morphological Operations (Erosion and Dilation):
Erosion and dilation operations are performed to reduce interference and smooth the image. These operations are commonly used in image processing to remove small noise, separate and identify objects, and adjust the image size.
138 139 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) |
The first argument is the input image.
The second argument is the structuring element (kernel), which determines the nature of the operation. The size and shape of the kernel define the degree of erosion and dilation.
(8) Contour Detection
After image processing, the contours of the detected objects are extracted using the cv2.findContours() function.
142 | contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] #找出轮廓(find contours) |
The first argument dilated is the input image.
The second argument cv2.RETR_EXTERNAL specifies the contour retrieval mode.
The third argument cv2.CHAIN_APPROX_NONE)[-2] is the contour approximation method.
The largest contour is selected based on area. A minimum area threshold is set to ignore smaller contours, ensuring only relevant contours are considered.
143 144 145 146 147 148 | areaMaxContour, area_max = get_area_max_contour(contours) #找出最大轮廓(find the largest contour) if areaMaxContour is not None: if area_max > max_area:#找最大面积(find the maximum area) max_area = area_max color_area_max = i areaMaxContour_max = areaMaxContour |
(9) Displaying the Processed Image
frame = img.copy()
Frame = run(frame)
cv2.imshow('Frame', Frame)
key = cv2.waitKey(1)
if key == 27:
break
The cv2.imshow() function is used to display the image in a window. "Frame" is the window name and also the image content.
To ensure the image is displayed, cv2.waitKey() must follow. If not included, the image will not be shown.
1.4.3 Driving the Buzzer
91 92 | board.set_buzzer(2400, 0.1, 0.2, 1) time.sleep(0.2) |
The function set_buzzer() is used to activate the buzzer.
The time.sleep(0.1) function introduces a delay, and 0.2 specifies the duration of the buzzer sound.
5.1.5 Function Extensions
Adjusting Color Thresholds

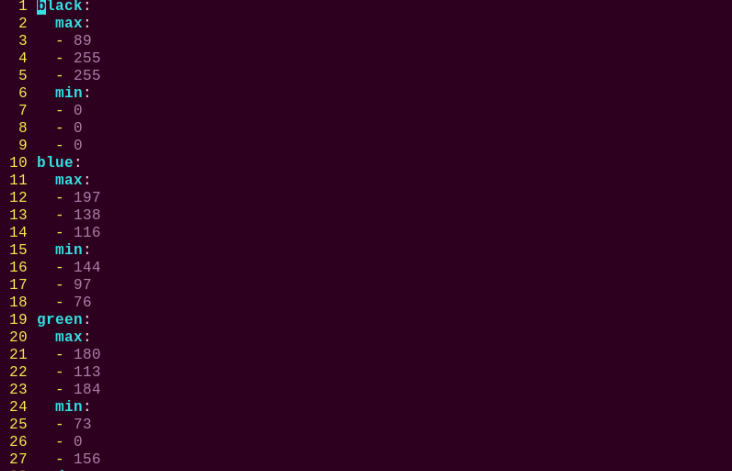

The color recognition program is pre-configured to recognize three colors: red, green, and blue. By default, the program identifies red, triggering the buzzer to emit a beep and drawing a circle around the red ball in the transmitted image, displaying “Color: red”.
To change the recognized color to green, follow these steps:
(1) Enter the following command and press Enter to navigate to the source code directory:
cd spiderpi/functions
(2) Then, enter the following command and press Enter to open the program file:
sudo vim color_recognition.py

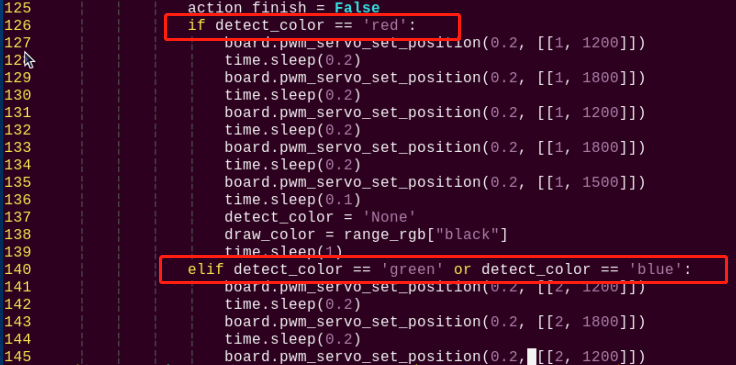

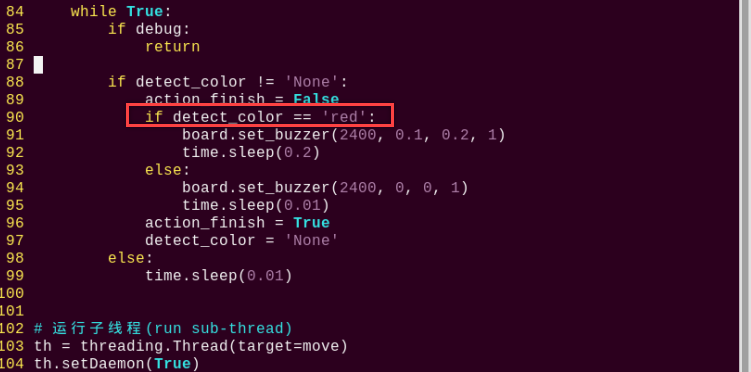

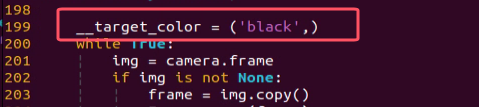

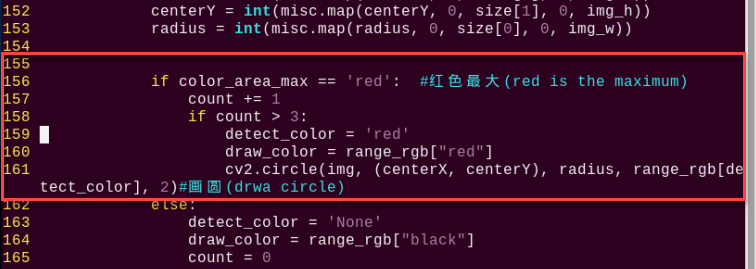

(3) Locate the code shown in the image below:
(4) Press the “i” key on the keyboard to enter edit mode.

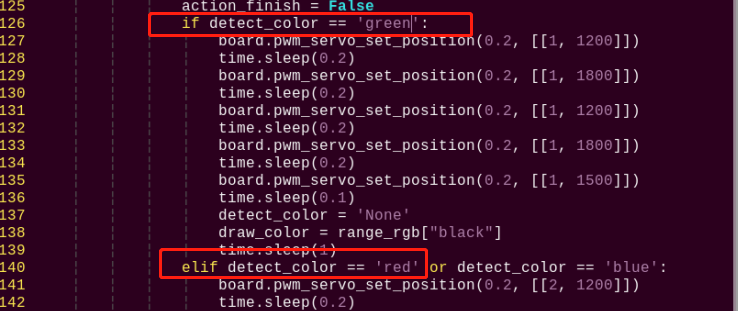

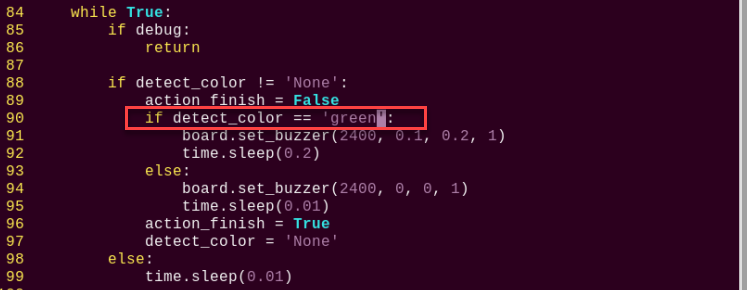

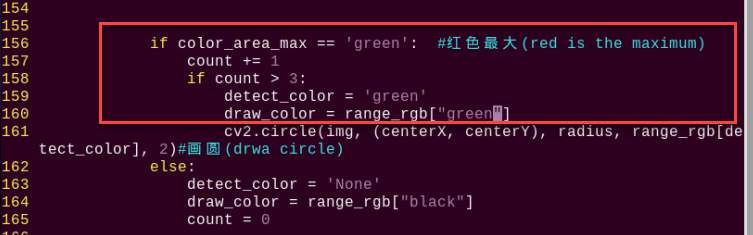

(5) Replace “red” (highlighted in red in the image) with “green,” as shown in the image below:

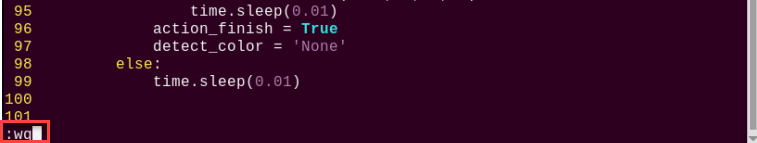

(6) To save your changes, press the “Esc” key, then type “:wq” (note the colon before “wq”) and press Enter to save and exit.
(7) Enter the following command and press Enter to start the color recognition functionality:
sudo python3 color_recognition.py
5.2 Color Recognition
SpiderPi will nod when it recognizes a red ball placed in front of the camera, and it will shake its head when it recognizes a blue or green ball placed in front of the camera.
5.2.1 Program Description
Human eyes can easily distinguish different colors in the world. How can robots recognize object colors? With camera vision module, SpiderPi can recognize different colors visually.
First, program SpiderPi to recognize colors with Lab color space. Convert the RGB color space to Lab, image binarization, and then perform operations such as expansion and corrosion to obtain an outline containing only the target color. Use circles to frame the color outline to realize object color recognition.
Secondly, judge the recognized color. If the sett color is detected the head servo will be turned up and down, otherwise it will be turned left and right.
5.2.2 Start and Close the Game
Note
The input command is case-sensitive, and keywords can be auto-completed using the Tab key.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Click the in the top left corner of the system desktop or press the shortcut “Ctrl+Alt+T” to open the LX terminal.
(3) Execute the command to navigate to the directory where the program is located, then press Enter:
cd spiderpi/functions
(4) Enter the command and press Enter to start the program:
python3 color_detect.py
(5) To close the program, simply press “Ctrl+C” in the LX terminal. If it does not close, press it multiple times.
5.2.3 Project Outcome
Note

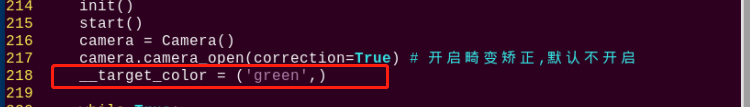

The default color is red. If you want to change to blue or green, please refer to “5.2.5 Modify Default Recognition Color”.

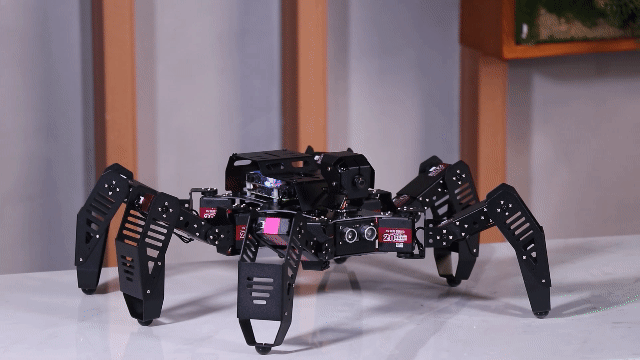

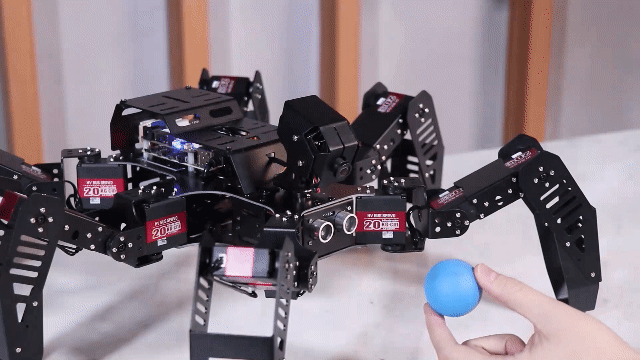

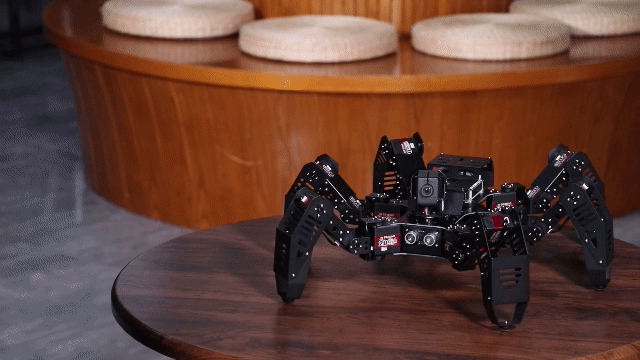

Place the red ball in front of SpiderPi’s camera and SpiderPi will nod its head when red ball is recognized. It will shake head is the green and blue balls are detected.
5.2.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/color_detect.py
Import Function Library
4 5 6 7 8 9 10 11 12 13 | import sys import cv2 import math import time import threading import numpy as np from common import misc from common import yaml_handle from calibration.camera import Camera from sensor.ultrasonic_sensor import Ultrasonic |
(1) Import the libraries related to OpenCV, time, math, and threads. If want to call a function in library, you can use library name+function name (parameter, parameter). For example:
273 | time.sleep(0.01) |
(2) Call sleep function in time library. The function sleep () is used to delay. There are some built-in libraries in Python, so they can be called directly.
For example, time, cv2 and math. You can also write a new library like yaml_handle.
The name of function library is too long to memorize. For calling function easily, the library can be instantiated. For example:
The name of function library is too long to memorize. For calling function easily, the library can be instantiated. For example:
249 250 | from common.ros_robot_controller_sdk import Board board = Board() |
After instantiating, you can directly input and call the function Board.function name (parameter, parameter).
Main Function Analysis
The python program __name__ == '__main__:' is the main function of program. Firstly, the function init() is called to initialize. The initialization in this program includes: return the servo to the initial position, read the color threshold file. Generally there are also configurations for ports, peripherals, timing interrupts, etc., which are all done in the process of initialization.
248 249 250 251 252 | if __name__ == '__main__': from common.ros_robot_controller_sdk import Board board = Board() ultrasonic = Ultrasonic() |
(1) Read the Captured Image
263 264 | while True: img = camera.frame |
When the the game is started, store the image in img.
(2) Enter Image Processing
The function img.copy() is used to copy the content of img to frame.
img = camera.frame
if img is not None:
frame = img.copy()
Frame = run(frame)
① The function img.copy() is used to copy the content of img to frame.
② The function run() is used to process image.
166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 200 201 202 203 | def run(img): global draw_color global color_list global detect_color global action_finish img_copy = img.copy() img_h, img_w = img.shape[:2] if not __isRunning: return img frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST) frame_gb = cv2.GaussianBlur(frame_resize, (3, 3), 3) frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) max_area = 0 color_area_max = None areaMaxContour_max = 0 if action_finish: for i in lab_data: if i != 'black' and i != 'white': frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) if debug: cv2.imshow(i, dilated) contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] #找出轮廓(find contours) areaMaxContour, area_max = get_area_max_contour(contours) #找出最大轮廓(find the largest contour) if areaMaxContour is not None: if area_max > max_area:#找最大面积(find the maximum area) |
(3) Image Resizing Process
178 | frame_resize = cv2.resize(img_copy, size, interpolation=cv2.INTER_NEAREST) |
The first parameter img_copy is the input image.
The second parameter size is the size of the output image. The size can be set based on you own needs.
The third parameter interpolation=cv2.INTER_NEAREST is interpolation method. INTER_NEAREST is the nearest Neighbour Interpolation. INTER_LINEAR is the Bilinear Interpolation. If the last parameter is not modified, this method INTER_LINEAR will be used by default. INTER_CUBIC: Bicubic interpolation within a 4x4 pixel neighborhood. INTER_LANCZOS4: Lanczos interpolation within an 8x8 pixel neighborhood.
(4) Gaussian filter
Noise is always present in image to influence the image quality to weaken the features. Select the filter methods according to the different noises and the command method includes Gaussian filter, Median filtering, Mean filter, etc. Gaussian filter is a linear filter also smooths an image and reduces noise, which is widely used in processing image to eliminate noise.
196 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) |
The first parameter frame_resize is the input image.
The second parameter (3, 3) is the kernel size.
The third parameter 3 is the Gaussian kernel sigma value on x direction.
(5) Covert to Color Space
Use function cv2.cvtColor() to convert image to LAB space.
196 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) |
The first parameter frame_gb is the input image.
The second parameter cv2.COLOR_BGR2LAB is the conversion format. cv2.COLOR_BGR2LAB can be used to convert used to change the BGR color space to LAB color space. When code is cv2.COLOR_BGR2RGB , BGR is converted to RGB.
(6) Threshold Processing
Thresholding can be used to create binary images, only 0 and 1. The image can be small size for better processing. Use inRange() function in cv2 library is used to process image with thresholding method.
189 190 191 192 193 194 195 | frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) |
The first parameter frame_lab is the input image.
The second parameter (lab_data[i]['min'][0],lab_data[i]['min'] [1],lab_data[i]['min'][2]) is the lower limit of color threshold.
The third parameter (lab_data[i]['max'][0],lab_data[i]['max'] [1],lab_data[i]['max'][2]) is the upper limit of color threshold.
(7) Erosion and Dilation
Take the code eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) as an example, the meanings of the parameters in the parenthesis are shown below:
196 197 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) |
The first parameter frame_lab is the input image.
The second parameter (lab_data[i]['min'][0],lab_data[i]['min'] [1],lab_data[i]['min'][2]) is the lower limit of color threshold.
The third parameter (lab_data[i]['max'][0],lab_data[i]['max'] [1],lab_data[i]['max'][2]) is the upper limit of color threshold.
(8) Erosion and Dilation
Take the code eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) as an example, the meanings of the parameters in the parenthesis are shown below:
196 197 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate)contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] #找出轮廓(find contours) |
The first parameter frame_mask is the input image.
The second parameter cv2.getStructuringElement(cv2.MORPH_RECT, (2, 2)) is the structural element or kernel that determines the nature of the operation. The first parameter in the parentheses is the shape of the kernel, and the second parameter is the size of the kernel.
The dilate() function is used to perform the dilation operation on an image. The meaning of the parameters in the parentheses of this function is the same as that of the erode() function.
(9) Find the Largest Contour
After completing the above processing, use the function findContours() in cv2 library to obtain the contour of the recognized target.
201 202 203 204 205 206 | areaMaxContour, area_max = get_area_max_contour(contours) #找出最大轮廓(find the largest contour) if areaMaxContour is not None: if area_max > max_area:#找最大面积(find the maximum area) max_area = area_max color_area_max = i areaMaxContour_max = areaMaxContour |
43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 | def get_area_max_contour(contours): contour_area_temp = 0 contour_area_max = 0 area_max_contour = None max_area = 0 for c in contours: # 历遍所有轮廓(iterate through all contours) contour_area_temp = math.fabs(cv2.contourArea(c)) # 计算轮廓面积(calculate the contour area) if contour_area_temp > contour_area_max: contour_area_max = contour_area_temp if contour_area_temp >= 100: # 只有在面积大于设定时，最大面积的轮廓才是有效的，以过滤干扰(Only the contour with the area larger than 300, which is greater than 300, is considered valid to filter out disturbance) area_max_contour = c max_area = contour_area_temp return area_max_contour, max_area # 返回最大的轮廓, 面积(return the largest contour and its area) |
(10) Determine Maximum Color
214 215 216 217 218 219 220 221 222 223 224 225 226 227 228 229 230 231 232 233 234 235 236 237 238 239 240 241 242 | if color_area_max == 'red': #红色最大(red is the maximum) color = 1 elif color_area_max == 'green': #绿色最大(green is the maximum) color = 2 elif color_area_max == 'blue': #蓝色最大(blue is the maximum) color = 3 else: color = 0 color_list.append(color) if len(color_list) == 3: #多次判断(multiple judgements) # 取平均值(get mean) color = int(round(np.mean(np.array(color_list)))) color_list = [] if color == 1: detect_color = 'red' draw_color = range_rgb["red"] elif color == 2: detect_color = 'green' draw_color = range_rgb["green"] elif color == 3: detect_color = 'blue' draw_color = range_rgb["blue"] else: detect_color = 'None' draw_color = range_rgb["black"] else: detect_color = 'None' draw_color = range_rgb["black"] |
(11) Display the Transmitted Image
Frame = run(frame)
cv2.imshow('Frame', Frame)
key = cv2.waitKey(1)
if key == 27:
break
The function cv2.imshow() is used to display an image in a window. frame is the name of the window, and Frame is the content to be displayed. It is important to include cv2.waitKey() after this function, otherwise the image won’t be displayed.
The function cv2.waitKey() is used to wait for a key input, and the parameter 1 is the delay time.
Subthread Analysis
Run the move() function of the SpiderPi as a subthread. When a color is recognized, the move() function is executed.
The function mainly involves processing the image results, making a judgment, and executing different feedback accordingly.
112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 | def move(): global draw_color global detect_color global action_finish while True: if debug: return if __isRunning: if detect_color != 'None': action_finish = False if detect_color == 'red': board.pwm_servo_set_position(0.2, [[1, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1500]]) time.sleep(0.1) detect_color = 'None' draw_color = range_rgb["black"] time.sleep(1) elif detect_color == 'green' or detect_color == 'blue': board.pwm_servo_set_position(0.2, [[2, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1500]]) time.sleep(0.1) detect_color = 'None' draw_color = range_rgb["black"] time.sleep(1) else: time.sleep(0.01) action_finish = True detect_color = 'None' else: time.sleep(0.01) else: time.sleep(0.01) |
(1) Pan-tilt Servo Movement Execution
Determine if the recognized color matches the set color, and perform a nod or shake head motion accordingly.
123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 | if detect_color == 'red': board.pwm_servo_set_position(0.2, [[1, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[1, 1500]]) time.sleep(0.1) detect_color = 'None' draw_color = range_rgb["black"] time.sleep(1) elif detect_color == 'green' or detect_color == 'blue': board.pwm_servo_set_position(0.2, [[2, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1200]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1800]]) time.sleep(0.2) board.pwm_servo_set_position(0.2, [[2, 1500]]) time.sleep(0.1) detect_color = 'None' draw_color = range_rgb["black"] time.sleep(1) |
The function Board.setPWMServoPulse() controls a single servo. Take the code Board.setPWMServoPulse(1, 1800, 200) as an example:
The first parameter 1 is the servo ID.
The second parameter 1800 is the pulse width of servo.
The third parameter 200 is the runtime in the unit of milliseconds.
5.2.5 Function Extension
Modify Default Recognition Color
Red, green and blue are the built-in colors in the color recognition program and the red is the default color. If it is recognized, SpiderPi will nod.
In the following steps, we’re going to modify the recognized color as green. The specific modification steps are as follows:
(1) Enter command to navigate to the directory where the game program is located, and press “Enter”.
cd spiderpi/functions/
(2) Enter command to go into the game program through vim editor.
vim color_detect.py
(3) Input “126” and press “shift+g” to the line for modification.
(4) Press “i” to enter the editing mode, then modify red in “if detect_color == ‘red’” to green. And enter “red” instead of “green” in 140 line (elif detect_color== ‘green’ or detect_color == ‘blue’).
Same modify method if you want to recognize blue.
(5) Press “Esc” to enter last line command mode. Input “:wq” to save the file and exit the editor.
:wq
Add Recognized Color
In addition to the built-in recognized colors, you can set other recognized colors in the programming. Take orange as example:
(1) Open VNC, input command to open Lab color setting document.
vim /home/pi/spiderpi/config/lab_config.yaml
It is recommended to use screenshot to record the initial value.
(2) Click the debugging tool icon in the system desktop. Choose “Run” in the pop-up window.

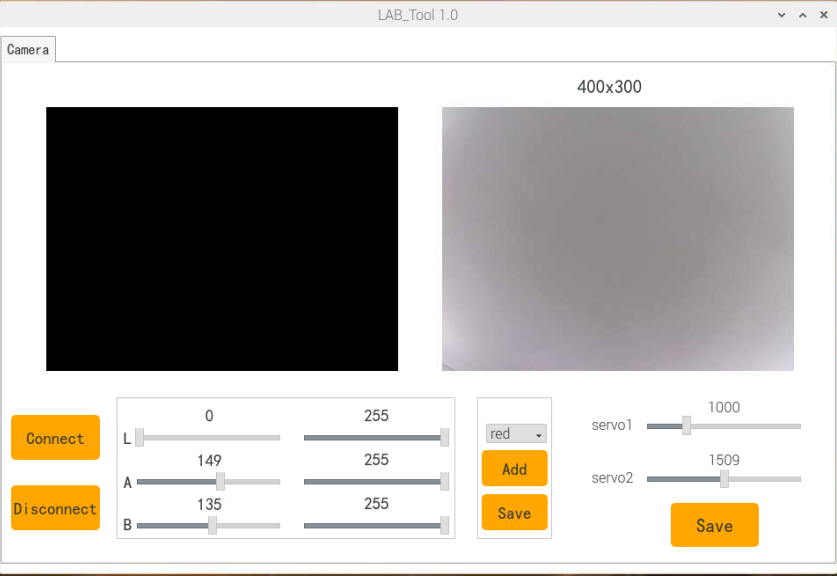

(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “red” in the right box first.

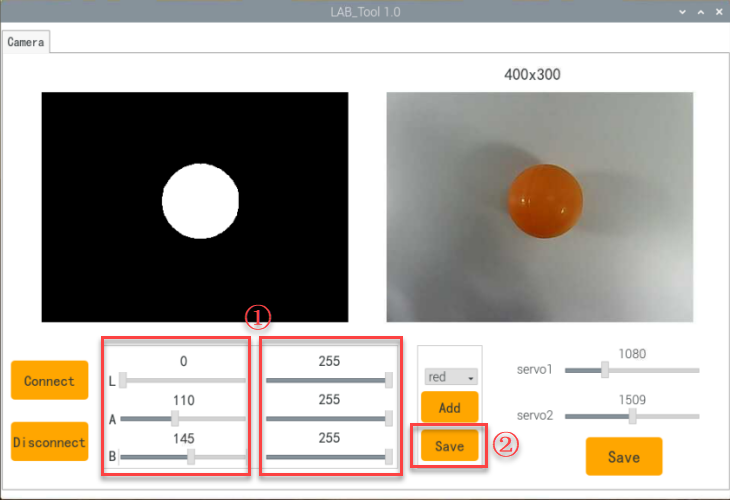

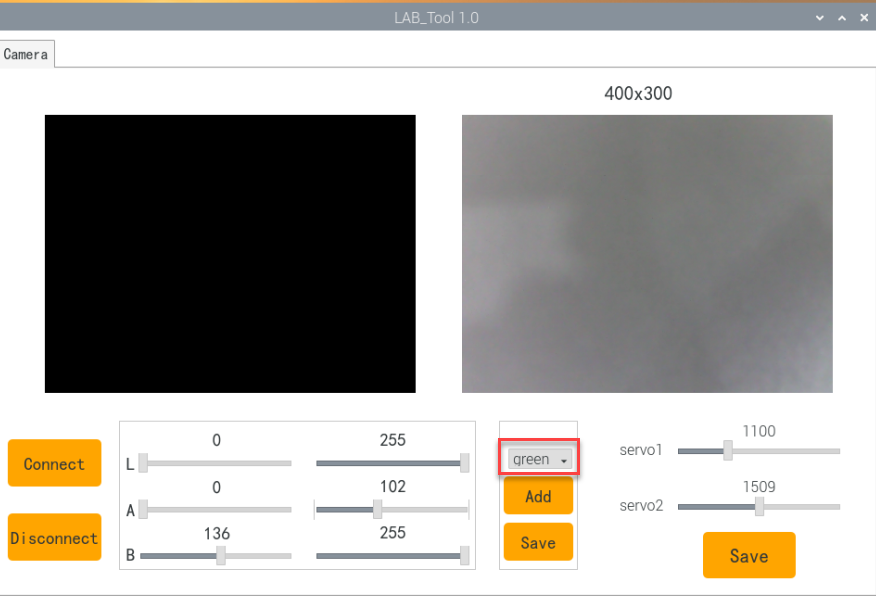

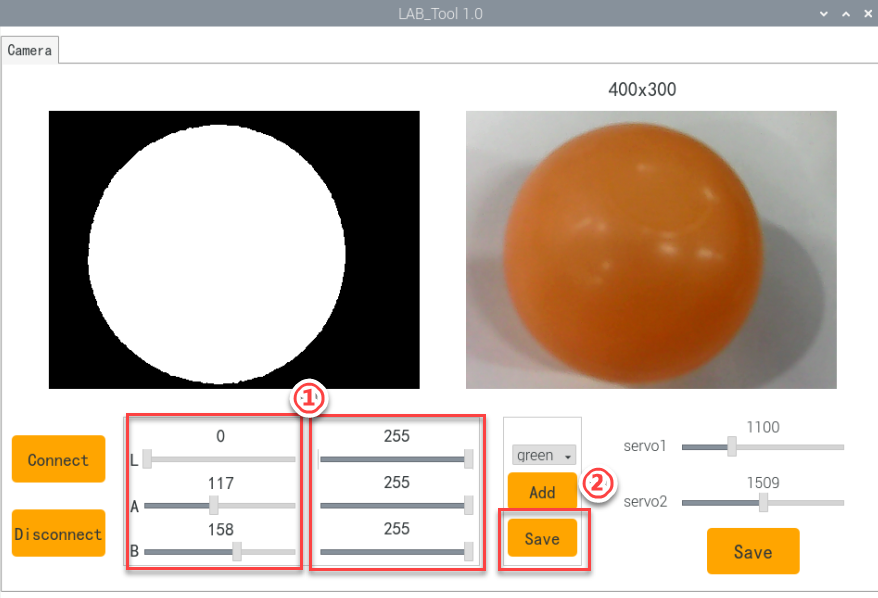

(4) Drag the corresponding sliders of L, A, and B until the color area to be recognized in the left screen becomes white and other areas become black.Point the camera at the color you want to recognize. For example, if you want to recognize orange, you can put the orange ball in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the orange part of the left screen becomes white and other colors become black, and then click “ Save” button to keep the modified data.
(5) For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.
vim /home/pi/spiderpi/config/lab_config.yaml
For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.

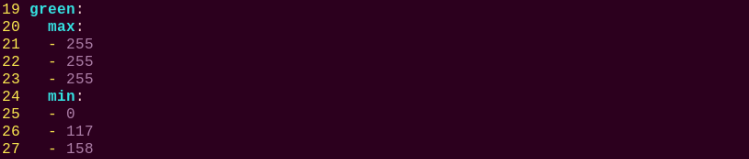

(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter “:wq” to save it and exit.
:wq
(7) The default recognized color can be set as red according to the “5.2.5 Function Extension ->Modify Default Recognition Color” in this text.
(8) Start the game again and put the orange object in front of the camera. SpiderPi will nod the head when the color is recognized.
5.3 Target Position Recognition
In this lesson, the camera will be used to recognize red, green, and blue balls. The detected balls will be highlighted in the live feed, and their XY coordinates will be displayed.
5.3.1 Program Description
The implementation of target tracking can be divided into two parts: color recognition and position marking.
First, for the color recognition part, Gaussian filtering is applied to the image for noise reduction. The Lab color space is then used to convert the color of the objects (for more details on the Lab color space, please refer to the “OpenCV Vision Basic Course”).
Next, color thresholding is used to identify the color of objects within the circle. The image is then masked (masking involves using a selected image, shape, or object to globally or locally occlude the processed image).
After performing morphological operations (open and close operations) on the object’s image, the largest contour is outlined with a circle.
Opening operation: The image is eroded first and then dilated. This operation is used to remove small objects, smooth shape boundaries, and preserve the overall area. It helps remove small noise particles and separate objects that are connected.
Closing operation: The image is dilated first and then eroded. This operation is used to fill small holes within the objects, connect adjacent objects, and reconnect broken contour lines while smoothing the boundaries without changing the area.
Position marking requires specific detection algorithms. The basic principle is to search for areas in the image that match predefined features or patterns, then return the position and bounding box of these areas.
5.3.2 Start and Close the Game
Note
The input of commands must strictly distinguish between uppercase and lowercase letters, as well as spaces. Additionally, you can use the “Tab” key on the keyboard to auto-complete keywords.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Click the in the top left corner of the system desktop or press the shortcut “Ctrl+Alt+T” to open the LX terminal.
(3) In the terminal, enter the command to navigate to the directory where the program is located, then press Enter:
cd spiderpi/functions
(4) Enter the command and press Enter to start the program:
python3 color_position_recognition.py
(5) To close the program, simply press “Ctrl+C” in the LX terminal. If it does not close, press it multiple times.
5.3.3 Program Outcome
The program defaults to recognizing red, green, and blue balls. After recognition, it will highlight the objects in the transmitted image and display their XY coordinates.
Note
During the recognition process, ensure the environment is well-lit to avoid inaccurate recognition due to lighting issues.
Ensure there are no objects with similar or identical colors to the target colors within the camera’s field of view to prevent misrecognition.
If color recognition is inaccurate, refer to the section 5.3.5 Function Extension->Adjusting Color Threshold in this document to adjust the color threshold settings.
5.3.4 Promgram Analysis
The source code for this program is located at：/home/pi/spiderpi/functions/color_position_recognition.py
Importing Libraries
4 5 6 7 8 9 10 11 12 | import sys import cv2 import math import time from common import misc from common.pid import PID from common import yaml_handle from calibration.camera import Camera from sensor.ultrasonic_sensor import Ultrasonic |
(1) Import the necessary libraries, including OpenCV, time, math, threading, and inverse kinematics. To call a function from a library, use the format LibraryName.FunctionName(Parameters). For example:
189 | time.sleep(0.01) |
This calls the sleep function from the time library, which is used for adding delays.
Python comes with several built-in libraries like time, cv2, math, which can be imported directly. You can also create your own libraries, such as the “yaml_handle” file reading library.
(2) Instantiating Libraries
168 | from common.ros_robot_controller_sdk import Board |
Sometimes, library names are long and hard to remember. To make function calls more convenient, we often instantiate libraries using shorter names. For example:
Main Function Analysis
In a Python program, the if __name__ == '__main__': block indicates the main function. The program starts by opening the camera and reading the video stream. The read() method captures each frame of the image, where the program searches for and marks the color of the ball, then displays the result. The video is displayed through a loop, and once the display is finished, the release() function is called to release the resources.
167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 | if __name__ == '__main__': from common.ros_robot_controller_sdk import Board board = Board() ultrasonic = Ultrasonic() debug = False if debug: print('Debug Mode') init() start() camera = Camera() camera.camera_open(correction=True) # 开启畸变矫正,默认不开启(enable the distortion correction which is not started by default) |
(1) Capturing Camera Image
176 | camera = Camera() |
When the program starts, the camera is initialized.
(2) Image Processing
① The run() function handles image processing.
183 | Frame = run(frame) |
85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 | def run(img): global x_dis, y_dis img_copy = img.copy() img_h, img_w = img.shape[:2] if not __isRunning or __target_color == (): return img cv2.line(img, (int(img_w/2 - 10), int(img_h/2)), (int(img_w/2 + 10), int(img_h/2)), (0, 255, 255), 2) cv2.line(img, (int(img_w/2), int(img_h/2 - 10)), (int(img_w/2), int(img_h/2 + 10)), (0, 255, 255), 2) img_hisEqul = his_hqul_color(img_copy) frame_resize = cv2.resize(img_hisEqul, size, interpolation=cv2.INTER_NEAREST) frame_gb = cv2.GaussianBlur(frame_resize, (5, 5), 5) frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) |
② Resize the image to make it easier to process.
95 | frame_resize = cv2.resize(img_hisEqul, size, interpolation=cv2.INTER_NEAREST) |
The first parameter img_copy is the input image.
The second parameter size is the size of the output image, which can be set as needed.
The third parameter interpolation=cv2.INTER_NEAREST is the interpolation method. Options include:
INTER_NEAREST: Nearest-neighbor interpolation.
INTER_LINEAR: Bilinear interpolation (default if no other method is specified).
INTER_CUBIC: Bicubic interpolation in a 4x4 pixel neighborhood.
INTER_LANCZOS4: Lanczos interpolation in an 8x8 pixel neighborhood.
(3) Apply Gaussian Blur to reduce noise
Gaussian blur is a linear smoothing filter used to eliminate Gaussian noise and is widely used in image denoising.
96 | frame_gb = cv2.GaussianBlur(frame_resize, (5, 5), 5) |
The first parameter frame_resize is the input image.
The second parameter (3, 3) is the size of the Gaussian kernel.
The third parameter 3 is the standard deviation of the Gaussian kernel in the X-direction.
(4) Convert the image to LAB color space
97 | frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) |
The first parameter frame_gb is the input image.
The second parameter cv2.COLOR_BGR2LAB specifies the conversion from BGR to LAB format. To convert to RGB, use cv2.COLOR_BGR2RGB.
(5) Convert the image to a binary image with only 0s and 1s, simplifying the image and reducing data for easier processing.
The cv2.inRange() function is used for binarization:
106 107 108 109 110 111 112 | frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) |
The first parameter frame_lab is the input image.
The second parameter (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]) is the lower threshold for the color.
The third parameter (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2]) is the upper threshold for the color.
(6) Perform erosion and dilation to smooth the image and reduce interference
113 114 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) |
Erosion reduces the size of foreground objects and eliminates small objects, while dilation increases the size of foreground objects and fills small holes.
(7) Find the contour with the largest area
After the image processing steps, use the cv2.findContours() function to find contours:
117 | contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] # 找出轮廓(find contours) |
The first parameter dilated is the input image.
The second parameter cv2.RETR_EXTERNAL specifies the contour retrieval mode.
The third parameter cv2.CHAIN_APPROX_NONE)[-2] specifies the contour approximation method.
The program searches for the largest contour and sets a threshold area to ensure the detected contour is valid.
118 119 120 121 122 123 124 | areaMaxContour, area_max = get_area_max_contour(contours) #找出最大轮廓(find the largest contour) if areaMaxContour is not None: if area_max > max_area:#找最大面积(find the maximum area) max_area = area_max color_area_max = i areaMaxContour_max = areaMaxContour if max_area > 100: # 有找到最大面积(the maximum area has been found) |
(8) Extract the position information
Use cv2.putText() to draw text on the image:
162 | cv2.putText(img, "Color: " + detect_color, (10, img.shape[0] - 10), cv2.FONT_HERSHEY_SIMPLEX, 0.65, draw_color, 2) |
The first parameter img is the input image.
The second parameter "Color: " + detect_color is the text to display (e.g., the detected color).
The third parameter (10, img.shape[0] - 10) and (centerX, centerY - 20) specify the starting coordinates for the text (bottom-left position).
The fourth parameter cv2.FONT_HERSHEY_SIMPLEX specifies the font type.
The fifth parameter 0.65 is the scaling factor for the font size.
The sixth parameter draw_color is the color of the text.
The seventh parameter 2 specifies the thickness of the text line.
(9) Displaying the Return Image
179 180 181 182 183 184 185 186 187 | while True: img = camera.frame if img is not None: frame = img.copy() Frame = run(frame) cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break |
The cv2.imshow() function is used to display the image in a window. The first parameter is the window name (e.g., ‘Frame’), and the second parameter is the image to display.
The function cv2.waitKey() is used to wait for a key press; the parameter 1 specifies the delay time.
5.3.5 Function Extension
Adjusting Color Threshold
During the game experience, if the color recognition of objects is not accurate, you may need to adjust the color threshold. This section uses adjusting the red color as an example; the process for adjusting other colors is similar. Follow the steps below:
(1) Double-click the system desktop
and click “Execute” in the pop-up window.

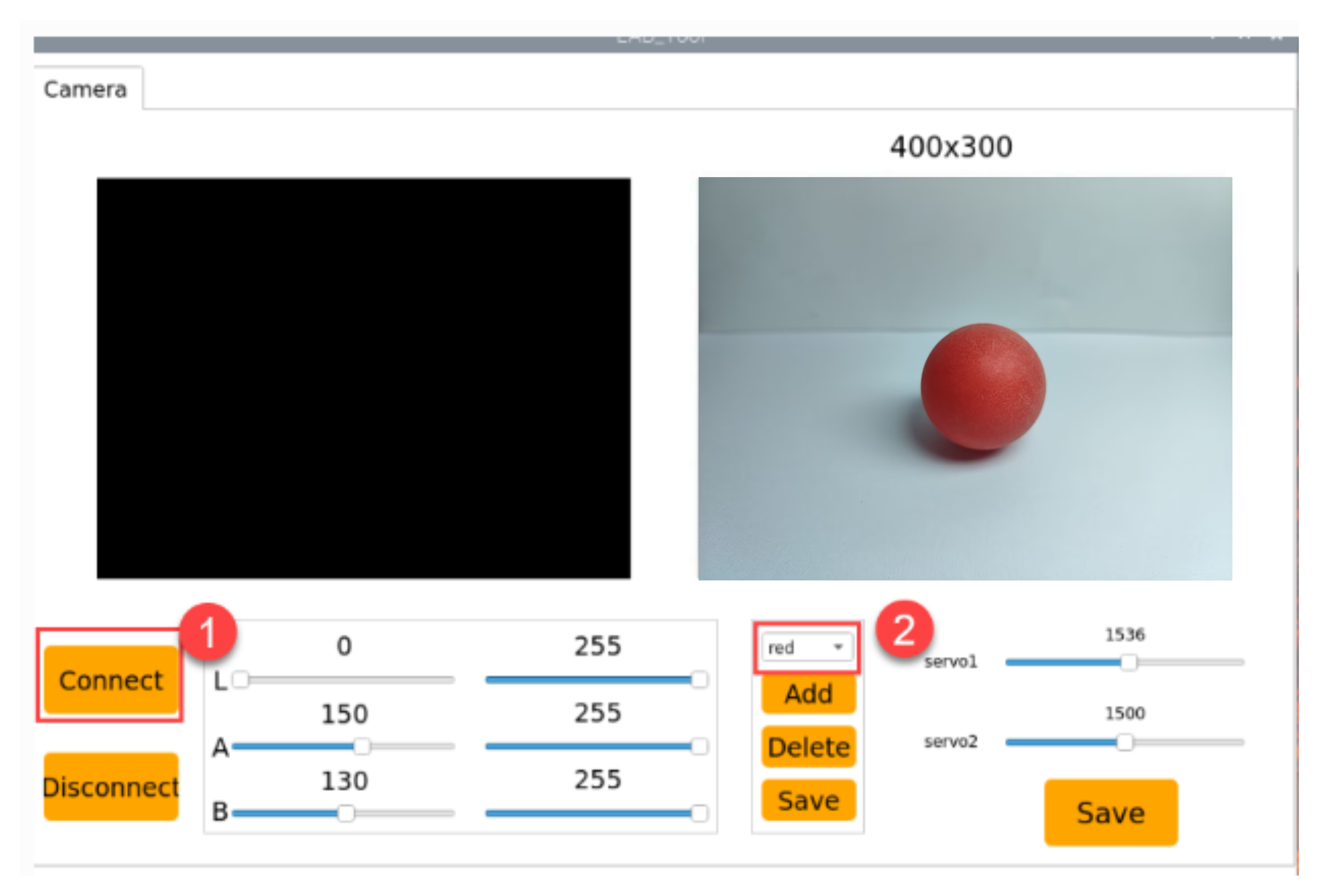

(2) Once the interface opens, click “Connect”.
（3) After a successful connection, select “red” from the color options in the bottom-right corner of the interface.
(4) If the transmitted image does not appear in the pop-up window, it indicates the camera is not connected properly. Check the camera connection cable to ensure it is securely connected.
The image on the right side of the interface shows the real-time transmitted video, and the left side shows the color to be captured.

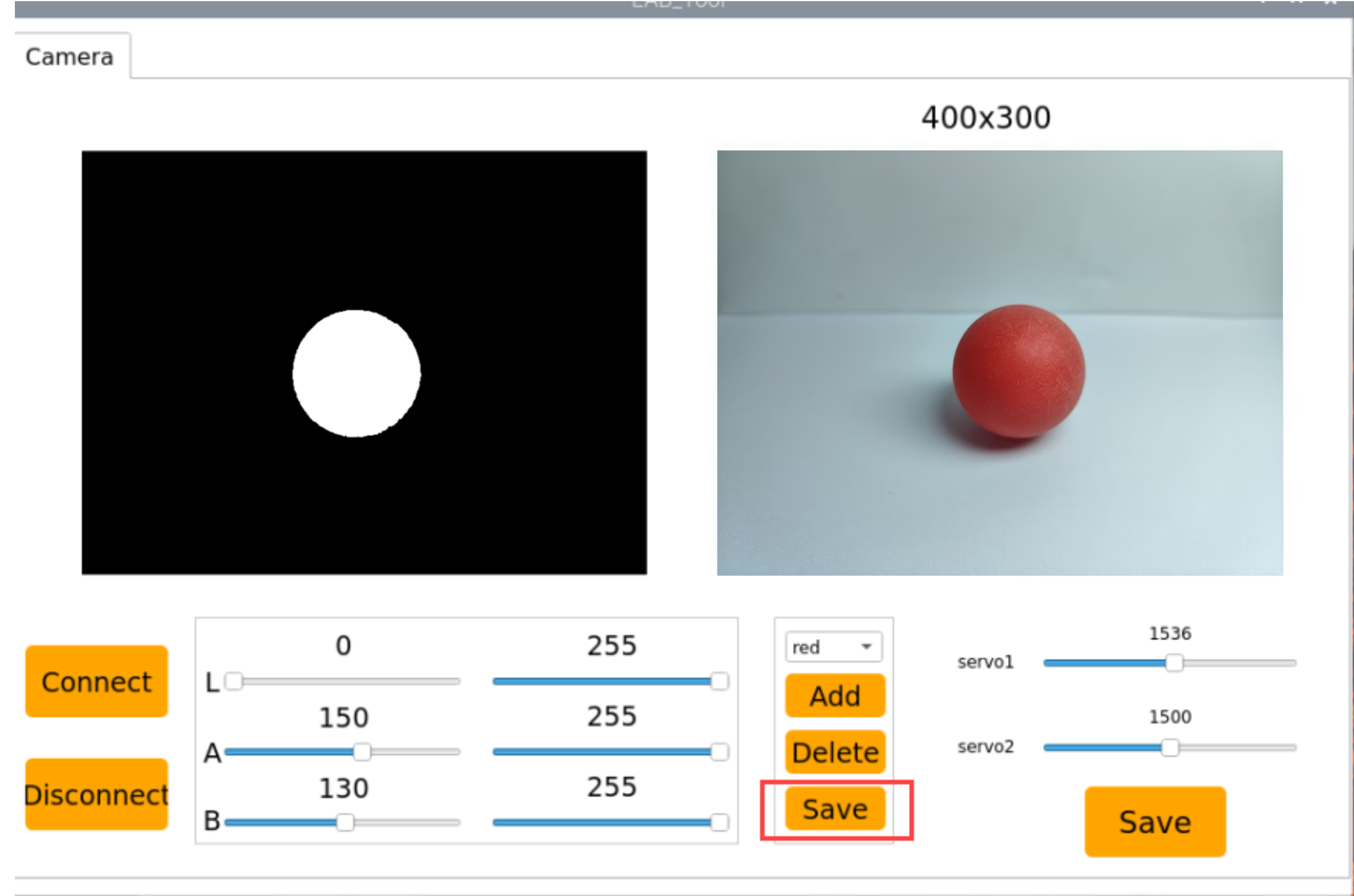

Point the camera at the red color block, and then adjust the six sliders at the bottom to ensure that the red color block on the left side of the screen turns completely white, while other areas remain black.
Finally, click the “Save” button to save the data.
Adding New Recognizable Colors
In addition to the three built-in colors, you can add other recognizable colors. For example, let’s add purple as a new recognizable color. Follow these steps:
(1) Double-click the system desktop and click “Execute” in the pop-up window.
(2) In the pop-up interface, select “Connect”.

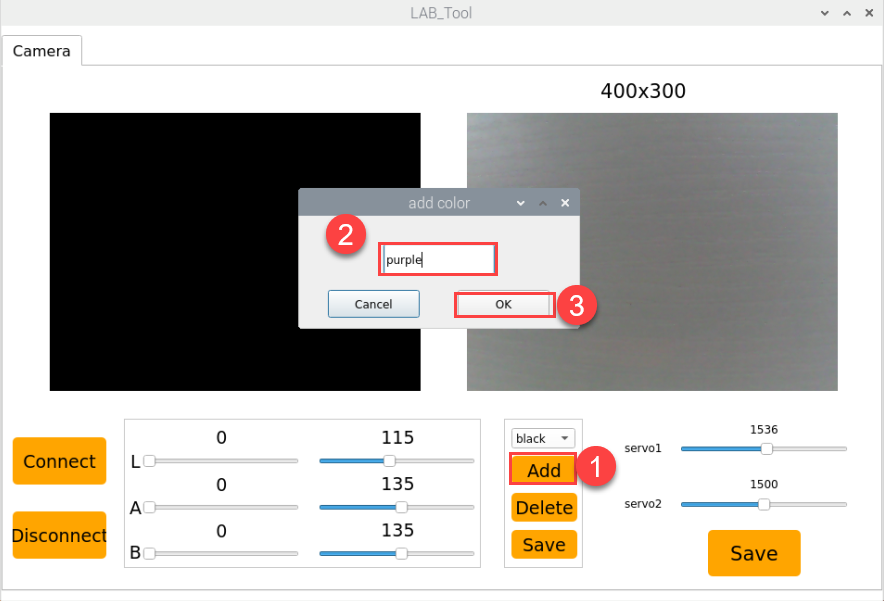

(3) Click “Add” and give the new color a name (e.g., “purple”), then click “OK”.

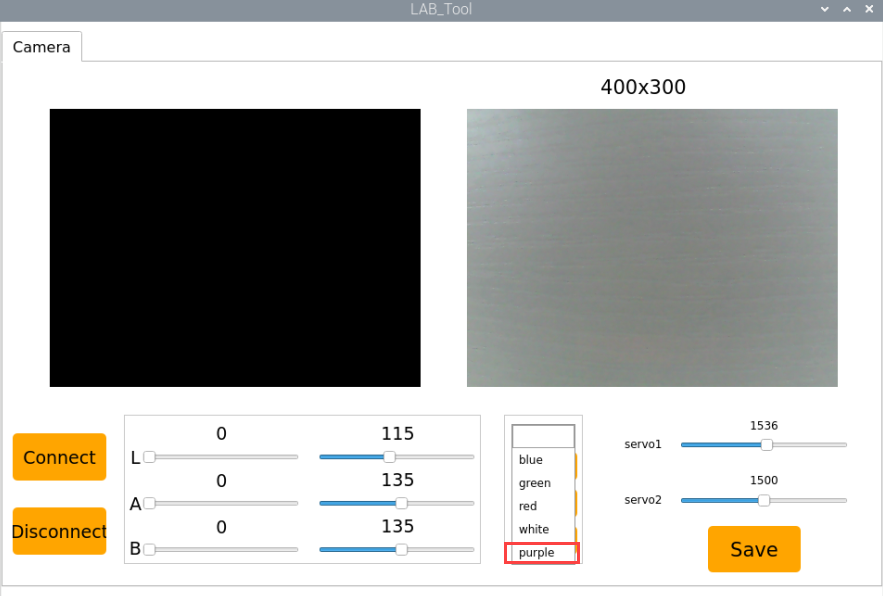

(4) Next, click the dropdown button in the color selection box and choose “purple”.

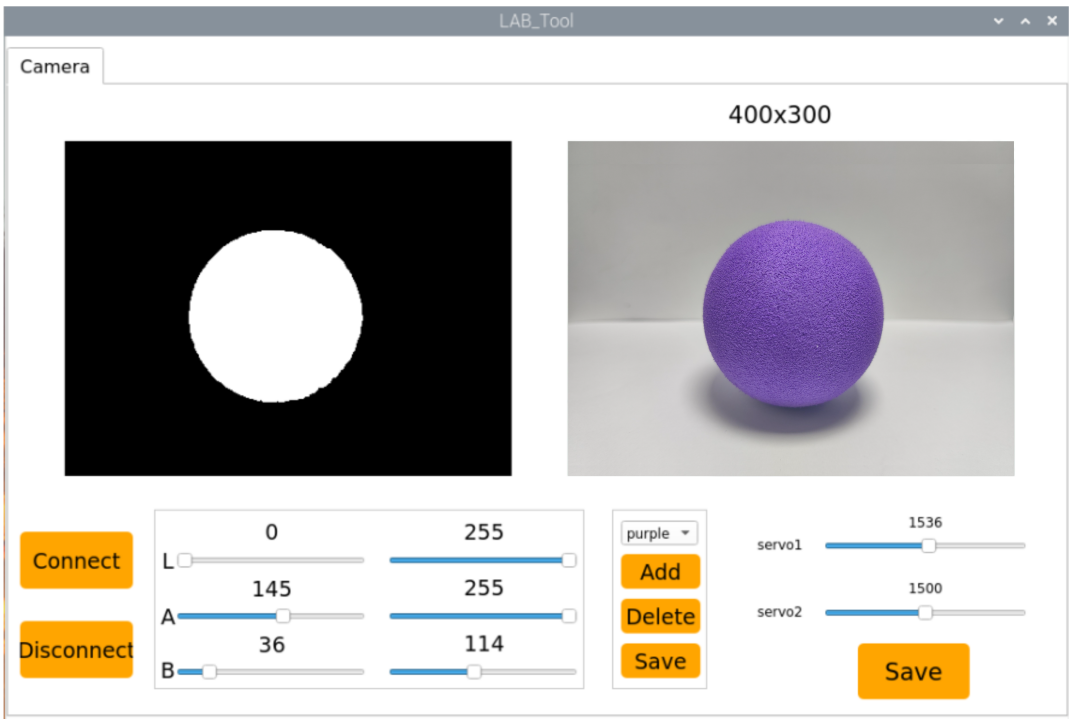

(5) Point the camera at the purple object, and adjust the L, A, and B sliders until the purple area in the left-side image turns white, while the rest of the image turns black.
(6) Finally, click “Save” to save the adjusted color threshold.
(7) After completing the modifications, you can check if the new values have been successfully written by following these steps:Input the command and press Enter to go to the program directory.
cd spiderpi/config
(8) Then input the following command and press Enter to open the program file:
sudo vim lab_config.yaml

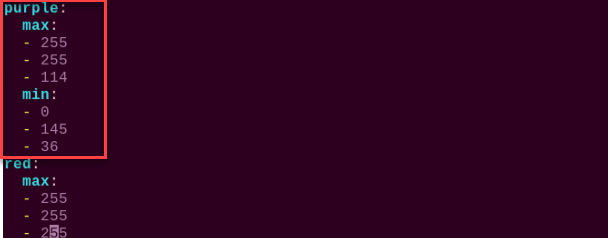

(9) In the opened color threshold program file, you can check the purple color threshold parameters.

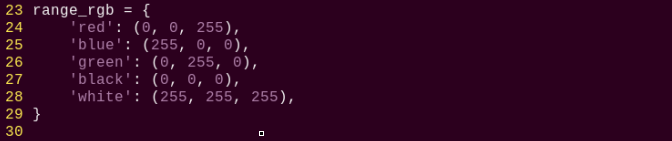

(10) Find the code shown below.
(11) Manually add 'purple': (255, 255, 114), where (255, 255, 114) is the max value of the purple threshold you viewed in Step 9. The updated code should look like this:
5.4 Color Tracking
Place a green ball in front of the SpiderPi and move slowly. SpiderPi’s head will rotate to follow its movement.
5.4.1 Program Description
First, program SpiderPi to recognize colors with Lab color space. Convert the RGB color space to Lab, image binarization, and then perform operations such as expansion and corrosion to obtain an outline containing only the target color. Use circles to frame the color outline to realize object color recognition.
Secondly, process the rotation and the x and y coordinates of the center point of the image are used as the set value. Input the current acquired x and y coordinates to update the PID.
Thirdly, calculate according to the image position feedback, and program the robot to achieve the function of color tracking.
5.4.2 Start and Close the Game
Note
Pay attention to the text format in the input of instructions.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Double-click
on the Raspberry Pi desktop to open the command line terminal.Enter the command and press “Enter” to navigate to the directory where the program is located.
cd spiderpi/functions/
(3) Input command, then press “Enter” to start the game.
python3 color_track.py
(4) If you want to exit the game programming, press “Ctrl+C” in the LX terminal interface. If the exit fails, please try it few more times.
5.4.3 Project Outcome
Start the color tracking game and place the green ball in front of the SpiderPi and move slowly. SpiderPi’s head will rotate to follow the movement of the color ball.
5.4.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/color_track.py
Import Function Library
4 5 6 7 8 9 10 11 12 13 14 15 | import sys import cv2 import math import time from common import misc from common.pid import PID from common import yaml_handle from calibration.camera import Camera from sensor.ultrasonic_sensor import Ultrasonic import kinematics as kinematics ik = kinematics.IK() |
Import the libraries related to OpenCV, time, math, and threads. If want to call a function in library, you can use “library name+function name (parameter, parameter)”. For example:
199 | time.sleep(0.02) |
Call sleep function in time library. The function sleep () is used to delay. There are some built-in libraries in Python, so they can be called directly. For example, time, cv2 and math. You can also write a new library like yaml_handle.
The name of function library is too long to memorize. For calling function easily, the library can be instantiated. For example:
import HiwonderSDK.Board as Board
After instantiating, you can directly input and call the function Board.function name (parameter, parameter).
Main Function Analysis
The python program __name__ == '__main__:' is the main function of program. Firstly, the function init() is called to initialize. The initialization in this program includes: return the servo to the initial position, read the color threshold file. Generally there are also configurations for ports, peripherals, timing interrupts, etc., which are all done in the process of initialization.
After the initialization is completed, set the default tracking color to red and start the robot following.
203 204 205 206 207 208 | if __name__ == '__main__': import HiwonderSDK.Sonar as Sonar from CaneraCalibration.CalibrationConfig import * # 加载参数 param_data = np.load(calibration+param_path + '.npz') |
(1) Read the Captured Image
221 222 | while True: img = my_canera.frame |
When the the game is started, store the image in img.
(2) Enter Image Processing
When the captured image is read, call run function to process the image.
223 224 225 | if img is not None: frame = img.copy() frame = cv2.reamap(frame, mapx, mapy, cv2.INTER_LINEAR) # 畸变矫正 |
① The function img.copy() is used to copy the content of img to frame.
② The function run() is used to process image.
133 134 135 136 137 138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 | def run(img): global x_dis, y_dis img_copy = img.copy() img_h, img_w = img.shape[:2] if not __isRunning or __target_color == (): return img cv2.line(img, (int(img_w/2 - 10), int(img_h/2)), (int(img_w/2 + 10), int(img_h/2)), (0, 255, 255), 2) cv2.line(img, (int(img_w/2), int(img_h/2 - 10)), (int(img_w/2), int(img_h/2 + 10)), (0, 255, 255), 2) img_hisEqul = his_hqul_color(img_copy) frame_resize = cv2.resize(img_hisEqul, size, interpolation=cv2.INTER_NEAREST) frame_gb = cv2.GaussianBlur(frame_resize, (5, 5), 5) frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) area_max = 0 areaMaxContour = 0 for i in lab_data: if i in __target_color: detect_color = i frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) if debug: cv2.imshow(i, dilated) contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] # 找出轮廓(find contours) areaMaxContour, area_max = get_area_maxContour(contours) # 找出最大轮廓(find the largest contour) |
(3) Image Resizing Process
147 | frame_resize = cv2.resize(img_hisEqul, size, interpolation=cv2.INTER_NEAREST) |
The first parameter img_hisEqul is the input image.
The second parameter size is the size of the output image. The size can be set based on you own needs.
The third parameter interpolation=cv2.INTER_NEAREST is interpolation method. INTER_NEAREST is the nearest Neighbour Interpolation. INTER_LINEAR is the Bilinear Interpolation. If the last parameter is not modified, this method INTER_LINEAR will be used by default. INTER_CUBIC: Bicubic interpolation within a 4x4 pixel neighborhood. INTER_LANCZOS4: Lanczos interpolation within an 8x8 pixel neighborhood.
(4) Gaussian filter
Noise is always present in image to influence the image quality to weaken the features. Select the filter methods according to the different noises and the command method includes Gaussian filter, Median filtering, Mean filter, etc. Gaussian filter is a linear filter also smooths an image and reduces noise, which is widely used in processing image to eliminate noise.
148 | frame_gb = cv2.GaussianBlur(frame_resize, (5, 5), 5) |
The first parameter frame_resize is the input image.
The second parameter (5, 5) is the kernel size.
The third parameter 5 is the Gaussian kernel sigma value on x direction.
(5) Covert to Color Space
Use function cv2.cvtColor() to convert image to LAB space.
149 | frame_lab = cv2.cvtColor(frame_gb, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) |
The first parameter frame_gb is the input image.
The second parameter cv2.COLOR_BGR2LAB is the conversion format. cv2.COLOR_BGR2LAB can be used to convert used to change the BGR color space to LAB color space. When code is cv2.COLOR_BGR2RGB , BGR is converted to RGB.
(6) Threshold Processing
Thresholding can be used to create binary images, only 0 and 1. The image can be small size for better processing. Use inRange() function in cv2 library is used to process image with thresholding method.
156 157 158 159 160 161 162 | frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) |
The first parameter frame_lab is the input image.
The second parameter (lab_data[i]['min'][0],lab_data[i]['min'] [1],lab_data[i]['min'][2]) is the lower limit of color threshold.
The third parameter (lab_data[i]['max'][0],lab_data[i]['max'] [1],lab_data[i]['max'][2]) is the upper limit of color threshold.
(7) Erosion and Dilation
Take the code eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) as an example, the meanings of the parameters in the parenthesis are shown below:
163 164 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) |
The first parameter frame_mask is the input image.
The second parameter cv2.getStructuringElement(cv2.MORPH_RECT, (2, 2)) is the structural element or kernel that determines the nature of the operation. The first parameter in the parentheses is the shape of the kernel, and the second parameter is the size of the kernel.
The dilate() function is used to perform the dilation operation on an image. The meaning of the parameters in the parentheses of this function is the same as that of the erode() function.
(8) Find the Largest Contour
After completing the above processing, use the function findContours() in cv2 library to obtain the contour of the recognized target.
167 | contours = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_NONE)[-2] # 找出轮廓(find contours) |
The first parameter dilated is the input image.
The second parameter cv2.RETR_EXTERNAL is the contour retrieval method.
The third parameter cv2.CHAIN_APPROX_NONE)[-2] is the contour approximation method.
Find the largest contour in obtained contours. To avoid interference, set a minimum value and the target contour is effective when the area is greater than the set value.
168 169 170 | areaMaxContour, area_max = get_area_maxContour(contours) # 找出最大轮廓(find the largest contour) if area_max > 50: # 有找到最大面积(the maximum area has been found) |
(9) Obtain location information
Calculate and draw the center points of three rectangles, and use the line_centerx variable to determine the deviation of SpiderPi.
171 172 173 174 175 | (centerX, centerY), radius = cv2.minEnclosingCircle(areaMaxContour) #获取最小外接圆(the minimum bounding rectangle) centerX = int(misc.map(centerX, 0, size[0], 0, img_w)) centerY = int(misc.map(centerY, 0, size[1], 0, img_h)) radius = int(misc.map(radius, 0, size[0], 0, img_w)) cv2.circle(img, (int(centerX), int(centerY)), int(radius), range_rgb[detect_color], 2) |
(10) Display Transmitted Image
225 226 227 228 229 | Frame = run(frame) cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break |
The function cv2.imshow() is used to display an image in a window. “’frame’” is the name of the window, and “’Frame’” is the content to be displayed. It is important to include cv2.waitKey() after this function, otherwise the image won’t be displayed.
The function cv2.waitKey() is used to wait for a key input, and the parameter “1” is the delay time.
Subthread Analysis
When the color is recognized, the program will control the camera of pan-tilt to track. The pan-tilt tracking uses a PID algorithm to move the camera center closer to the target center coordinates. The PID algorithm is the most widely used type of automatic controller. In process control, it is controlled based on the proportion (P), integral (I), and derivative (D) of the error.
177 178 179 180 181 182 183 184 185 186 187 188 189 190 191 192 193 194 195 196 197 198 199 | # use_time = 0 x_pid.SetPoint = img_w/2 #设定(set) x_pid.update(centerX) #当前(current) dx = int(x_pid.output) # use_time = abs(dx*0.00025) x_dis += dx #输出(output) x_dis = 500 if x_dis < 500 else x_dis x_dis = 2500 if x_dis > 2500 else x_dis y_pid.SetPoint = img_h/2 y_pid.update(centerY) dy = int(y_pid.output) # use_time = round(max(use_time, abs(dy*0.00025)), 5) y_dis += dy y_dis = 1000 if y_dis < 1000 else y_dis y_dis = 2000 if y_dis > 2000 else y_dis if not debug: board.pwm_servo_set_position(0.02, [[1, y_dis], [2, x_dis]]) time.sleep(0.02) |
Taking Board.setPWMServoPulse(1, y_dis, 20) as an example of pan-tilt tracking, the meanings of the parameters in the parentheses are as follows:
The first parameter 1 refers to the servo ID, which is servo No.1.
The second parameter y_dis refers to the pulse width of the servo. The pulse width range of servo No.1 is 1200 to 1900.
The third parameter 20 refers to the running time of the servo.
5.4.5 Function Extension
Modify Default Recognition Color
Blue and green are the built-in colors in the color tracking program and green is the default color. In the following steps, we’re going to modify the tracking color as blue.
(1) Enter command to the directory where the game program is located.
cd spiderpi/functions/
(2) Enter command to go into the game program through vim editor.
vim color_track.py
(3) Input “218” and press “shift+g” to the line for modification.
(4) Press “i” to enter the editing mode, then modify green in (_target_color = (‘green’)) to blue.
(5) Press “Esc” to enter last line command mode. Input “:wq” to save the file and exit the editor.
:wq
Add New Recognition Color
In addition to the built-in recognized colors, you can set other tracking colors in the programming. For a better experience, please avoid adding red as the recognition color. Take orange as example:
(1) Open VNC, input command to open Lab color setting document.
vim /home/pi/spiderpi/config/lab_config.yaml
It is recommended to use screenshot to record the initial value.
(2) Click the debugging tool icon in the system desktop. Choose “Run” in the pop-up window.
(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “green” in the right box first.
(4) Drag the corresponding sliders of L, A, and B until the color area to be recognized in the left screen becomes white and other areas become black.
Point the camera at the color you want to recognize. For example, if you want to recognize orange, you can put the orange in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the orange part of the left screen becomes white and other colors become black, and then click “Save” button to keep the modified data.
(5) After the modification is completed, check whether the modified data was successfully written in. Enter the command again to check the color setting parameters.
vim /home/pi/spiderpi/config/lab_config.yaml
For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.
(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter “:wq” to save it and exit.
:wq
(7) The default tracking color can be set as green according to the “5.4.5Modify Default Recognition Color” in this text.
_target_color = ('green',)
(8) Starting the game again, SpiderPi’s head will rotate to follow the movement of target object. If you want to add other colors as recognizable color, please operate as the above steps.
5.5 Line Following
Place the robot on top of the black line, and SpiderPi can move forward along the direction of the black track.
5.5.1 Program Description
Line tracking is common in robot competitions which is implemented by two-channel or four-channel line-tracking sensors. However, SpiderPi only need the vision module to recognize the line color, process by image algorithms, to realize the line follow.
First, program SpiderPi to recognize colors with Lab color space. Convert the RGB color space to Lab, image binarization, and then perform operations such as expansion and corrosion to obtain an outline containing only the target color. Use circles to frame the color outline to realize object color recognition.
Secondly, process the rotation and the x and y coordinates of the center point of the image are used as the set value. Input the current acquired x and y coordinates to update the PID.
Thirdly, calculate according to the feedback of the line position in the image, and program the robot to follow the line to achieve the function of intelligent line tracking.
5.5.2 Start and Close the Game
Note
Pay attention to the text format in the input of instructions.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Double-click on the Raspberry Pi desktop to open the command line terminal.Enter the command and press “Enter” to navigate to the directory where the program is located.
cd spiderpi/functions/
(3) Input command, then press “Enter” to start the game.
python3 visual_patrol.py
(4) If you want to exit the game programming, press “Ctrl+C” in the LX terminal interface. If the exit fails, please try it few more times.
5.5.3 Project Outcome
Note
The default color is black. If you want to change to white or red, please refer to 5.5.5 Function Extension ->Modify Default Tracking Color.

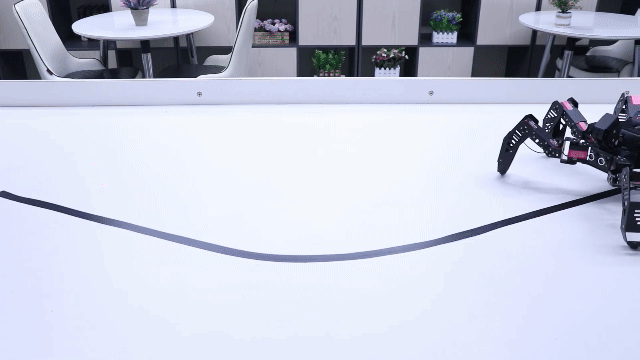

Lay the black tape and then place the robot on the line. SpiderPi will move along the black track.
5.5.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/visual_patrol.py
Import Function Library
4 5 6 7 8 9 10 11 12 13 14 15 | import sys import cv2 import time import math import threading import numpy as np from common import yaml_handle from calibration.camera import Camera from common import kinematics import numpy as np from common import misc from sensor.ultrasonic_sensor import Ultrasonic |
(1) Import the libraries related to OpenCV, time, math, and threads. If want to call a function in library, you can use library name+function name (parameter, parameter). For example:
210 | time.sleep(0.01) |
Call sleep function in time library. The function sleep () is used to delay. There are some built-in libraries in Python, so they can be called directly. For example, “time”, “cv2” and “math”. You can also write a new library like “yaml_handle”.
The name of function library is too long to memorize. For calling function easily, the library can be instantiated. For example:
189 | from common.ros_robot_controller_sdk import Board |
After instantiating, you can directly input and call the function Board.function name (parameter, parameter).
Define Global Variables
18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 | if sys.version_info.major == 2: print('Please run this program with python3!') sys.exit(0) lab_data = None servo_data = None def load_config(): global lab_data, servo_data lab_data = yaml_handle.get_yaml_data(yaml_handle.lab_file_path) servo_data = yaml_handle.get_yaml_data(yaml_handle.servo_file_path) load_config() __target_color = ('red',) |
Main Function Analysis
The python program __name__ == '__main__:' is the main function of program. Firstly, the function init() is called to initialize. The initialization in this program includes: return the servo to the initial position, read the color threshold file. Generally there are also configurations for ports, peripherals, timing interrupts, etc., which are all done in the process of initialization.
(1) Read the Captured Image
200 201 | whiole True: img = camera.frame |
When the the game is started, store the image in img.
(2) Enter Image Processing
When the captured image is read, call run function to process the image.
203 204 205 | frame = img.copy() frame = run(frame) cv2.imshow('frame', frame) |
① The function img.copy() is used to copy the content of “img” to “frame”.
② The function run() is used to process image.
138 139 140 141 142 143 144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 160 161 162 163 164 165 166 167 168 169 170 171 172 173 174 175 176 177 178 179 180 181 182 183 184 | def run(img): global line_center global __target_color if not __isRunning or __target_color == (): return img frame_gb = cv2.GaussianBlur(img, (3, 3), 3) for r in roi: blobs = frame_gb[r[0]:r[1], r[2]:r[3]] frame_lab = cv2.cvtColor(blobs, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) for i in lab_data: if i in __target_color: detect_color = i frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) cnts = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_TC89_L1)[-2] #找出所有轮廓(find all contours) cnt_large, area = get_area_maxContour(cnts) #找到最大面积的轮廓(find the largest contour) if area > 10: rect = cv2.minAreaRect(cnt_large) #最小外接矩形(the minimum bounding rectangle) box = np.intp(cv2.boxPoints(rect)) #最小外接矩形的四个顶点(the four corner points of the minimum bounding rectangle) for j in range(4): box[j, 1] = box[j, 1] + r[0] cv2.drawContours(img, [box], -1, (0, 255, 255), 2) #画出四个点组成的矩形形(draw the rectangle composed of the four points) #获取矩形的对角点(obtain the diagonal points of the rectangle) pt1_x, pt1_y = box[0, 0], box[0, 1] pt3_x, pt3_y = box[2, 0], box[2, 1] line_center_x, line_center_y = (pt1_x + pt3_x) / 2, (pt1_y + pt3_y) / 2 #中心点(center point) cv2.circle(img, (int(line_center_x), int(line_center_y)), 5, (0, 0, 255), -1) #画出中心点(draw the center point) line_center = line_center_x else: if line_center != -2: line_center = -1 return img |
(3) Gaussian filter
Noise is always present in image to influence the image quality to weaken the features. Select the filter methods according to the different noises and the command method includes Gaussian filter, Median filtering, Mean filter, etc. Gaussian filter is a linear filter also smooths an image and reduces noise, which is widely used in processing image to eliminate noise.
145 | frame_gb = cv2.GaussianBlur(img, (3, 3), 3) |
The first parameter img is the input image.
The second parameter (3, 3) is the kernel size.
The third parameter 3 is the Gaussian kernel sigma value on x direction.
(4) Covert to Color Space
Use function cv2.cvtColor() to convert image to LAB space.
149 | frame_lab = cv2.cvtColor(blobs, cv2.COLOR_BGR2LAB) # 将图像转换到LAB空间(convert the image to LAB space) |
The first parameter blobs is the input image.
The second parameter cv2.COLOR_BGR2LAB is the conversion format. cv2.COLOR_BGR2LAB can be used to convert used to change the BGR color space to LAB color space. When code is cv2.COLOR_BGR2RGB , BGR is converted to RGB.
(5) Threshold Processing
Thresholding can be used to create binary images, only 0 and 1. The image can be small size for better processing. Use inRange() function in cv2 library is used to process image with thresholding method.
154 155 156 157 158 159 160 | frame_mask = cv2.inRange(frame_lab, (lab_data[i]['min'][0], lab_data[i]['min'][1], lab_data[i]['min'][2]), (lab_data[i]['max'][0], lab_data[i]['max'][1], lab_data[i]['max'][2])) #对原图像和掩模进行位运算(perform bitwise operation to original image and mask) |
The first parameter frame_lab is the input image.
The second parameter (lab_data[i]['min'][0],lab_data[i]['min'] [1],lab_data[i]['min'][2]) is the lower limit of color threshold.
The third parameter (lab_data[i]['max'][0],lab_data[i]['max'] [1],lab_data[i]['max'][2]) is the upper limit of color threshold.
(6) Erosion and Dilation
Take the code eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3)) as an example, the meanings of the parameters in the parenthesis are shown below:
161 162 | eroded = cv2.erode(frame_mask, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #腐蚀(erode) dilated = cv2.dilate(eroded, cv2.getStructuringElement(cv2.MORPH_RECT, (3, 3))) #膨胀(dilate) |
The first parameter frame_mask is the input image.
The second parameter cv2.getStructuringElement(cv2.MORPH_RECT, (2, 2)) is the structural element or kernel that determines the nature of the operation. The first parameter in the parentheses is the shape of the kernel, and the second parameter is the size of the kernel.
The dilate() function is used to perform the dilation operation on an image. The meaning of the parameters in the parentheses of this function is the same as that of the erode() function.
(7) Find the Largest Contour
After completing the above processing, use the function findContours() in cv2 library to obtain the contour of the recognized target.
163 | cnts = cv2.findContours(dilated, cv2.RETR_EXTERNAL, cv2.CHAIN_APPROX_TC89_L1)[-2] #找出所有轮廓(find all contours) |
The first parameter dilated is the input image.
The second parameter cv2.RETR_EXTERNAL is the contour retrieval method.
The third parameter cv2.CHAIN_APPROX_NONE)[-2] is the contour approximation method.
Find the largest contour in obtained contours. To avoid interference, set a minimum value and the target contour is effective when the area is greater than the set value.
164 165 166 167 168 169 170 171 172 | cnt_large, area = get_area_maxContour(cnts) #找到最大面积的轮廓(find the largest contour) if area > 10: rect = cv2.minAreaRect(cnt_large) #最小外接矩形(the minimum bounding rectangle) box = np.intp(cv2.boxPoints(rect)) #最小外接矩形的四个顶点(the four corner points of the minimum bounding rectangle) for j in range(4): box[j, 1] = box[j, 1] + r[0] cv2.drawContours(img, [box], -1, (0, 255, 255), 2) #画出四个点组成的矩形形(draw the rectangle composed of the four points) |
90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 | def get_area_maxContour(contours): contour_area_temp = 0 contour_area_max = 0 area_max_contour = None max_area = 0 for c in contours: # 历遍所有轮廓(traverse through all contours) contour_area_temp = math.fabs(cv2.contourArea(c)) # 计算轮廓面积(calculate contour area) if contour_area_temp > contour_area_max: contour_area_max = contour_area_temp if contour_area_temp >= 10: # 只有在面积大于设定时，最大面积的轮廓才是有效的，以过滤干扰(Only when the area is greater than the set value, the contour with the maximum area is considered valid to filter out interference) area_max_contour = c max_area = contour_area_temp return area_max_contour, max_area # 返回最大的轮廓(Return the largest contour) |
Calculate and draw the center points of three rectangles, and use the “line_centerx” variable to determine the deviation of SpiderPi.
174 175 176 177 178 179 180 181 182 | #获取矩形的对角点(obtain the diagonal points of the rectangle) pt1_x, pt1_y = box[0, 0], box[0, 1] pt3_x, pt3_y = box[2, 0], box[2, 1] line_center_x, line_center_y = (pt1_x + pt3_x) / 2, (pt1_y + pt3_y) / 2 #中心点(center point) cv2.circle(img, (int(line_center_x), int(line_center_y)), 5, (0, 0, 255), -1) #画出中心点(draw the center point) line_center = line_center_x else: if line_center != -2: line_center = -1 |
(8) Display Transmitted Image
205 206 207 208 | cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break |
The function cv2.imshow() is used to display an image in a window. 'frame' is the name of the window, and 'Frame' is the content to be displayed. It is important to include cv2.waitKey() after this function, otherwise the image won’t be displayed.
The function cv2.waitKey() is used to wait for a key input, and the parameter 1 is the delay time.
Subthread Analysis
Run the move() function of the SpiderPi as a subthread. When a color is recognized, the “move()” function is executed.
The function mainly involves processing the image results, making a judgment, and executing different feedback accordingly, such as the control for the RGB LED and the buzzer.
108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 | def move(): global last_line_center global line_center while True: if __isRunning: if line_center >= 0: if abs(line_center -img_center_x) < 60: ik.go_forward(ik.initial_pos, 2, 60, 50, 1) elif line_center -img_center_x >= 60: ik.turn_right(ik.initial_pos, 2, 30, 50, 1) else: ik.turn_left(ik.initial_pos, 2, 30, 50, 1) last_line_center = line_center elif line_center == -1: if last_line_center >= img_center_x: ik.turn_left(ik.initial_pos, 2, 30, 50, 1) else: ik.turn_right(ik.initial_pos, 2, 30, 50, 1) print(ik.turn_right) else: time.sleep(0.01) |
The function ik.go_forward() controls the forward movement of SpiderPi.
For example, in the codeik.go_forward(ik.initial_pos, 2, 30, 50, 1):
The first parameter ik.initial_pos is the initial posture of SpiderPi.
The second parameter 2 is the motion mode of SpiderPi, where 2 is hexapod mode and 4 is quadruped mode. When in quadruped mode, the corresponding posture needs to be “initial_pos_quadruped”.
The third parameter 30 is the stride length in millimeters (or the turning angle in degrees when turning).
The fourth parameter 50 is the speed in millimeters per second.
The fifth parameter 1 is the number of executions, where 0 means infinite loops.
ik.back() controls the backward movement of SpiderPi. Ik.turn_left() controls the left turn of SpiderPi on the spot, where the third parameter is the turning angle. ik.turn_right() controls the right turn of SpiderPi on the spot, where the third parameter is the turning angle. ik.left_move() controls the left movement of SpiderPi. ik.right_move() controls the right movement of SpiderPi. ik.stand() controls the standing posture of SpiderPi.
5.5.5 Function Extension
Modify Default Tracking Color
Black, red and white are the built-in colors in the line follow program and black is the default color. In the following steps, we’re going to modify the tracking color as white.
(1) Enter command to the directory where the game program is located.
cd spiderpi/functions/
(2) Enter command to go into the game program through vim editor.
vim visual_patrol.py
(3) Input “199” and press “shift+g” to the line for modification.
(4) Press “i” to enter the editing mode, then modify black in _target_color = ('black') to white. If you want to recognize red, please revise to red.
(5) Press “Esc” to enter last line command mode. Input to save the file and exit the editor.
:wq
Add Tracking Color
In addition to the built-in recognized colors, you can set other tracking colors in the programming. Take blue as example:
(1) Open VNC, input command to open Lab color setting document.
vim /home/pi/spiderpi/config/lab_config.yaml
It is recommended to use screenshot to record the initial value.

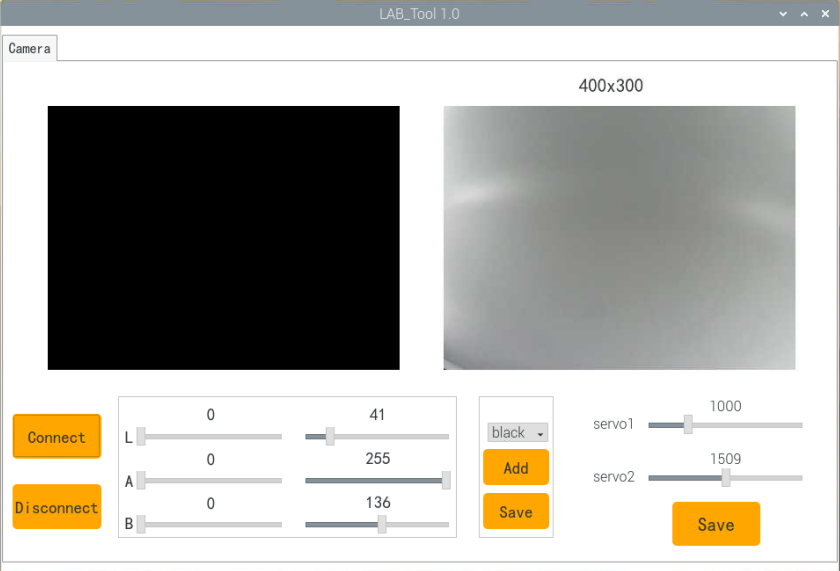

(2) Click the debugging tool icon in the system desktop. Choose “Run” in the pop-up window.

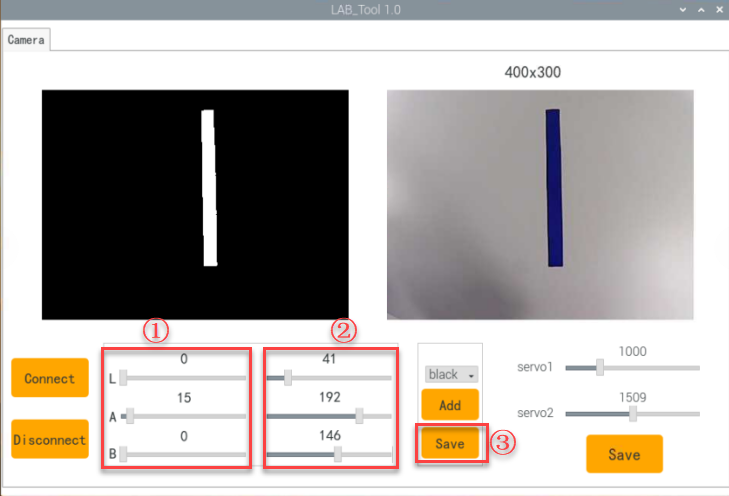

(3) Click “Connect” button in the lower left hand. When the interface display the camera returned image, the connection is successful. Select “black” in the right box first.
(4) Drag the corresponding sliders of L, A, and B until the color area to be recognized in the left screen becomes white and other areas become black.
Point the camera at the color you want to recognize. For example, if you want to recognize blue, you can put the blue line in the camera’s field of view. Adjust the corresponding sliders of L, A, and B until the orange part of the left screen becomes white and other colors become black, and then click “ Save” button to keep the modified data.
For the game’s performance, it’s recommended to use the LAB_Tool tool to modify the value back to the initial value after the modification is completed.
(5) After the modification is completed, check whether the modified data was successfully written in.
vim /home/pi/spiderpi/config/lab_config.yaml

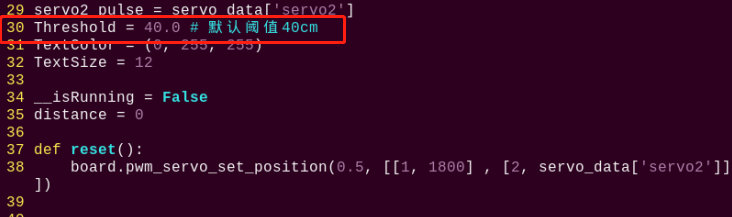

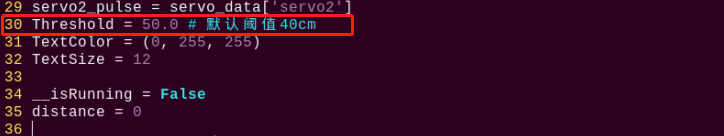

(6) Check the data in red frame. If the edited value was written in the program, press “Esc” and enter “:wq” to save it and exit.
:wq
(7) Set the default tracking color as black according to the 5.5.5Modify Default Tracking Color in below text.
(8) Starting the game again, SpiderPi will track along the blue line. If you want to add other colors as tracking color, please operate as the above steps.
5.6 Tag Detection
When the robot detects a tag, the buzzer emits a sound, and the feedback image is returned.
5.6.1 Program Description
AprilTag, a visual fiducial marker, is similar to a QR code or barcode. It can be used to quickly detect markers and calculate relative positions, meeting real-time requirements. It is widely used in various applications such as augmented reality (AR), robotics, and camera calibration. Currently, AprilTags can be printed using a standard printer, and their detection programs can calculate precise 3D position, orientation, and ID relative to the camera.
In this lesson, we will combine OpenCV with AprilTag to complete a small project for detecting AprilTag markers. When the camera detects the tag, the robot’s onboard buzzer will sound as a prompt, and the feedback image will be displayed.
5.6.2 Start and Close the Game
Note
Pay attention to the text format in the input of instructions.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Double-click on the Raspberry Pi desktop to open the command line terminal.Enter the command and press “Enter” to navigate to the directory where the program is located.
cd spiderpi/functions/
(3) Input command, then press “Enter” to start the game.
python3 apriltag_recognition.py
(4) If you want to exit the game programming, press “Ctrl+C” in the LX terminal interface. If the exit fails, please try it few more times.
5.6.3 Function Outcome
Note
For optimal tag detection, place the tag against a solid-colored or white background. Dark backgrounds (e.g., black) may interfere with tag recognition.

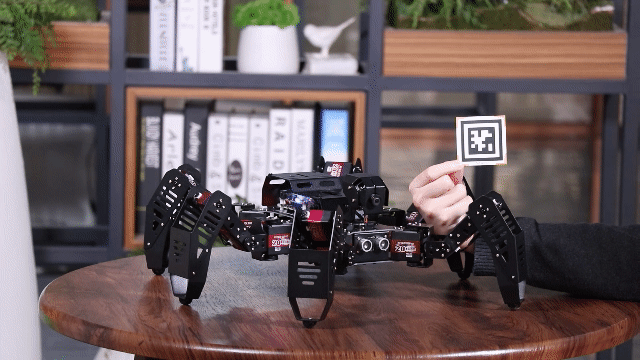

Once the game is activated, position the included AprilTag tag in front of the camera. When the robot detects the tag, the buzzer will sound as a prompt. The feedback image will display the captured tag, outline it, and show the tag’s tag_id and tag_family information.
5.6.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/apriltag_recognition.py
(1) Image Acquisition and Processing
The first step is image processing, which involves working with digital image data. We begin by importing the necessary packages.
4 5 6 7 8 9 10 11 12 13 | import sys import math import threading import time import cv2 import numpy as np from common import yaml_handle from calibration.camera import Camera from common import kinematics import common.apriltag as apriltag |
Next, we initialize and start the camera to acquire the image, then proceed to copy, remap, and display the image.
95 96 97 98 99 100 | while True: img = camera.frame if img is not None: frame = img.copy() Frame = run(frame) cv2.imshow('Frame', Frame) |
Afterward, we need to convert the image from RGB format to grayscale. The corresponding code is as follows:
54 | gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) |
(2) Tag Detection
Once the image has been processed, we need to detect the tag. This is done by using the tag library to detect the tag in the acquired image. The code implementation is as follows:
51 52 | # 检测apriltag(detect apriltag) detector = apriltag.Detector(searchpath=apriltag._get_demo_searchpath()) |
After detection, the program will obtain the four corner points of the tag.
59 | corners = np.rint(detection.corners) # 获取四个角点(obtain the four corner points) |
Next, we need to draw the contours of the tag. In OpenCV, we use the cv2.drawContours function to accomplish this. The program code is as follows:
60 | cv2.drawContours(img, [np.array(corners, np.intp)], -1, (0, 255, 255), 2) |
This function takes five parameters, each with the following meanings:
① img: The image to be processed.
② [np.array(corners, np.int)]: The contour points.
③ -1: The contour index. -1 indicates that all contours should be drawn.
④ (0, 255, 255): The color of the contour.
⑤ 2: The thickness of the contour line.
(3) Retrieving Tag Information
The program uses the AprilTag library to perform encoding and decoding to retrieve the tag’s information. Depending on the encoding method, different inner point coordinates are generated.
Once the quadrilateral is identified, the grid coordinates are clarified. To verify the reliability of the encoding, the tag must be matched against a known encoding library.
62 63 64 65 66 67 68 69 | tag_family = str(detection.tag_family, encoding='utf-8') # 获取tag_family(obtain tag_family) tag_id = int(detection.tag_id) # 获取tag_id(obtain tag_id) object_center_x, object_center_y = int(detection.center[0]), int(detection.center[1]) # 中心点(center point) object_angle = int(math.degrees(math.atan2(corners[0][1] - corners[1][1], corners[0][0] - corners[1][0]))) # 计算旋转角(calculate rotation angle) return tag_family, tag_id |
5.7 Tag Recognition
SpiderPi executes corresponding actions by recognizing tags with camera.
5.7.1 Program Description
AprilTag, a visual positioning marker, can quickly detect the marker and calculate the position. It’s mainly applied to AR, robot and camera calibration, etc.
First, detect AprilTag through positioning, image segmentation, and contour search. Then the quadrilateral detection is performed after the contour is positioned. Connect the four corner points with a straight line to form a closed loop. Encoding and decoding the detected tags. Finally, add the corresponding execution action according to the decoding tags with different IDs.
5.7.2 Start and Close the Game
Note
Pay attention to the text format in the input of instructions.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Double-click on the Raspberry Pi desktop to open the command line terminal.Enter the command and press “Enter” to navigate to the directory where the program is located.
cd spiderpi/functions/
(3) Input command, then press “Enter” to start the game.
python3 apriltag_detect.py
(4) If you want to exit the game programming, press “Ctrl+C” in the LX terminal interface. If the exit fails, please try it few more times.
5.7.3 Project Outcome
Note
Please run this game on a solid color or a white background. Dark background such as black will affect the tag recognition performance.
After starting the tag recognition, place the tag cards in front of the camera to recognize in turns. SpiderPi will execute the corresponding actions when the tag is recognized.
| Tag ID | Action |
|---|---|
| 1 | wave |
| 2 | stepping |
| 3 | Twist |
5.7.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/apriltag_detect.py
Import Function Library
4 5 6 7 8 9 10 11 12 13 | import sys import math import threading import time import cv2 import numpy as np from common import yaml_handle from calibration.camera import Camera from common import kinematics import common.apriltag as apriltag |
(1) Import the libraries related to OpenCV, time, math, and threads. If want to call a function in library, you can use library name+function name (parameter, parameter). For example:
185 | time.sleep(0.01) |
Call sleep function in time library. The function sleep () is used to delay. There are some built-in libraries in Python, so they can be called directly. For example, time, cv2 and math. You can also write a new library like yaml_handle.
(2) Instantiate Function Library
The name of function library is too long to memorize. For calling function easily, the library can be instantiated. For example:
159 | from common.ros_robot_controller_sdk import Board |
After instantiating, you can directly input and call the function “Board.function name (parameter, parameter)”.
(3) Main Function Analysis
The python program "__name__ == '__main__:'" is the main function of program. Firstly, the function “init()” is called to initialize. The initialization in this program includes: return the servo to the initial position, read the color threshold file. Generally there are also configurations for ports, peripherals, timing interrupts, etc., which are all done in the process of initialization.
After the initialization is completed, set the default tracking color to red and start the robot following.
158 159 160 161 162 163 164 165 | if __name__ == '__main__': from common.ros_robot_controller_sdk import Board from sensor.ultrasonic_sensor import Ultrasonic from common.action_group_controller import ActionGroupController board = Board() ik = kinematics.IK(board) # 实例化逆运动学库(instantiate inverse kinematics library) ultrasonic = Ultrasonic() AGC = ActionGroupController(board) |
(4) Enter Image Processing
① Initialize Functions and Variables.
15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 | debug = False #HWSONAR = None if sys.version_info.major == 2: print('Please run this program with python3!') sys.exit(0) lab_data = None servo_data = None def load_config(): global lab_data, servo_data lab_data = yaml_handle.get_yaml_data(yaml_handle.lab_file_path) servo_data = yaml_handle.get_yaml_data(yaml_handle.servo_file_path) load_config() # 初始位置(initial position) def initMove(): ultrasonic.setRGBMode(0) ultrasonic.setRGB(1, (0, 0, 0)) ultrasonic.setRGB(2, (0, 0, 0)) board.pwm_servo_set_position(0.5, [[1, 1500] , [2, servo_data['servo2']]]) tag_id = None __isRunning = False action_finish = True # 变量重置(reset variables) def reset(): global tag_id global action_finish tag_id = 0 action_finish = True |
② Obtain Corner Point Information
Call the np.rint() function to obtain the four corner points of the tag.
115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 | # 检测apriltag(detect apriltag) detector = apriltag.Detector(searchpath=apriltag._get_demo_searchpath()) def apriltagDetect(img): gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY) detections = detector.detect(gray, return_image=False) if len(detections) != 0: for detection in detections: corners = np.rint(detection.corners) # 获取四个角点(obtain the four corner points) cv2.drawContours(img, [np.array(corners, np.intp)], -1, (0, 255, 255), 2) tag_family = str(detection.tag_family, encoding='utf-8') # 获取tag_family(obtain tag_family) tag_id = int(detection.tag_id) # 获取tag_id(obtain tag_id) object_center_x, object_center_y = int(detection.center[0]), int(detection.center[1]) # 中心点(center point) object_angle = int(math.degrees(math.atan2(corners[0][1] - corners[1][1], corners[0][0] - corners[1][0]))) # 计算旋转角(calculate rotation angle) return tag_family, tag_id return None, None |
③ Detect Tag
After the information of corner points is obtained, call drawContours() function in cv2 library to control SpiderPi to recognize the tag.
124 | cv2.drawContours(img, [np.array(corners, np.intp)], -1, (0, 255, 255), 2) |
The meaning of the parameters in the function parentheses is as follows:
The first parameter img is the input image.
The second parameter [np.array(corners, np.int)] is the contour itself, which is a list in Python.
The third parameter -1 is the index of the contour, and the numerical value represents drawing all the contours in the list.
The fourth parameter (0, 255, 255) is the contour color, in the order of B, G, R, which is yellow in this case.
The fifth parameter 2 is the contour width.
(5) Obtain the tag ID (tag_id)
126 127 | tag_family = str(detection.tag_family, encoding='utf-8') # 获取tag_family(obtain tag_family) tag_id = int(detection.tag_id) # 获取tag_id(obtain tag_id) |
Call the putText() function in cv2 library to display the ID and type of the tag in the live camera feed.
150 | cv2.putText(img, "tag_id: None", (10, img.shape[0] - 30), cv2.FONT_HERSHEY_SIMPLEX, 0.65, [0, 255, 255], 2) |
The meaning of the parameters in the function parentheses is as follows:
The first parameter img is the input image.
The second parameter str(tag_id) is the content to be displayed.
The third parameter (10, img.shape[0] - 30) is the display position.
The fourth parameter cv2.FONT_HERSHEY_SIMPLEX is the font type.
The fifth parameter 0.65 is the font size.
The sixth parameter [0, 255, 255] is the font color, in the order of B, G, R, which is yellow in this case.
The seventh parameter 2 is the font thickness.
(6) Action Control
After the tag ID is obtained, call runActionGroup() function in the ActionGroupControl library. This allows SpiderPi to perform corresponding actions.
76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 | def move(): global tag_id global action_finish while True: if debug: return if __isRunning: if tag_id is not None: action_finish = False time.sleep(0.5) if tag_id == 1: AGC.run_action('wave')#招手(wave) tag_id = None time.sleep(1) action_finish = True elif tag_id == 2: AGC.run_action('stepping')#原地踏步(stepping) tag_id = None time.sleep(1) action_finish = True elif tag_id == 3: AGC.run_action('twist_l')#扭腰(twist) tag_id = None time.sleep(1) action_finish = True else: action_finish = True time.sleep(0.01) else: time.sleep(0.01) else: time.sleep(0.01) |
5.8 Face Recognition
The robot will perform a greeting action upon recognizing a face through the camera.
5.8.1 Program Description
Face recognition is one of the most widely used applications in artificial intelligence, particularly in image recognition. Among these applications, face recognition is the most popular, often used in scenarios like smart locks and facial unlocking on mobile phones.
In this activity, we first train the face recognition model. The system then detects faces by scaling the image. After detection, the coordinates of the recognized face are converted back to the original scale, and the largest face is identified. The recognized face is then outlined with a frame.
Next, the pan-tilt servos are set to rotate left and right to locate the face. Finally, the robot executes the feedback action based on the recognition results.
5.8.2 Start and Close the Game
Note
Pay attention to the text format in the input of instructions.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Double-click on the Raspberry Pi desktop to open the command line terminal.Enter the command and press “Enter” to navigate to the directory where the program is located.
cd spiderpi/functions/
(3) Input command, then press “Enter” to start the game.
python3 face_recongition.py
(4) If you want to exit the game programming, press “Ctrl+C” in the LX terminal interface. If the exit fails, please try it few more times.
5.8.3 Project Outcome
Note
For optimal performance, please avoid using this activity under strong lighting conditions, such as direct sunlight or close proximity to incandescent lights, as intense light can affect face recognition accuracy. It is recommended to conduct this activity indoors, with the face positioned within a range of 50 cm to 1 meter from the camera.
The robot will perform a greeting action upon recognizing a face through the camera.
5.8.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/face_recongition.py
Function Logic
(1) Importing Libraries
At this initialization step, necessary libraries are imported to facilitate future function calls within the program.
4 5 6 7 8 9 10 11 12 13 14 15 | import sys import cv2 import time import sys import threading import mediapipe as mp from common import yaml_handle from calibration.camera import Camera from common.action_group_controller import ActionGroupController from common.ros_robot_controller_sdk import Board from calibration.camera import Camera from common import kinematics |
(2) Setting Initial State
19 20 21 22 23 24 25 26 27 28 29 30 31 32 | debug = False iHWSONAR = None board = None if sys.version_info.major == 2: print('Please run this program with python3!') sys.exit(0) # 导入人脸识别模块(import facial recognition module) Face = mp.solutions.face_detection # 自定义人脸识别方法，最小的人脸检测置信度0.5(Customize face recognition method, and the minimum face detection confidence is 0.5) faceDetection = Face.FaceDetection(min_detection_confidence=0.8) lab_data = None servo_data = None |
(3) Color Space Conversion
The BGR image is converted to an RGB image.
79 | imgRGB = cv2.cvtColor(img_copy, cv2.COLOR_BGR2RGB) # 将BGR图像转为RGB图像(convert BGR image to RGB image) |
(4) Using Mediapipe Face Model for Recognition.
The system performs face detection and draws a rectangle around the detected face. Then, the position of the face is compared to the center of the image. If the face is centered, start_greet is set to True to trigger the action group.
81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 | if results.detections: # 如果检测不到人脸那就返回None(If the face is not detected, return None) for index, detection in enumerate(results.detections): # 返回人脸索引index(第几张脸)，和关键点的坐标信息(Return the face index (which face) and the coordinate information of the keypoints) scores = list(detection.score) if scores and scores[0] > 0.75: bboxC = detection.location_data.relative_bounding_box # 设置一个边界框，接收所有的框的xywh及关键点信息(Set a bounding box to receive xywh and keypoint information for all boxes) # 将边界框的坐标点,宽,高从比例坐标转换成像素坐标(Convert the coordinates' width and height of the bounding box from proportional coordinates to pixel coordinates) bbox = ( int(bboxC.xmin * img_w), int(bboxC.ymin * img_h), int(bboxC.width * img_w), int(bboxC.height * img_h) ) cv2.rectangle(img, bbox, (0, 255, 0), 2) # 在每一帧图像上绘制矩形框(draw a rectangle on each frame of the image) # 获取识别框的信息, xy为左上角坐标点(Get information about the recognition box, where xy is the coordinates of the upper left corner) x, y, w, h = bbox center_x = int(x + (w / 2)) center_y = int(y + (h / 2)) area = int(w * h) if not start_greet: board.set_buzzer(2400, 0.1, 0.2, 1) start_greet = True else : start_greet = False |
(5) Face Recognition
If a face is detected, the Board.setPWMServoPulse function is used to control the servo motor by setting the PWM (Pulse Width Modulation) to perform the waving action.
The first parameter 0.05 is the pulse interval or duration.
The second parameter 3 refers to the pin number connected to the servo.
The third parameter 500 represents the pulse width, which typically corresponds to the servo’s position.
130 131 132 133 134 135 136 137 138 139 140 | while True: img = camera.frame if img is not None: frame = img.copy() Frame = run(frame) cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break else: time.sleep(0.01) |
(6) Display the Transmitted Image
Call the resize() function in the cv2 library to scale the image and display it in real time on the transmitted Image.
133 134 135 136 137 138 | frame = img.copy() Frame = run(frame) cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break |
when a face is detected, the buzzer makes a sound.
104 | board.set_buzzer(2400, 0.1, 0.2, 1) |
5.9 Facial Recognition
This section demonstrates on how to use the camera to recognize face, and SpiderPi executes the greeting action.
5.9.1 Program Description
This is no doubt that the most widely used application in artificial intelligence is image recognition, and face recognition is the hottest application, often used in scenarios such as door locks and mobile phone face unlocking.
The trained face model is first zoomed to detect the face. Then the recognized face coordinates are converted to the coordinates before scaling. Judge whether it is the largest face, and frame the recognized face. Then set the servo in head to rotate left and right to obtain the face, and call the action group to let the robot perform the recognized feedback.
5.9.2 Start and Close the Game
Note
Pay attention to the text format in the input of instructions.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Double-click on the Raspberry Pi desktop to open the command line terminal.Enter the command and press “Enter” to navigate to the directory where the program is located.
cd spiderpi/functions/
(3) Input command, then press “Enter” to start the game.
python3 face_detect.py
(4) If you want to exit the game programming, press “Ctrl+C” in the LX terminal interface. If the exit fails, please try it few more times.
5.9.3 Project Outcome
Note
Please do not try the Facial Recognition game under strong light, such as sunlight. Strong light will affect the recognition performance, so it is recommended to play this game indoors. It’s better to set the distance between face and camera within 1m.
Start the facial recognition function, SpiderPi will rotate its head to detect face. It will stop when the face is recognized, and run the greeting actions.
5.9.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/face_detect.py
Import Function Library
4 5 6 7 8 9 10 11 12 13 14 15 | import sys import cv2 import time import sys import threading import mediapipe as mp from common import yaml_handle from calibration.camera import Camera from common.action_group_controller import ActionGroupController from common.ros_robot_controller_sdk import Board from calibration.camera import Camera from common import kinematics |
Define Global Variables
19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 | debug = False iHWSONAR = None board = None if sys.version_info.major == 2: print('Please run this program with python3!') sys.exit(0) # 导入人脸识别模块(import facial recognition module) Face = mp.solutions.face_detection # 自定义人脸识别方法，最小的人脸检测置信度0.5(Customize face recognition method, and the minimum face detection confidence is 0.5) faceDetection = Face.FaceDetection(min_detection_confidence=0.8) lab_data = None servo_data = None def load_config(): global lab_data, servo_data lab_data = yaml_handle.get_yaml_data(yaml_handle.lab_file_path) servo_data = yaml_handle.get_yaml_data(yaml_handle.servo_file_path) |
Main Function Analysis
(1) Initialize and Instantiate
167 168 169 170 171 172 173 174 175 176 177 178 | if __name__ == '__main__': from common.ros_robot_controller_sdk import Board from sensor.ultrasonic_sensor import Ultrasonic from common.action_group_controller import ActionGroupController board = Board() ik = kinematics.IK(board) # 实例化逆运动学库(instantiate inverse kinematics library) ultrasonic = Ultrasonic() AGC = ActionGroupController(board) init() start() |
① Call init() function to initialize SpiderPi.
42 43 44 45 46 47 48 | # 初始位置(initial position) def initMove(): ultrasonic.setRGBMode(0) ultrasonic.setRGB(1, (0, 0, 0)) ultrasonic.setRGB(2, (0, 0, 0)) board.pwm_servo_set_position(0.5, [[1, 1800] , [2, servo_data['servo2']]]) |
② Call reset() function to reset variable parameters such as servo.
54 55 56 57 58 59 60 61 62 63 64 65 | # 变量重置(reset variables) def reset(): global d_pulse global start_greet global servo2_pulse global action_finish start_greet = False action_finish = True servo2_pulse = servo_data['servo2'] initMove() |
③ Call start() function to enable the game of facial recognition.
73 74 75 76 77 | # app开始玩法调用(call app start game) def start(): global __isRunning __isRunning = True print("FaceDetect Start") |
⑤ Instantiate the camera library and call camera_open() function to enable camera’s distortion correction.
180 181 | camera = Camera() camera.camera_open(correction=True) |
(2) Enter Image Processing
① Store the captured image in img. If the image is not empty, call run function to process the image.
182 183 184 185 186 | while True: img = camera.frame if img is not None: frame = img.copy() Frame = run(frame) |
② Convert the coordinate of the obtained facial image.
③ During image pre-processing, the image will be scaled and the face coordinates obtained may not match the actual image. Therefore, after completing the image pre-processing, coordinate transformation is needed to match the coordinates with the actual image.
144 145 146 147 148 149 150 151 152 153 154 155 156 157 158 159 | # 将边界框的坐标点,宽,高从比例坐标转换成像素坐标(Convert the coordinates' width and height of the bounding box from proportional coordinates to pixel coordinates) bbox = ( int(bboxC.xmin * img_w), int(bboxC.ymin * img_h), int(bboxC.width * img_w), int(bboxC.height * img_h) ) cv2.rectangle(img, bbox, (0, 255, 0), 2) # 在每一帧图像上绘制矩形框(draw a rectangle on each frame of the image) # 获取识别框的信息, xy为左上角坐标点(Get information about the recognition box, where xy is the coordinates of the upper left corner) x, y, w, h = bbox center_x = int(x + (w / 2)) center_y = int(y + (h / 2)) area = int(w * h) if action_finish: start_greet = True |
④ Call cv2.rectangle() function from the cv2 library to frame the faces in the transmitted image with a rectangular box.
151 | cv2.rectangle(img, bbox, (0, 255, 0), 2) # 在每一帧图像上绘制矩形框(draw a rectangle on each frame of the image) |
The meaning of the parameters inside the function parentheses is as follows:
The first parameter img is the image of the rectangle box to be drawn.
The second parameter bbox is a tuple including the coordinates and dimensions of the rectangle box.
The third parameter (0, 255, 0) is the color of the rectangle border, in BGR format. Here it is green.
The fourth parameter “2” is the thickness of the rectangle border.
(3) Display Transmitted Image
Call the resize() function in cv2 library to scale the image and display it in the live camera feed.
185 186 187 188 189 190 | frame = img.copy() Frame = run(frame) cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break |
Subthread Analysis
① Run a sub-thread that calls the move() function to control the movement of pan-tilt servo.
116 117 118 119 | # 运行子线程(run sub-thread) th = threading.Thread(target=move) th.setDaemon(True) th.start() |
② In the move() function, adjust the rotation of the pan-tilt servo by sliding the window.
92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 | def move(): global start_greet global action_finish global d_pulse, servo2_pulse while True: if __isRunning: if start_greet: start_greet = False action_finish = False AGC.run_action('wave') # 识别到人脸时执行的动作(If the face is detected, execute the action) action_finish = True time.sleep(0.5) else: if servo2_pulse > 2000 or servo2_pulse < 1000: d_pulse = -d_pulse servo2_pulse += d_pulse board.pwm_servo_set_position(0.05, [[2, servo2_pulse]]) time.sleep(0.05) else: time.sleep(0.01) |
③ The meanings of the parameters in the parentheses of the code board.pwm_servo_set_position(0.05, [[2, servo2_pulse]]) are as follows:
The first parameter 2 is the servo number, indicating that the control target is servo No. 2.
The second parameter servo2_pulse is the pulse width of the servo, ranging from 1000 to 1900.
The third parameter 50 is the running time of the servo, in milliseconds.
5.9.5 Function Extension
Modify Feedback Action
The built-in file is located in : /home/pi/SpiderPi/ActionGroups.
Program default setting is that SpiderPi will execute the greeting action when detect the face. The feedback action can be revised to others such as twisting.
(1) Enter command to the directory where the game program is located.
cd SpiderPi/Functions/
(2) Enter command to go into the game program through vim editor.
vim face_detect.py
(3) Input “104” and press “shift+g” to the line for modification.
(4) “wave” in the above image is the name of greeting action. If we want to revise the action to bowing, enter “twist” instead of “wave” in the “Action group instruction” in the path:/home/pi/spiderpi/action_groups/.
The action name can be found in the “Action group instruction”.
(5) Press “i” to enter the editing mode, then modify “wave” to “twist”.
(6) Press “Esc” to enter last line command mode. Input “:wq” to save the file and exit the editor.
:wq
5.10 Auto Obstacle Avoidance
5.10.1 Program Description
Ultrasonic sensor can measure the distance to the front object. When it’s longer than the setting measured distance, SpiderPi will move forward. When it’s less than the setting, SpiderPi will turn to avoid the obstacle in front.
5.10.2 Start and Close the Game
Note
Pay attention to the text format in the input of instructions.
(1) Power on the robot and use VNC Viewer to connect to the remote desktop.
(2) Double-click on the Raspberry Pi desktop to open the command line terminal.Enter the command and press “Enter” to navigate to the directory where the program is located.
cd spiderpi/functions/
(3) Input command, then press “Enter” to start the game.
python3 avoidance.py
(4) If you want to exit the game programming, press “Ctrl+C” in the LX terminal interface. If the exit fails, please try it few more times.
5.10.3 Project Outcome
After starting, the screen will display the measured distance. SpiderPi will turn left to avoid the obstacle when the distance less than 40cm; Move forward when the distance more than 40cm.
5.10.4 Program Analysis
The source code of the program is located in：/home/pi/spiderpi/functions/avoidance.py
Import Function Library
4 5 6 7 8 9 10 11 12 13 14 | import os import sys import cv2 import time import threading import numpy as np import pandas as pd from common import yaml_handle from common import kinematics from calibration.camera import Camera from sensor.ultrasonic_sensor import Ultrasonic |
Define Global Variables
16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 | if sys.version_info.major == 2: print('Please run this program with python3!') sys.exit(0) board = None servo_data = None def load_config(): global lab_data, servo_data lab_data = yaml_handle.get_yaml_data(yaml_handle.lab_file_path) servo_data = yaml_handle.get_yaml_data(yaml_handle.servo_file_path) load_config() servo2_pulse = servo_data['servo2'] Threshold = 40.0 # 默认阈值40cm(default threshold is 40cm) TextColor = (0, 255, 255) TextSize = 12 |
Main Function Analysis
(1) Initialize and Instantiate
116 117 118 119 120 121 122 123 124 125 126 127 | if __name__ == '__main__': from common.ros_robot_controller_sdk import Board board = Board() ik = kinematics.IK(board) ultrasonic = Ultrasonic() init() start() camera = Camera() camera.camera_open(correction=True) # 开启畸变矫正,默认不开启(enable distortion correction which is not started by default) |
① Call init() function to initialize SpiderPi.
42 43 44 | def init(): reset() print('Avoidance Init') |
② Call reset() function to reset servo variable.
38 39 | def reset(): board.pwm_servo_set_position(0.5, [[1, 1800] , [2, servo_data['servo2']]]) |
③ Instantiate the camera library and call “camera_open()” function to enable camera’s distortion correction.
126 127 | camera = Camera() camera.camera_open(correction=True) # 开启畸变矫正,默认不开启(enable distortion correction which is not started by default) |
(2) Sensor Detection Processing
① Call the getDistance() function in the HWSONAAR library to obtain the detection value of the ultrasonic, then store it into the data list.
101 102 103 104 | # 数据处理，过滤异常值(process data and filter abnormal values) distance_ = ultrasonic.getDistance() / 10.0 distance_data.append(distance_) data = pd.DataFrame(distance_data) |
② In order to prevent misidentification, make sure to take the average of five recognition results to determine whether an obstacle has been identified.
99 100 101 102 103 104 105 106 107 108 109 | if __isRunning: # 数据处理，过滤异常值(process data and filter abnormal values) distance_ = ultrasonic.getDistance() / 10.0 distance_data.append(distance_) data = pd.DataFrame(distance_data) data_ = data.copy() u = data_.mean() # 计算均值(calculate mean) std = data_.std() # 计算标准差(calculate standard deviation) data_c = data[np.abs(data - u) <= std] distance = data_c.mean()[0] |
③ Call the putText() function in cv2 library to display the ultrasonic ranging on the image.
cv2.putText(img, "Dist:%.1fcm" % distance, (30, 480 - 30), cv2.FONT_HERSHEY_SIMPLEX, 1.2, TextColor, 2)
(3) Display Transmitted Image
Call the show() function in cv2 library to display the image in the live camera feed.
116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141 | if __name__ == '__main__': from common.ros_robot_controller_sdk import Board board = Board() ik = kinematics.IK(board) ultrasonic = Ultrasonic() init() start() camera = Camera() camera.camera_open(correction=True) # 开启畸变矫正,默认不开启(enable distortion correction which is not started by default) while True: img = camera.frame if img is not None: frame = img.copy() Frame = run(frame) cv2.imshow('Frame', Frame) key = cv2.waitKey(1) if key == 27: break else: time.sleep(0.01) camera.camera_close() cv2.destroyAllWindows() |
Subthread Analysis
Run the move() function of the SpiderPi as a subthread. This controls the movement of SpiderPi.
89 | threading.Thread(target=move, daemon=True).start() |
In the move() function, set the movement speed of SpiderPi.
75 76 77 78 79 80 81 82 83 84 85 86 87 | def move(): while True: if __isRunning: if 0 < distance < Threshold: while distance < 25: # 小于25cm时后退(back up when the distance is less than 25cm) ik.back(ik.initial_pos, 2, 80, 50, 1) for i in range(6): # 左转6次，每次15度，一共90度(Turn left 6 times with 15 degrees each time, a total of 90 degree) if __isRunning: ik.turn_left(ik.initial_pos, 2, 50, 50, 1) else: ik.go_forward(ik.initial_pos, 2, 80, 50, 1) else: time.sleep(0.01) |
The function ik.go_forward() controls the forward movement of SpiderPi.
For example, in the code ik.go_forward(ik.initial_pos, 2, 80, 50, 1):
The first parameter ik.initial_pos is the initial posture of SpiderPi.
The second parameter 2 is the motion mode of SpiderPi, where 2 is hexapod mode and 4 is quadruped mode. When in quadruped mode, the corresponding posture needs to be initial_pos_quadruped.
The third parameter 80 is the stride length in millimeters (or the turning angle in degrees when turning).
The fourth parameter 50 is the speed in millimeters per second.
The fifth parameter 1 is the number of executions, where 0 means infinite loops.
ik.back() controls the backward movement of SpiderPi. Ik.turn_left() controls the left turn of SpiderPi on the spot, where the third parameter is the turning angle. ik.turn_right() controls the right turn of SpiderPi on the spot, where the third parameter is the turning angle. ik.left_move() controls the left movement of SpiderPi. ik.right_move() controls the right movement of SpiderPi. ik.stand() controls the standing posture of SpiderPi.
5.10.5 Function Extension
Modify the Measured Value
The default measured range set by the program is 40cm. Please note that the modification range should be between 30-60cm. Therefore we’re going to revise the range to 50cm as example.
(1) Enter command to the directory where the game program is located.
vim avoidance.py
(2) Enter “30” and press “shift+g” to go into the game program.
(3) Press “i” to enter the editing mode, then modify the data from “40.0” to “50.0”.
(4) Press “Esc” and “shift+:”. Input “:wq” to save the file and exit the editor.
:wq
(5) Start the game again, the default measured range will be changed from 40cm to 50cm.
